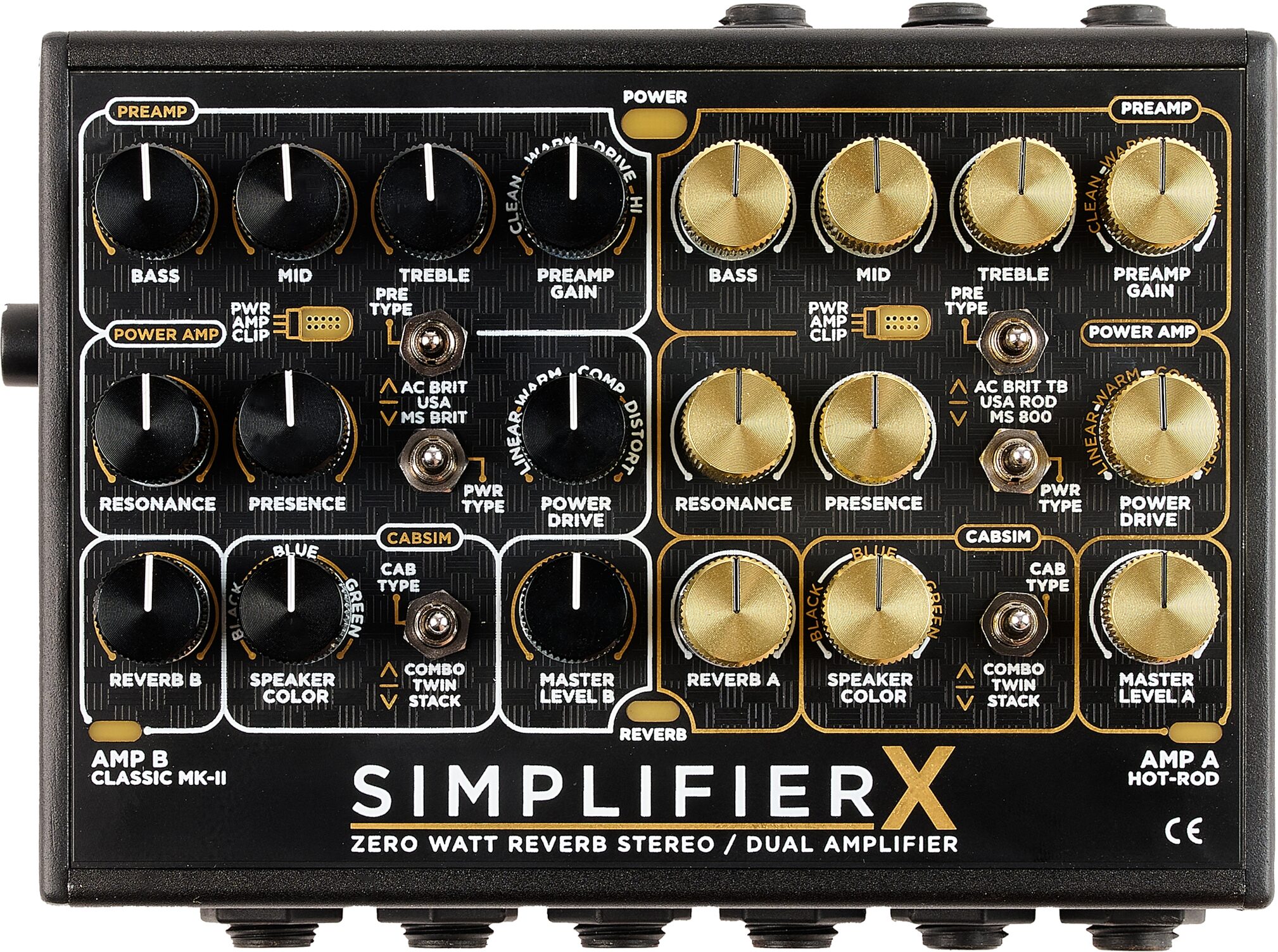

DSM Humboldt Simplifier X Zero-Watt Amp Simulator

DSM Humboldt Simplifier X Zero-Watt Amp Simulator, New, Action Position Back

zZounds Gear Experts Say...

Get all the amplifier power and versatility you need with none of the menu diving! This stereo amp sim has zero latency and puts controls at your fingertips.

Overview

Welcome to the X. The most advanced analog amp simulator DSM has ever made.

Research. Design. Improve.
The Simplifier X was thoroughly designed and developed to fulfill the needs of guitarists seeking versatility, flexibility, practicality and of course, the ability to get the best tones ever produced by analog gear.

Features:

- No Menu Diving
- Zero Latency
- Ultra Realistic Sound & Feel
- What You See Is What You Get
- Unprecedented Ultra Connectivity Platform
- True Stereo
- 3 Unique Reverb Sounds
- 3 Different Amp Modes
- No extra Y cable needed

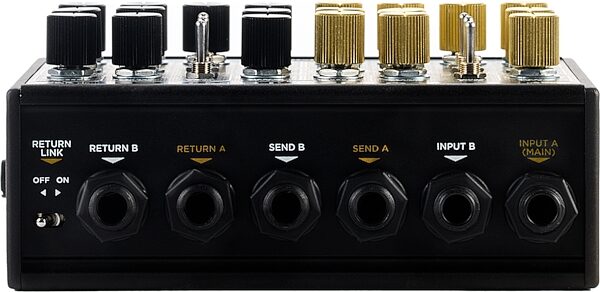

- Dual FX Sends/Returns
- THRU jack for dedicated DRY AMP signal path
- Two XLR DI Outputs

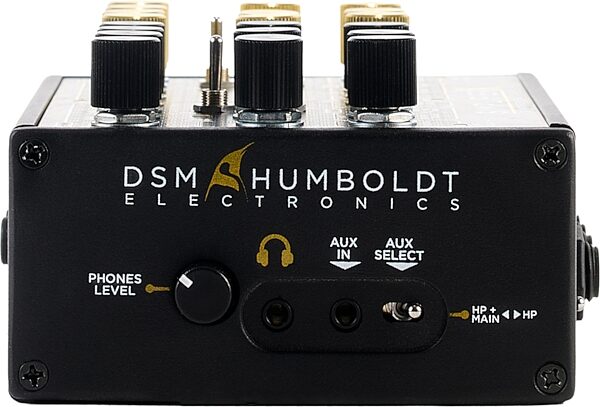

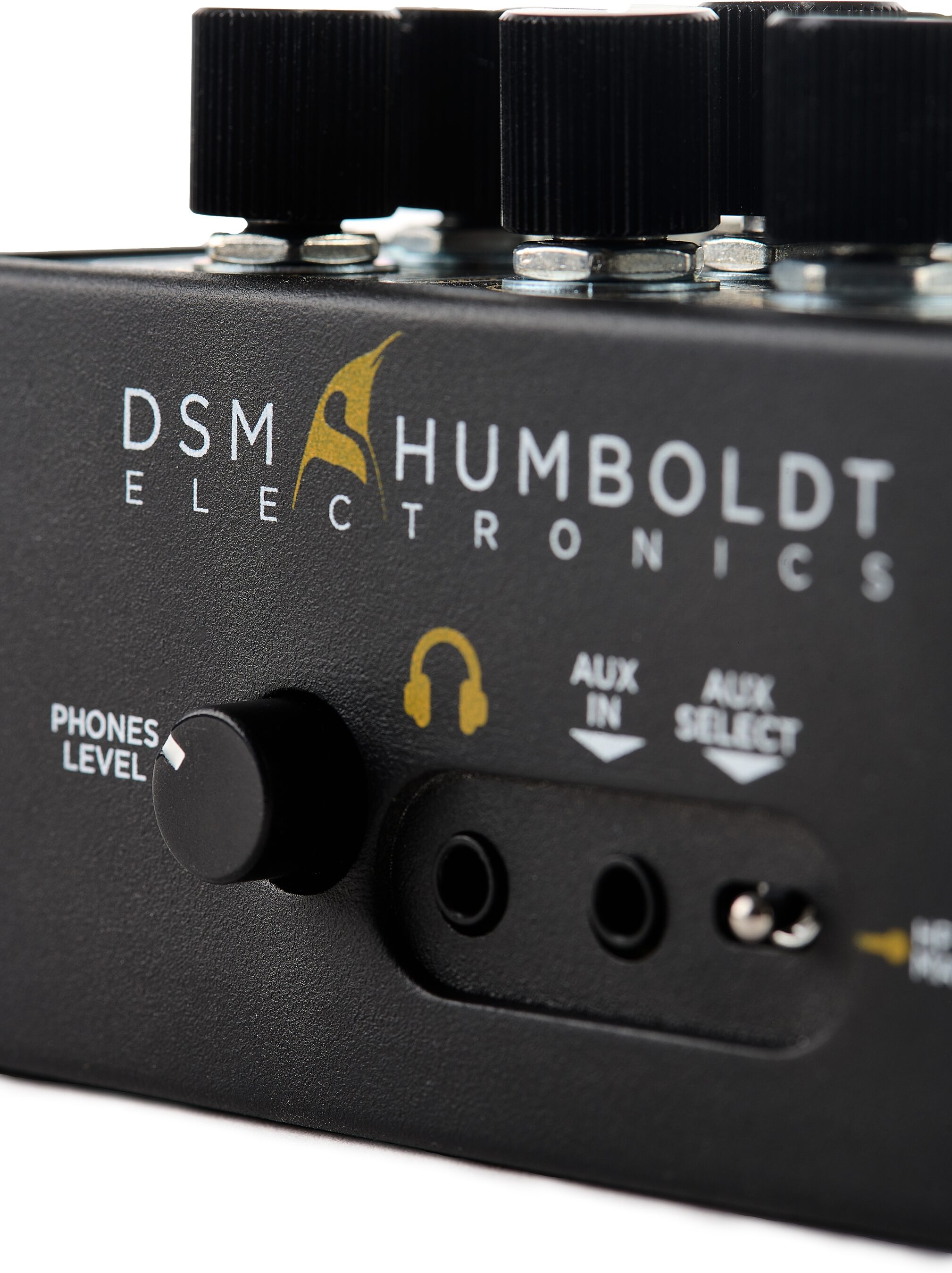

Assignable AUX Input
Selectable AUX input for silent practice thru headphones only OR send your aux signal straight to the PA using the XLR outputs.

Multi-Stage Reverb
A full stereo reverb, with mix control for each channel.
3 Modes:
- Short: Room Style
- Mid: Plate Style
- Long: Ether Style

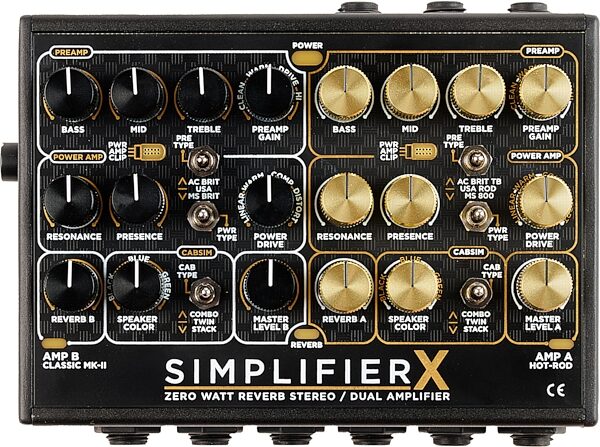

The X Amps

-AMP A: Hot Rod
- AC Brit: Based on the 60's VOX AC-30 TOP BOOST
- USA ROD: Based on the Hot-Rod Series
- MS 800: Based on the JCM 800
-AMP B: Classic MK-II
- AC Brit: Based on the VOX AC-15 Normal Channel
- USA: Based on the '59 Bassman
- MS Brit: Based on the '59 Plexi

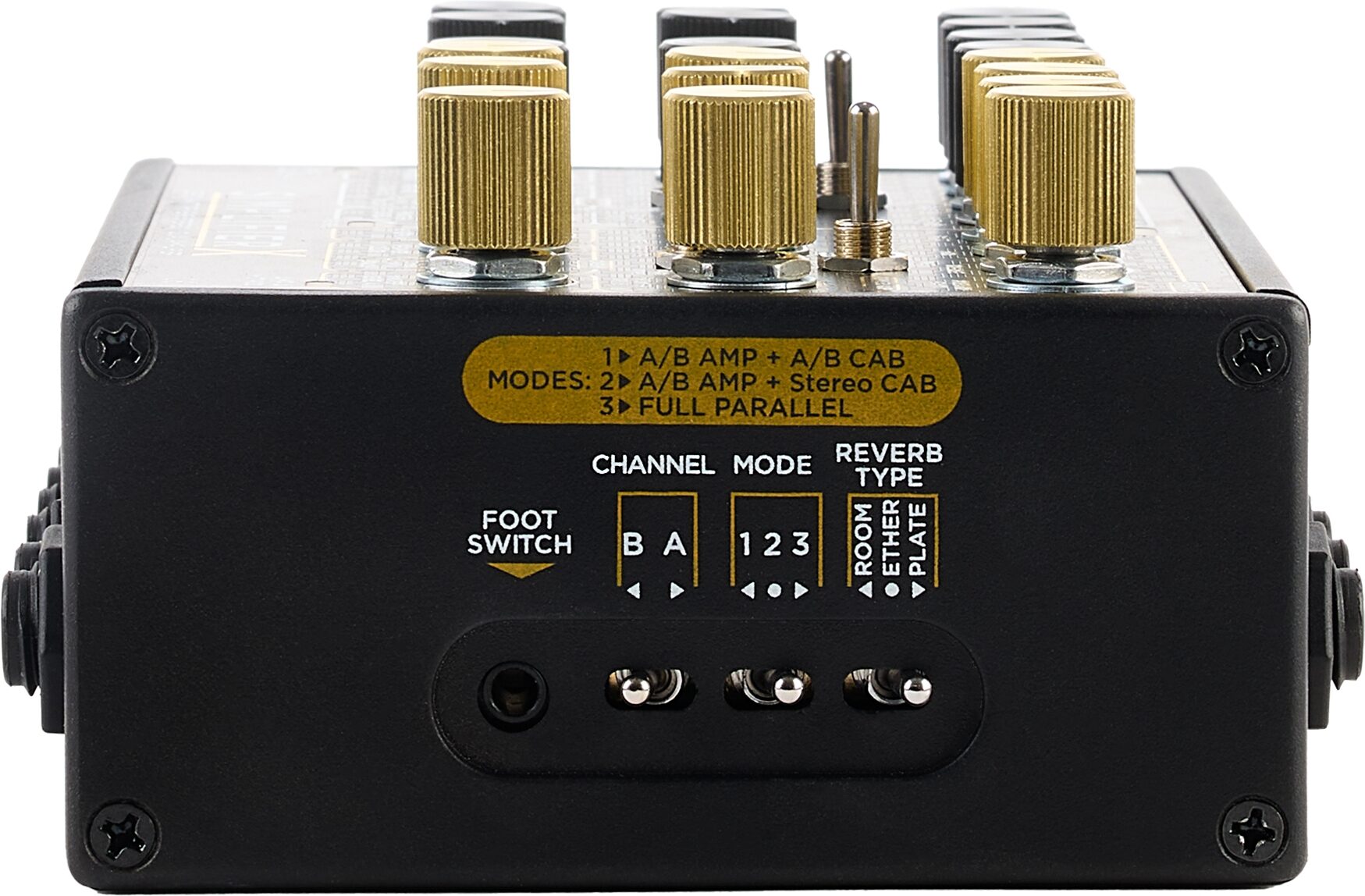

The Modes: More is More

A/B AMP + A/B Cab
This mode is dual mono, like having two different complete amplifiers, selecting each one with an A/B switch (Included). Each amp will have their own preamp, power, cabinet reverb mix and Loop FX. You can have different FX… read more on each loop and select them by changing the channel.

A/B AMP + Stereo Cab
In this mode, you can toggle between A and B amplifiers while the Cabinets and FX Loop will remain Left and Right. This allows you to use different FX and cabinets for each side, expanding the stereo options and complementing the responses of the cabs for a fuller, 3D sound.

Full Parallel
Full Parallel mode is like having two different amplifiers running at the same time. You can have different settings and effects for each side and make the perfect setup for a full stereo rig. You can even use different effects at the input of each amp.

Specs

- Type: 2-channel stereo analog guitar preamplifier with amp and cabinet simulation
- Input Connectors: True stereo (Two independent inputs)

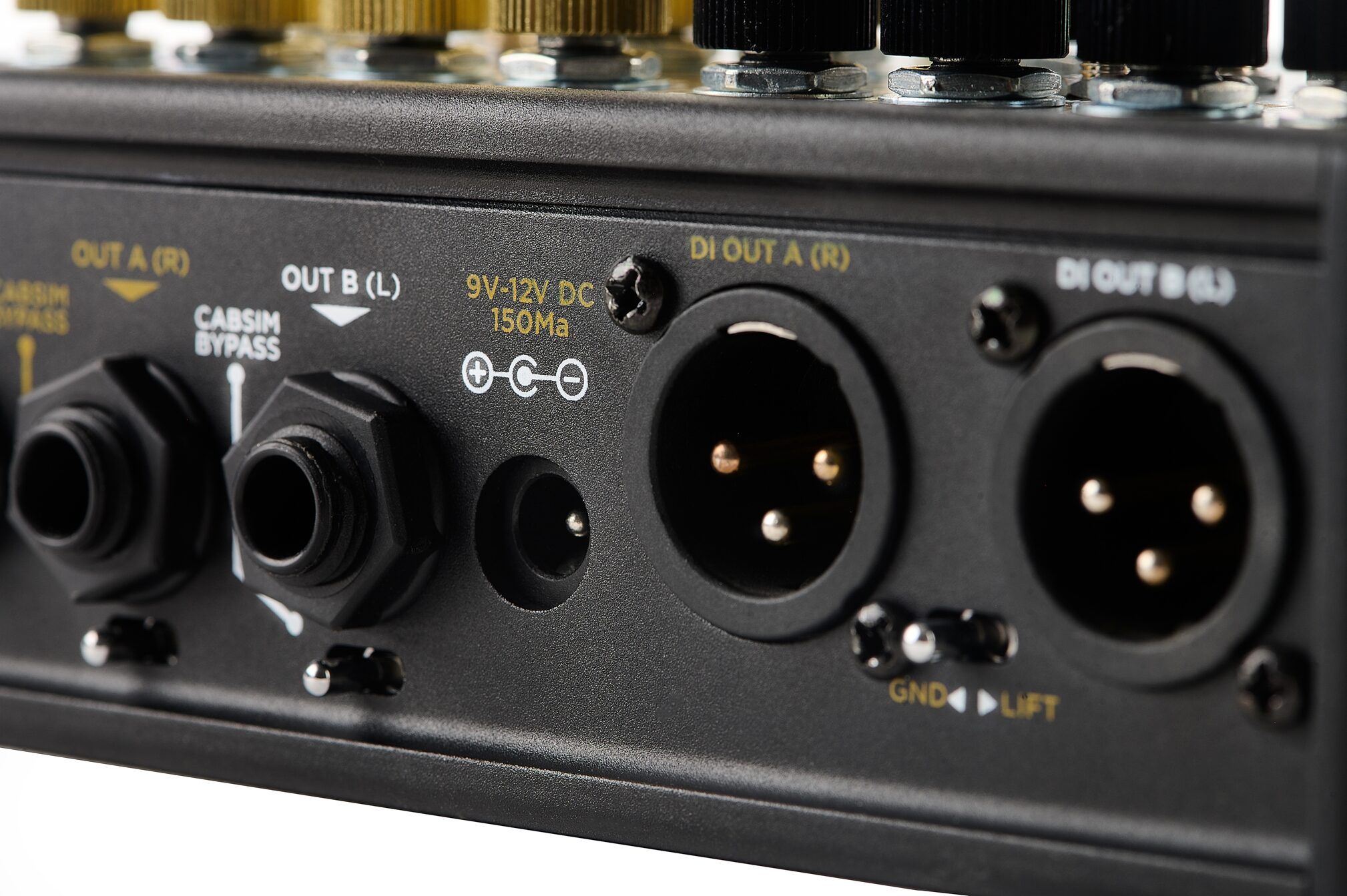

- Output Connectors: 2x XLR DI outputs (balanced), 2x 1/4" outputs with cabsim bypass
- Thru Connectors: THRU jack for dedicated DRY AMP signal path
- Input Impedance: 1 Meg Ohm (Input and L/R return)
- Output Impedance: Send: 1K Ohm, Unbalanced Outputs: 4.7K Ohms, Balanced Outputs: 100 Ohms
- Power Requirements: 9 to 12V DC regulated, 2.1mm DC jack center negative, 200mA current consumption
- Latency: Zero latency (analog signal path)

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 2.05 lbs
Shipping Dimensions: 7 x 6 x 4 in
Manufacturer Part Number (MPN): DSM-X
