DiMarzio GW2101 Les Paul Pre-Wired Harness

Get the most out of your Les Paul-style guitar with this DiMarzio wiring harness. A Mod oil-filed cap keeps your sound old-school and dripping with tone.

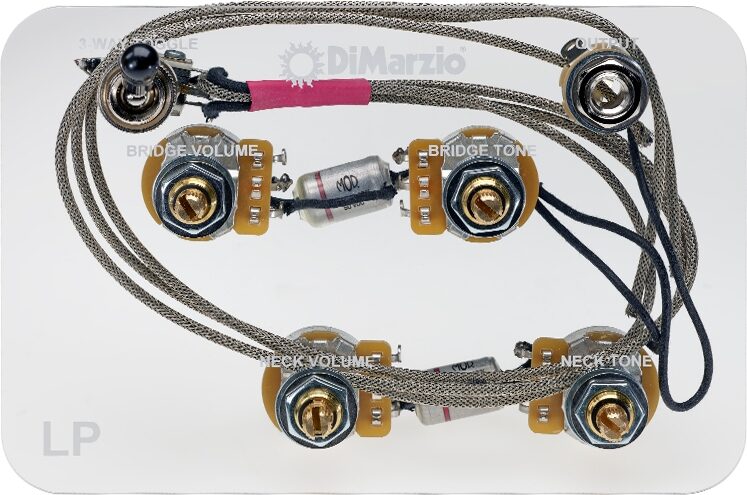

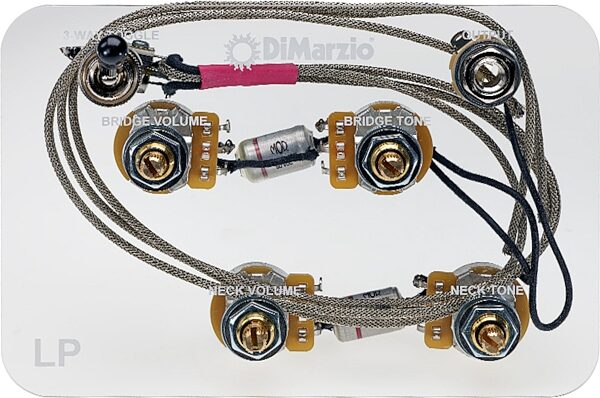

The heart of this drop-in prewired Les Paul harness is DiMarzio's custom designed 500K long shaft pot. First introduced over 45 years ago, they used a 10-step rotary switch to create a taper that works with DiMarzio's high impedance pickups. It's NEITHER a linear nor audio taper pot -- it's DiMarzio's custom taper. To further increase reliability, DiMarzio made the center shaft and threaded parts from solid machined brass instead of cheap castings.

DiMarzio kit includes a Switchcraft selector switch (with both black and cream tips) and output jack.

DiMarzio wiring harnesses are all hand assembled and tested in the USA using lead free silver solder and the best sound-tested parts. DiMarzio chose Mod .022 mf oil filed capacitors for their softer, smoother roll off on the tone controls, and include vintage-style shielded cloth wire.

*Please note: these are direct replacements for the standard 3/8-inch (9.525mm) holes found on most Gibson guitars. Some enlargement may be required for non-standard or import-specific hole diameters.

-Potentiometer Taper: Custom DiMarzio Taper
-Potentiometer Ohms: 500k Ohm
-Capacitor: Mod 0.022mf Oil Filled Capacitor
-Wire: Vintage-Style Shielded Cloth
-Recommended For: Standard Gibson Les Paul & similar guitars with 2 humbuckers and 4 controls. Not for Gibson SG or similar guitars.
-Quick Connect: No
-Year of Introduction: 2023
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 5 x 5 x 5 in
Manufacturer Part Number (MPN): GW2101

For support or warranty questions, please contact the manufacturer:
Phone: 718-981-9286
