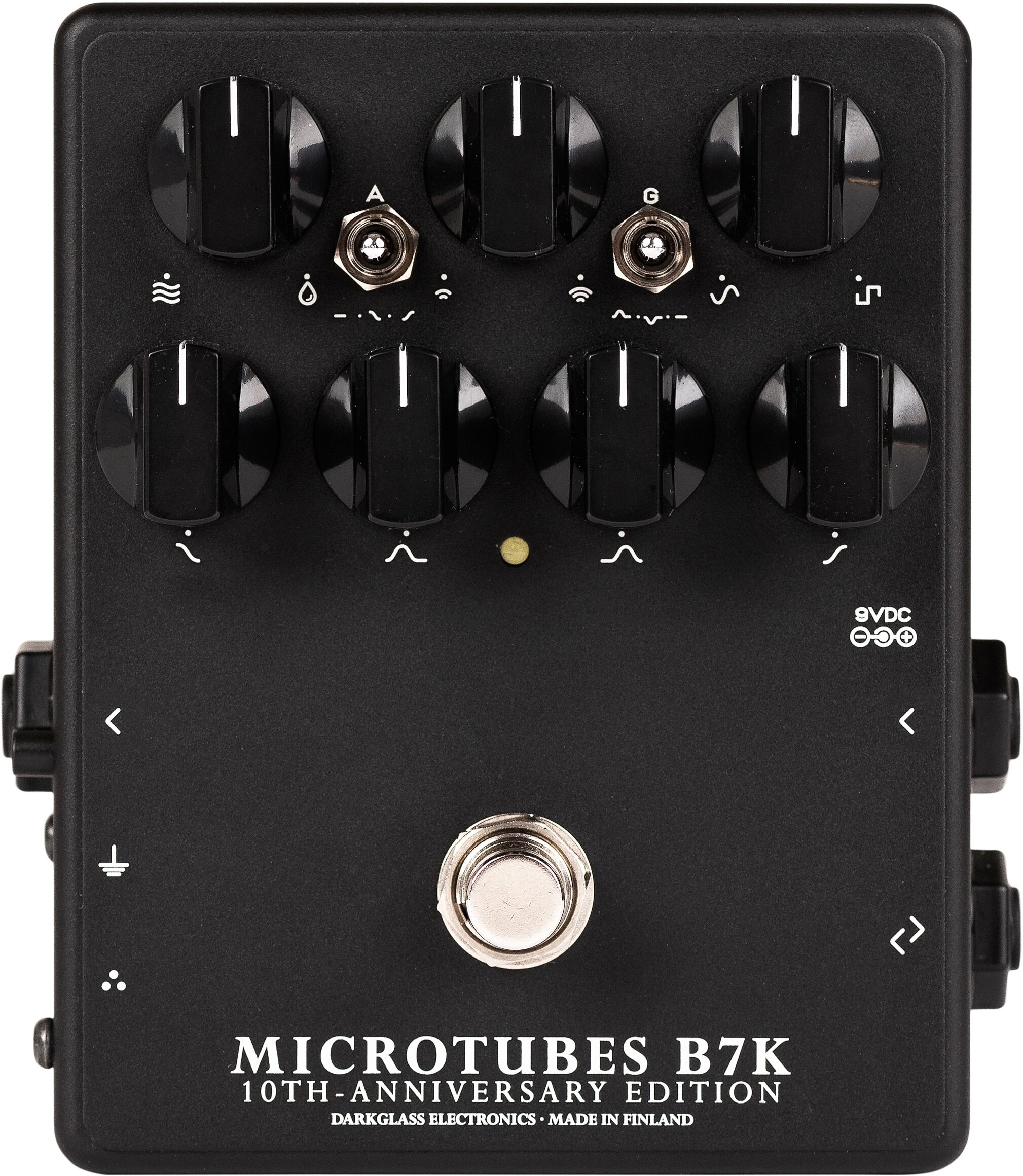

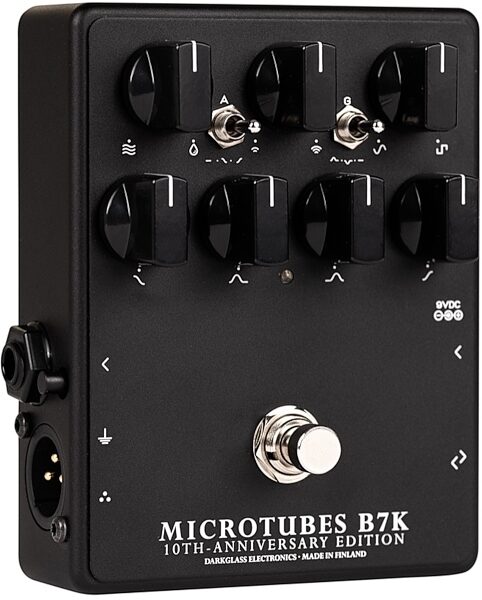

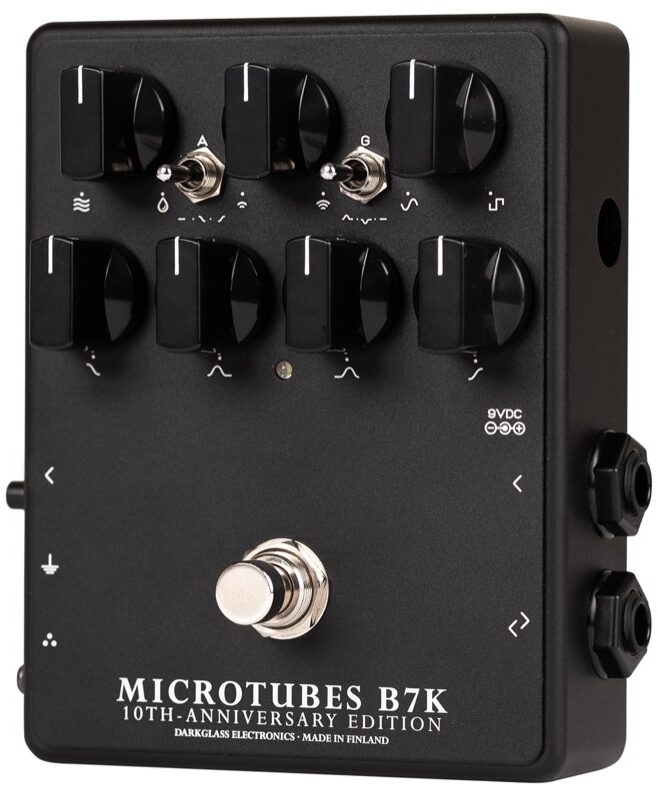

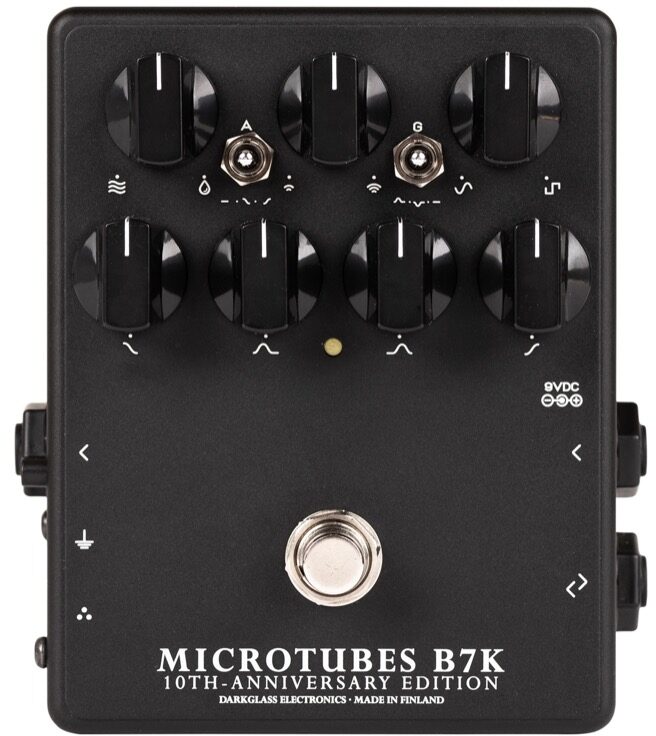

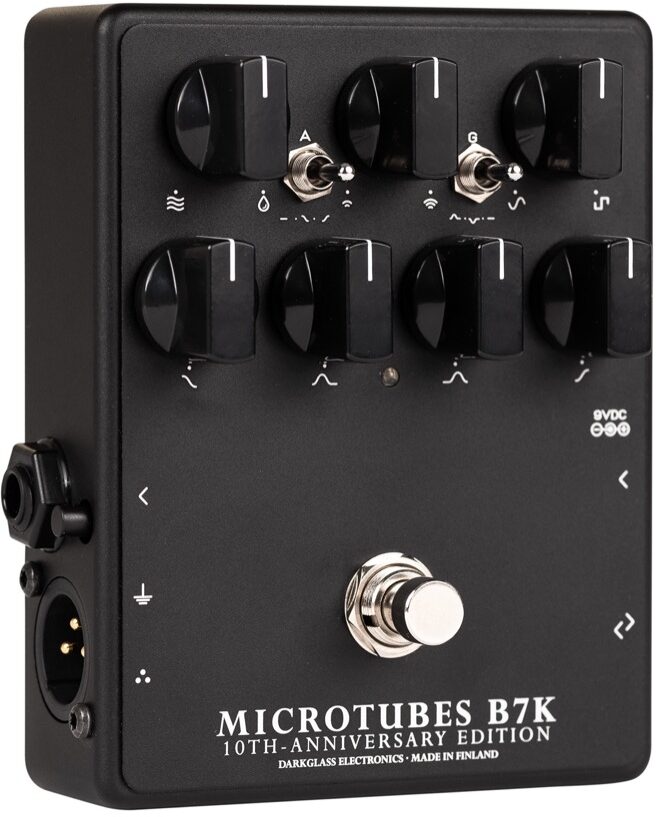

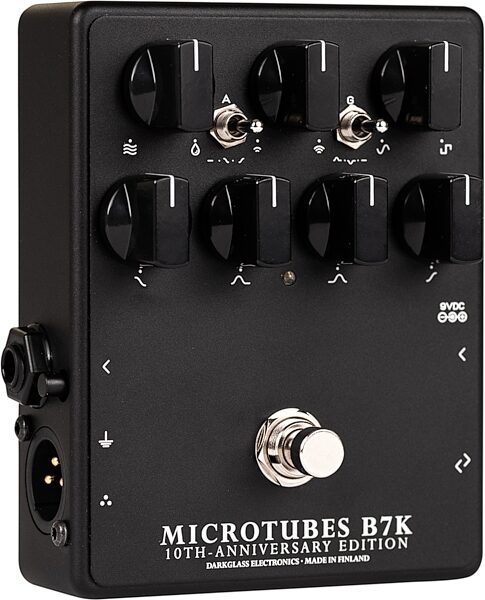

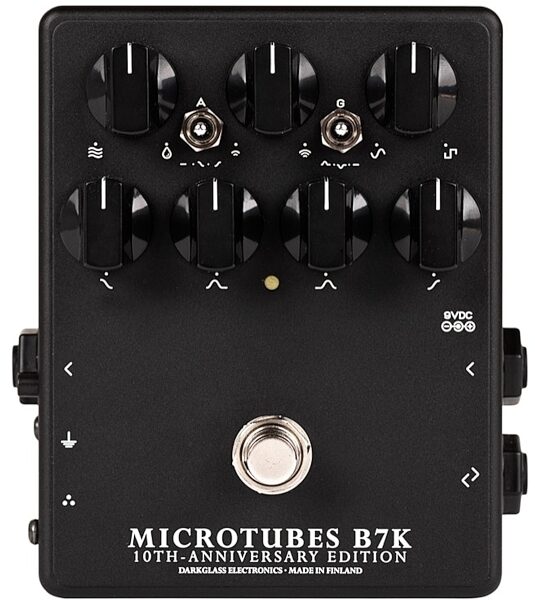

Darkglass Microtubes B7K V2 10th Anniversary Bass Distortion Pedal
Celebrate 10 years of Microtubes! The Darkglass Microtubes B7K features a limited black obsidian enclosure and the signature Darkglass distortion engine.

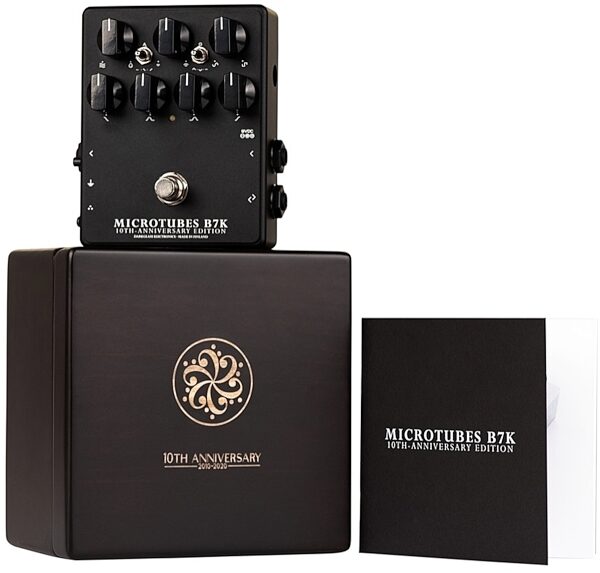

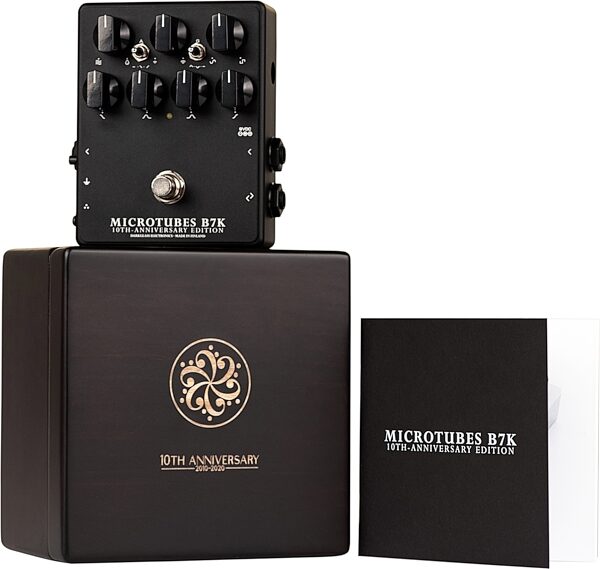

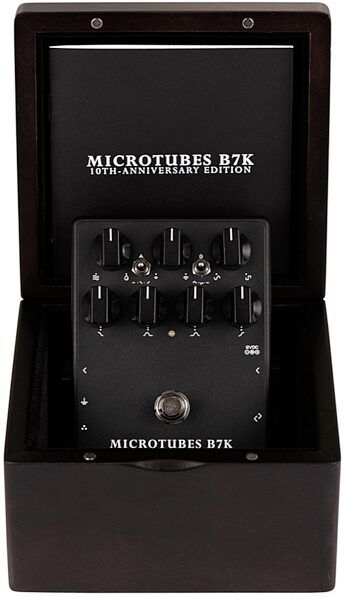

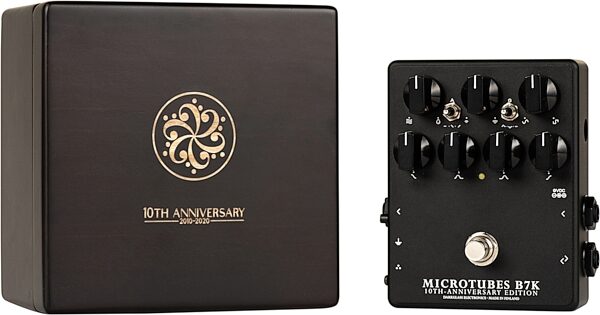

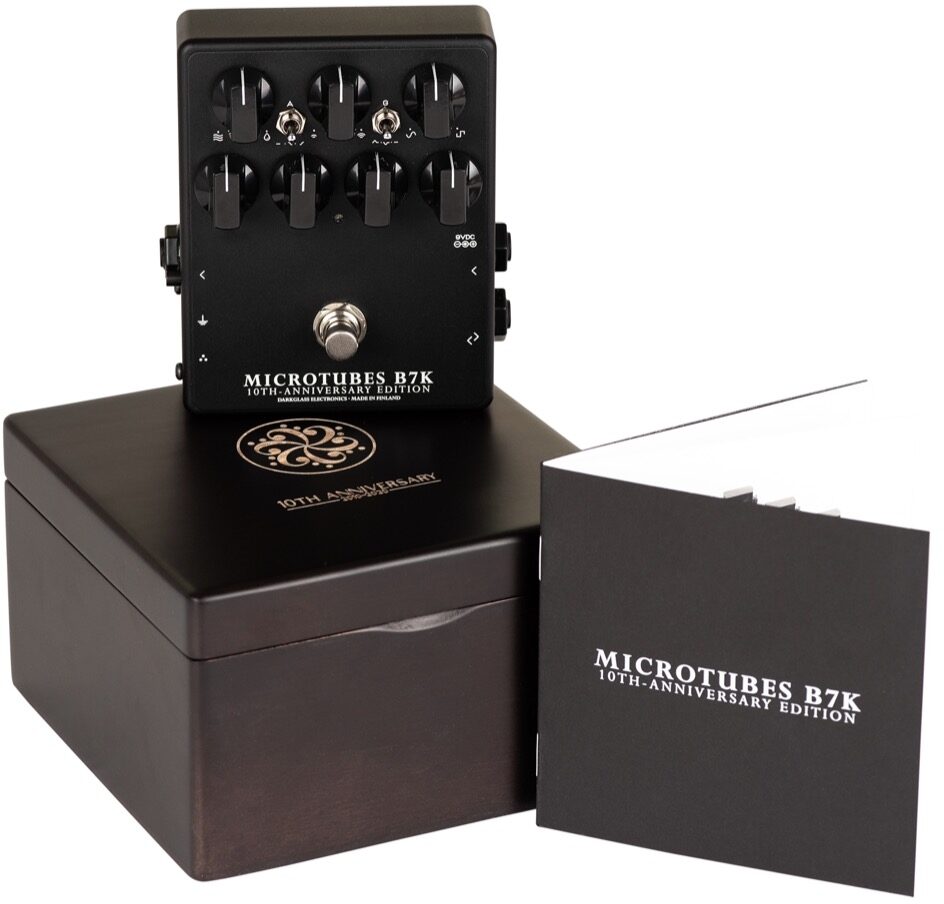

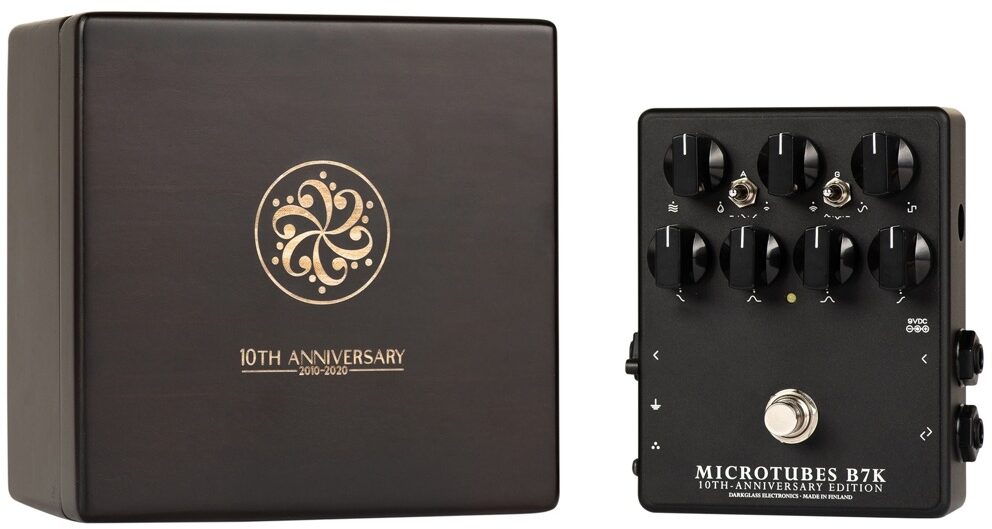

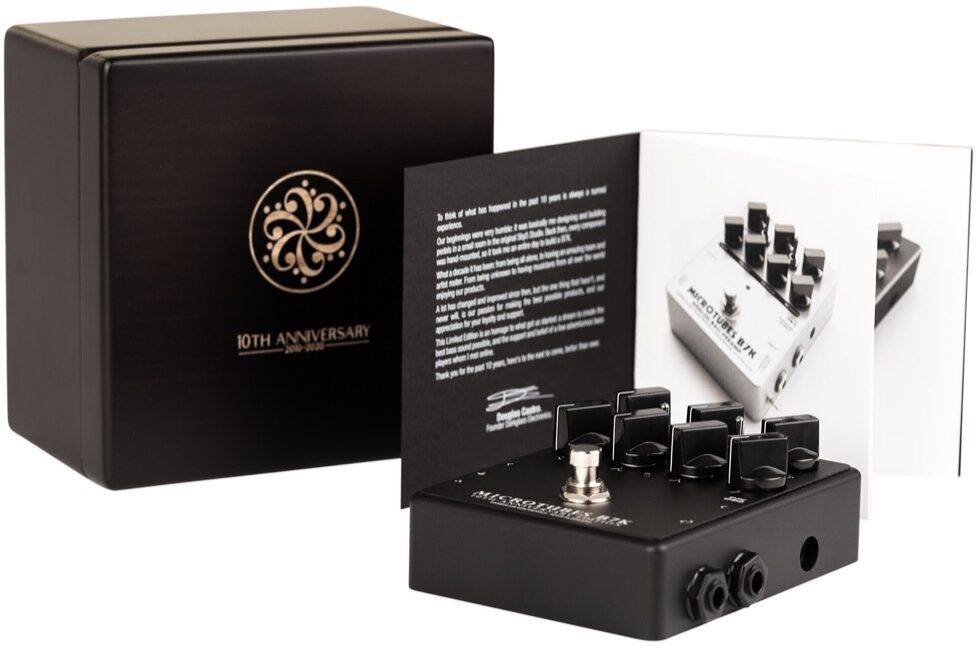

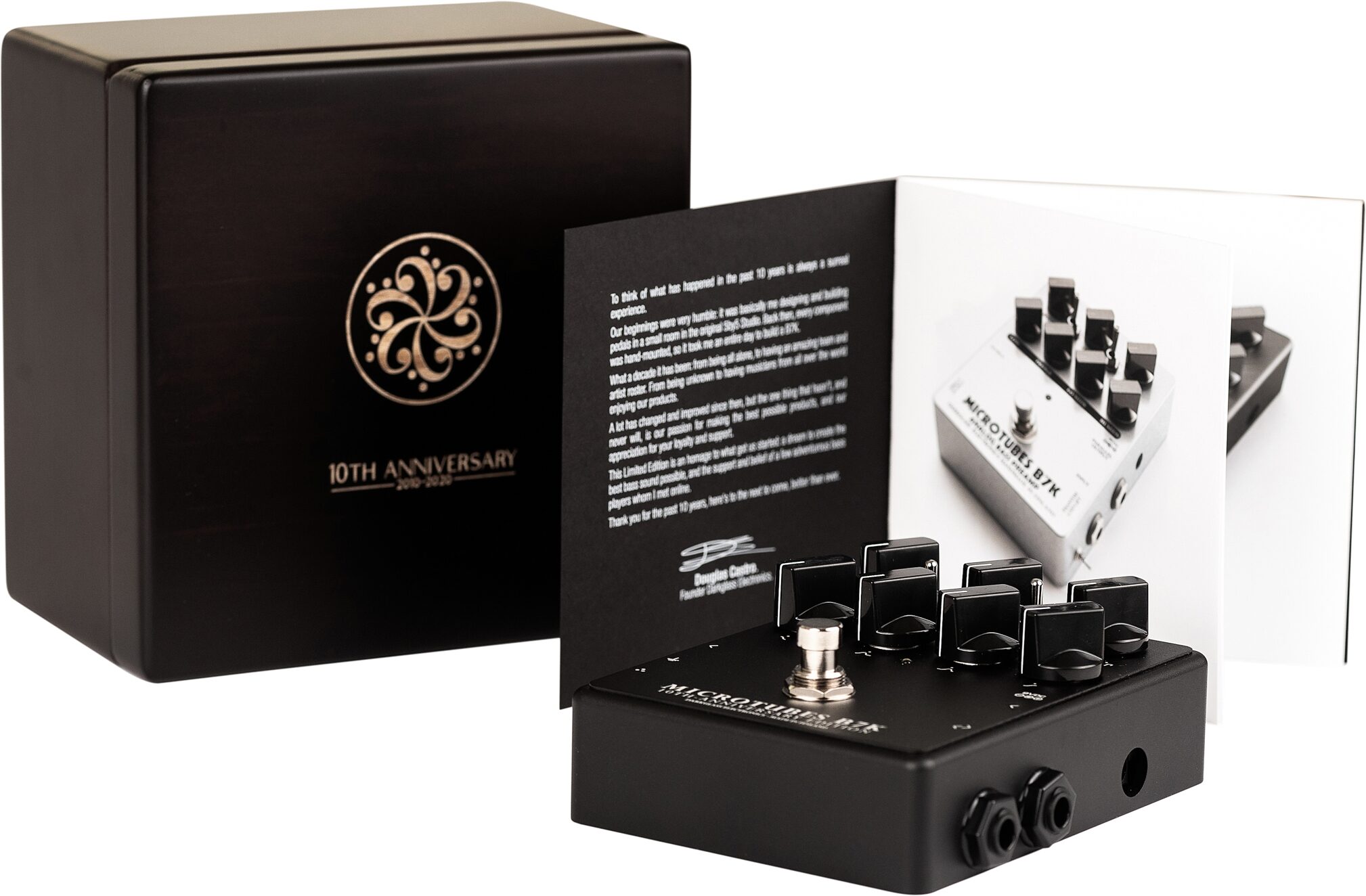

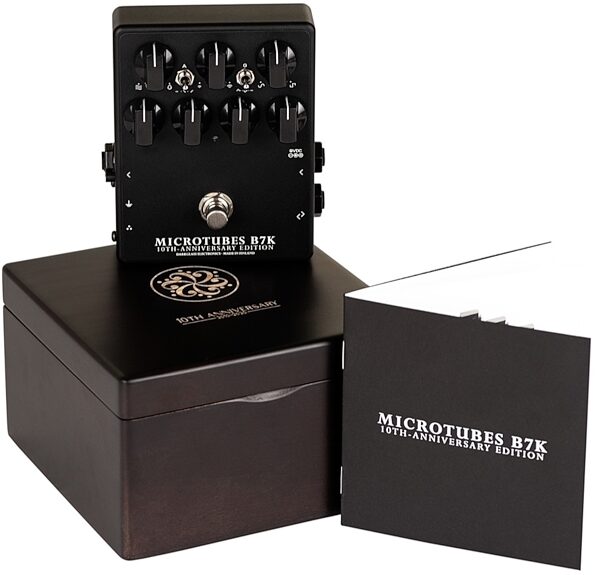

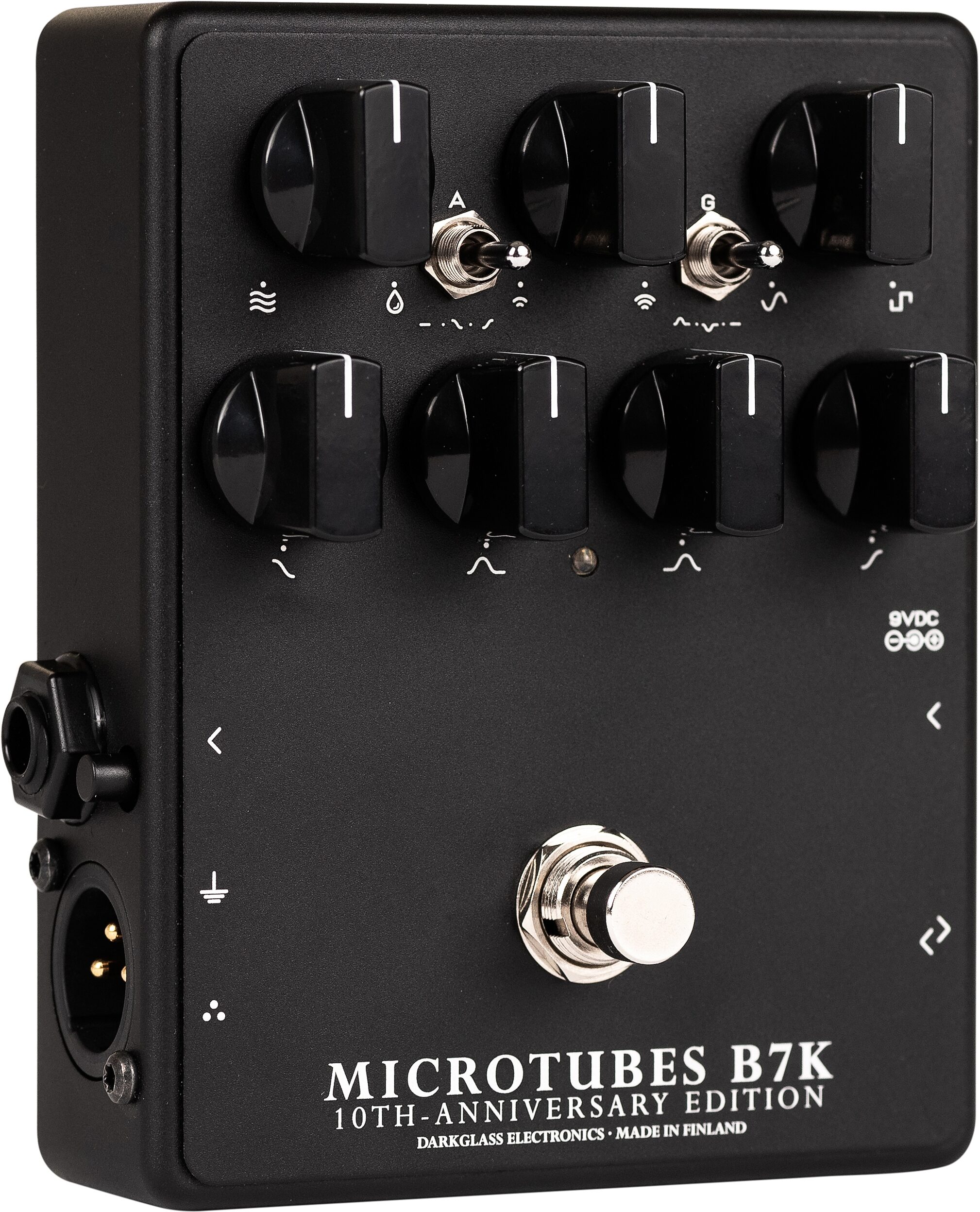

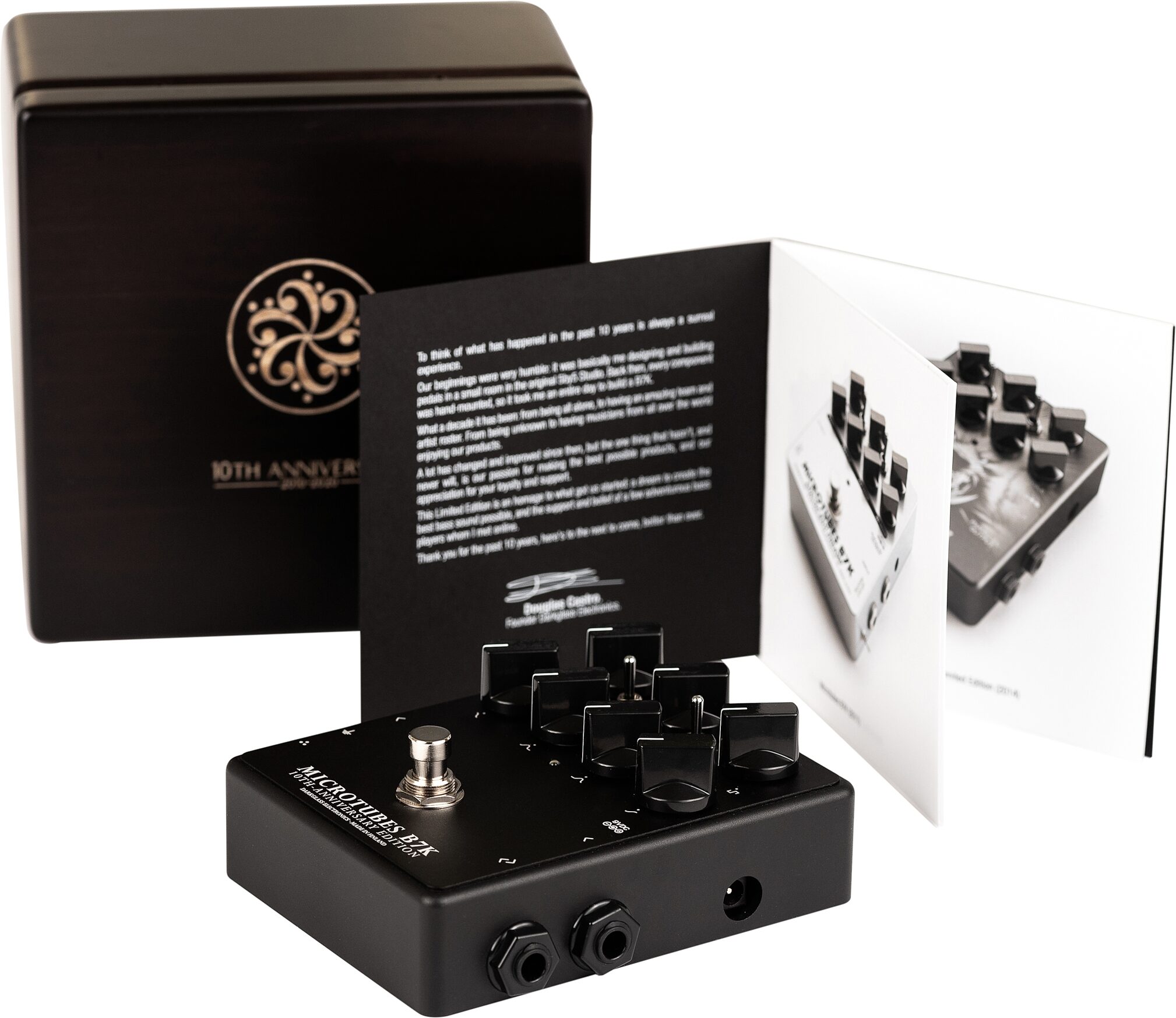

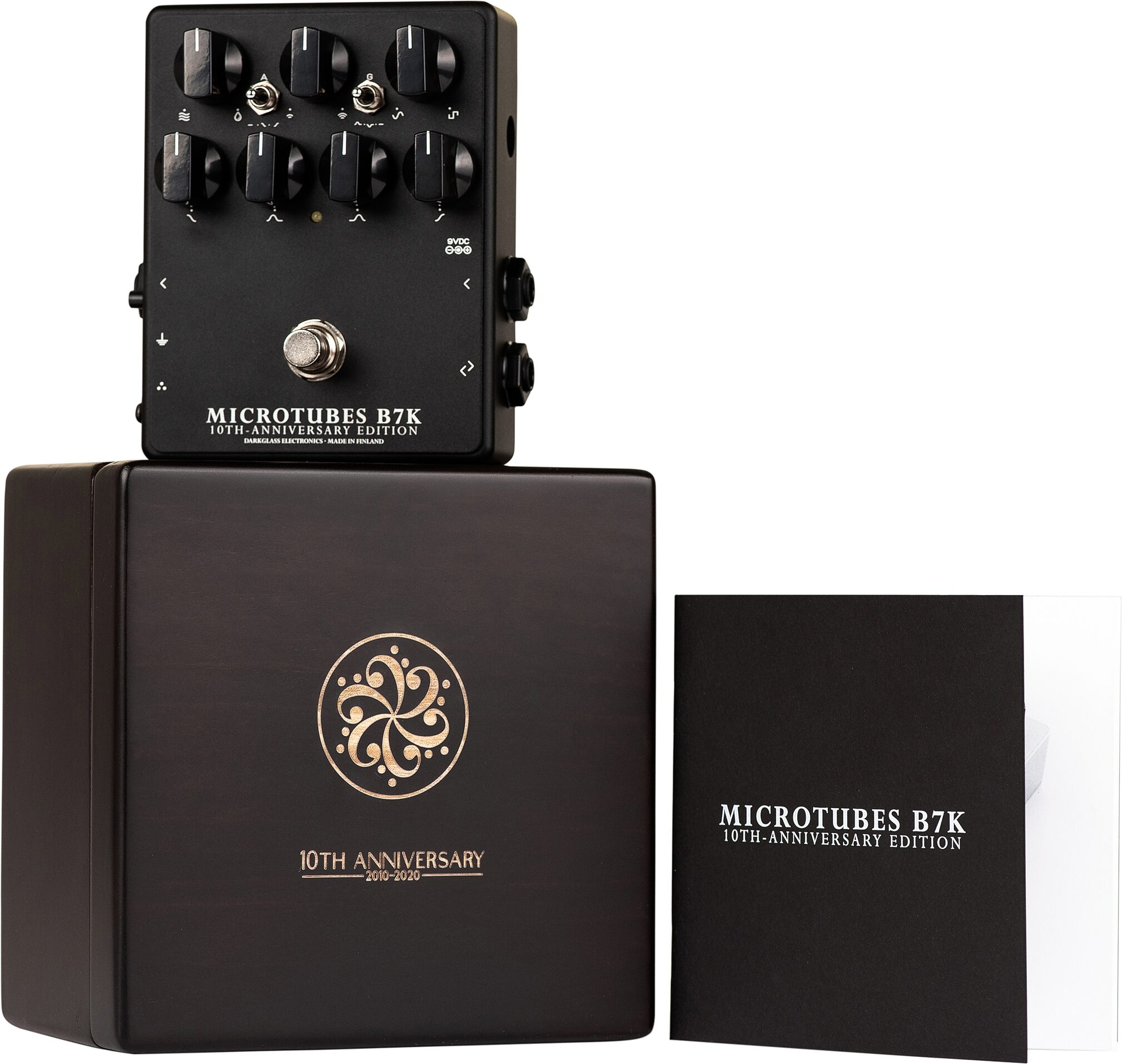

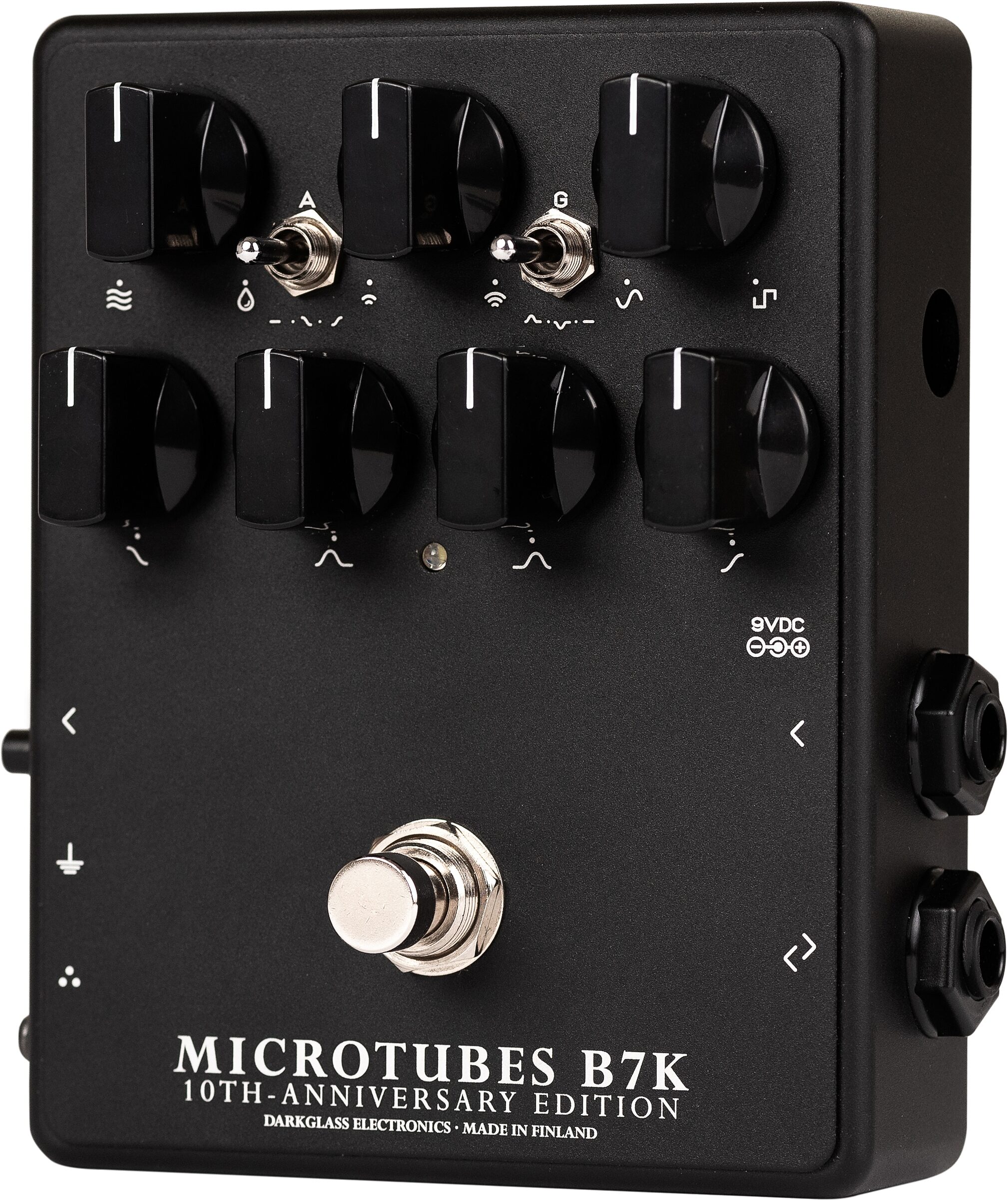

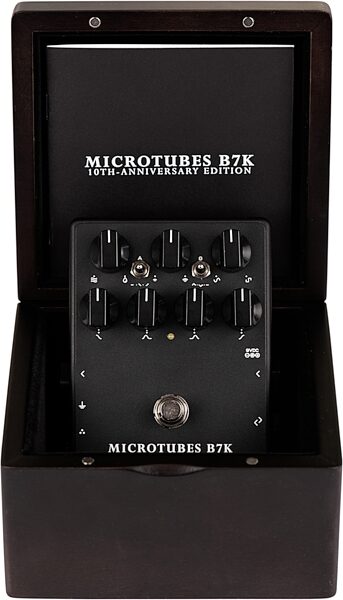

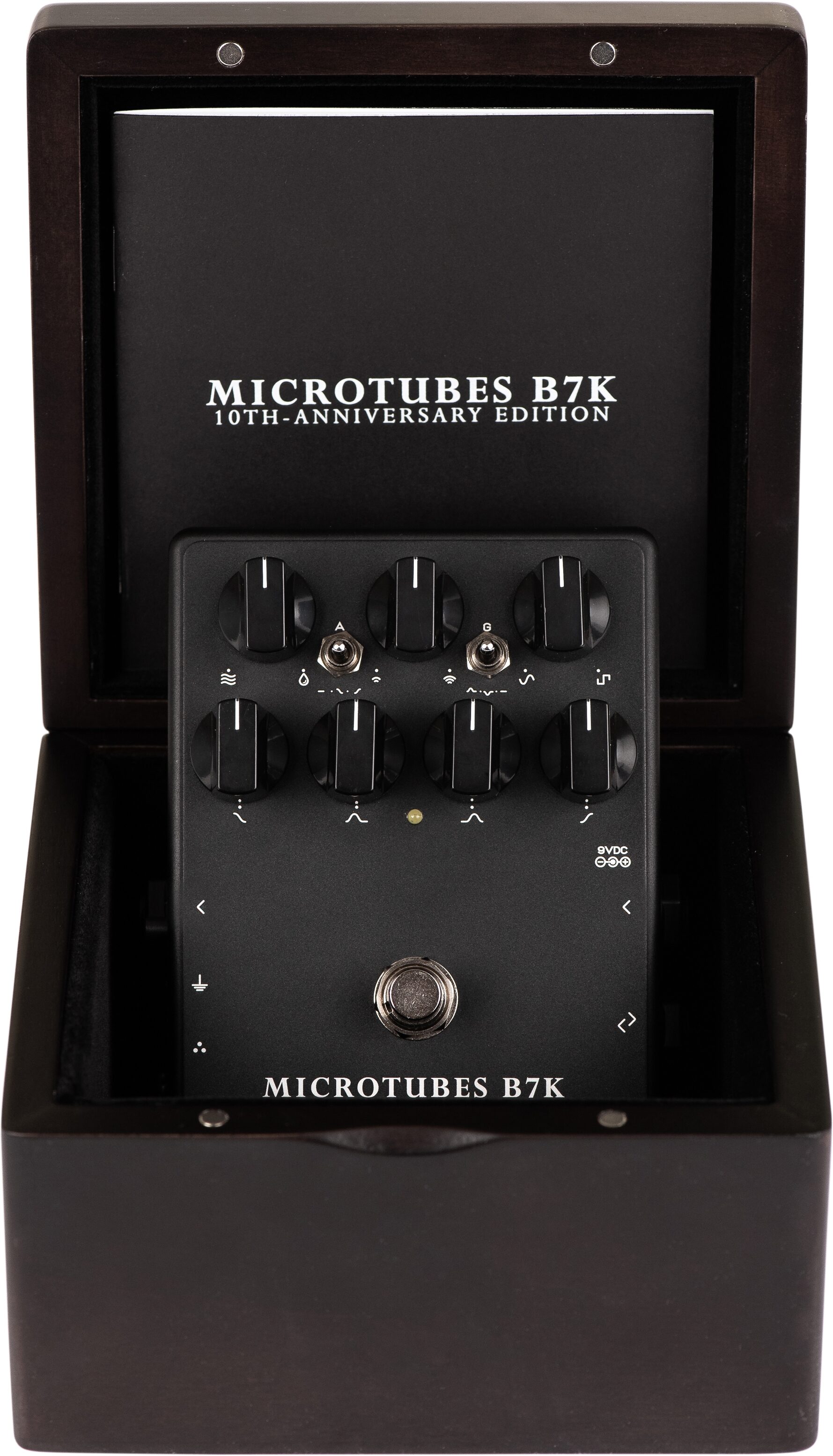

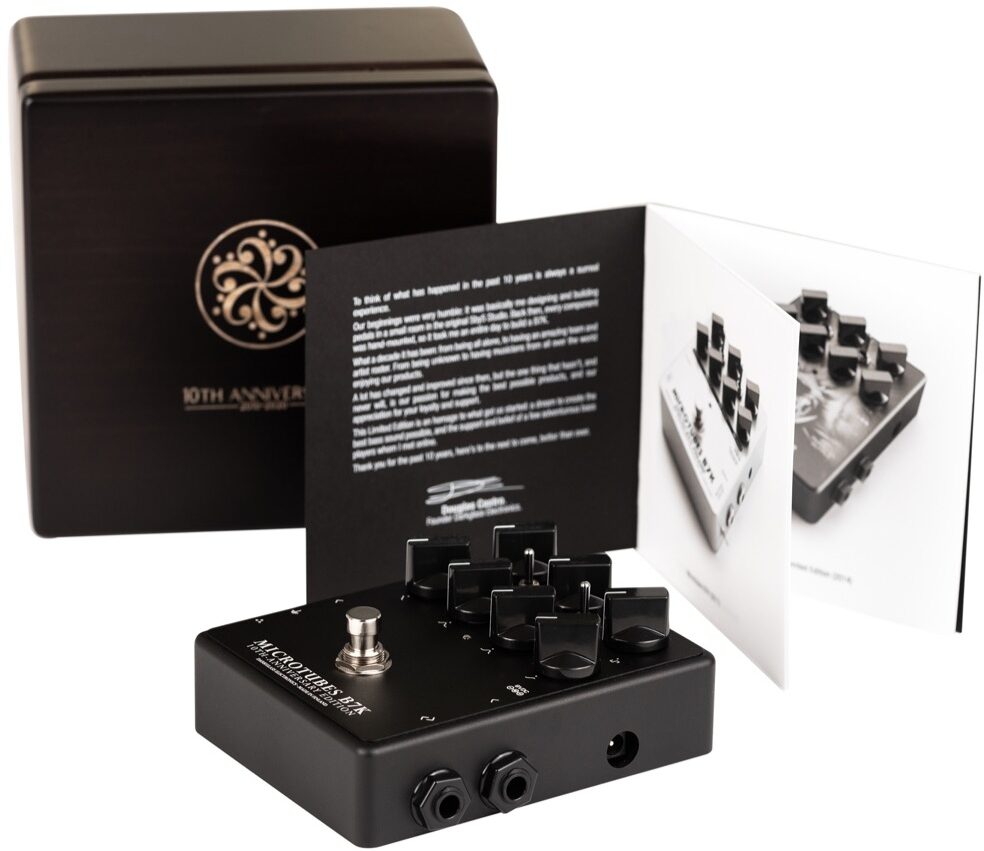

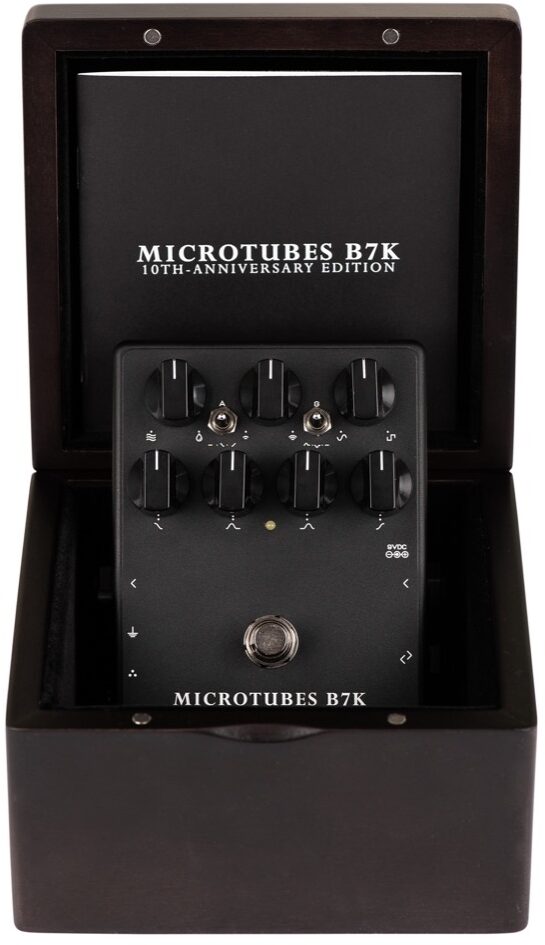

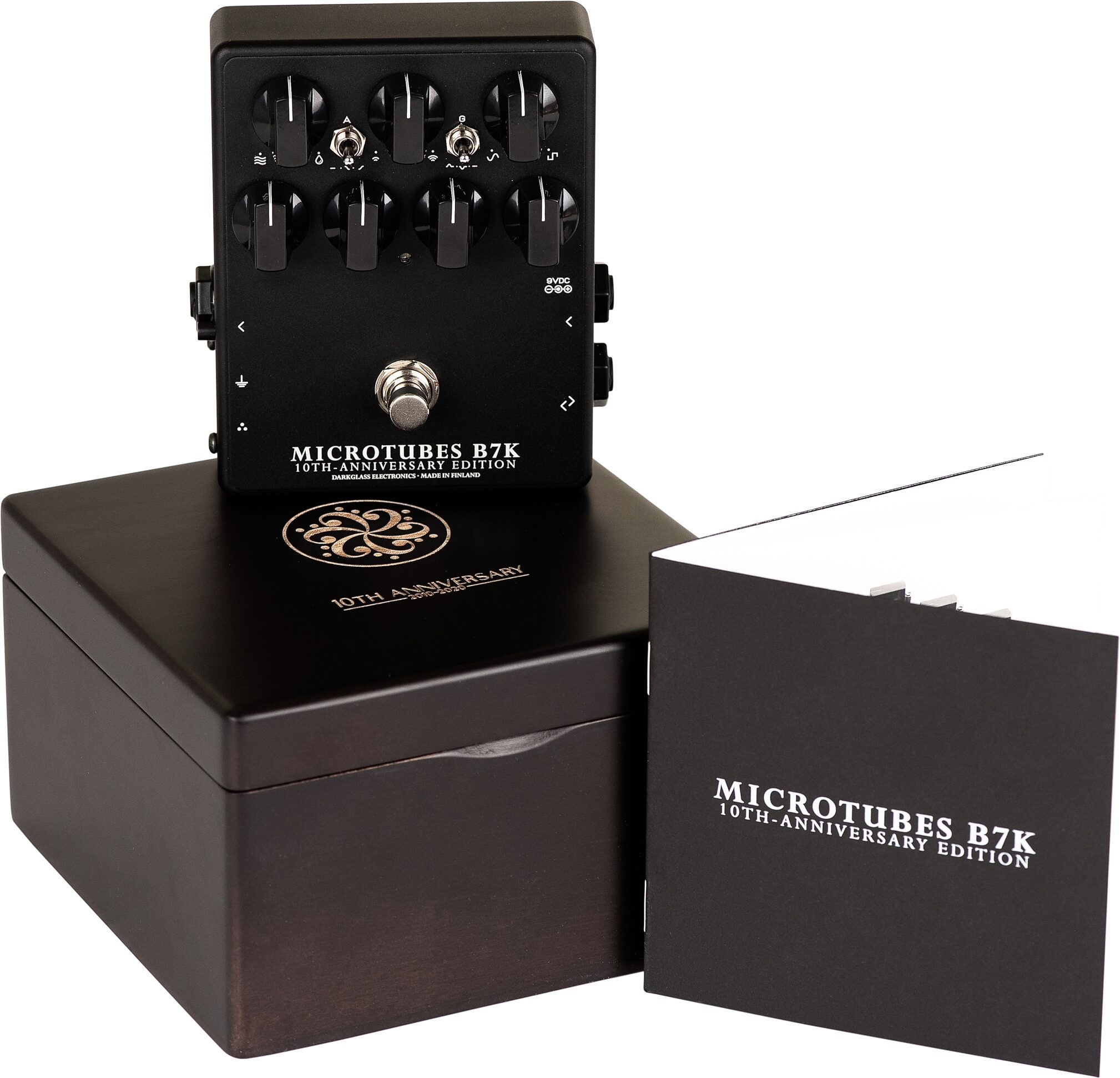

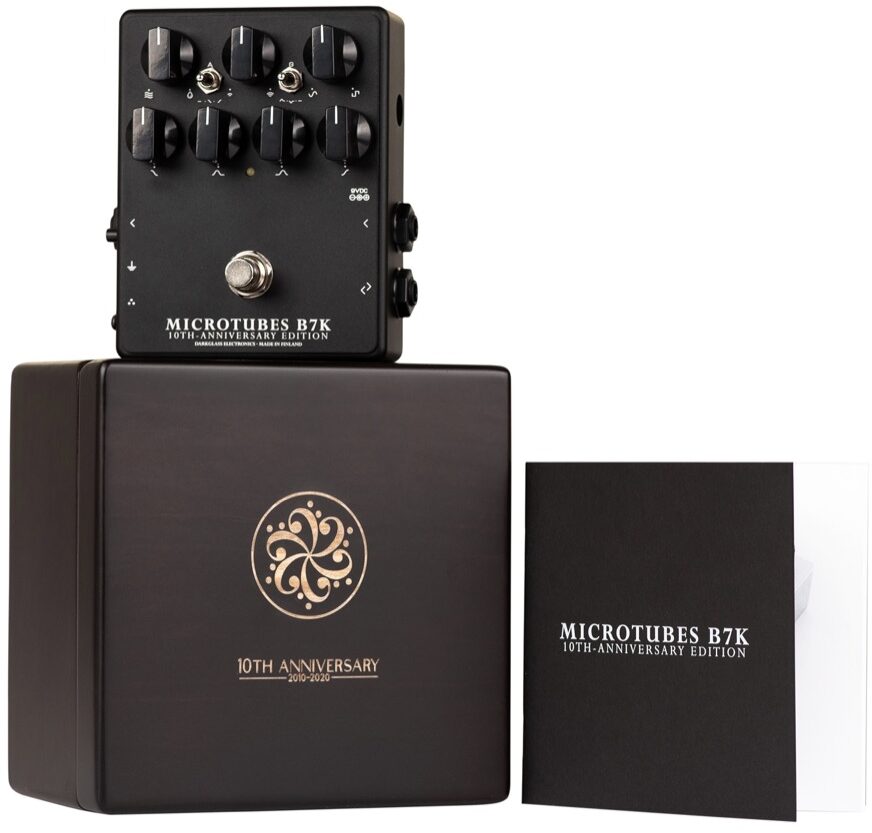

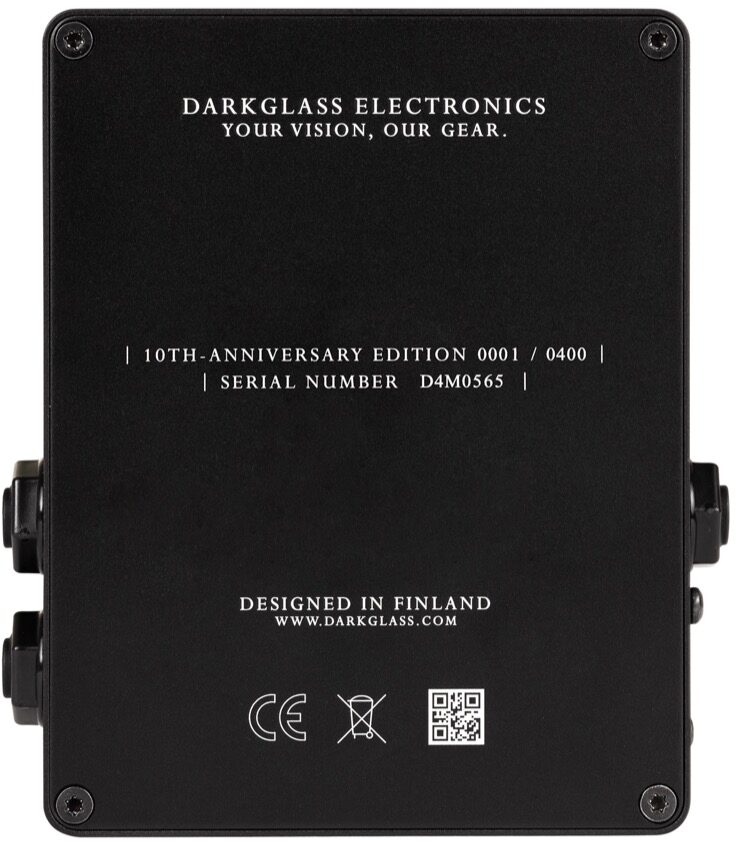

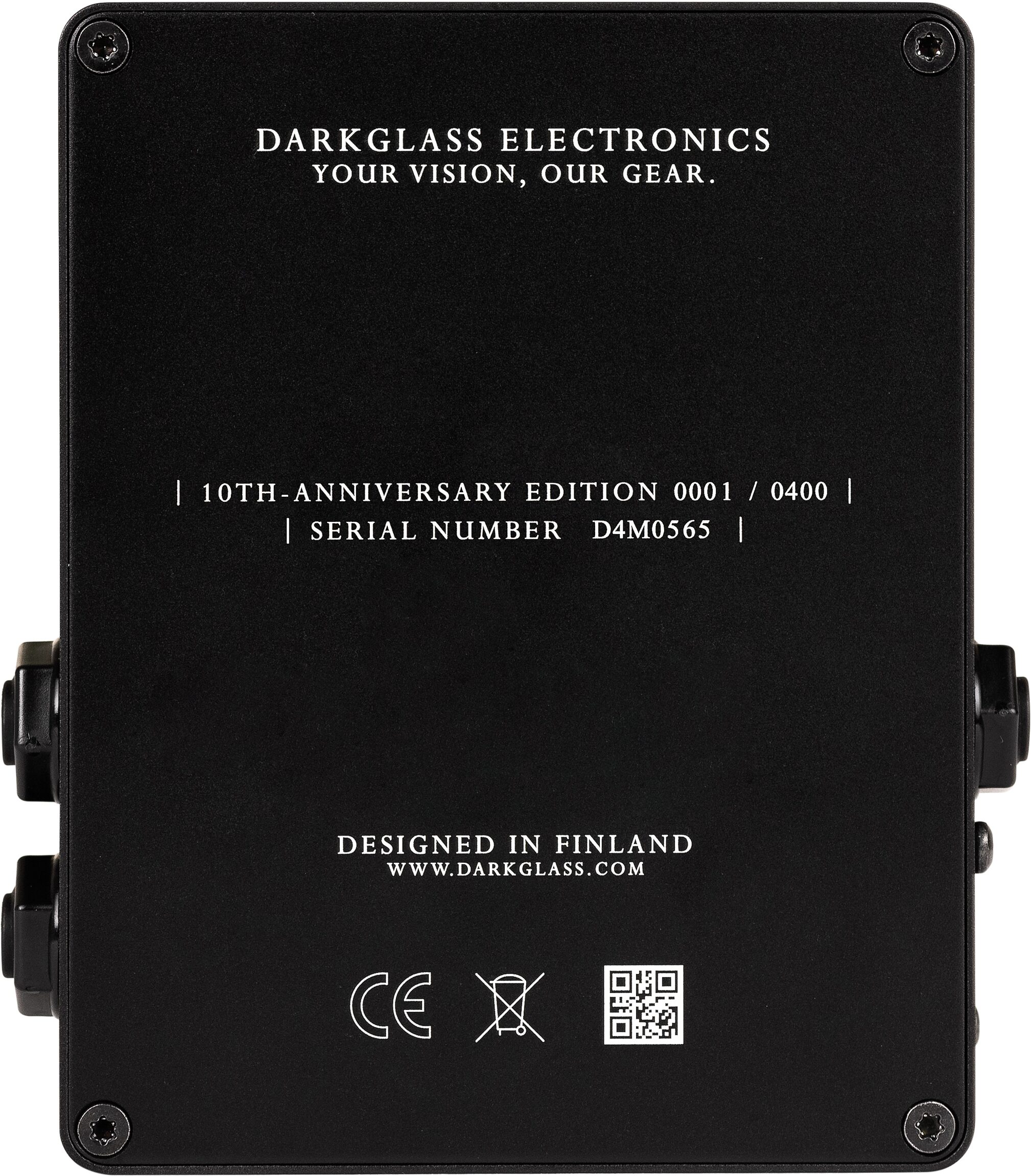

The Darkglass Microtubes B7K is an innovative distortion immediately embraced by musicians around the world. Now it represents the foundation of the Darkglass tone, after which followed a decade of iteration marked by a strong stamp of passion and desire for tone. The exclusive minimal design of the 10th Anniversary Edition features a black obsidian enclosure and textless icon-only engraving, contained within a finely crafted wooden box.
Top selling features include limited black obsidian enclosure and engraved iconography, with wooden box; signature Darkglass Microtube distortion engine; flexible 4-band EQ and clean blend; direct XLR output for recording or live performance.
-Four band EQ with selectable lo-mids and hi-mids frequencies
-Clean blend to retain clarity
-Grunt and Attack switches to shape the distortion
-XLR DI and Parallel outputs
Top selling features include limited black obsidian enclosure and engraved iconography, with wooden box; signature Darkglass Microtube distortion engine; flexible 4-band EQ and clean blend; direct XLR output for recording or live performance.
Features
-Limited 10th Anniversary edition-Four band EQ with selectable lo-mids and hi-mids frequencies
-Clean blend to retain clarity
-Grunt and Attack switches to shape the distortion
-XLR DI and Parallel outputs
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Blend: Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
Level: Sets the volume of the overdriven signal.
Drive: Sets the amount of saturation in the overdriven signal.
Grunt Switch: Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.
Attack Switch: Sets the amount of treble content to saturate: The "Boost" setting emphasizes the treble content extra clarity and presence. The "Flat" position leaves this register untouched while the "Cut" position will reduce the amount of high frequencies being saturated.
Low: +-12dB @ 100Hz
Low Mids Switch: This switch change the center frequency of the Low Mids from 1kHz to 500Hz.
Low Mids: +-12dB @ 1kHz
Hi Mids: +-12dB @ 3 kHz
Hi Mids Switch: This switch change the center frequency of the Hi Mids from 3kHz to 1.5kHz.
Treble: +-12dB @ 5kHz
Parallel Output: A passthrough for your input signal, useful for parallel processing.
Direct Output: A balanced version of the output, useful for running into PAs or studio mixing consoles.
Dimensions: 1210.7 cm (4.724.21 in)\
WARNING: The Microtubes B7K v2 has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
Level: Sets the volume of the overdriven signal.
Drive: Sets the amount of saturation in the overdriven signal.
Grunt Switch: Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.
Attack Switch: Sets the amount of treble content to saturate: The "Boost" setting emphasizes the treble content extra clarity and presence. The "Flat" position leaves this register untouched while the "Cut" position will reduce the amount of high frequencies being saturated.
Low: +-12dB @ 100Hz
Low Mids Switch: This switch change the center frequency of the Low Mids from 1kHz to 500Hz.
Low Mids: +-12dB @ 1kHz
Hi Mids: +-12dB @ 3 kHz
Hi Mids Switch: This switch change the center frequency of the Hi Mids from 3kHz to 1.5kHz.
Treble: +-12dB @ 5kHz
Parallel Output: A passthrough for your input signal, useful for parallel processing.
Direct Output: A balanced version of the output, useful for running into PAs or studio mixing consoles.
Dimensions: 1210.7 cm (4.724.21 in)\
WARNING: The Microtubes B7K v2 has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 1.23 lbs
- Shipping Dimensions: 6 x 5 x 3 in
- Manufacturer Part Number (MPN): DAR MTB7KV210TH
