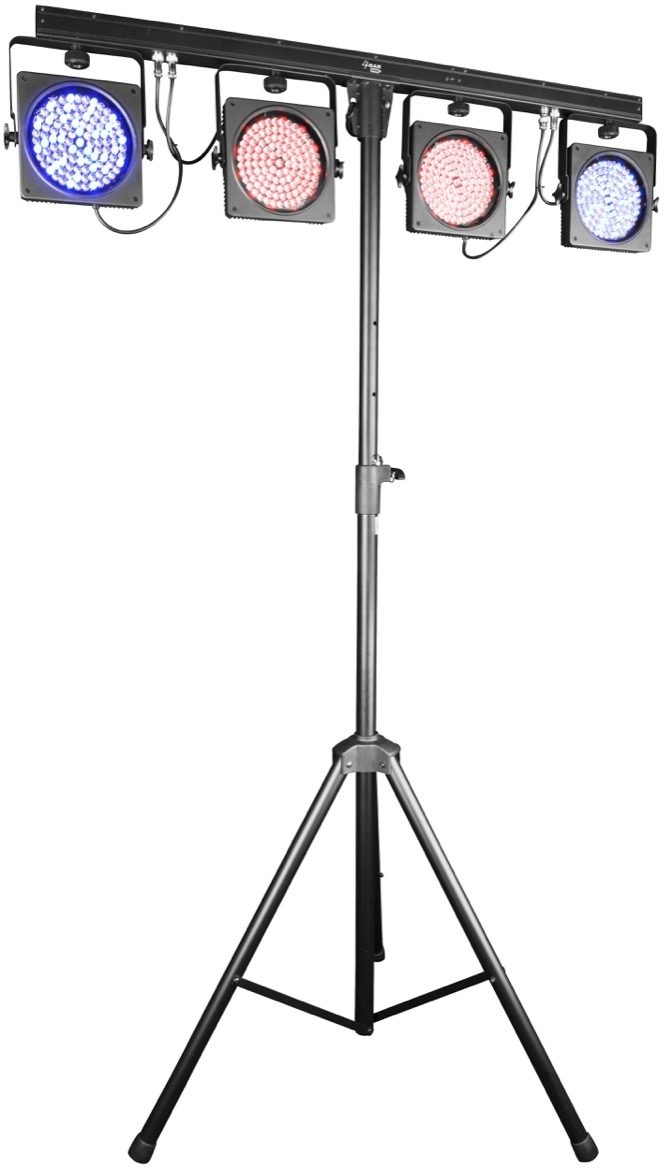

Chauvet DJ 4Bar USB Stage Lighting System

Lighting doesn't get easier than the Chauvet DJ 4Bar USB system. Control your 4Bar via the included footswitch, optional remote, or D-Fi wireless system.

The Chauvet 4BAR USB is a complete washlighting solution for mobile entertainers. D-Fi USB compatible for wireless master/slave or DMX control, it also includes a wireless footswitch that can control multiple units. Create synchronized light shows using built-in automated programs with the optional IRC-6 remote.


- Complete wash lighting solution designed for mobile entertainers
- Out of the box wireless control with included footswitch that controls multiple units
- Achieve total room or stage coverage with 4 individually adjustable heads
- D-Fi USB compatibility for wireless master/slave or DMX control
- Easily set-up and tear down in minutes using the included tripod, wireless footswitch and carry bags
- Increase mounting options by safely mounting to truss using the built-in bolts
- Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
- Sound-activated programs dance to the beat of the music
- Easily control static colors and automated programs with the optional IRC-6 remote
- Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs
WARNING: Cancer and Reproductive Harm -

- DMX Channels: 3 or 15 DMX
- Connectors: 3-pin XLR
- Light Source: 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 1.2 kHz
- Beam Angle: 21*
- Field Angle: 33*
- Illuminance: 725 lux @ 2 m (per pod)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 36 W, 0.6 A @ 120 V, 60 Hz , 36 W, 0.3 A @ 230 V, 50 Hz
- Weight: 10.8 lb (4.9 kg), (Controller): 0.8 lb (1.8 kg)
- Size: 47.4 x 2 x 11 in (1,205 x 50 x 285 mm), (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
- Approvals: CE
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 31.75 lbs
Shipping Dimensions: 58 x 19 x 6 in
Manufacturer Part Number (MPN): 4Bar USB

For support or warranty questions, please contact the manufacturer:
Phone: 800-762-1084
