Boss RC-300 Loop Station Pedal

- Nominal Input Level:
- INPUT MIC: -50 dBu (variable)
- INPUT INST: -10 dBu (variable)
- INPUT AUX: -20 dBu (variable)
- Input Impedance:
- NPUT MIC: 4 kohms
- INPUT INST: 1 Mohms
- INPUT AUX: 47 kohms
- Nominal Output Level:
- MAIN OUTPUT: -10 dBu:
- SUB OUTPUT: -10 dBu
- Output Impedance: 2 kohms
- Recommended Load Impedance: 10 kohms or greater
- Recording/Playback Maximum recording time: Approximately 3 hours (stereo)
- Maximum phrase memory: 99
- Number of tracks: 3
- Data format: WAV (44.1 kHz, 16-bit linear, stereo)
- Effect Types:
- Transpose
- Flanger
- Phaser
- Pan
- Tremolo
- Slicer
- Bend
- Chorus
- Robot
- Female
- Male
- Gt->Bass
- Filter
- Delay
- Lo-Fi
- Distortion
- Rhythm Types: 83
- USB Interface:
- Hi-Speed USB (USB Mass Storage Class)
- Hi-Speed USB (USB-AUDIO)
- Pedals:
- TRACK 1 REC/DUB/PLAY pedal
- TRACK 2 REC/DUB/PLAY pedal
- TRACK 3 REC/DUB/PLAY pedal
- TRACK 1 STOP pedal
- TRACK 2 STOP pedal
- TRACK 3 STOP pedal
- ALL START/STOP pedal
- LOOP FX pedal
- EXP 1 pedal
- Sliders:
- TRACK 1 slider
- TRACK 2 slider
- TRACK 3 slider
- Knobs:
- MASTER LEVEL knob
- RHYTHM LEVEL knob
- AUX knob
- INST knob
- MIC
- Displays:
- 7 segments, 2 characters (LED)
- 16 characters, 2 lines (backlit LCD)

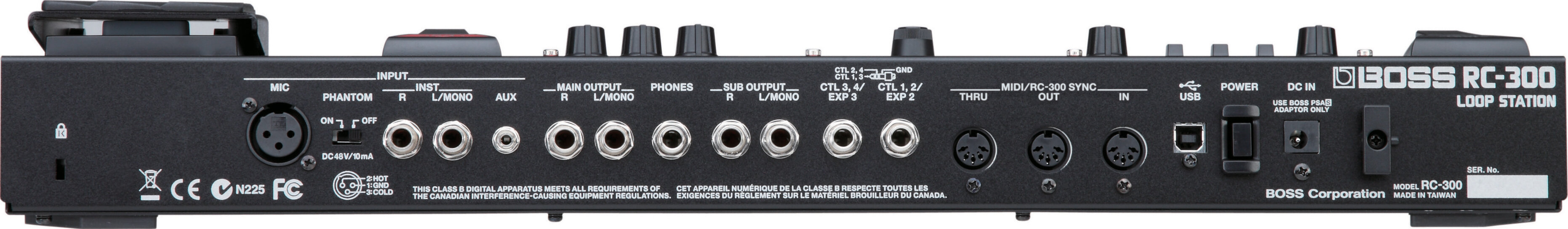

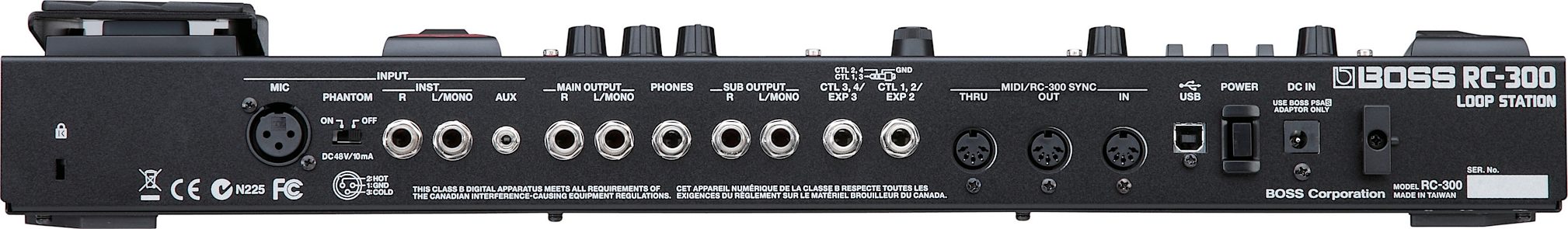

- Connectors:
- INPUT MIC jack: XLR type (balanced/phantom power: DC 48 V, 10 mA)
- INPUT INST jacks (L/MONO, R): 1/4 in. phone type
- INPUT AUX jack: Stereo miniature phone type
- MAIN OUTPUT jacks (L/MONO, R): 1/4 in. phone type
- SUB OUTPUT jacks (L/MONO, R): 1/4 in. phone type
- PHONES jack: Stereo 1/4 in. phone type
- CTL 1,2/EXP 2 jack: 1/4 in. TRS phone type
- CTL 3,4/EXP 3 jack: 1/4 in. TRS phone type
- USB connector
- MIDI connectors (IN/OUT/THRU) * MIDI synchronization is possible with other RC-300 devices or when RC-300 is set to master, DC IN jack (DC 9 V)
- Power Supply: DC 9 V (AC adaptor)
- Current Draw: 320 mA (DC 9 V)
- Dimensions (W x D x H): 536 x 231 x 76 mm / 21-1/8 x 9-1/8 x 3 in.
- Weight: 3.9 kg / 8 lbs. 10 oz.
- Accessories:
- Owner's Manual
- AC adaptor
- USB cap
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 10.75 lbs
Shipping Dimensions: 27 x 13 x 7 in
Manufacturer Part Number (MPN): RC-300
If you have additional warranty questions, please contact the manufacturer at 323-890-3700

Boss RC-300 Loop Station Pedal

With loop mania sweeping the globe, BOSS proudly announces the most powerful Loop Station ever brought to the market - the Boss RC-300. The flagship looper features three synchronized stereo tracks with dedicated volume knobs and transport-control footswitches for each track. It's also equipped with pro effects, a master Expression pedal, and a deluxe, ultra-wide control panel for the ultimate in live-performance manipulation. Plug in your guitar, bass, keyboard, or instrument of choice and create amazing loops in real time. An XLR input is also provided, complete with phantom power, so singers, percussionists, violinists, beatboxers, or anyone with a mic'd instrument can get in on the act, too.

The Boss RC-300 lets you record for up to three hours directly to its internal memory, adding effects as you go. The USB port lets you save your loops externally, as well as import/export WAV files. Step into the most powerful and inspiring Loop Station in Boss history. It's the creative powerhouse that musicians have been dreaming of!

Features:

- Three stereo tracks with dedicated footswitches and controls for each
- Dedicated fader per track
- Expression pedal for effects control in real time
- Up to three hours of internal recording and 99 onboard memories
- 16 onboard effects optimized for looping
- XLR Microphone input with phantom power
- USB storage; import/export WAV files

Triple Stereo Loops

Create, stack, and manipulate multi-layered loops with the RC-300's three stereo tracks - each track being independently controllable. The "Auto Recording" feature starts recording the moment you begin playing your instrument, or as soon as you start a connected audio player. Count-In mode gives you one-bar of rhythm before recording starts. You can Undo/Redo as you go. The sky's the limit with three hours of recording time!

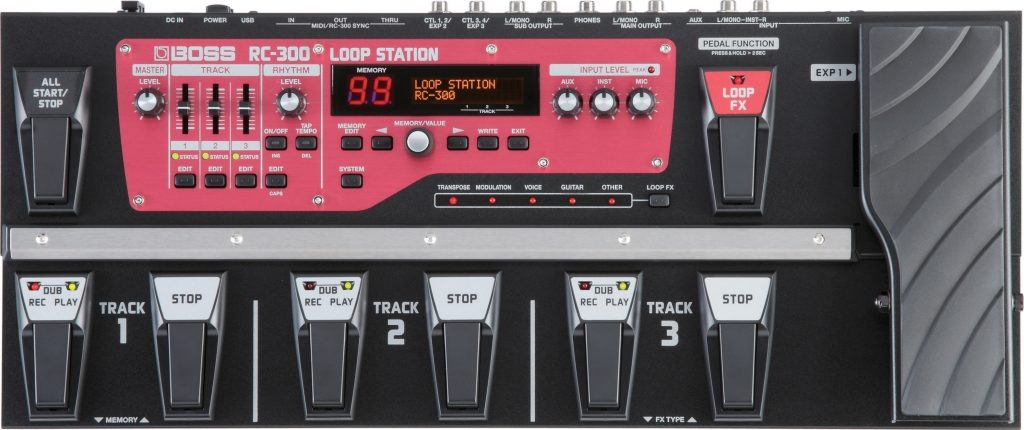

Expanded Pedalboard

The RC-300's ultra-wide pedalboard is equipped with an Expression pedal (which can be assigned to a variety of parameters) and enlarged footswitches for controlling REC/PLAY and STOP for each track. There's also a master ALL START/STOP footswitch onboard. Additionally, three independent faders provide immediate control of each track's output volume. And if that's not enough control under your hands and feet, you can also connect external Expression pedals and footswitches (sold separately).

Onboard FX

Process your tracks and external-input signals with the RC-300's expressive onboard effects, including Transpose, Flanger, Phaser, Modulator, vocal effects, and more. A dedicated Loop FX footswitch is provided for instant activation of the onboard effects. Control the effects parameters in real time with the Expression pedal for hands-free creativity onstage. You can apply the effects to any single track as well as to the entire mix, expanding your creativity and musical expression.

Rhythm Guide and Preloaded Audio

To keep your loops tight and in time, you can play along with one of the cool rhythm patterns in the RC-300's onboard library as you record; the Loop Quantize feature helps you having your recordings looped in time. Dozens of rhythm types are onboard, including rock, pop, shuffle, Latin, and more. A dedicated knob lets you adjust the volume of the rhythm, and you can set the tempo incrementally or via tap tempo. You can also specify the time signature. When you save a phrase, the rhythm type and time signature will also be saved. To get you up and running right away, the RC-300 comes preloaded with audio backing tracks (including bass tracks, piano tracks, etc.) for instant play-along performance and fun.

USB Connectivity

Connect the RC-300 to your computer via a standard USB cable, and back up your phrases externally for safekeeping. You can import and export WAV files between your computer and the RC-300; 16-bit/44.1kHz WAV files of up to 1.7GB in size can be used.
(11 ratings)
Submitted April 12, 2015 by Kurt S in Midlothian, VA
"BOSS RC 300 Loop Station"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Excellent product for many, many applications. The BOSS RC 300 can be set up to function in a way that best compliments your needs no matter what you have in mind. For me, I found the phrase memory parameters easy to program for a variety of templates. The RC 300 manual is straight forward and very simple to follow. I set up a generic phrase memory template for constructing songs/instrumentals. Track 1, track 2 and track 3 are programmed to work out verse/chorus/bridge song formats. The modular style record/playback and overdub allows me to find the best sequence for a new song. I can record a verse, a chorus and bridge with the ability to re-record if the first take isn't satisfactory. In a nut shell, this loop station is a real time tracking/overdub and mix session with the option of saving each project to a phrase memory. This phrase memory can be named in the RC 300 and then exported to a computer for future use as well as additional tweaks. I could go on forever writing about the RC 300 but choose to stop here. If you can think it then the RC 300 can make it happen. Another solid, complex yet user friendly noise toy from the BOSS team. Well done BOSS and thanks for making the creative process that much more enjoyable. A+++, get this loop station and be amazed.
Musical Background:
Guitar player 20+years, sound engineer tracking/mixing/mastering around 17 years and guitar builder 3-4 years.
Musical Style:
Any music made with actual instruments. Never been a big fan of electronic "in the box" music done %100 with a computer.
9 of 9 people (100%) people found this review helpful. Did you?
