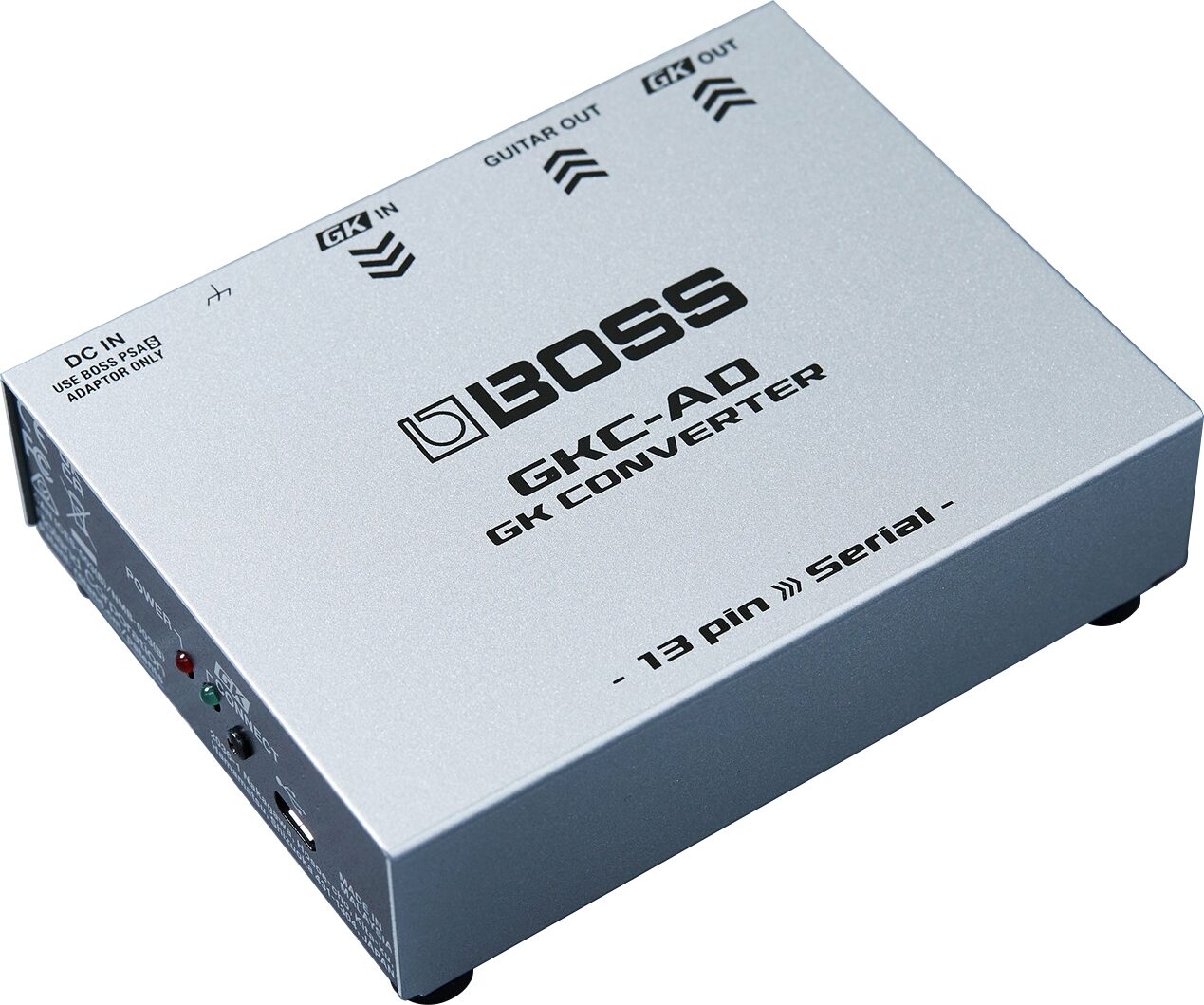

Boss GKC-AD 13-Pin to Serial GK Converter

Got an instrument with a 13-pin GK output? The GKC-AD box converts 13-pin signals to the Serial GK digital format used by Roland/Boss synths like the GM-800.

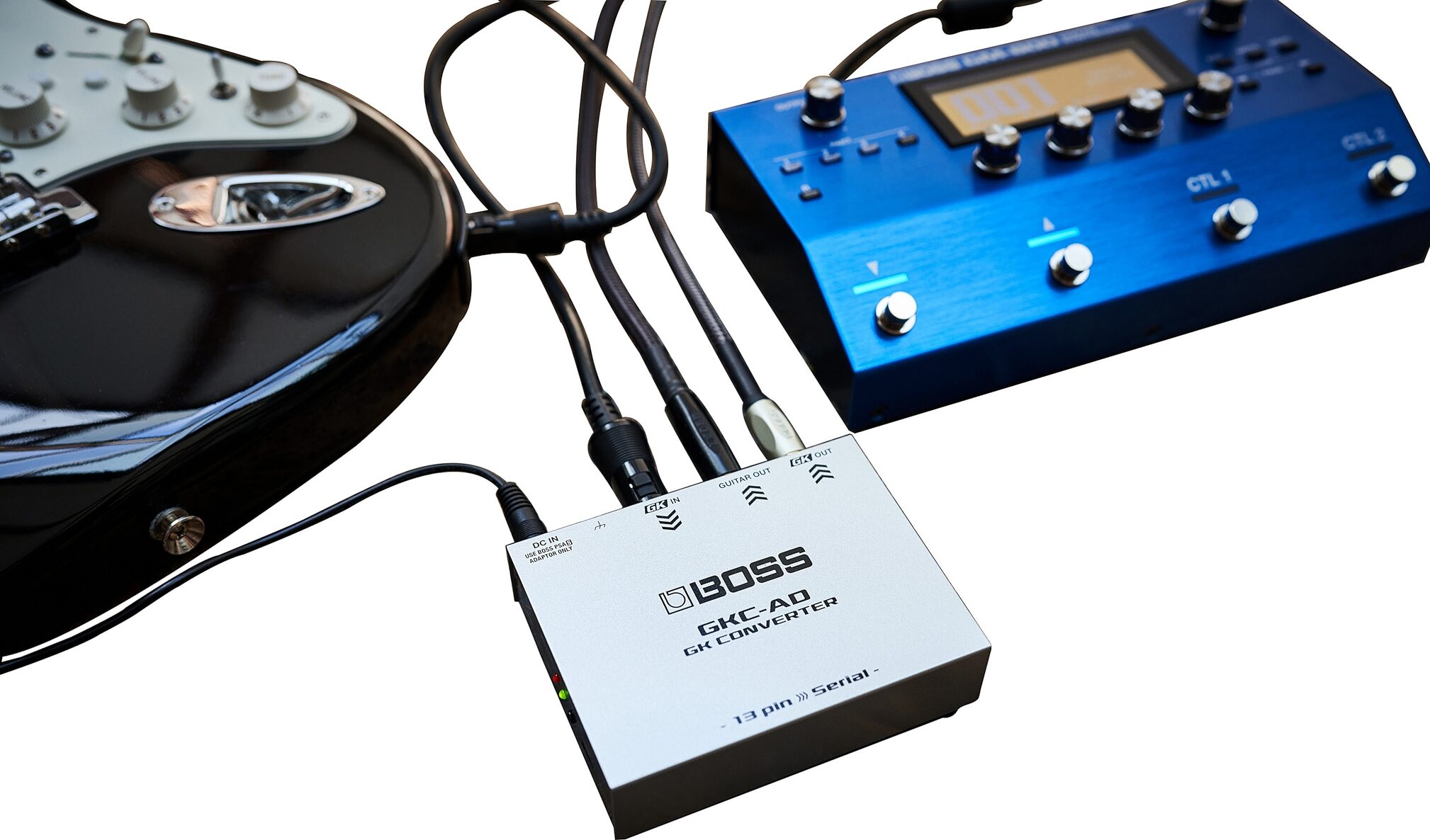

The latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-AD GK Converter allows you to drive the Serial GK input on the GM-800 Guitar Synthesizer from a Roland GK-3 or GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output.


- Converts analog 13-pin GK pickup systems to the newly developed Serial GK digital interface
- 13-pin GK input and Serial GK output
- Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection
- Compact and rugged metal design
- The GKC-AD enables you to use the GK-3/GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output with the following BOSS products: GM-800 Guitar Synthesizer

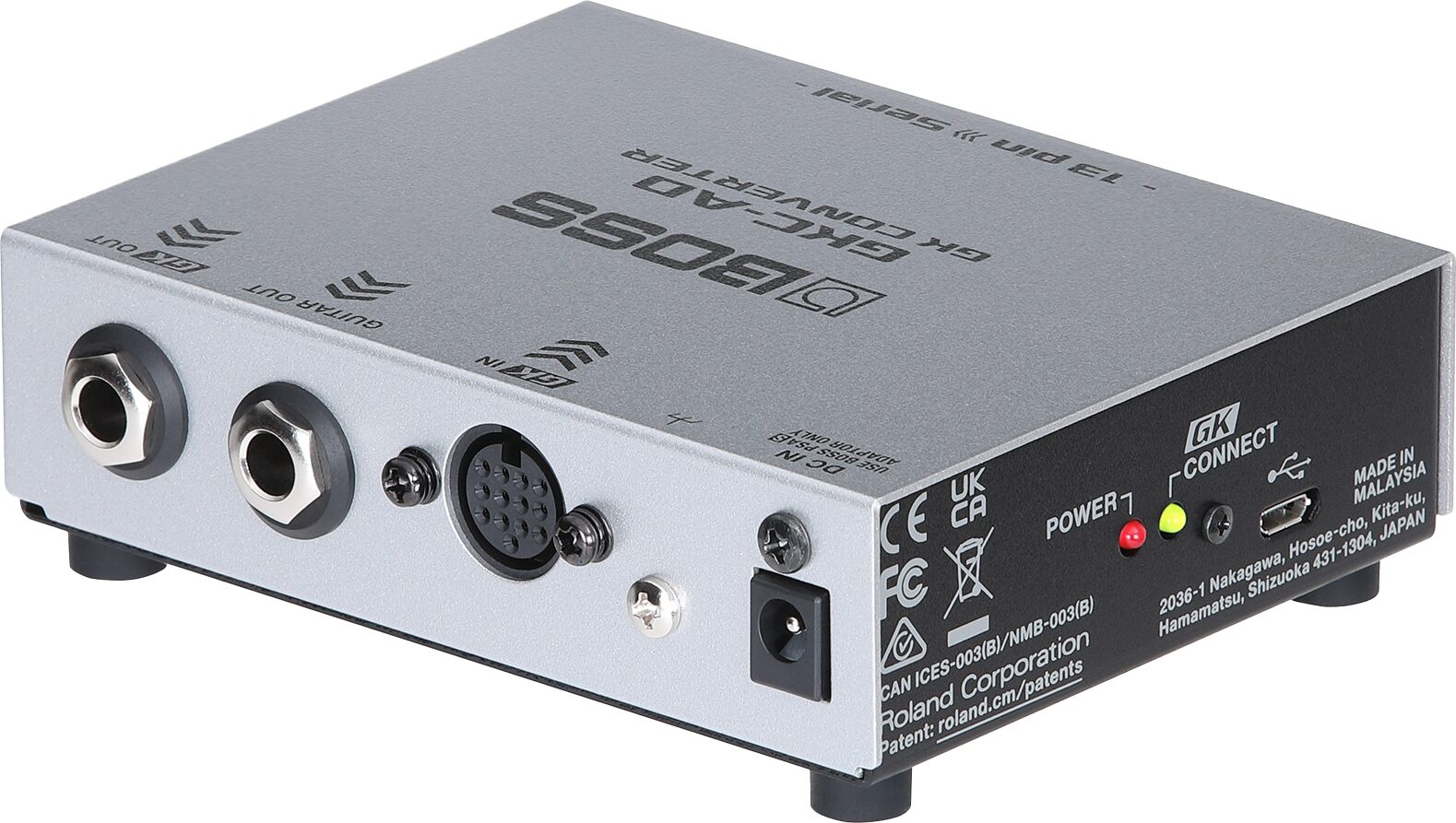

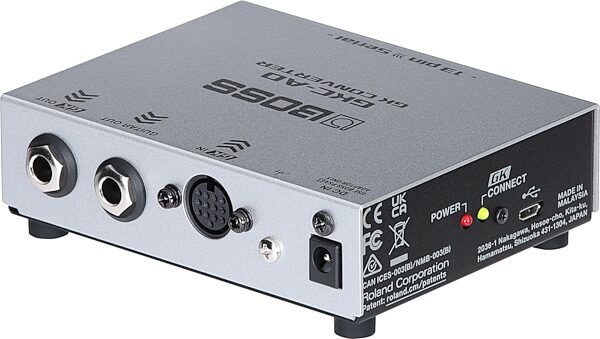

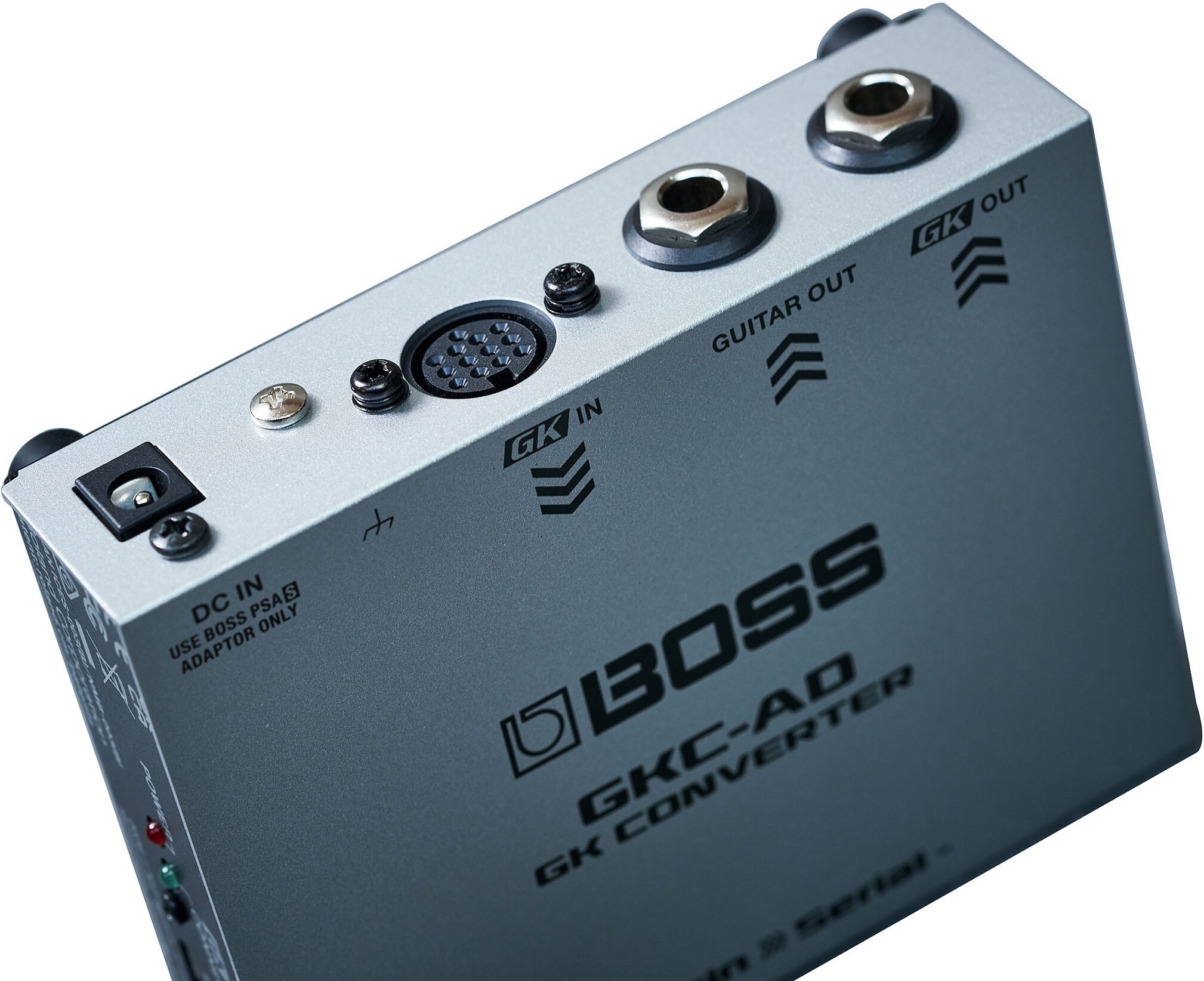

- GK IN connector: 13 pins DIN type
- GK OUT jack: 1/4-inch TRS phone type (for BGK cable only)
- GUITAR OUT jack: 1/4-inch phone type
- DC IN jack USB port: USB Micro-B (program update only)
- Nominal Output Level GUITAR OUT: -10 dBu
- Recommended Load Impedance GUITAR OUT: 10 k ohms or greater

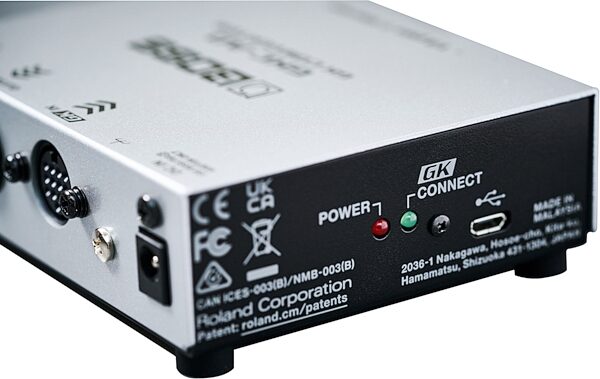

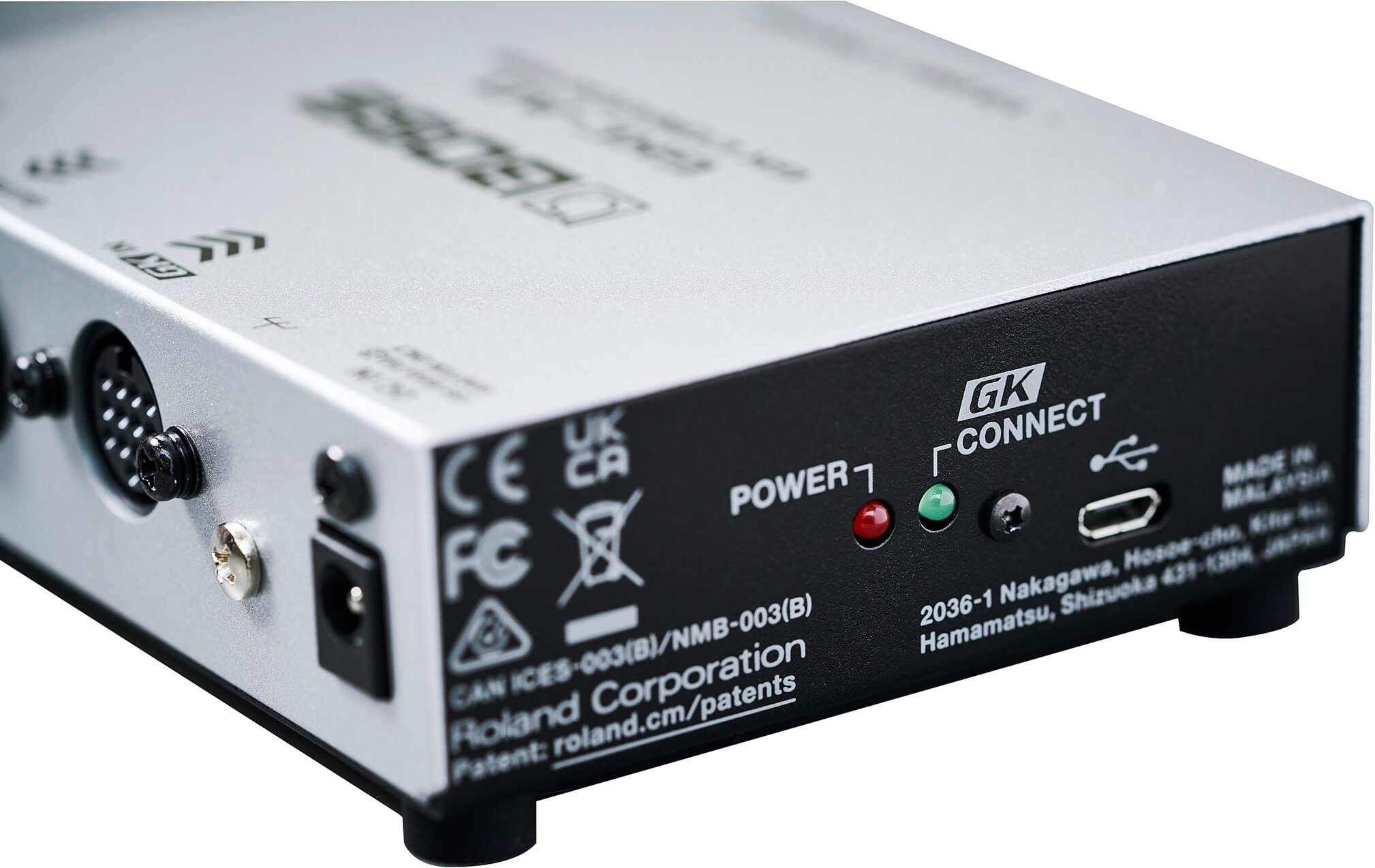

- Indicators: POWER indicator, GK CONNECT indicator
- Current Draw: 240 mA
- Power Supply: AC adaptor
- Dimensions: 115(W) x92 (D) x 36 (H) mm (4-17/32 (W) x 3-5/8 (D) x 1-7/16 (H) inches)
- Weight (excluding AC adaptor): 340 g (12 oz)
- Accessories: AC adaptor, Owner's Manual, Leaflet "USING THE UNIT SAFELY"
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.43 lbs
Shipping Dimensions: 6 x 5 x 5 in
Manufacturer Part Number (MPN): GKC-AD
