Controls

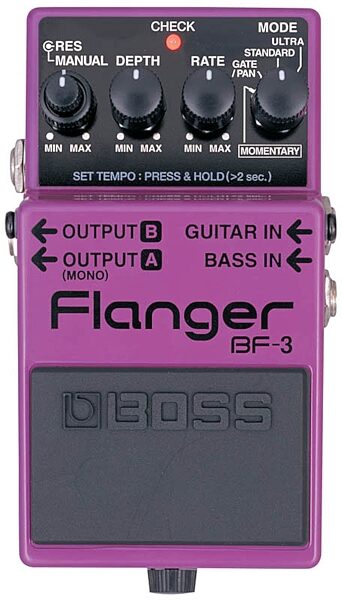

- Pedal Switch, MANUAL Knob, RES (resonance) Knob, DEPTH Knob, RATE Knob, MODE Knob
- CHECK Indicator (Serves also as tempo and battery check indicator)
Connectors
- GUITAR IN Jack, BASS IN Jack, OUTPUT A (MONO) Jack, OUTPUT B Jack, AC adaptor Jack (DC 9 V)
- Power Supply: DC 9 V: Dry battery (9 V type), AC Adaptor (PSA-series: optional)
- Current Draw: 40 mA (DC 9 V)
AC Adaptor: PSA-Series (Not included)
- Nominal Input Level: 20 dBu
- Input Impedance: 1 M ohms
- Nominal Output Level: 20 dBu
- Output Impedance: 1 k ohms
- Recommended Load Impedance: 10 k ohms or greater
- Delay Time: 0.3 mS to 14.4 ms (GUITAR IN), 0.3 ms to 6.3 ms (BASS IN)
- LFO Speed: 100 mS to 18 S
- Residual Noise: -95 dBu (IHF-A Typ.)
- Dimensions and Weight in Packaging
- Base Item
-
Shipping Weight: 1.25 lbs
-
Shipping Dimensions: 6 x 4 x 3 in
-
Manufacturer Part Number (MPN): BF-3
