Black Lion Audio PBR TRS3-LIT 48-Point LED Patchbay

zZounds Gear Experts Say...
Stop fumbling around with scribble strips -- the Black Lion PBR TRS3-LIT illuminates your patchbay connections and saves you studio time.

Eliminate confusion when routing your racks of precious gear with the PBR TRS3-LIT patchbay. Built to proven Black Lion Audio standards of build quality and signal conductivity, the PBR TRS3-LIT features customizable, brightly-lit LED displays for every front panel connection point. Simply connect a USB keyboard directly to your LIT to customize the displays, or use the included PatchCAD software to create custom text to export directly to your patchbay using the same USB port. With PBR TRS3-LIT, you'll have an easier time routing your signals while adding instant vibe to your studio. Save the labels and markers for your next yard sale.

Features:

- 48-Point gold-plated TRS Patchbay with 3-way switching and customizable LED displays

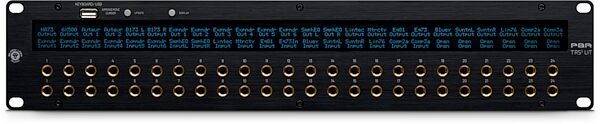

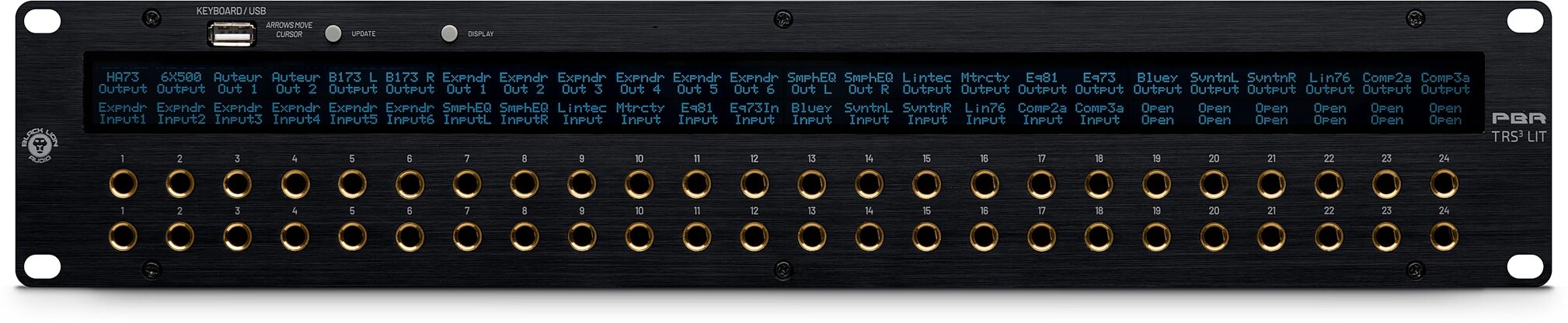

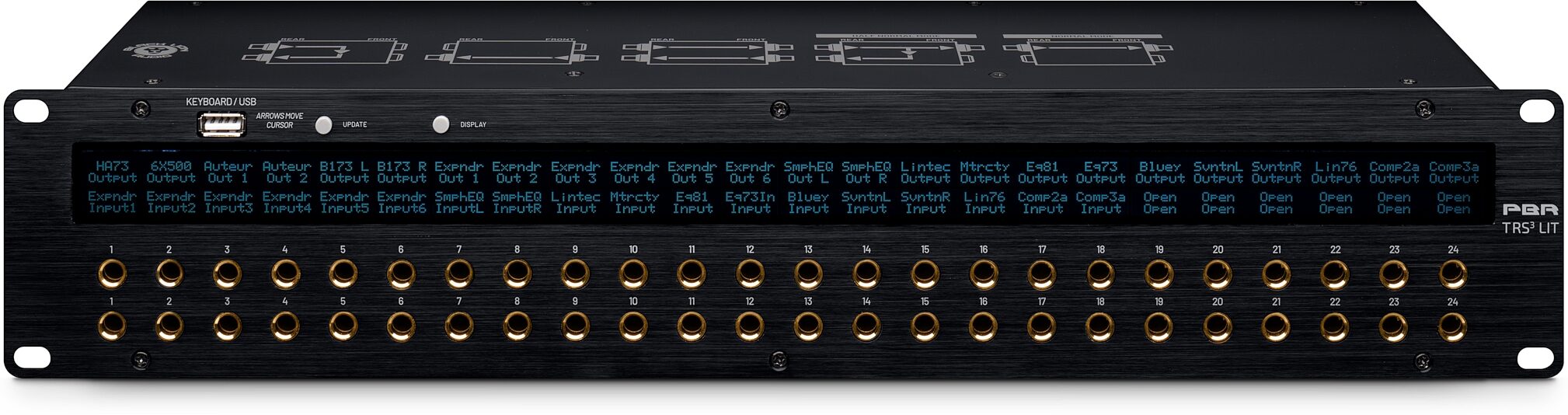

- 48 bright, user-definable LED displays
- 96 audiophile-grade gold-plated 1/4" TRS connectors

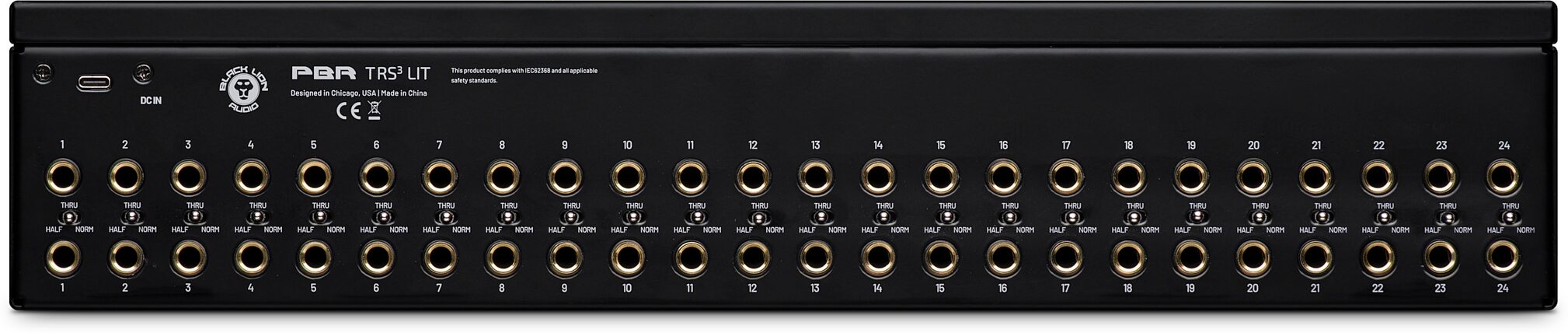

- Rear-mounted 3-way mode switches for Normal, Half-normal, and Thru operation
- Black-anodized aluminum faceplate and reinforced steel chassis
- Exceptional value for the price

Functional, customizable, and good-lookin'.
PBR TRS3-LIT's LED displays support up to 12 characters per channel to describe your connections. To customize the displays, you have two options: simply connect a USB keyboard to the front of the unit and start typing...or you can use the included PatchCAD software to customize the LED displays on your computer, and export them to a USB drive to load directly into the unit.

Bright, User-Definable LED Displays
PatchCAD (Mac/Win) read more lets you customize your LED displays using a quick, familiar spreadsheet-like interface. Simply type out how you want your displays to appear, export the file to a USB drive, and connect the USB drive to your LIT patchbay and press the Update button.

Studio grade connectivity
Your studio needs more than just accessible patching -- exceptional audio quality through the entire signal path is crucial! Black Lion has been improving already-great gear through their modification service for years, and they've channeled all that know-how straight into the PBR TRS3-LIT.

The PBR TRS3-LIT is a 48-point TRS patchbay suitable for the most robust routing imaginable in a single rack space, loaded with 96 audiophile-grade gold-plated 1/4" TRS connectors for maximum conductivity and signal clarity. You'll easily interconnect your preamps and other outboard hardware via its audiophile-grade, secure connections.

Limitless flexibility and road-worthy construction
You'll reconfigure your entire studio's routing at a moment's notice (while cutting down on cable clutter! The rear-mounted 3-way mode switches allow for Normal, Half-normal, and Thru operation, delivering unlimited routing potential for mults, bypassing, monitoring, and parallel processing. Black Lion's team of engineers have worked tirelessly to ensure that the PBR TRS3 delivers proper quality through-and-through. The PBR TRS3-LIT is also built Black Lion-tough, with a reinforced steel chassis and black-anodized aluminum faceplates that make for a matched and sophisticated look.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

Dimensions and Weight in Packaging
Base Item
Shipping Weight: 9.9 lbs
Shipping Dimensions: 23 x 9 x 7 in
Manufacturer Part Number (MPN): pbrtrs3lit
