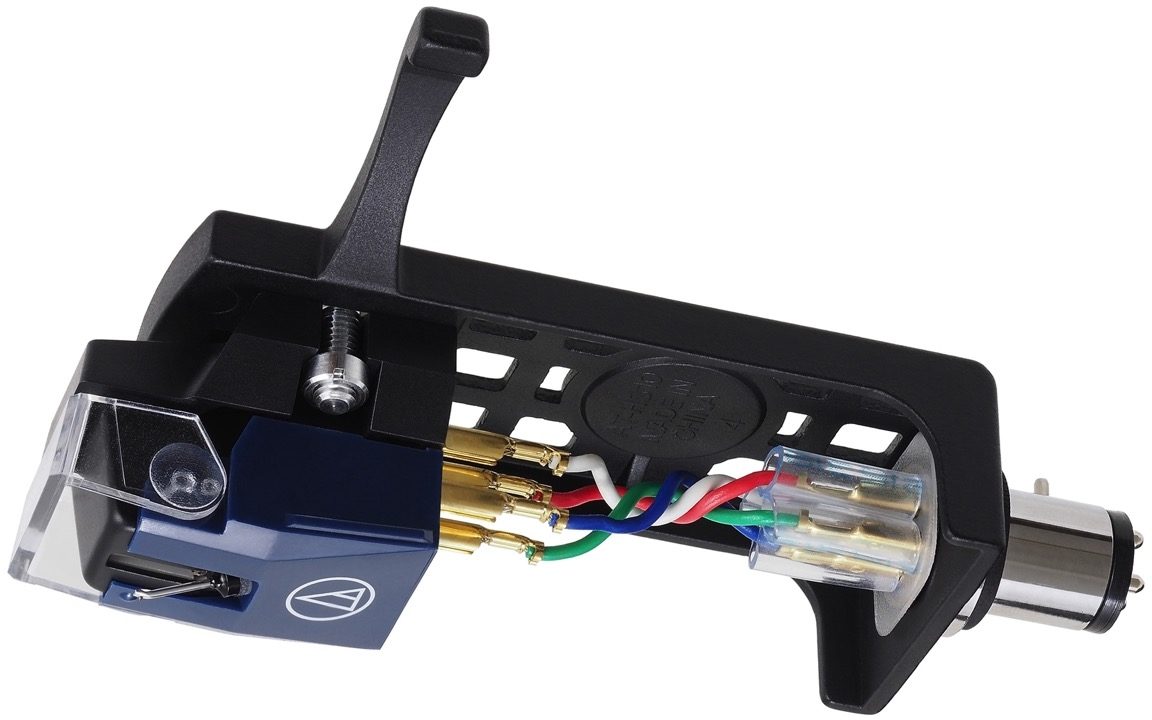

Audio-Technica VM520EBH Phono Turntable Cartridge with Headshell

Including a VM520 elliptical bonded cartridge and an AT-HS10BK headshell, Audio-Technica's VM520EBH combo kit lets you easily upgrade your turntable's sound.
The VM520EB/H combo kit includes the VM520EB elliptical bonded dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2"-mount headshell. The Audio-Technica VM520EB is part of the 500 Series in their VM cartridge line -- a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.


- VM dual-magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminum cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Durable low-resonance polymer cartridge housing
- Universal 1/2"-mount headshell for 4-pin turntable cartridges
WARNING: Cancer and Reproductive Harm -
- Frequency Response: 20-23,000 Hz
- Channel Separation: 27 dB (1 kHz)
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 4.5 mV (at 1 kHz, 5 cm/sec)
- Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum pipe
- Mount: Half-inch
- Replacement Stylus: VMN20EB
- Coil Impedance: 2,700 ohms (1 kHz)
- DC Resistance: 800 ohms
- Load Capacitance: 100-200 pF
- Coil Inductance: 460 mH (1 kHz)
- Static Compliance: 35 x 10-6 cm/dyne
- Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)
- Vertical Tracking Angle: 23*
- Dimensions (Cartridge) (Hx W x D): 17.3 x 17.0 x 28.2 mm / 0.7 x 0.7 x 1.1"
- Weight (Cartridge): 6.4 g (0.2 oz)
- Dimensions (Cartridge & Headshell) (H x W x D): 21.3 x 21.0 x 60.4mm / 0.8 x 0.8 x 2.4"
- Weight (Cartridge & Headshell): 16.8 g (0.6 oz)
- Accessories Included: Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.25 lbs
Shipping Dimensions: 4 x 3 x 2 in
Manufacturer Part Number (MPN): AUD VM520EBH
