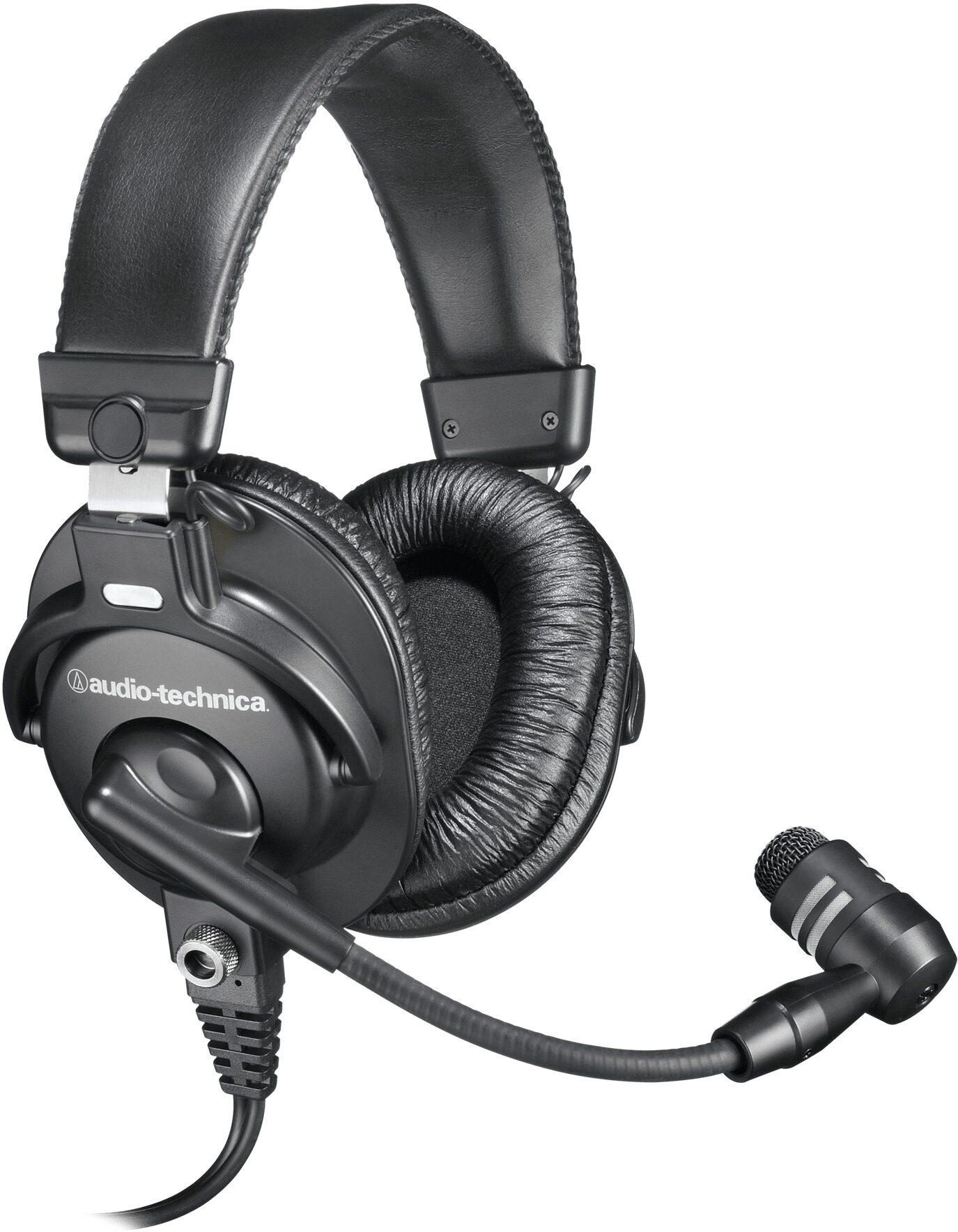

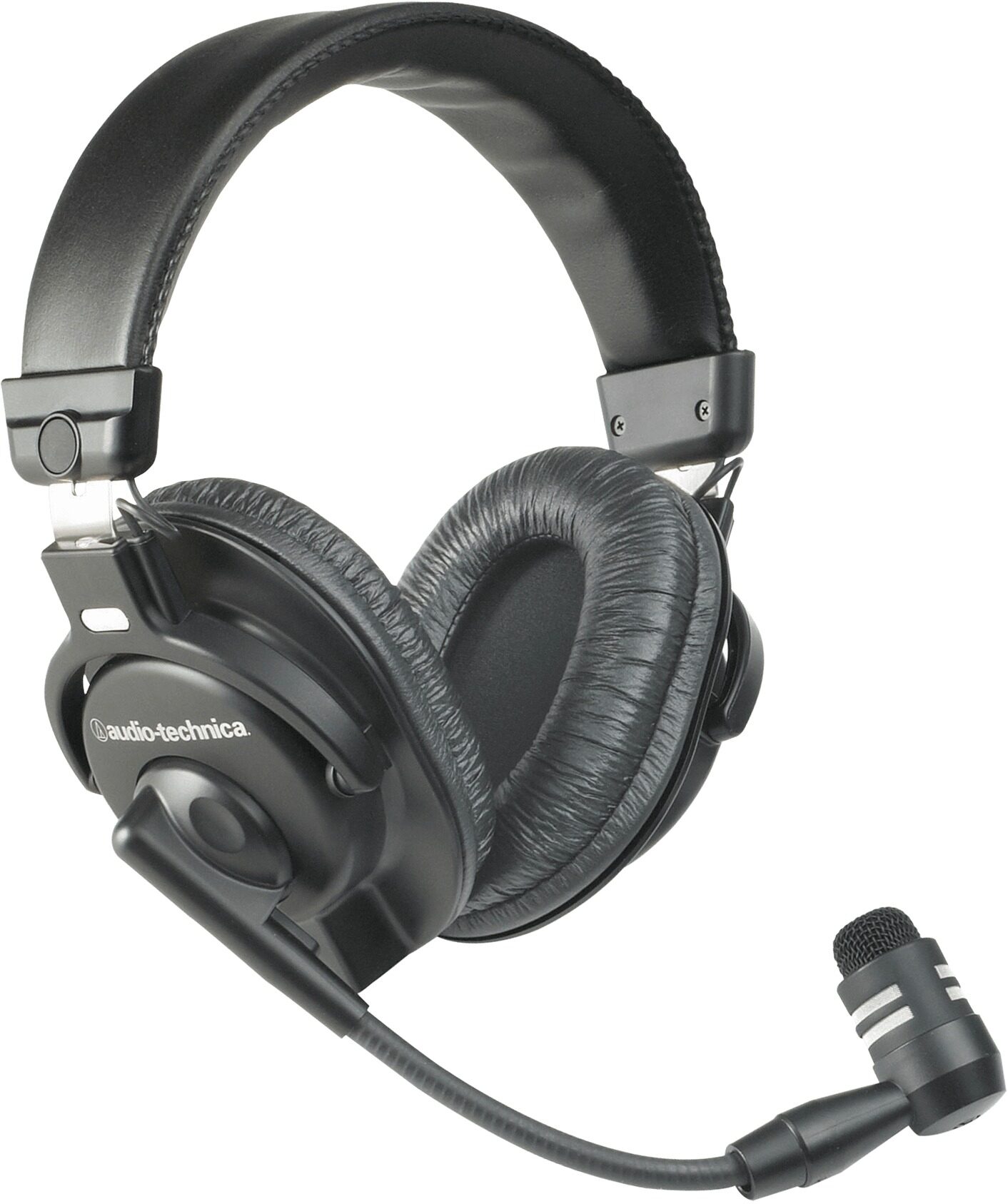

Audio-Technica BPHS1-XF4 Broadcast Stereo Headset

Designed for use with intercom systems, this robust communications headset has a dynamic cardioid mic, closed-back earcups, and a BPCB4 4-pin XLR connector.

Created especially for on-air news & sports broadcasting, announcing & interviews, the Audio-Technica BPHS1-XF4 stereo headset offers natural, highly intelligible and focused vocal reproduction, closed-back circumaural (around-the-ear) ear cups to seal out background noise, and a high-output dynamic microphone mounted on a flexible gooseneck boom. BPHS1-XF4 model includes detachable cable (BPCB4) terminated in 4-pin XLRF-type connector for use with intercom systems.

The headset's microphone has a cardioid polar pattern tailored for pickup of speech with maximum voice intelligibility over a wide range of frequencies. It is more sensitive to sound originating directly in front of the element, making it useful in reducing pickup of unwanted sounds. The flexible gooseneck boom swivels for easy positioning on either the right or left side.


- Microphone features polar pattern and frequency response tailored for natural, highly intelligible vocal reproduction
- Closed-back circumaural ear cups help seal out crowd noise and other background distractions
- Neodymium magnets in microphone and headphones for high output level & detailed sound reproduction
- Cardioid pickup pattern of the dynamic microphone rejects off-axis sounds
- Boom-mounted microphone can be positioned on the left or right side
- Adjustable cushioned headband and lightweight design for long-wearing comfort
- Rugged design with user-replaceable cable and ear pads

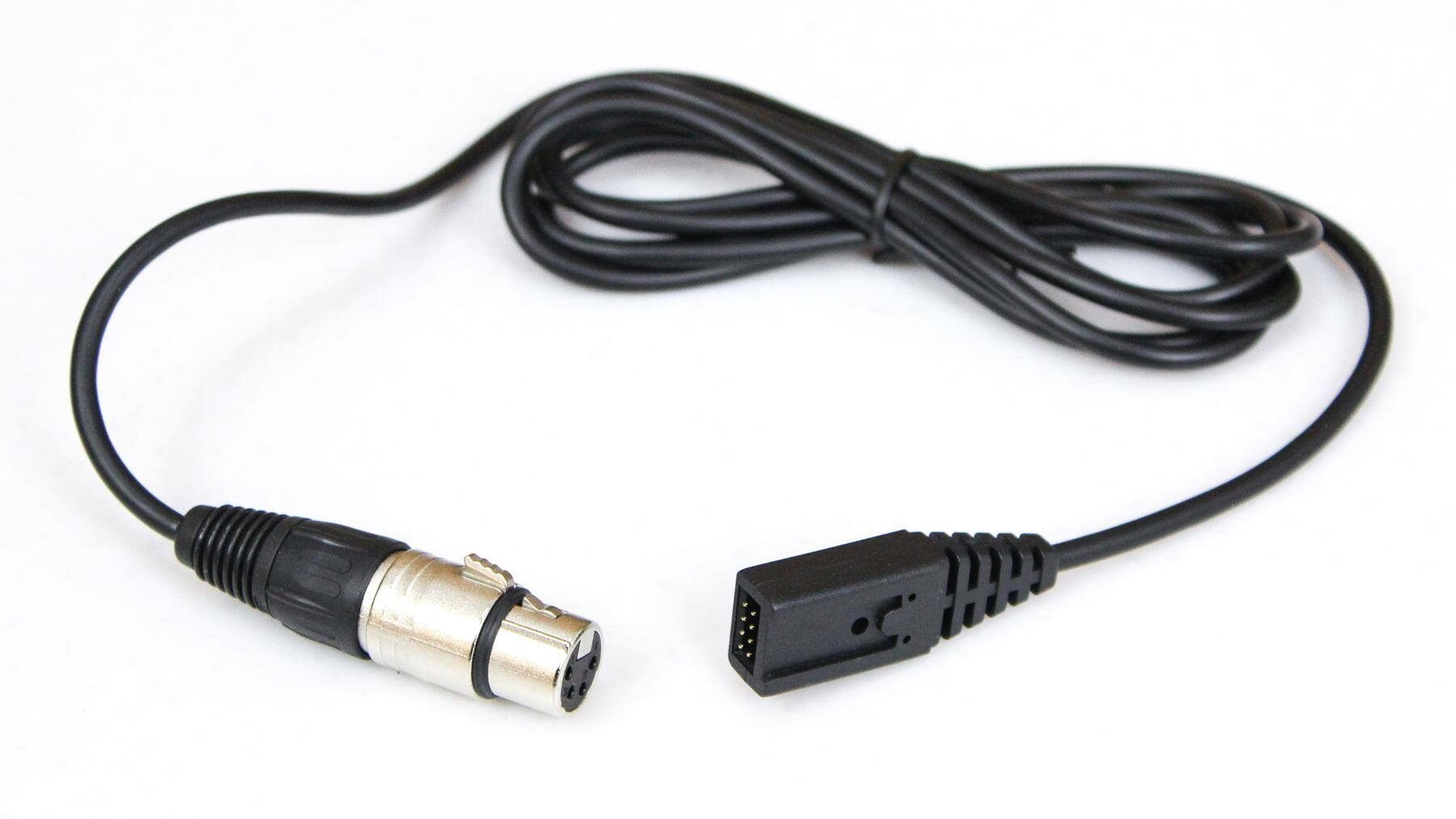

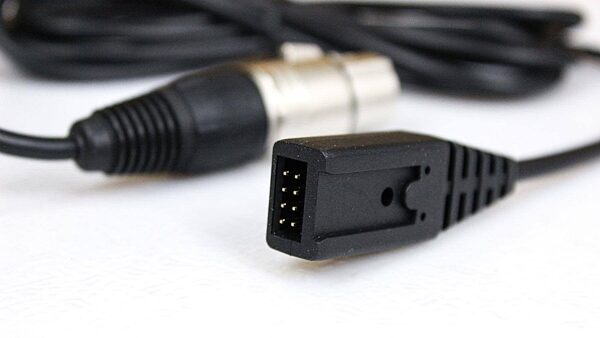

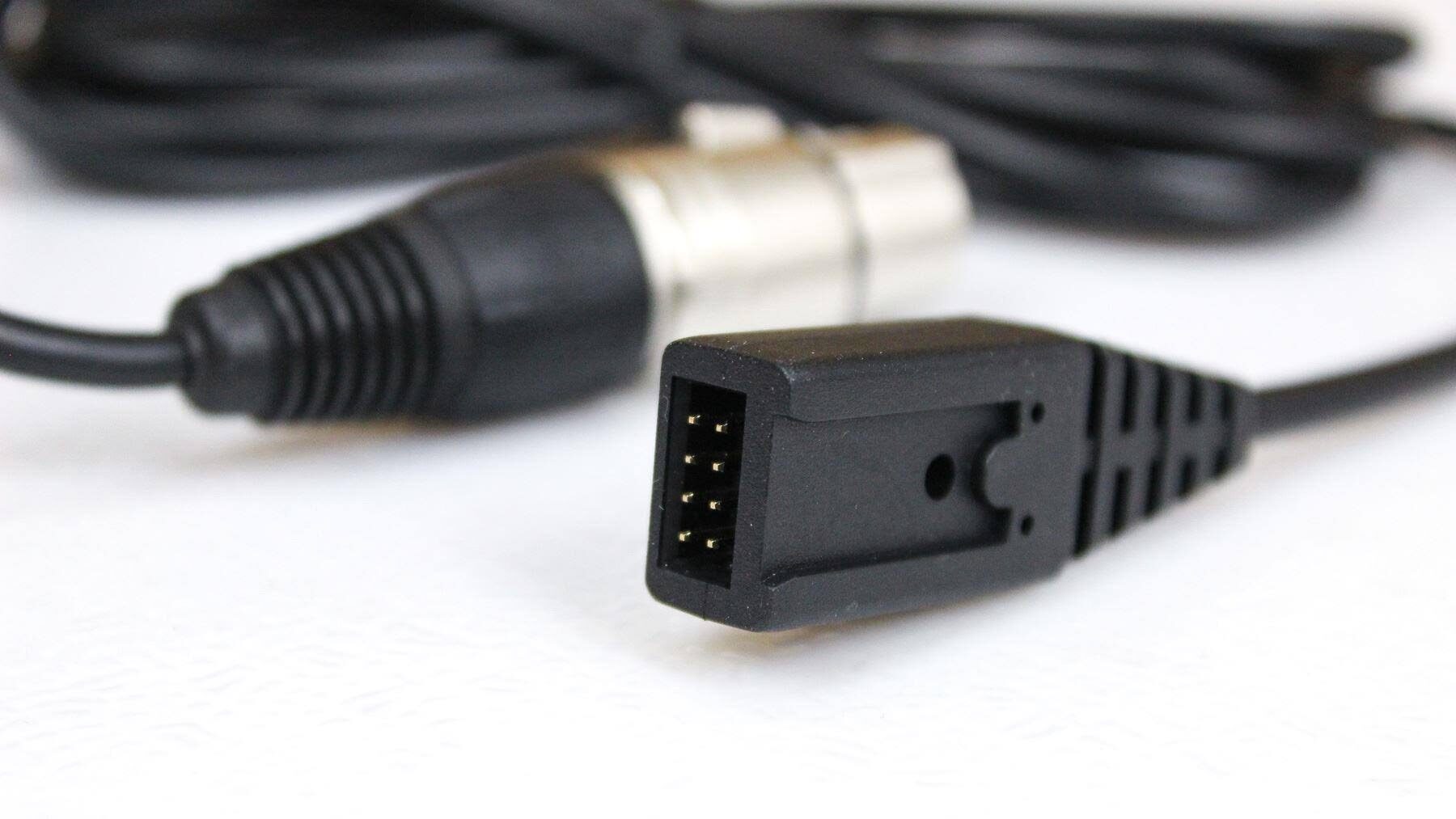

- BPHS1-XF4 model includes detachable read more cable (BPCB4) terminated in 4-pin XLRF-type connector for use with intercom systems
WARNING: Cancer and Reproductive Harm -
read less

Type: Closed-back Dynamic (Headphone), Cardioid Dynamic (Microphone)
Driver Diameter: 40 mm (Headphone)
Frequency Response: 20-20,000 Hz (Headphone), 40-20,000 Hz (Microphone)
Maximum Input Power: 1,600 mW at 1 kHz
Sensitivity: 100 dB (Headphone); -57 dB (1.4 mV) re 1V at 1 Pa (Microphone)
Dimensions and Weight in Packaging
4-pin XLRF-Type
Shipping Weight: 1.25 lbs
Shipping Dimensions: 10 x 8 x 4 in
Manufacturer Part Number (MPN): BPHS1-XF4

For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000

4-pin XLRF-Type
