Audio-Technica AT-XP3 DJ Phonograph Cartridge

With a tracking force of 2 to 4 grams and carbon fiber-reinforced ABS cantilever, this Audio-Technica AT-XP3 cartridge is an easy upgrade for your turntable.

The Audio-Technica AT-XP3 cartridge is specially designed for DJs. It features a highly rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Features

- 0.6 mil conical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 5.5 mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Frequency Response: 20-18,000 Hz
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 5.5 mV (1 kHz, 5 cm/sec.)
- Channel Balance: 2.0 dB (1 kHz)

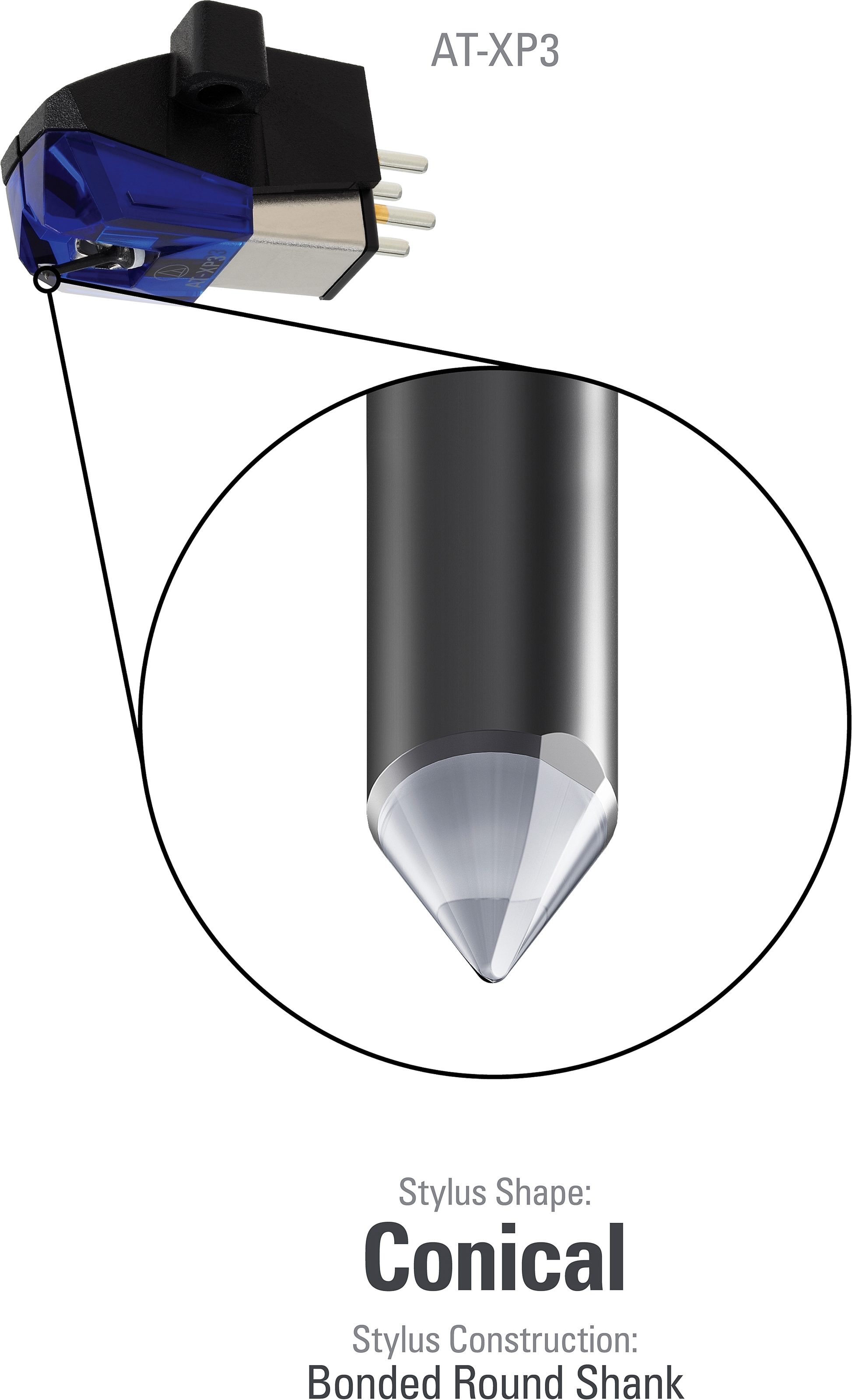

- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Mount: Half-inch
- Replacement Stylus: ATN-XP3
- Coil Impedance: 6.7 k ohms (1 kHz)
- Recommended Load Capacitance: 100 to 200 pF
- Vertical Tracking Angle: 20"
- Dimensions: 17.2 mm (0.68") H x 17.8 mm (0.67") W x 28.3 mm (1.20") D
- Weight: 6.2 g (0.22 oz)

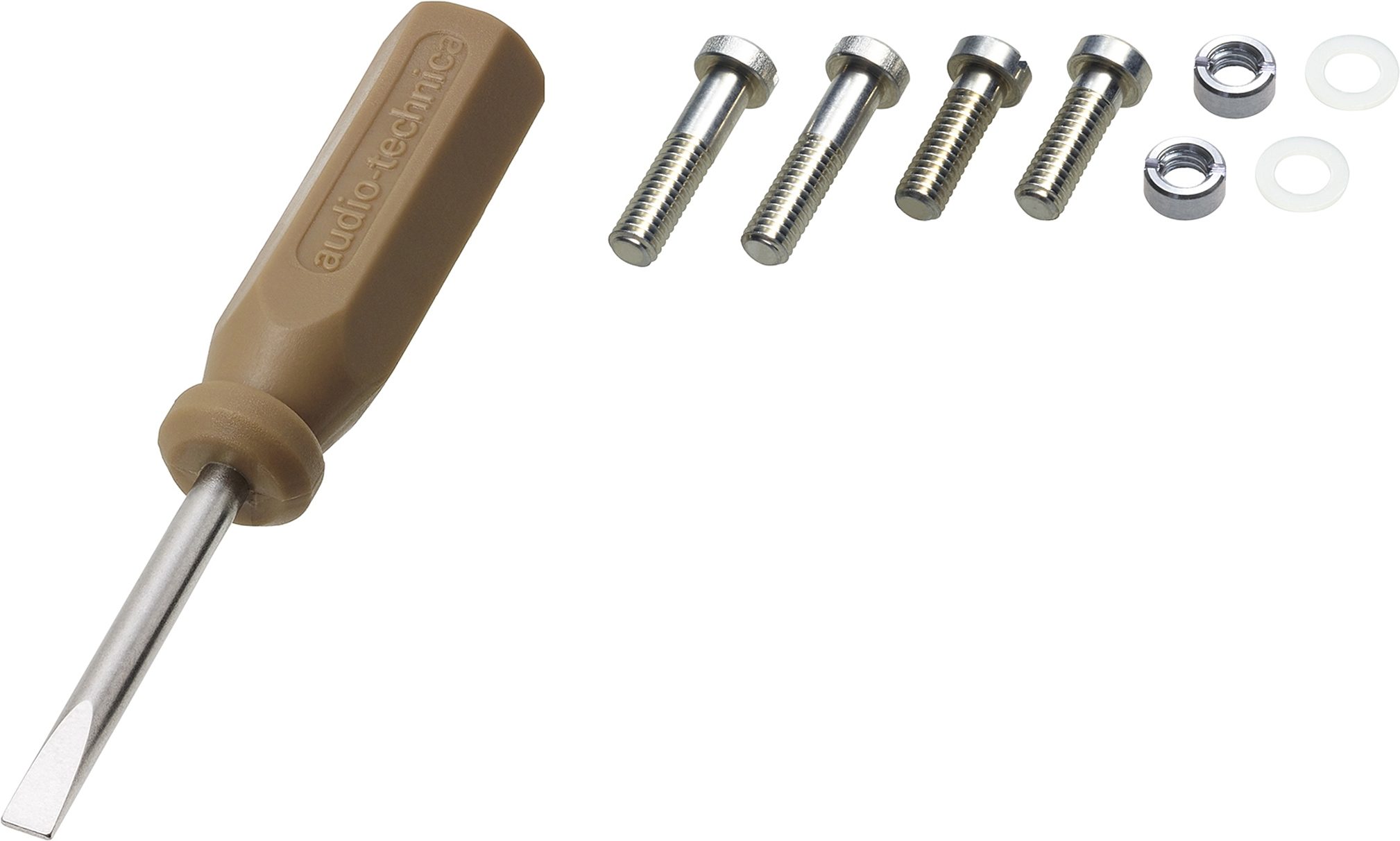

- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.25 lbs
Shipping Dimensions: 4 x 3 x 1 in
Manufacturer Part Number (MPN): AT-XP3
Warehouse Resealed, USED
Shipping Weight: 0.07 lbs
Shipping Dimensions: 4 x 3 x 1 in
Manufacturer Part Number (MPN): AT-XP3
