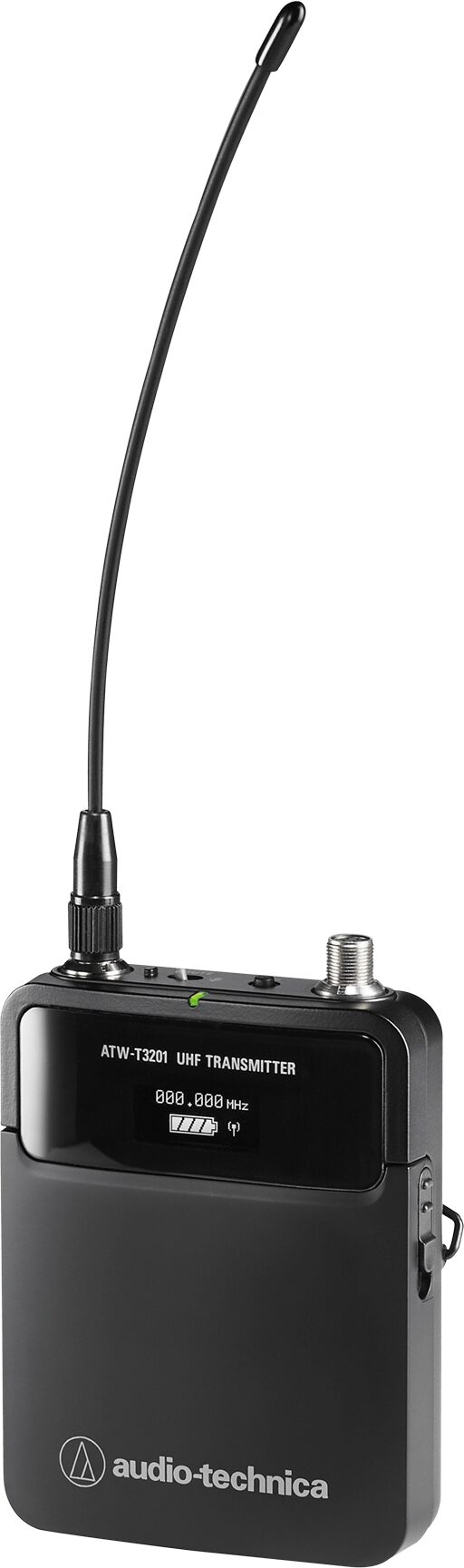

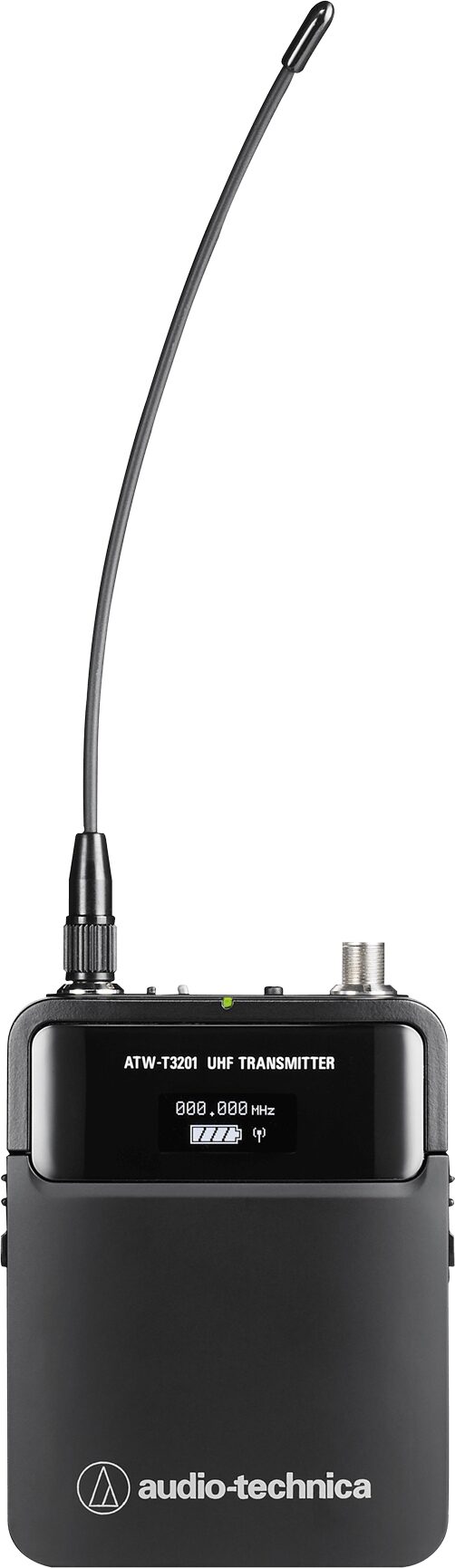

Audio-Technica ATW-T3201 3000 Series (Fourth Generation) Bodypack Transmitter

Audio-Technica ATW-T3201 3000 Series (Fourth Generation) Bodypack Transmitter, Current Edition, Band DE2 (470.125 - 529.975 MHz), Action Position Back

zZounds Gear Experts Say...

With easy backup-frequency switching for interference-free operation, the Audio-Technica ATW-T3201 bodypack transmitter ensures you never lose signal.

Overview

3000 Series (fourth generation) bodypack transmitter.

Features:

- Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Rugged cH-style connector provides a secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- OLED screens for optimal readout of key settings and alerts

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life: 8 - 9 hours (alkaline), 9 - 9.5 hours (Ni-MH 1900mAh), depending on battery type, usage and environmental conditions.
Battery Type: Two 1.5V AA, not included
Dimensions: 64 mm x 82 mm x 23 mm (W x D x H)
Input Connections: 4-Pin screw down cH-Style Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +5V

Dimensions and Weight in Packaging

Current Edition, Band DE2 (470.125 - 529.975 MHz)

Shipping Weight: 0.47 lbs
Shipping Dimensions: 10 x 3 x 2 in
Manufacturer Part Number (MPN): ATW-T3201ADE2

Open Box (Very Good), Current Edition, Band DE2 (470.125 - 529.975 MHz)

Shipping Weight: 0.47 lbs
Shipping Dimensions: 10 x 3 x 2 in
Manufacturer Part Number (MPN): ATW-T3201ADE2

Open Box (Like New), Current Edition, Band DE2 (470.125 - 529.975 MHz)

Shipping Weight: 0.47 lbs
Shipping Dimensions: 10 x 3 x 2 in
Manufacturer Part Number (MPN): ATW-T3201ADE2

Current Edition, Band EE1 (530 - 589.975 MHz)

Shipping Weight: 0.4 lbs
Shipping Dimensions: 11 x 3 x 2 in
Manufacturer Part Number (MPN): ATW-T3201AEE1

Open Box (Like New), Original Edition, Band DE2 (470.125 - 529.975 MHz)

Shipping Weight: 0.5 lbs
Shipping Dimensions: 11 x 3 x 2 in
Manufacturer Part Number (MPN): ATW-T3201DE2

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
