- Frequency Band: DE2: 470-530 MHz or EE1: 530-590 MHz
- Switching Bandwidth: 60 MHz
- Number of Channels: 2395 selectable frequencies
- Diversity Type: True diversity

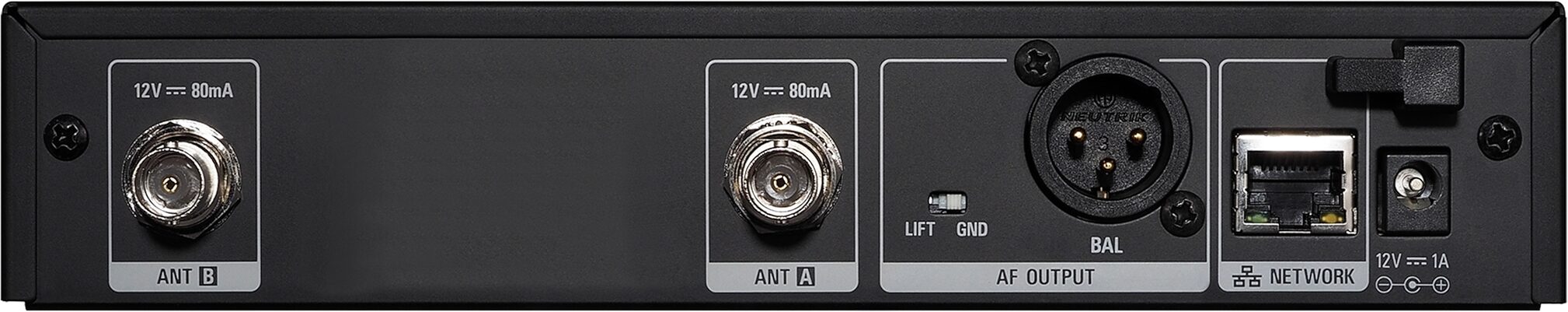

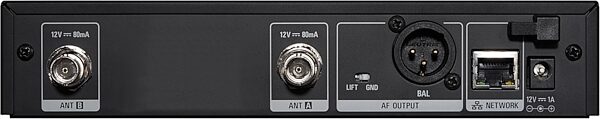

- Antenna Inputs: 2 BNC-type with 12V DC power
- Output Connectors: XLR3-32 type (balanced), 1/4" phone jack (unbalanced)
- Power Requirements: 12V DC via AC adapter
- Modulation Type: FM (Frequency Modulation)
- Frequency Spacing: 25 kHz

Dimensions and Weight in Packaging

Band DE2 (470.125 - 529.975 MHz)

• Shipping Weight: 5.32 lbs
• Shipping Dimensions: 15 x 14 x 3 in
• Manufacturer Part Number (MPN): ATW-R3210NDE2

Band EE1 (530.000 - 589.975 MHz)

• Shipping Weight: 4.92 lbs
• Shipping Dimensions: 15 x 13 x 3 in
• Manufacturer Part Number (MPN): ATW-R3210NEE1

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
