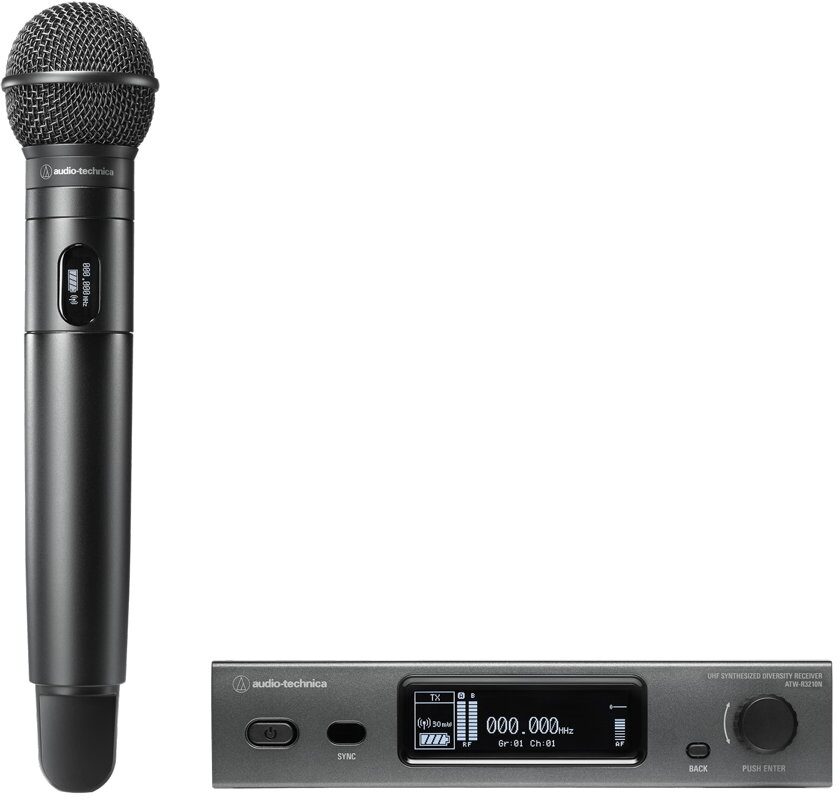

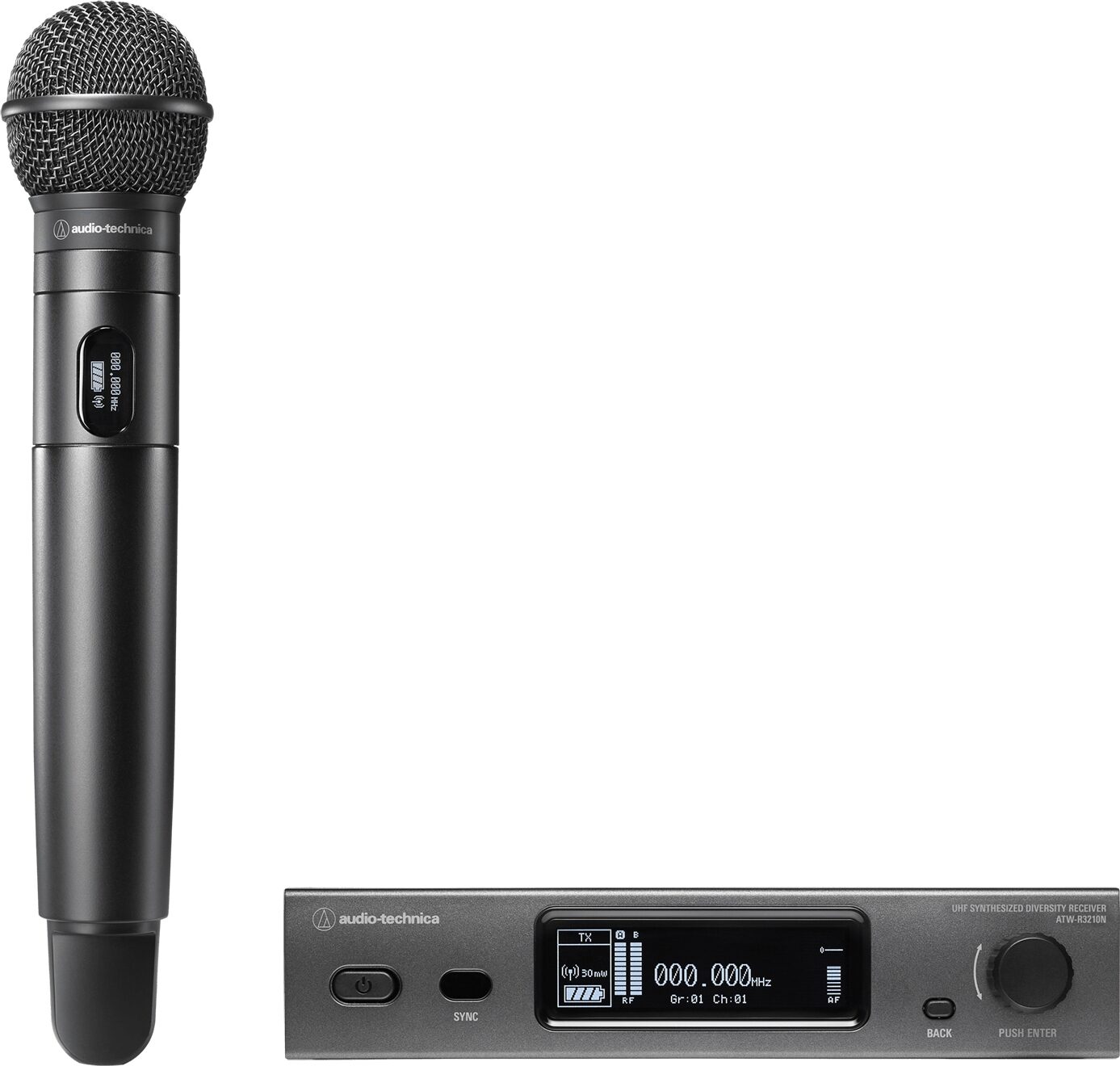

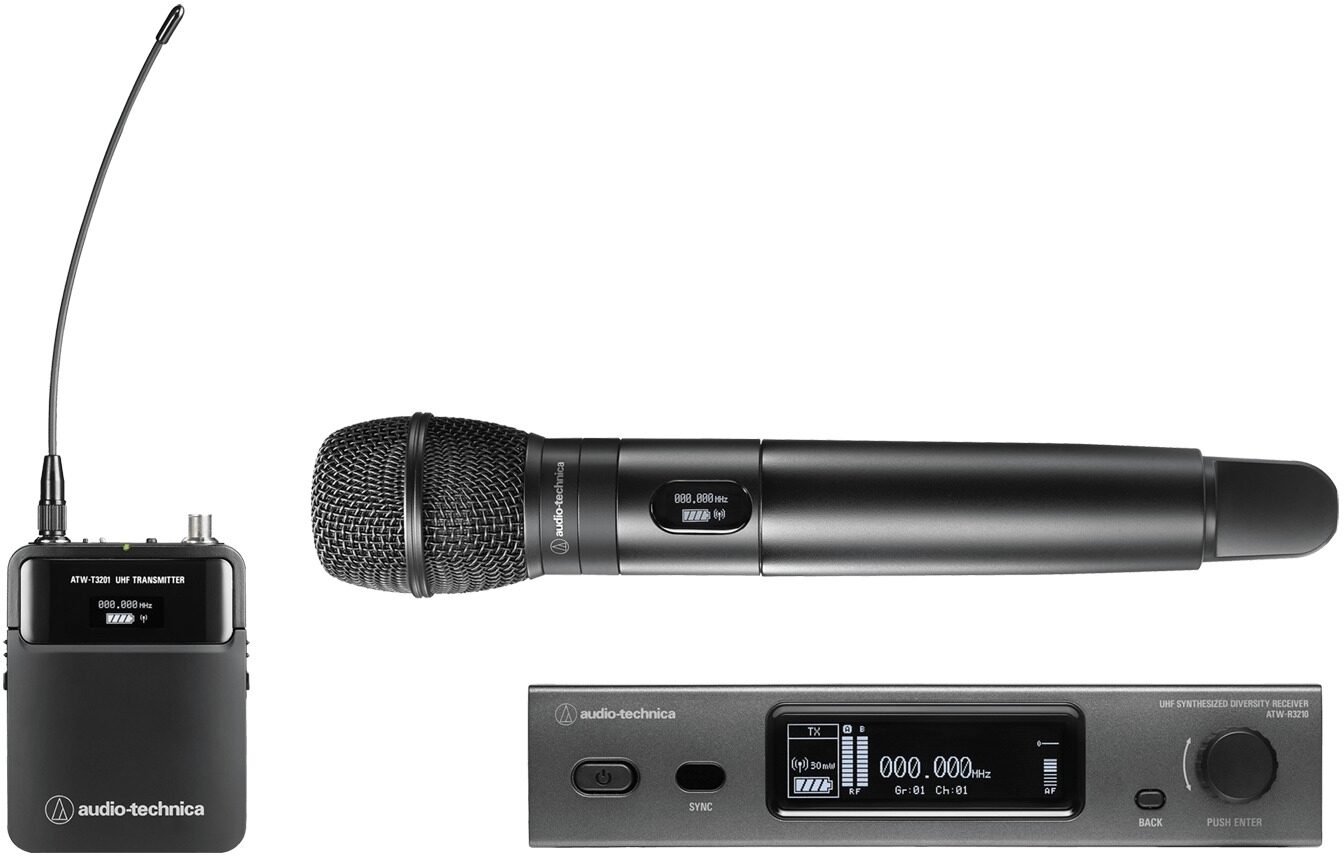

Audio-Technica ATW-3212NC510 3000 Series Wireless Handheld Microphone System (Network-Enabled)

With reliable operation and easy monitoring via Wireless Manager software, the ATW-3212NC510 3000 Series handheld mic system makes onstage wireless a cinch.
The Audio-Technica fourth-generation ATW-3212NC510 3000 Series wireless system gives you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands - DE2 (470-530 MHz) and EE1 (530-590 MHz) - that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models.

Features:

- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
- Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered

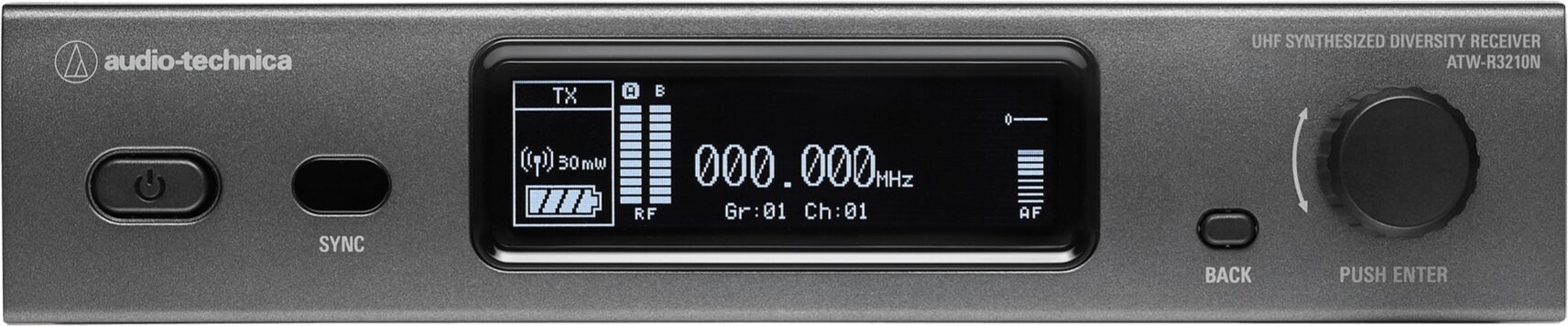

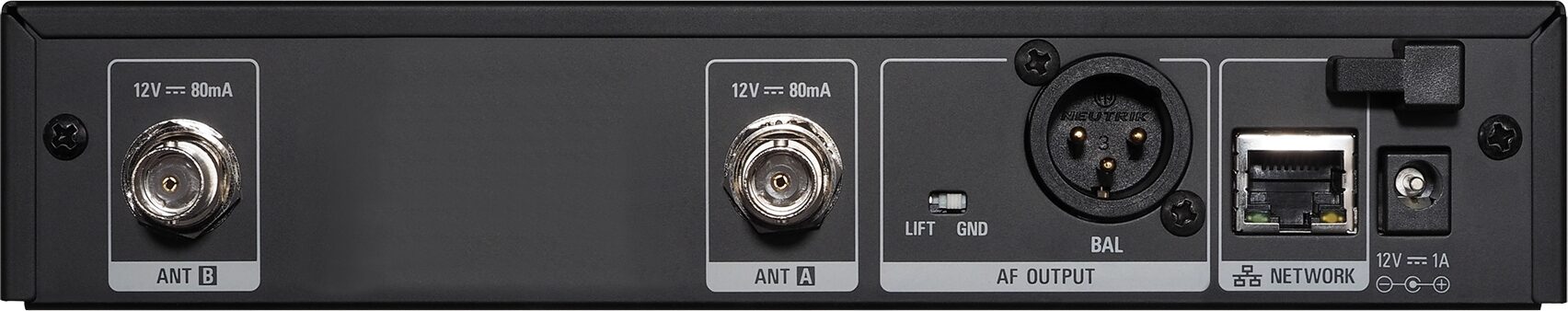

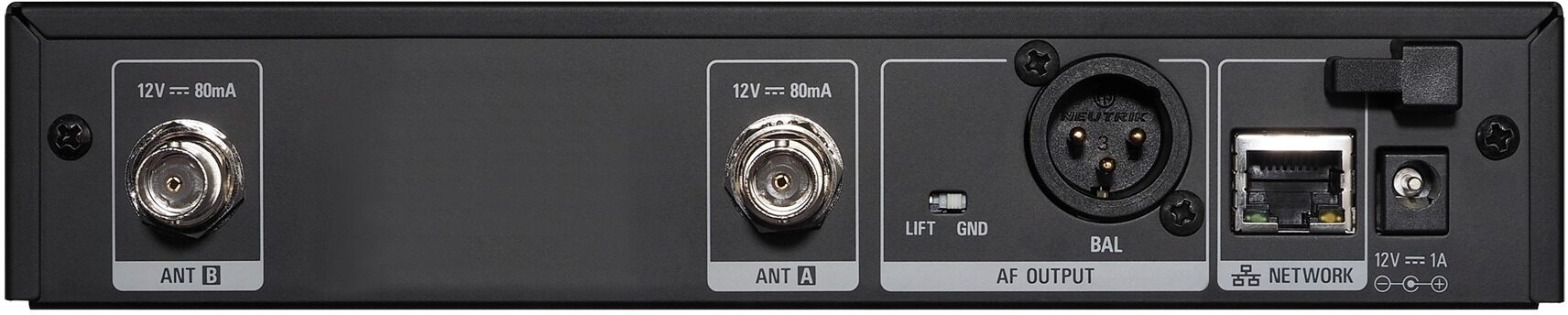

- Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software

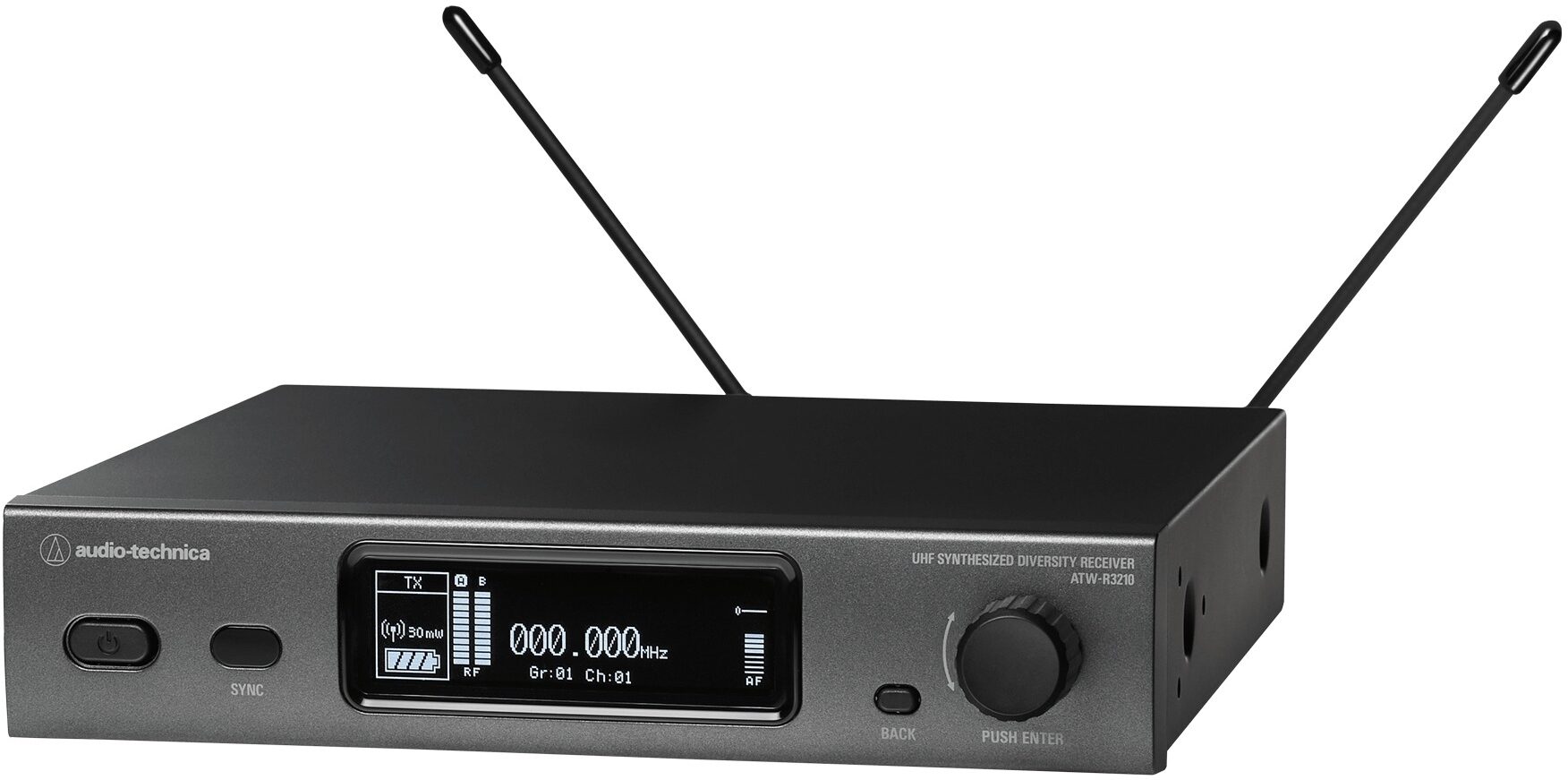

- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup

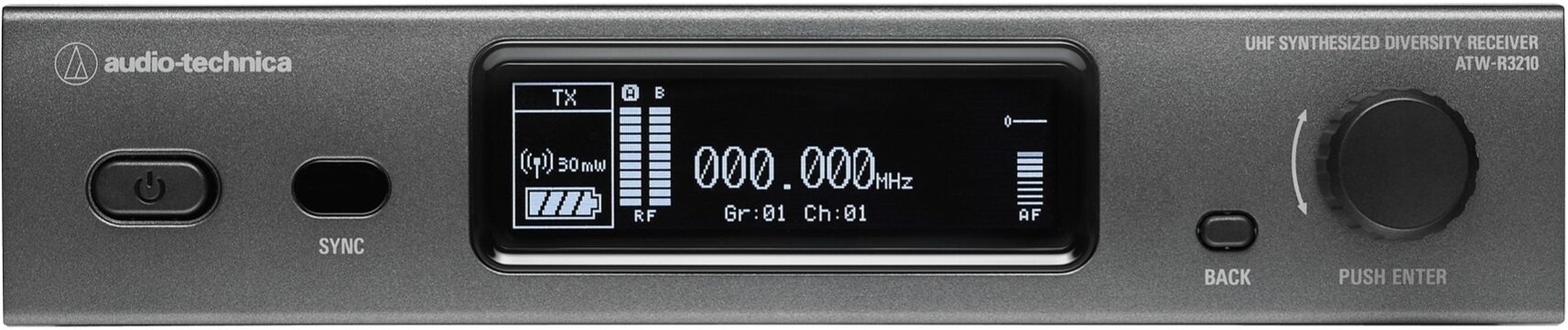

- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts

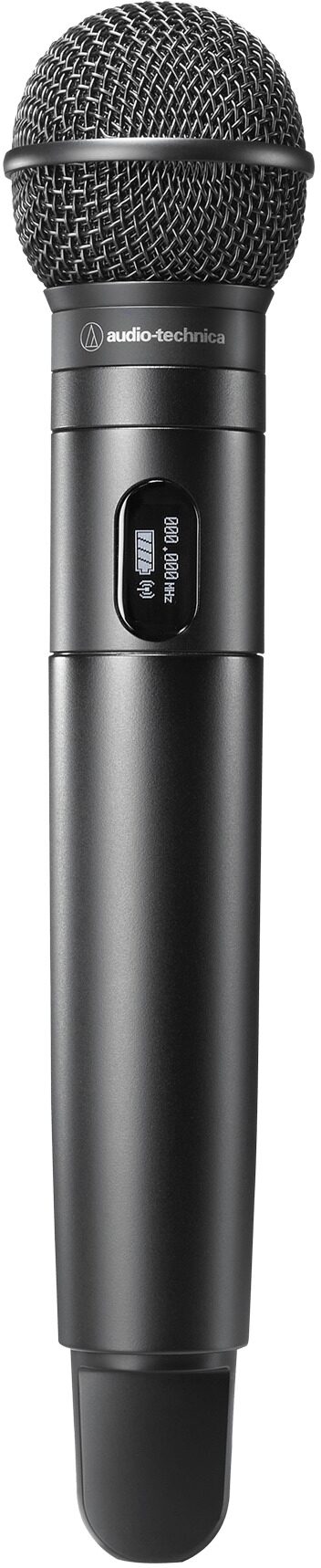

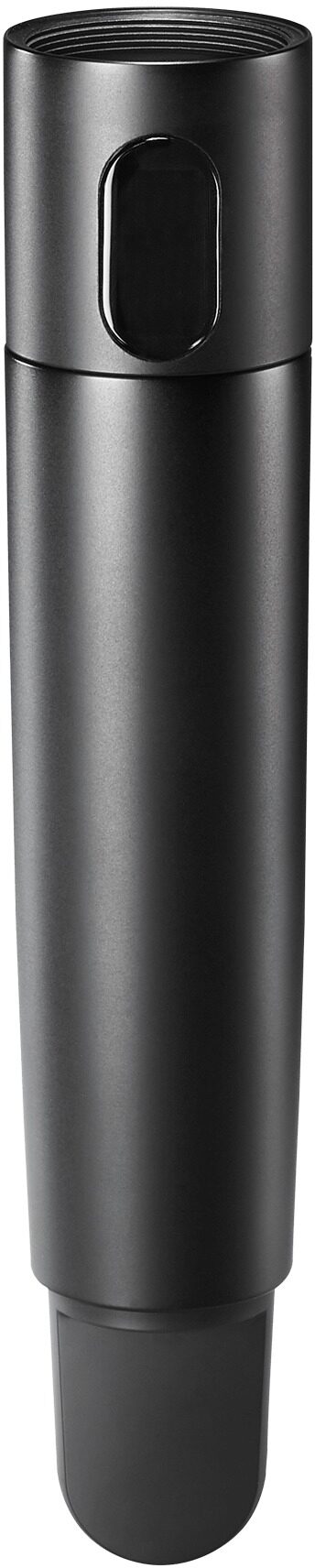

- Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount read more for use with six interchangeable A-T microphone capsules, as well as other compatible capsules

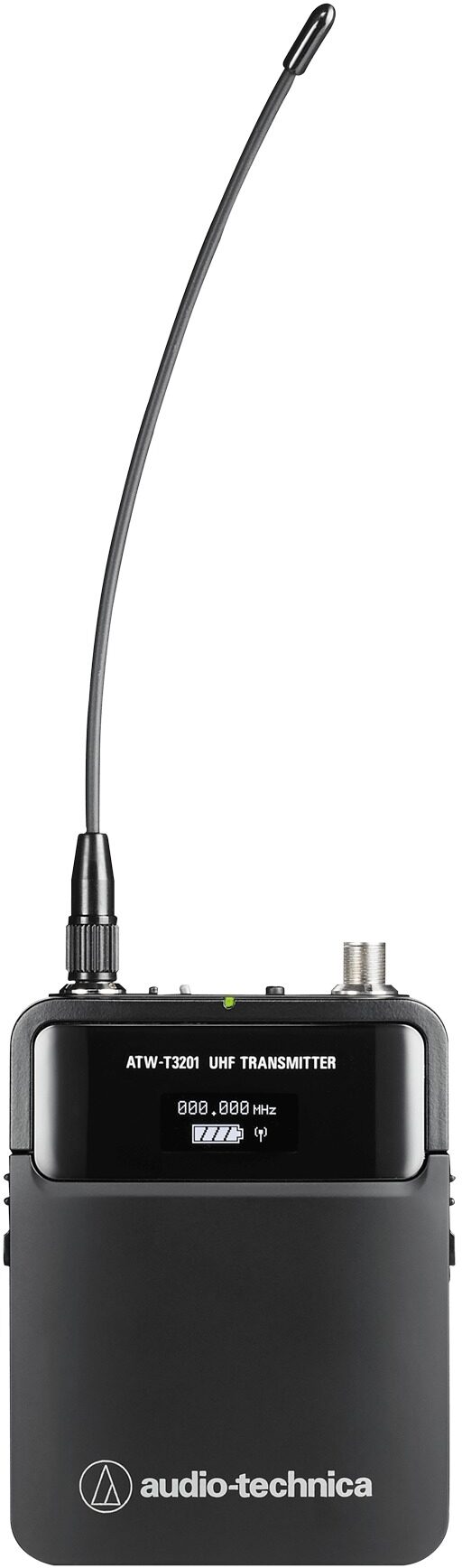

- New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible

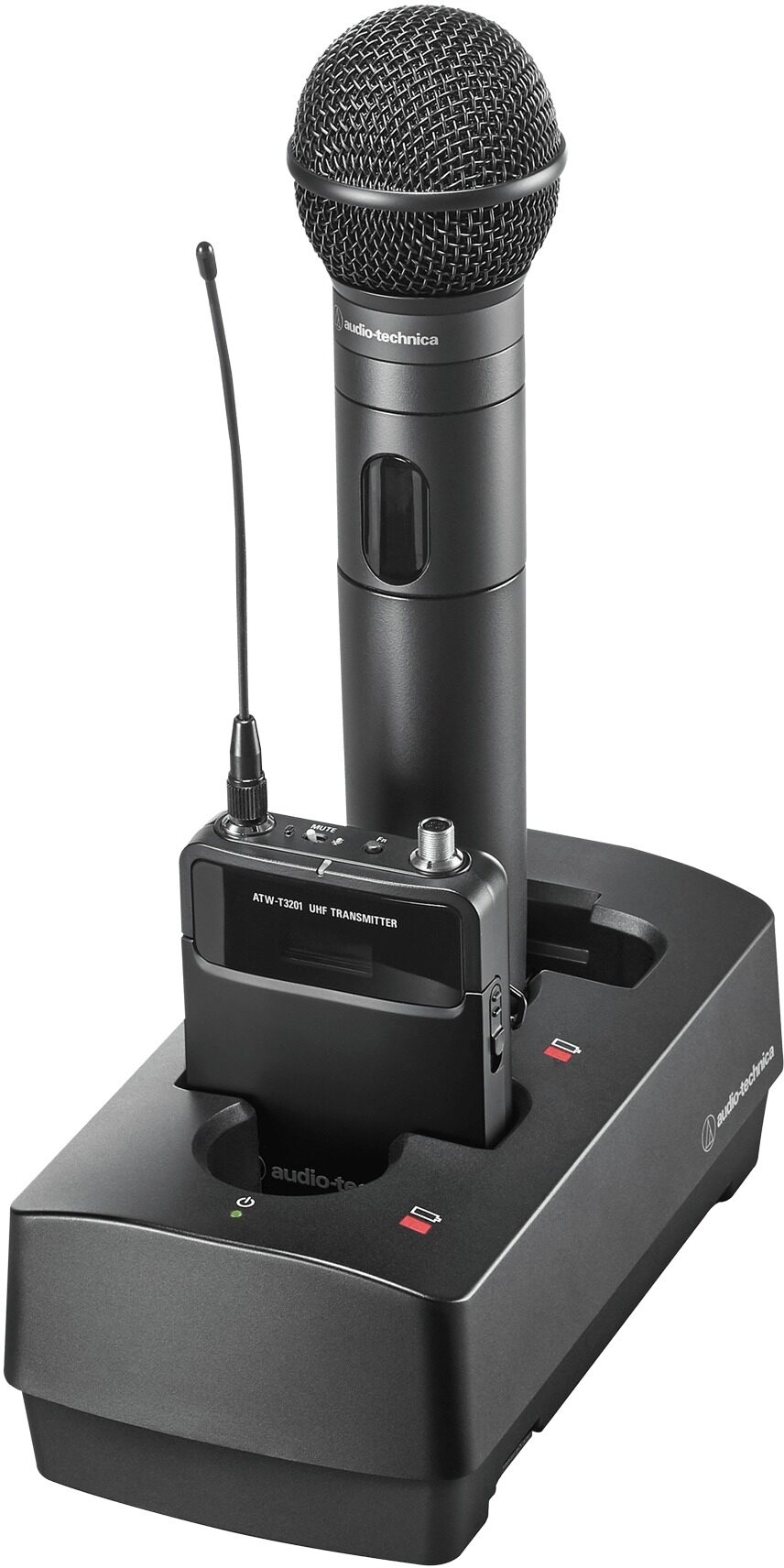

- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries

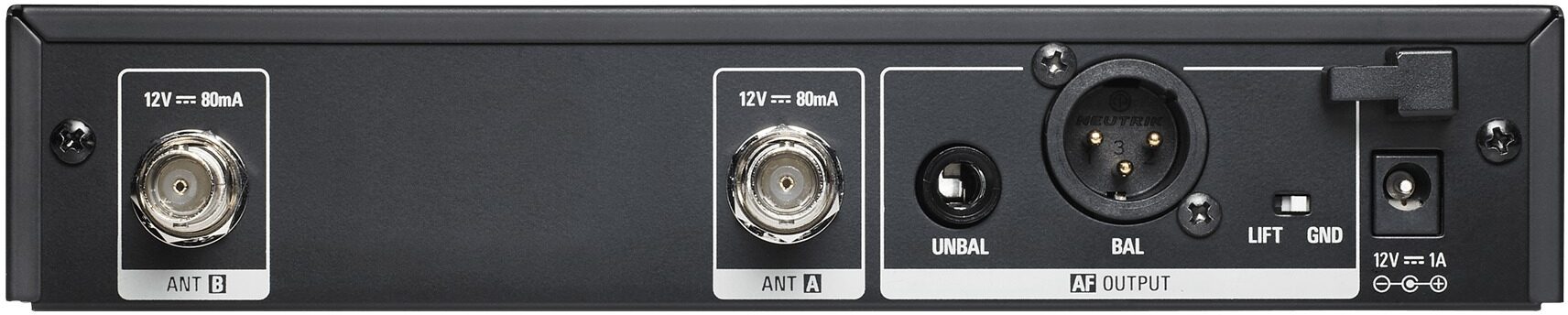

- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
read less
Operating Frequencies:
Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Operating Frequencies:
Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step: 25 kHz
Modulation Mode: FM
Maximum Deviation: ATW-T3201: +/- 38 kHz (THD:10%)
ATW-T3202: +/- 36 kHz (THD:10%)
Dimensions and Weight in Packaging
Band DE2: 470.125 to 529.975 MHz
Shipping Weight: 6.08 lbs
Shipping Dimensions: 15 x 13 x 3 in
Manufacturer Part Number (MPN): AUD 042005206568
Band EE1: 530.000 to 589.975 MHz
Shipping Weight: 6.08 lbs
Shipping Dimensions: 15 x 13 x 3 in
Manufacturer Part Number (MPN): AUD 042005206575
If you have additional warranty questions, please contact the manufacturer at 330-686-2600 x5000
