Audio-Technica ATW-3211/892X 3000 Series Wireless Headworn Microphone System

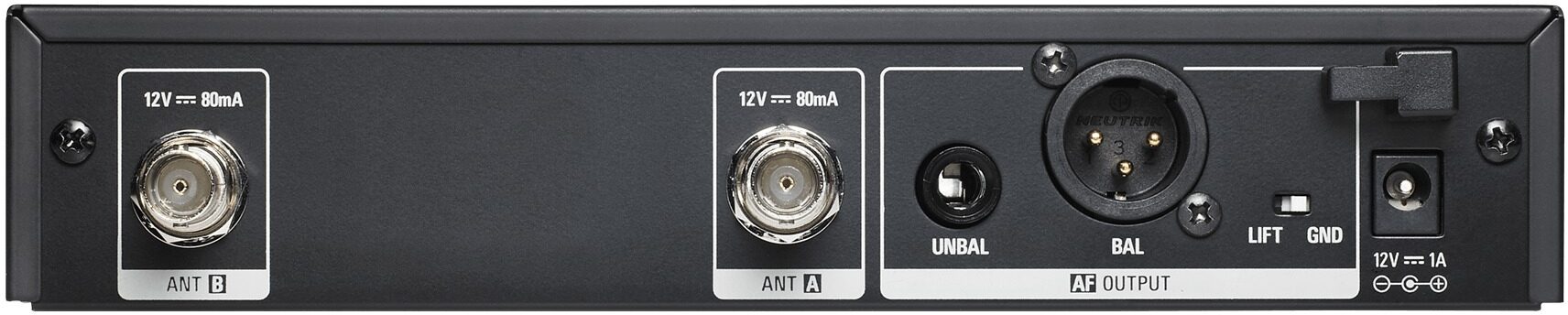

Audio-Technica ATW-3211/892X 3000 Series Wireless Headworn Microphone System, Beige, Band DE2 (470.125 - 529.975 MHz), Receiver Rear

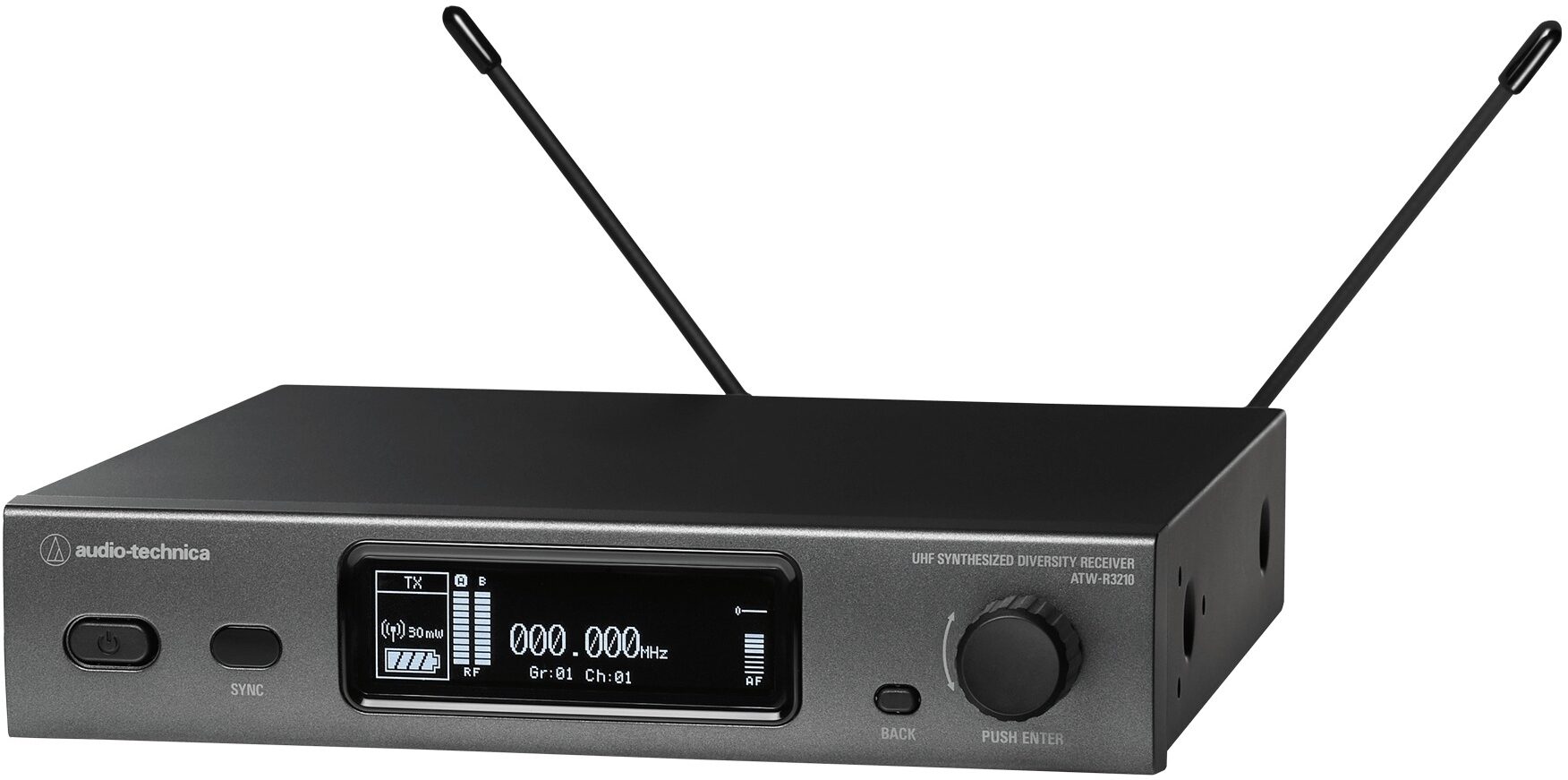

Audio-Technica ATW-3211/892X 3000 Series Wireless Headworn Microphone System, Beige, Band DE2 (470.125 - 529.975 MHz), Receiver Angle

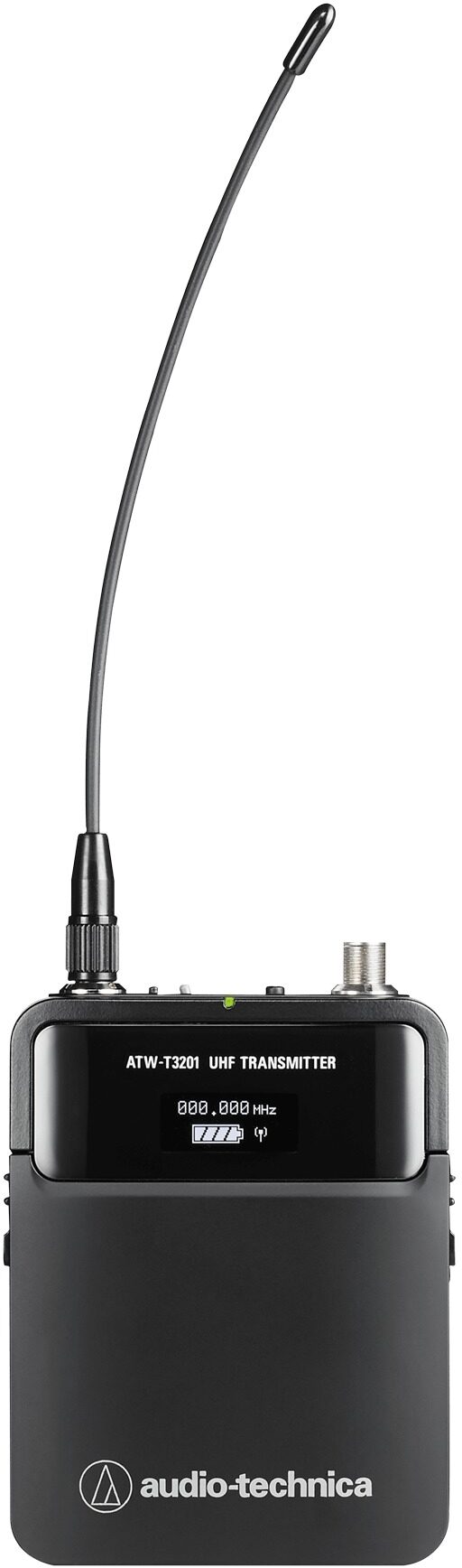

Audio-Technica ATW-3211/892X 3000 Series Wireless Headworn Microphone System, Beige, Band DE2 (470.125 - 529.975 MHz), Bodypack Transmitter

Step up to pro wireless with Audio-Technica. This set includes the ATW-R3210 half-rack receiver, ATW-T3201 bodypack, and BP892xCH omnidirectional earset mic.

Overview

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands -- DE2 (470-530 MHz) and EE1 (530-590 MHz) -- that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models.

Features:

- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
- Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Body-pack transmitter features tactile mute toggle switch (defeatable) for physical… read more confirmation of mute status when transmitter display is not visible
- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks

In the Box:

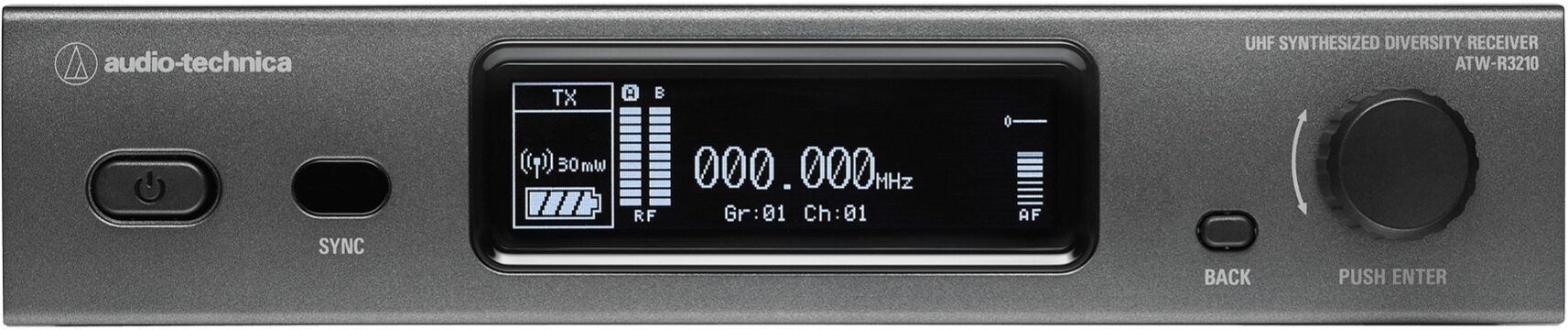

- Audio-Technica ATW-R3210 3000 Series Wireless Receiver
- Audio-Technica ATW-T3201 3000 Series Bodypack Transmitter
- Audio-Technica BP892xCH Omnidirectional Earset and Detachable Cable with cH Connector
- Audio-Technica AT8464x Dual-Ear Adapter Kit
- Audio-Technica AT8440 Lavalier Microphone Clothing Clip
- 3 x Audio-Technica AT8157 Windscreens for AT892 Head-worn Microphone
- 3 x Audio-Technica AT8171 Foam Windscreen for BP89X Headworn Microphones
- 3 x Audio-Technica AT8156 Element Covers for AT892 Head-worn Microphone
- Mic Moisture Guard
- Mic Carrying Case
- 2 x Flexible Antennas
- AC Power Adapter
- Rackmounting Kit

Specs

- Operating Frequencies:
- Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
- Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
- Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
- Band FG1: 650.000 to 699.875 MHz (1996 frequencies)

- Operating Frequencies:
- Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
- Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
- Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
- Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.

- Minimum Frequency Step: 25 kHz
- Modulation Mode: FM
- Maximum Deviation: ATW-T3201: +/-38 kHz (THD:10%)
- ATW-T3202: +/-36 kHz (THD:10%)

Dimensions and Weight in Packaging
Beige, Band DE2 (470.125 - 529.975 MHz): Shipping Weight: 5.25 lbs; Shipping Dimensions: 15 x 13 x 3 in; Manufacturer Part Number (MPN): ATW-3211/892XTHDE2
Beige, Band EE1 (530.000 to 589.975 MHz): Shipping Weight: 5.25 lbs; Shipping Dimensions: 15 x 13 x 3 in; Manufacturer Part Number (MPN): ATW-3211/892XTHEE1
Black, Band DE2 (470.125 - 529.975 MHz): Shipping Weight: 5.25 lbs; Shipping Dimensions: 15 x 13 x 3 in; Manufacturer Part Number (MPN): ATW-3211/892XDE2
Black, Band EE1 (530.000 - 589.975 MHz): Shipping Weight: 5.25 lbs; Shipping Dimensions: 16 x 14 x 4 in; Manufacturer Part Number (MPN): ATW-3211/892XEE1

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
