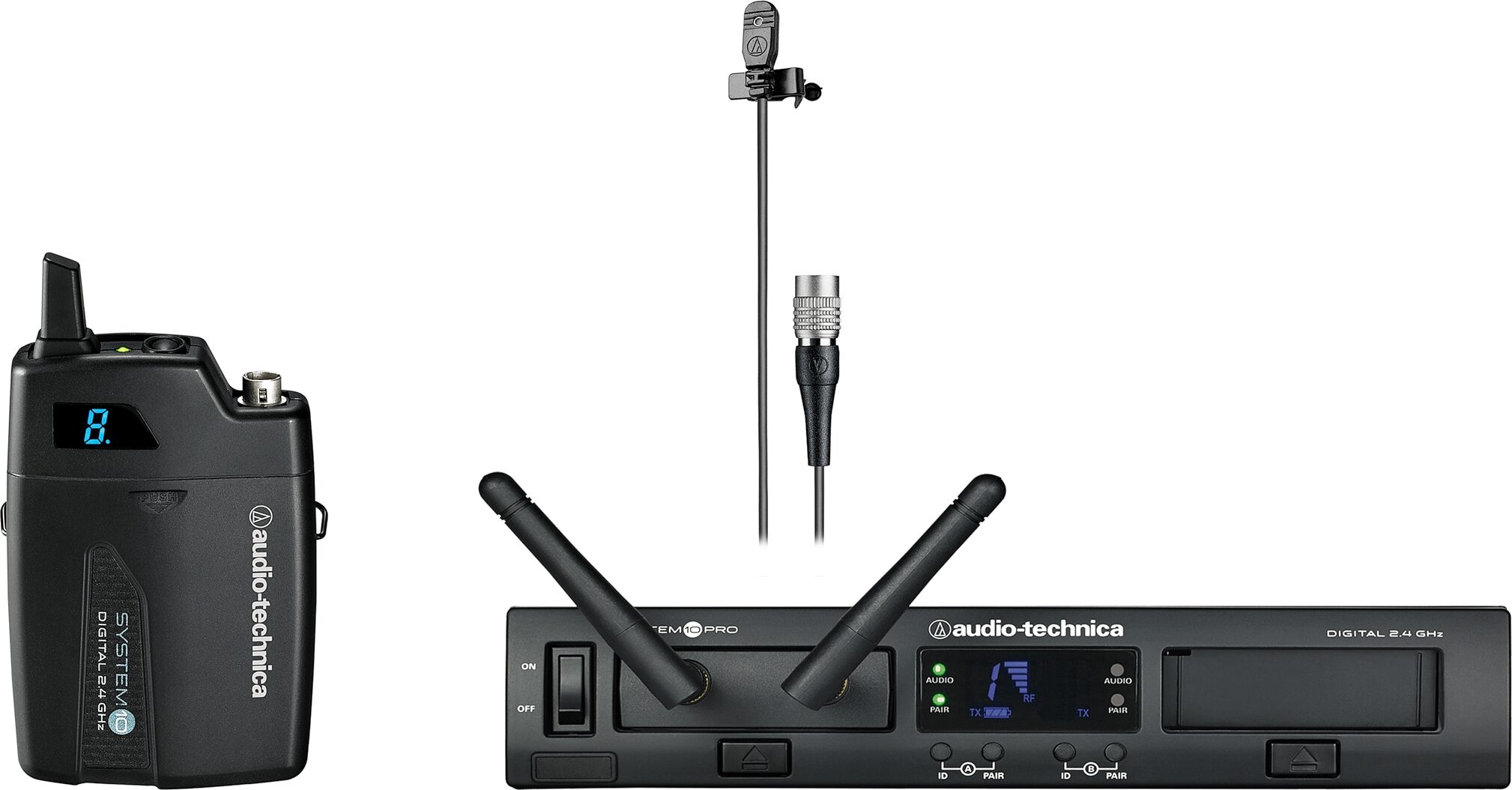

Audio-Technica ATW-1301/L System 10 PRO Digital Wireless Bodypack Lavalier System (2.4 GHz)

Get an all-in-one wireless lavalier system with rock-solid reliability. The ATW-1301/L System 10 PRO includes a half-rack receiver for convenient setup.
The Audio-Technica ATW-1301/L System 10 PRO digital wireless bodypack lavalier system is a great choice for stage use.

The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.

Like all the products in the System 10 wireless family, the PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

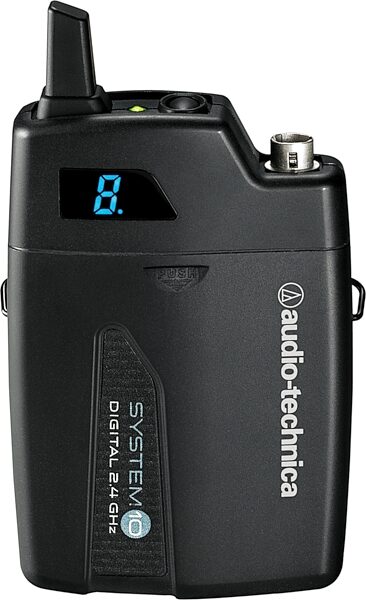

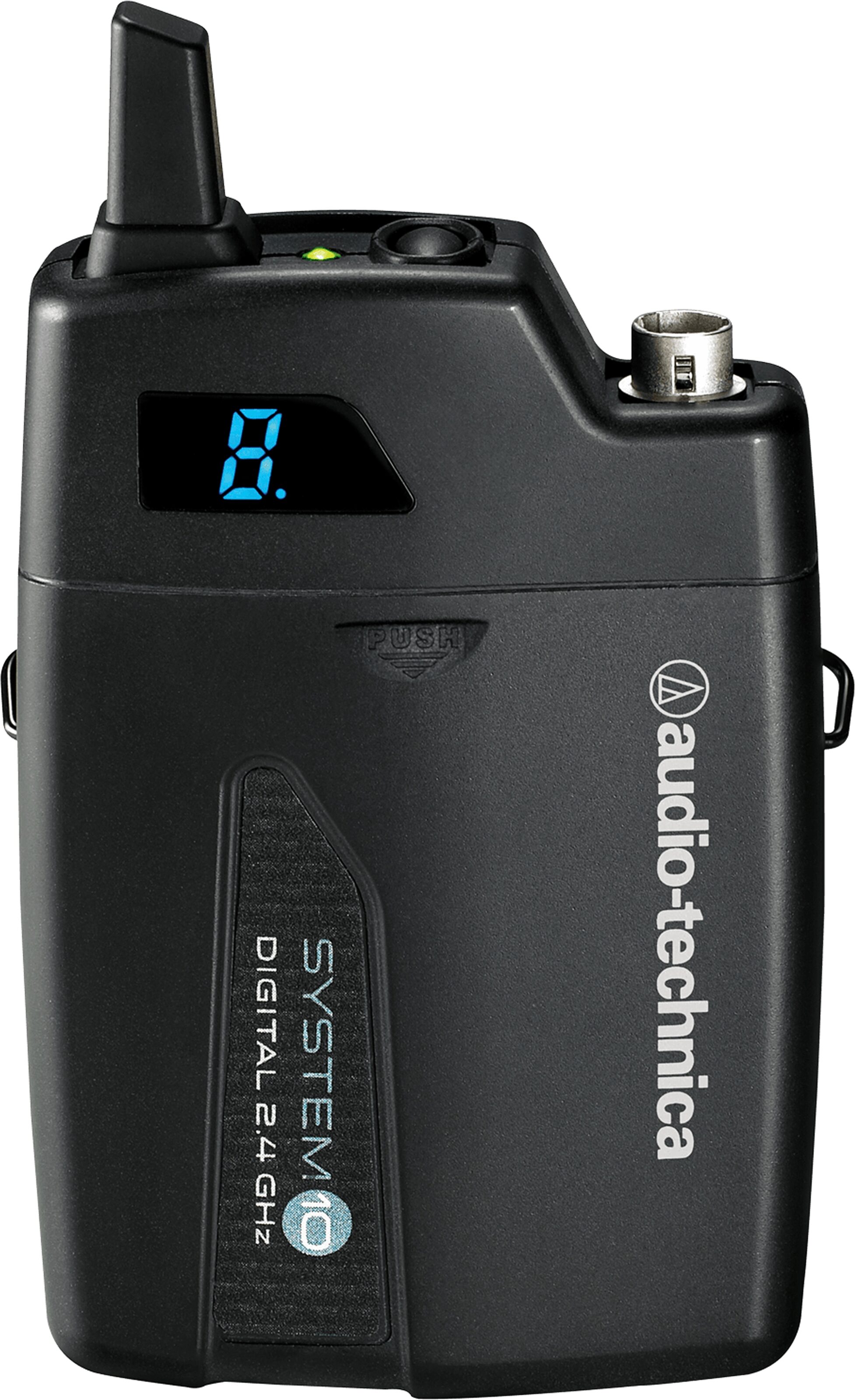

Each System 10 PRO Rack-Mount system includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one or two transmitters. Transmitter options include the ATW-T1001 cW-style body-pack transmitter, ATW-T1002 handheld transmitter,, ATW-T1006 read more boundary microphone/transmitter, ATW-T1007 microphone desk stand transmitter. Both the receiver chassis and transmitters feature easy-to-read displays.

Features:

- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Operates in the 2.4 GHz range - completely free from TV interference
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis (ten receiver units) can be linked and used simultaneously
- Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations

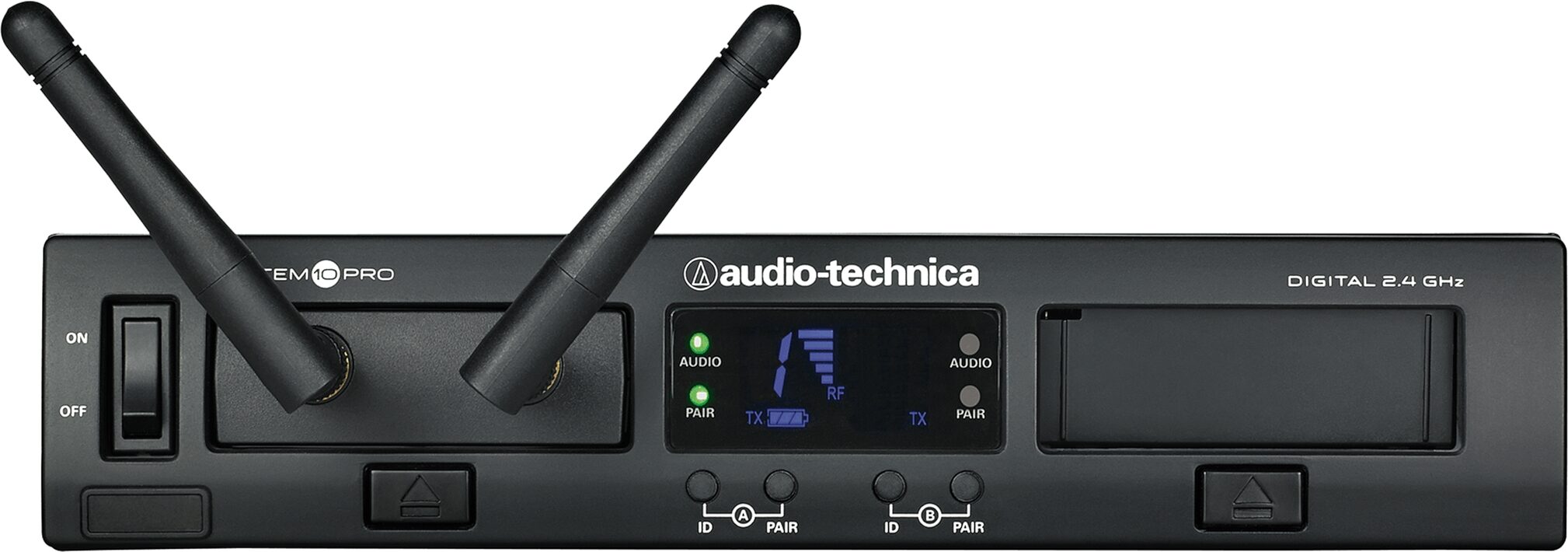

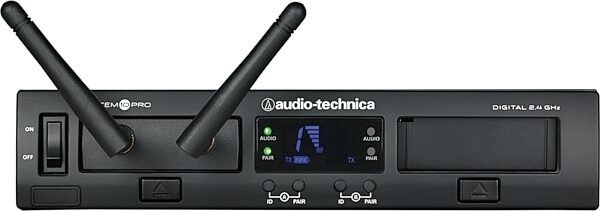

- Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync, and setup
- Three levels of diversity assurance: frequency, time & space

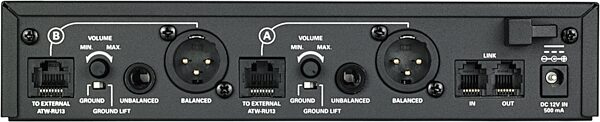

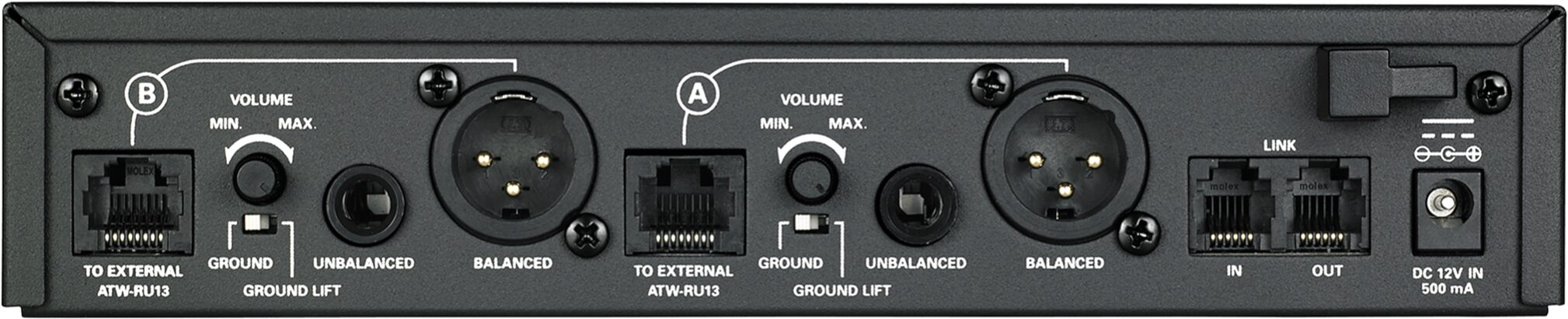

- Ground-lift switch helps eliminate audible hum caused by ground loops
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response: 20 Hz to 20 kHz, depending on microphone type
Operating Range: 60 m (200') Open range env. with no interfering signals
Total Harmonic Distortion: <0.05% typical
Operating Temperature Range: 0 degrees C to +40 degrees C (32 degrees F to 104 degrees F) Battery performance may be reduced at very low temperatures
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 5.11 lbs
Shipping Dimensions: 17 x 12 x 4 in
Manufacturer Part Number (MPN): AUD ATW 1301 L
If you have additional warranty questions, please contact the manufacturer at 330-686-2600 x5000
