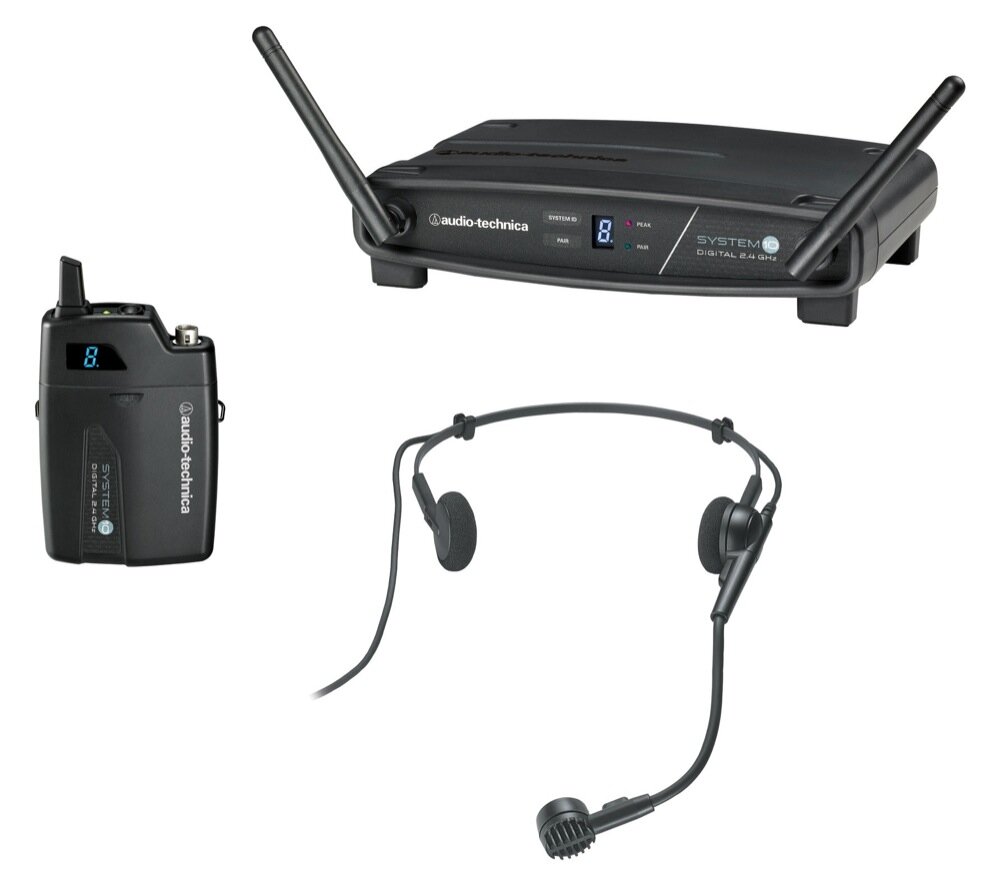

Audio-Technica ATW-1101/H System 10 Wireless Headset Microphone System

- Operating Frequencies: 2.4 GHz ISM band
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Range: 30 m (100') typical
- Open range environment with no interfering signals
- Operating Temperature Range: 0* C to +40* C (32* F to 104* F)
- Battery performance may be reduced at very low temperatures
- Frequency Response: 20 Hz to 20 kHz
- Depending on microphone type

Receiver:
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: XLR, balanced: 0 dBV
- 1/4" (6.3 mm), unbalanced: +6 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions: 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
- Net Weight: 290 grams (10.2 oz)
- Accessory Included: Power supply

Body Pack Transmitter:
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Input Connections: Four-pin Locking Connector
- Pin 1: GND, Pin 2: INST INPUT,
- Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
- Batteries: Two 1.5V AA
- not included
- Battery Life: >7 hours (alkaline)
- Depending on battery type and use pattern
- Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
- Net Weight: 100 grams (3.5 oz) without batteries
Dimensions and Weight in Packaging
(2.4 GHz ISM)
Shipping Weight: 2.5 lbs
Shipping Dimensions: 14 x 11 x 4 in
Manufacturer Part Number (MPN): ATW-1101/H
