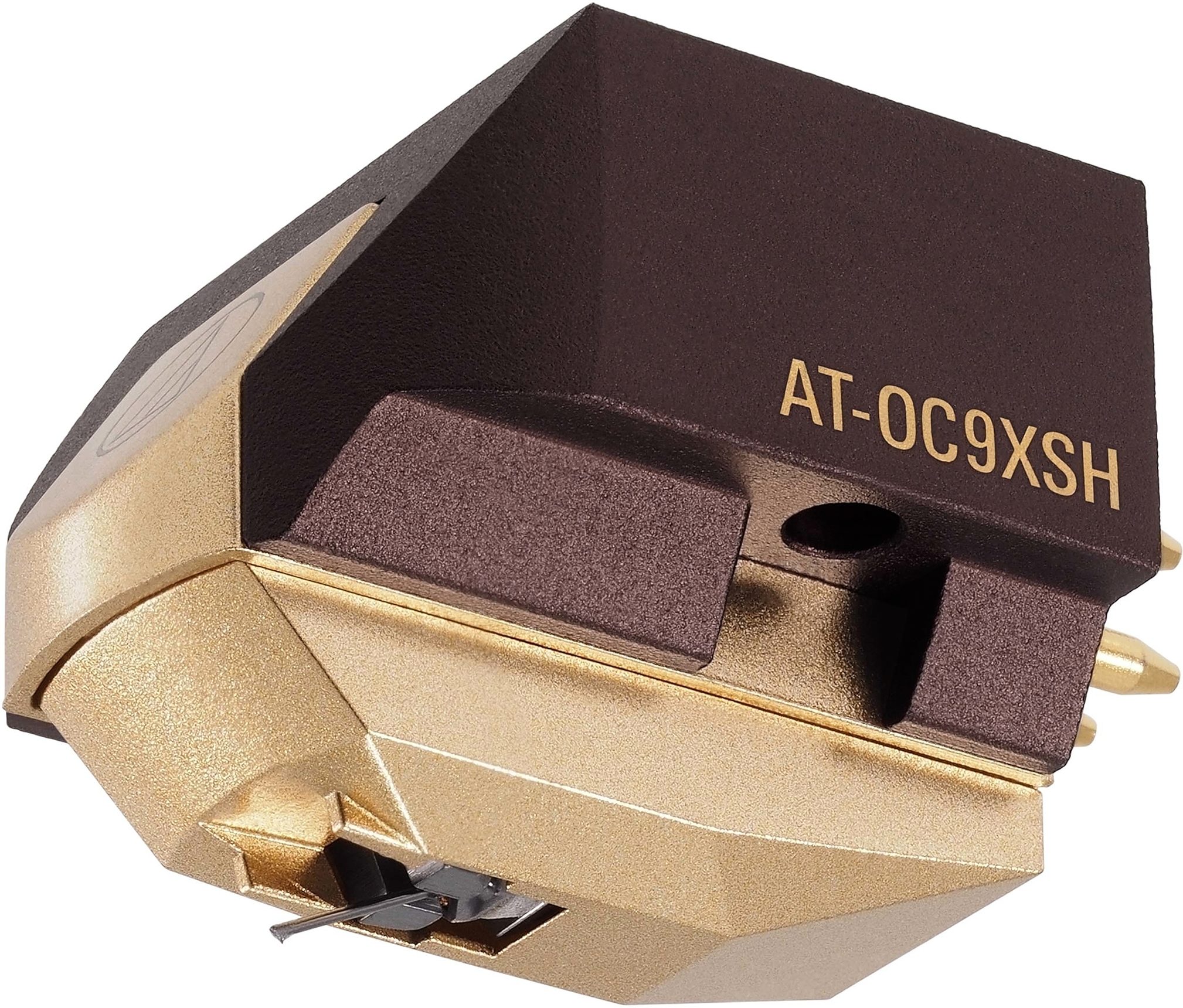

Audio-Technica AT-OC9XSH Dual Moving Coil Cartridge

zZounds Gear Experts Say...
This premium Audio-Technica cartridge is designed for excellent channel separation, with a Shibata stylus to better track high frequencies and reduce wear.
Overview
The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws -- no nuts required.
- The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
- The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws no nuts required
- Features nude Shibata stylus and boron cantilever for rich full-range audio reproduction and high transient response
- A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
- Aluminum body minimizes unwanted vibration for reduced resonance and superior… read more audio reproduction
- Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
read less
Features:
- Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation- The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
- The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws no nuts required
- Features nude Shibata stylus and boron cantilever for rich full-range audio reproduction and high transient response
- A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
- Aluminum body minimizes unwanted vibration for reduced resonance and superior… read more audio reproduction
- Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
Type: Dual Moving Coil
Body Material: Aluminum
Frequency Response: 20-47,000 Hz
Channel Separation: 27 dB (1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 25 mH (1 kHz)
Output: 0.4 mV (at 1 kHz, 5 cm/sec)
Channel Balance: 1.0 dB (1 kHz)
Stylus Shape: Shibata
Stylus Type: Nude square shank
Stylus Curvature Radius: 2.7 x 0.26 mil
Cantilever: 0.28 mm diameter nude boron
Static Compliance: 20 x 10-6 cm/dyne
Dynamic Compliance: 16 x 10-6 cm/dyne (100 Hz)
Wire Used for Coil: PCOCC
Terminal Pins: Brass
Mount: Half-inch
Weight: 7.6 g (0.3 oz)
Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D
Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
Mounting Feature: Threaded body
Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
Body Material: Aluminum
Frequency Response: 20-47,000 Hz
Channel Separation: 27 dB (1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 25 mH (1 kHz)
Output: 0.4 mV (at 1 kHz, 5 cm/sec)
Channel Balance: 1.0 dB (1 kHz)
Stylus Shape: Shibata
Stylus Type: Nude square shank
Stylus Curvature Radius: 2.7 x 0.26 mil
Cantilever: 0.28 mm diameter nude boron
Static Compliance: 20 x 10-6 cm/dyne
Dynamic Compliance: 16 x 10-6 cm/dyne (100 Hz)
Wire Used for Coil: PCOCC
Terminal Pins: Brass
Mount: Half-inch
Weight: 7.6 g (0.3 oz)
Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D
Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
Mounting Feature: Threaded body
Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 0.25 lbs
- Shipping Dimensions: 4 x 4 x 2 in
- Manufacturer Part Number (MPN): AT-OC9XSH
