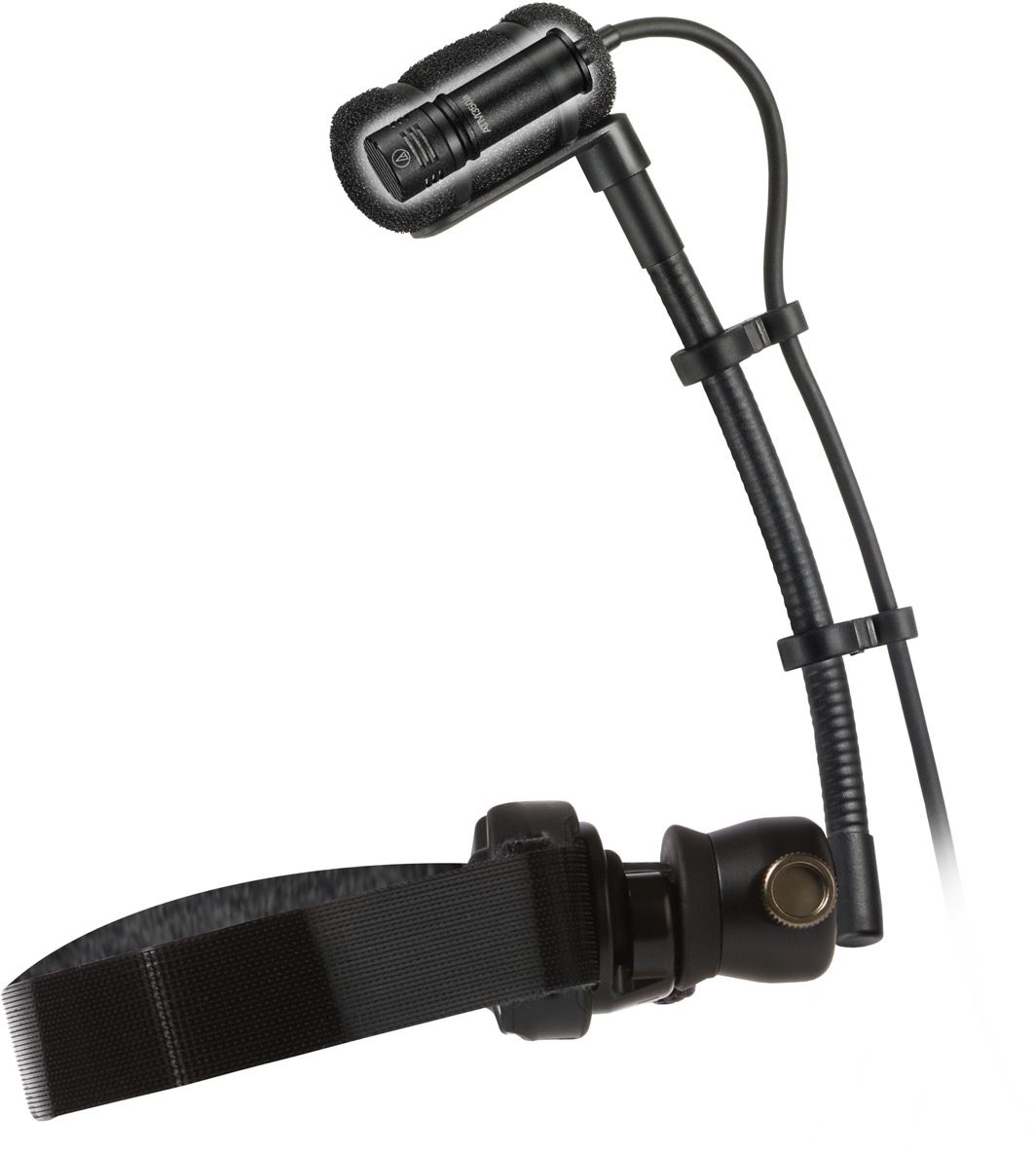

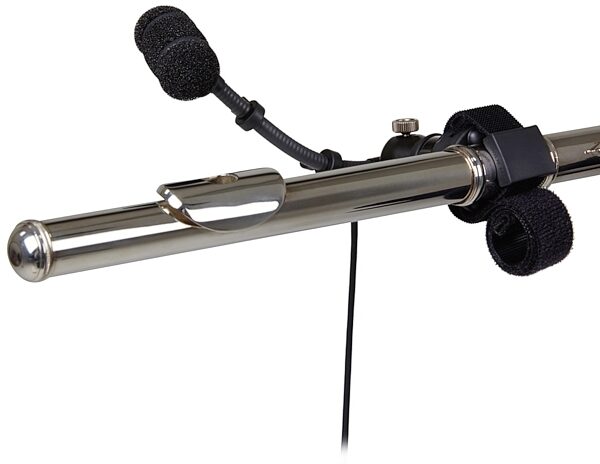

Audio-Technica ATM350W Cardioid Condenser Instrument Microphone with Woodwind Mounting System

- Element: Fixed-charge back plate, permanently polarized condenser
- Polar pattern: Cardioid
- Frequency response: 40 - 20,000 hz
- Low frequency roll-off: 80 hz, 12 db/octave
- Open circuit sensitivity: -49 db (3.5 mv) re 1v at 1 pa
- Impedance: 200 ohms
- Maximum input sound level: 159 db spl, 1 khz at 1% t.h.d.
- Dynamic range (typical): 130 db, 1 khz at max spl
- Signal-to-noise ratio: 65 db, 1 khz at 1 pa
- Phantom power requirements: 11- 52v dc, 3.5 ma typical
- Switch: flat, roll-off
- Weight (microphone): 14.5 g (0.5 oz)
- Weight (power module): 90 g (3.2 oz)
- Dimensions (microphone): 37.8 mm (1.49") long, 12.2 mm (0.48") maximum body diameter
- Dimensions (power module): 92 mm (3.62") long, 18.9 mm (0.74") diameter
- Output connector (power module): Integral 3-pin XLR-M type
- Cable: 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with hirose hr10-type connector
- Optional interchangeable elements: Ue-h hypercardioid (100*); Ue-o omnidirectional (360*)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.5 lbs
Shipping Dimensions: 13 x 6 x 3 in
Manufacturer Part Number (MPN): ATM350W
