Shure PSM300 IEM Wireless In-Ear Monitor System with SE215CL Earphones
Hear everything better on stage with Shure in-ear monitors! This wireless system includes the P3T transmitter, P3RA bodypack receiver, and SE215 earphones.
The Shure PSM300 Stereo Personal Monitor System delivers detailed 24-bit digital audio and reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Dependable wireless coverage extends over 300 ft (90 m) of range and eliminates dropouts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume using MixMode technology or stereo mode to create a personal mix from two channels of audio.
- Send two channels of audio wirelessly to performers onstage
- 24-bit digital audio provides clear, detailed sound
- Patented Audio Reference Companding sounds more like wired
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analog RF connection over a 300 ft (90 m) range
- Create a personal mix from the bodypack with MixMode technology or stereo mode
- Frequency scan and IR sync quickly finds and assigns a clean channel
- Half-rack, single channel transmitter with included rack mount kit
- System includes P3T Transmitter, P3RA professional bodypack and SE215 Earphones
Wireless Transmitter:
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to P3R receiver over 300 ft (90 m) range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power
- 24 MHz tuning range
- 1/4" (63 mm) TRS balanced inputs and loop outputs
- High-contrast LCD menu with detailed L/R audio output meters
- Detachable antenna
- External power supply
- Selectable line/aux level
P3RA Wireless Bodypack Receiver:
- Rugged, all-metal construction
- High-contrast LCD screen with menu-based navigation
- 2-band shelving EQ with high and low boost
- Volume limiter sets the maximum gain level range for the volume knob
- MixMode technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Frequency scan and IR sync quickly finds and assigns a clean channel
- 2 AA batteries provide up to 6 hours of continuous use
- Compatible with Shure SB900 rechargeable lithium-ion battery read less

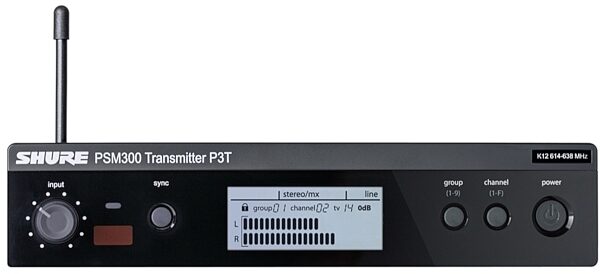

P3T Wireless Transmitter
Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 300 feet away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.P3RA Professional Wireless Bodypack Receiver: Use AA or Optional SB900 Battery
The P3RA is a wireless stereo bodypack receiver with a metal case, for use with the PSM300 Personal Monitor System. With detailed 24-bit digital audio and reliable wireless performance, the P3RA bodypack delivers professional… read more personal monitoring to any corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Find a wireless channel easily, using the scan function to automatically select the cleanest frequency available from a wide tuning bandwidth. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio EQ and volume limiting further individualize the sound via the high-contrast LCD menu. With a compact and rugged aluminum body, the P3RA ensures a long lifetime of use and easily clips onto a belt or guitar strap. Two standard AA batteries provide up to 6 hours of continuous use, and the bodypack is also compatible with Shure SB900 rechargeable batteries, available separately.Features:
Monitor System:- Send two channels of audio wirelessly to performers onstage
- 24-bit digital audio provides clear, detailed sound
- Patented Audio Reference Companding sounds more like wired
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analog RF connection over a 300 ft (90 m) range
- Create a personal mix from the bodypack with MixMode technology or stereo mode
- Frequency scan and IR sync quickly finds and assigns a clean channel
- Half-rack, single channel transmitter with included rack mount kit
- System includes P3T Transmitter, P3RA professional bodypack and SE215 Earphones
Wireless Transmitter:
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to P3R receiver over 300 ft (90 m) range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power
- 24 MHz tuning range
- 1/4" (63 mm) TRS balanced inputs and loop outputs
- High-contrast LCD menu with detailed L/R audio output meters
- Detachable antenna
- External power supply
- Selectable line/aux level
P3RA Wireless Bodypack Receiver:
- Rugged, all-metal construction
- High-contrast LCD screen with menu-based navigation
- 2-band shelving EQ with high and low boost
- Volume limiter sets the maximum gain level range for the volume knob
- MixMode technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Frequency scan and IR sync quickly finds and assigns a clean channel
- 2 AA batteries provide up to 6 hours of continuous use
- Compatible with Shure SB900 rechargeable lithium-ion battery read less
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
- RF Carrier Range: 488-937.5 MHz
- Compatible Frequencies Per band: up to 15
- Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
- Operating Range: 90 m (300 ft.)
- Audio Frequency Response: 38 Hz-15 kHz
- Signal-to-Noise Ratio: A-weighted 90 dB (typical)
- Total Harmonic Distortion: ref. @34 kHz deviation @1 kHz <0.5% (typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection: ref. 12 dB SINAD >80 dB (typical)
- Frequency Stability: +/-2.5 ppm
- MPX Pilot Tone: 19 kHz (+/-1 Hz)
- Modulation: FM*, MPX Stereo (ref. +/-34 kHz deviation @ 1 kHz)
- Operating Temperature: -18 C (0 'F) to +63 'C (145 'F)
- Frequency Range: (MHz) G20: 488-512
- Compatible Frequencies Per band: up to 15
- Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
- Operating Range: 90 m (300 ft.)
- Audio Frequency Response: 38 Hz-15 kHz
- Signal-to-Noise Ratio: A-weighted 90 dB (typical)
- Total Harmonic Distortion: ref. @34 kHz deviation @1 kHz <0.5% (typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection: ref. 12 dB SINAD >80 dB (typical)
- Frequency Stability: +/-2.5 ppm
- MPX Pilot Tone: 19 kHz (+/-1 Hz)
- Modulation: FM*, MPX Stereo (ref. +/-34 kHz deviation @ 1 kHz)
- Operating Temperature: -18 C (0 'F) to +63 'C (145 'F)
- Frequency Range: (MHz) G20: 488-512
- Dimensions and Weight in Packaging
- Band G20 (488.150 - 511.850 MHz)
- Shipping Weight: 7.75 lbs
- Shipping Dimensions: 19 x 15 x 4 in
- Manufacturer Part Number (MPN): P3TRA215CLG20
- Band H20 (518.200 - 541.800 MHz)
- Shipping Weight: 7.5 lbs
- Shipping Dimensions: 19 x 15 x 4 in
- Manufacturer Part Number (MPN): P3TRA215CL-H20
- Band J13 (566.175 - 589.850 MHz)
- Shipping Weight: 7.5 lbs
- Shipping Dimensions: 19 x 15 x 4 in
- Manufacturer Part Number (MPN): P3TRA215CLJ13
If you have additional warranty questions, please contact the manufacturer at 800-25-SHURE
(5 ratings)
Submitted January 29, 2018 by Reginald H. M in Culver City, CA
"Great Sound and Quality"
Verified Customer
zZounds has verified that this reviewer made a purchase from us.
High quality stereo monitor system, easy to set and delivers great sound!
Sound
I purchased this product for live music monitoring, and to allow for removal of a floor monitor ie less clutter on stage, and reducing the "devil" potential- feedback! Once you find the right pair of "seals" and install the earpieces correctly- well you will be amazed at the sound quality. Instrument and vocal quality is excellent. Again, you have to install them correctly, to get the bass and strong mid-range, but once you do they really do the job!
Features
Everything is of high quality, well built and very sturdy. Shure also provides you the rack mount brackets and screws etc, should that be an option. If your a pro, you will find this system to your liking. There is one negative aspect I must mention- that is the Lithium Ion battery option. The unit can run on 2 AA batteries- but the batteries have a life of 5.3 hours. If your on a long gig- you better have spares! But, the problem is that the Lithium Ion battery option ONLY extends your operation to 7 hours! Since the Lithium Ion battery costs $118.00 (ouch) and the charger is $50.00+ your going to have to shell out considerable "battery dough" to get started. It will pay off in the long run- but you get the idea! This compared to the Shure GLX D wireless systems looks bad! The Lithium Ion for the wireless mic costs $39.00 AND charges in the receiver!… read more This is probably caused by a power requirement- but a longer Lithium Ion life would certainly have been appreciated.
Ease of Use
Once you read the short manual, setup is easy- BUT do read the manual as there are some important aspects (ie balanced 1/4 plugs needed)
Quality
As mentioned earlier this is a quality built unit, and should last a long time- EXCEPT FOR THE DAMN BATTERIES!
Value
Well worth the price I paid.
Manufacturer Support
Have been dealing with Shure since the 70's- never a problem!
The Wow Factor
The removal of an additional speaker, the reduction of potential feedback, and the freedom to move without sound drop out is great.
Musical Background:
In music since 1964, play professionally, keyboards/piano/vocals
Musical Style:
Rock- Country- Blues- Standards- etc etc. read less
Sound
I purchased this product for live music monitoring, and to allow for removal of a floor monitor ie less clutter on stage, and reducing the "devil" potential- feedback! Once you find the right pair of "seals" and install the earpieces correctly- well you will be amazed at the sound quality. Instrument and vocal quality is excellent. Again, you have to install them correctly, to get the bass and strong mid-range, but once you do they really do the job!
Features
Everything is of high quality, well built and very sturdy. Shure also provides you the rack mount brackets and screws etc, should that be an option. If your a pro, you will find this system to your liking. There is one negative aspect I must mention- that is the Lithium Ion battery option. The unit can run on 2 AA batteries- but the batteries have a life of 5.3 hours. If your on a long gig- you better have spares! But, the problem is that the Lithium Ion battery option ONLY extends your operation to 7 hours! Since the Lithium Ion battery costs $118.00 (ouch) and the charger is $50.00+ your going to have to shell out considerable "battery dough" to get started. It will pay off in the long run- but you get the idea! This compared to the Shure GLX D wireless systems looks bad! The Lithium Ion for the wireless mic costs $39.00 AND charges in the receiver!… read more This is probably caused by a power requirement- but a longer Lithium Ion life would certainly have been appreciated.
Ease of Use
Once you read the short manual, setup is easy- BUT do read the manual as there are some important aspects (ie balanced 1/4 plugs needed)
Quality
As mentioned earlier this is a quality built unit, and should last a long time- EXCEPT FOR THE DAMN BATTERIES!
Value
Well worth the price I paid.
Manufacturer Support
Have been dealing with Shure since the 70's- never a problem!
The Wow Factor
The removal of an additional speaker, the reduction of potential feedback, and the freedom to move without sound drop out is great.
Musical Background:
In music since 1964, play professionally, keyboards/piano/vocals
Musical Style:
Rock- Country- Blues- Standards- etc etc. read less
16 of 16 people (100%) people found this review helpful. Did you?
