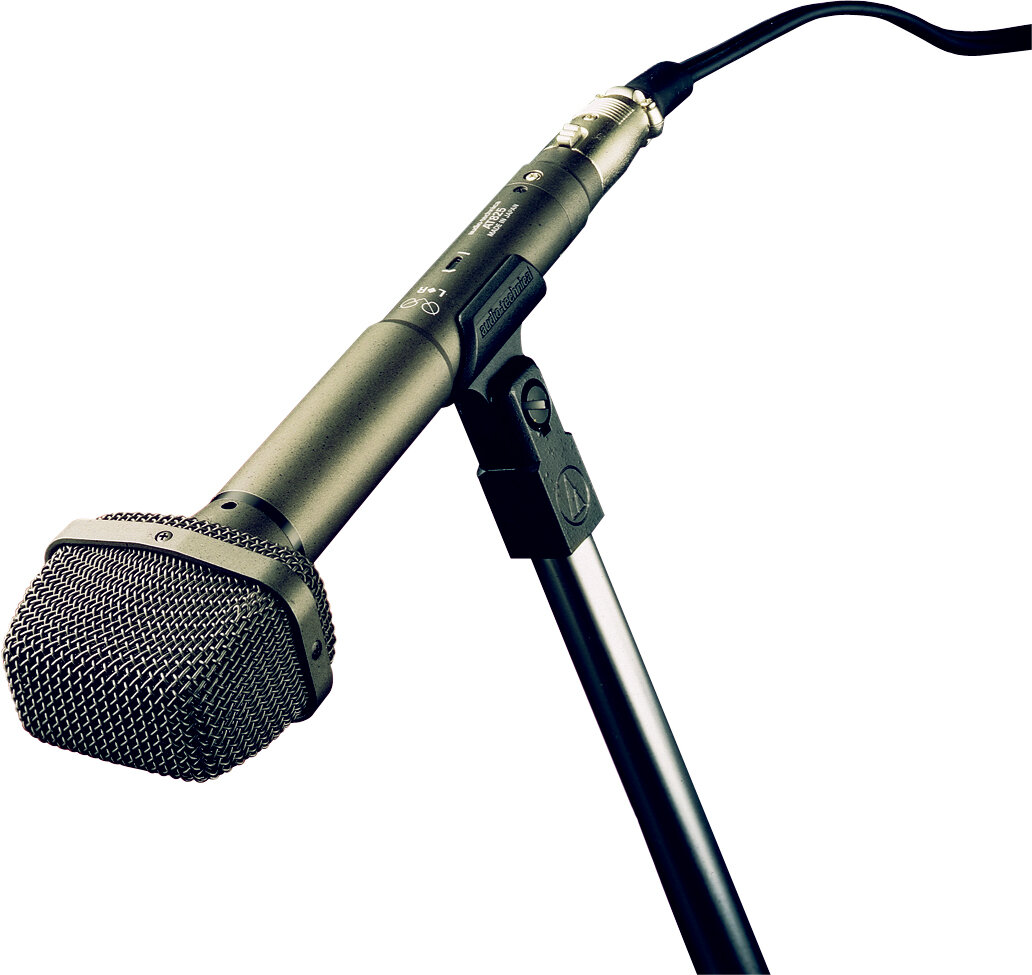

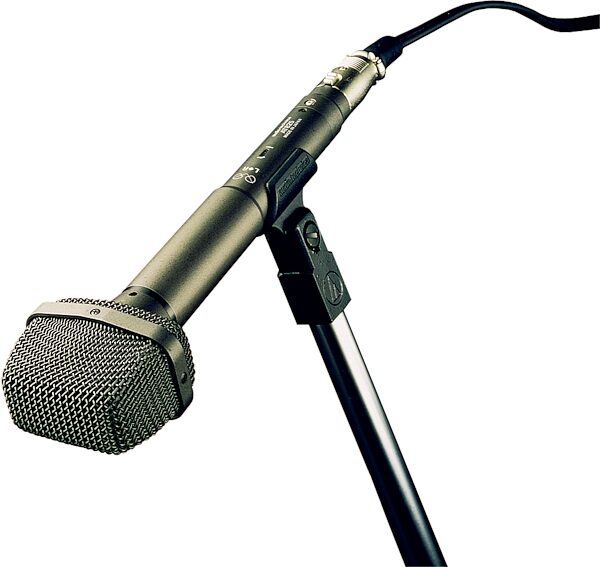

Audio Technica AT825 Special Purpose Condenser Microphone
No longer available at zZounds

zZounds Gear Experts Say...
One Point stereo microphone. 5-pin XLRM-type output. Roll-off switch. 5-52V phantom power or 1.5V AA battery. Includes windscreen. S3 case style.
Overview
Designed for broadcast, professional recording, and DAT field use, Audio-Technica's compact, lightweight AT825 is perfect for camera-mount applications. The microphone is equipped with two balanced outputs for use with professional audio and video equipment. Its closely matched elements provide the spatial impact and realism of a live sound field. With switchable low-frequency roll-off the versatile AT825 operates on either battery or phantom power.
Specs
Element: Condenser
Phantom Power Requirements: 5 - 52V, 2 mA typical
Polar Pattern: Cardioid (x2)
Battery Type: 1.5V AA/UM3
Frequency Response: 30 - 20,000 Hz
Battery Current/Life: 2 mA/1000 hours typical
Open Circuit Sensitivity: -47 dB (4.4 mV) re 1V at 1 Pa
Switch: Flat/roll-off
Impedance: 200 ohms
Low-frequency Roll-off: 150 Hz, 6 dB per octave
Maximum Input Sound Level: 126 dB SPL, 1 kHz at 1% T.H.D.
Weight: 8.5 oz (240 g)
Signal to Noise Ratio: 70 dB, 1 kHz at 1 Pa
Output Connector: 5-pin XLRM-type, balanced output
Dynamic Range (Typical): 102 dB, 1 kHz at Max. SPL
Accessories furnished: AT8405 stand clamp; AT8120 windscreen; battery; protective pouch
Phantom Power Requirements: 5 - 52V, 2 mA typical
Polar Pattern: Cardioid (x2)
Battery Type: 1.5V AA/UM3
Frequency Response: 30 - 20,000 Hz
Battery Current/Life: 2 mA/1000 hours typical
Open Circuit Sensitivity: -47 dB (4.4 mV) re 1V at 1 Pa
Switch: Flat/roll-off
Impedance: 200 ohms
Low-frequency Roll-off: 150 Hz, 6 dB per octave
Maximum Input Sound Level: 126 dB SPL, 1 kHz at 1% T.H.D.
Weight: 8.5 oz (240 g)
Signal to Noise Ratio: 70 dB, 1 kHz at 1 Pa
Output Connector: 5-pin XLRM-type, balanced output
Dynamic Range (Typical): 102 dB, 1 kHz at Max. SPL
Accessories furnished: AT8405 stand clamp; AT8120 windscreen; battery; protective pouch
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(16 ratings)
Submitted March 23, 2009 by a customer from yahoo.com
"A great mic for live room recording."
Verified Customer
zZounds has verified that this reviewer made a purchase from us.
I don't plan on replacing this microphone. I'll keep using it until it breaks or I do.
Sound
I've used this mic for recording many live shows. Put on a nice set of headphones, spill some beer on the floor, close your eyes and it's like you're there.
Features
Adjustable bass level, stereo XLR, I used mine mostly with a home-made 1/8" stereo plug direct to DAT.
Ease of Use
It takes quite a few twists to open the battery compartment... not sure that's a bad thing.
Quality
I've had this mic knocking around my bag for closing in on 15 years, looks like new, still sounds great.
Value
An excellent value.
Manufacturer Support
Unknown.
The Wow Factor
I wanted it.
Musical Background:
Live sound engineer
Musical Style:
Rock, electronic
2 of 2 people (100%) people found this review helpful. Did you?
