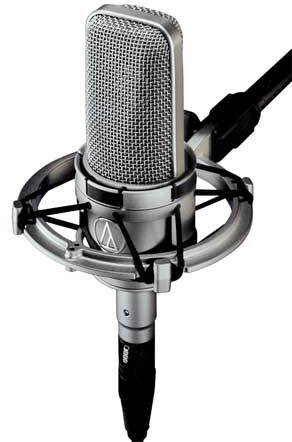

Audio-Technica AT4047SV Cardioid Capacitor Microphone with Shockmount

Inspired by the classic Neumann U47 FET microphone, Audio-Technica designed the AT4047SV to give you that big, rich vintage sound -- on a home-studio budget.

The rich, warm sound of the AT4047SV takes you back to the classic F.E.T. studio microphones. But there's nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047SV studio condenser's dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

Audio Technica's AT4047SV is designed for professional recording and critical applications in broadcast and live sound. The transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs.

The AT4047SV features exceptionally low self-noise, wide dynamic range, and high SPL capability. In addition, it comes equipped with gold-plated, specially-contoured and aged dual-diaphragms, a switchable 80 Hz hi-pass filter, and 10 dB pad. Included with the microphone is the AT8449SV shock mount. Both the microphone and the shock mount have a Vintage Silver matte finish.


- Designed for critical studio, live sound and broadcast applications
- Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
- Exceptionally low self-noise, wide dynamic range and high SPL capability
- Dual-diaphragm capsule read more design maintains precise polar pattern definition across the full frequency range of the microphone

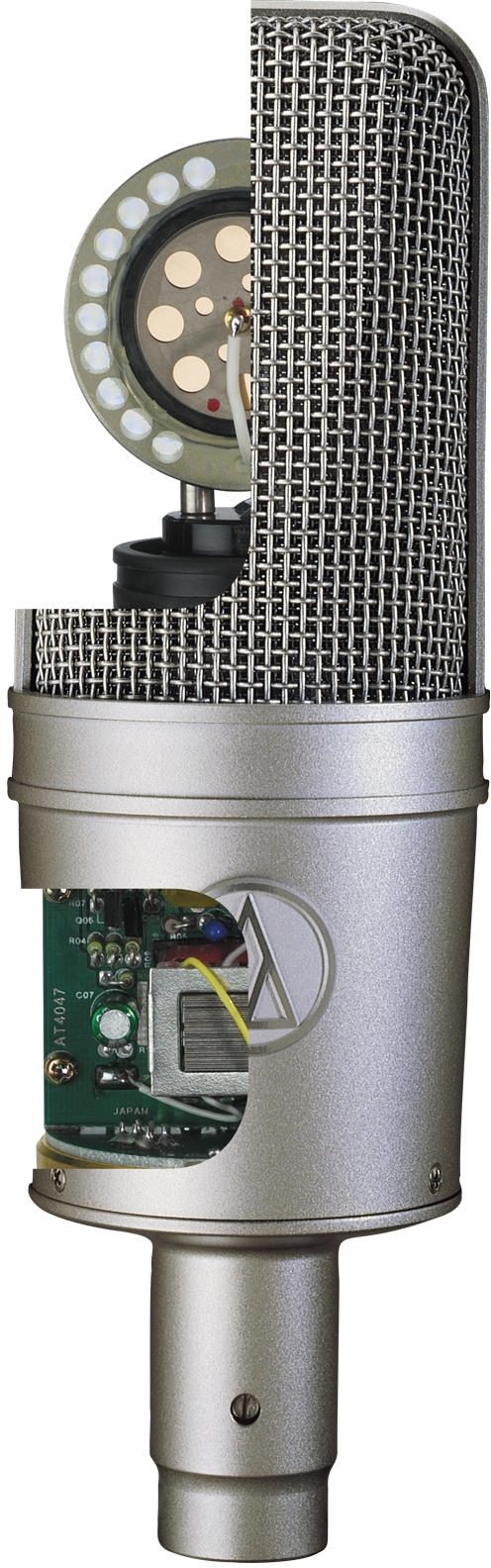

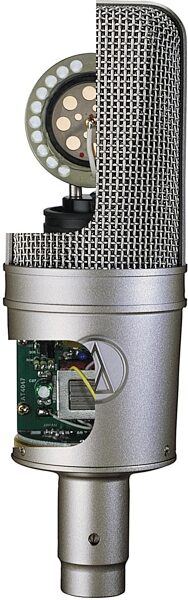

- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- Vintage silver-matte finish on microphone and shock mount
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Custom shock mount provides superior isolation
read less

- Element: Externally-polarized (DC bias) condenser
- Polar Pattern: Cardioid
- Frequency Response 20-18,000 Hz
- Low Frequency Roll-Off: 80 Hz, 12 dB/octave
- Open Circuit Sensitivity: -35 dB (17.7 mV) dB re 1V at 1 Pa
- Impedance: 250 ohms
- Max. Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
- Noise: 9 dB SPL
- Dynamic Range (Typical): 140 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 85 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 48V DC, 3.0 mA typical
- Switches: Flat, roll-off; 10 dB pad (nominal)
- Weight: 14.5 oz (410 g)
- Dimensions: 6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter
- Output Connector: Integral 3-pin XLRM-type
- Accessories Furnished: AT8449/SV shock mount for 5/8 in. - 27 threaded stands; microphone dust cover; protective carrying case
- Audio-Technica Style Case: R1
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 3.25 lbs
Shipping Dimensions: 12 x 10 x 5 in
Manufacturer Part Number (MPN): AT4047/SV
Warehouse Resealed, USED
Shipping Weight: 3.1 lbs
Shipping Dimensions: 11 x 10 x 4 in
Manufacturer Part Number (MPN): AT4047/SV

For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000

Reviewers gave this product an overall rating of 5 out of 5 stars. (8 ratings)
Submitted December 14, 2008 by a customer from
Audio-Technica AT4047SV Customer Review
Overall: 5 out of 5 stars
The AT4047 is the best vocal mic offered by Audio Technica. It's somewhat a different animal compared to the rest of the AT line. It's got a full fet sound,designed after the Neumann U47 FET.
it has a 10 db pad and 80hz 12db roll-off
excellent and one of the top vocal mics used by professional studios for vocals and acoustic instruments.
Musical Background:
recording engineer
11 of 13 people (85%) people found this review helpful. Did you?
Thanks for your opinion!
