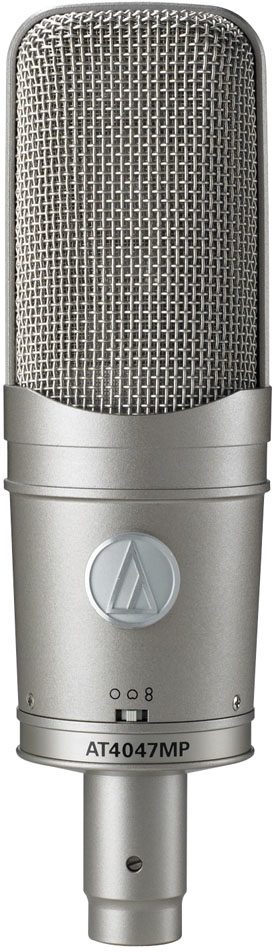

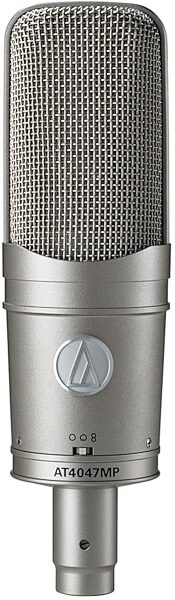

Audio-Technica AT4047MP Multi-Pattern Studio Microphone




zZounds Gear Experts Say...
A versatile workhorse with vintage-inspired FET character, this A-T mic gives you switchable cardioid/omni/figure-8 patterns, low-cut filter, and 10 dB pad.
Overview
Audio-Technica's AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-8 bidirectional polar patterns. The microphone's transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.
- Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
- Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
- Exceptionally low self-noise, wide dynamic range and high SPL capability
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- Vintage silver-matte finish on microphone and shock mount
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

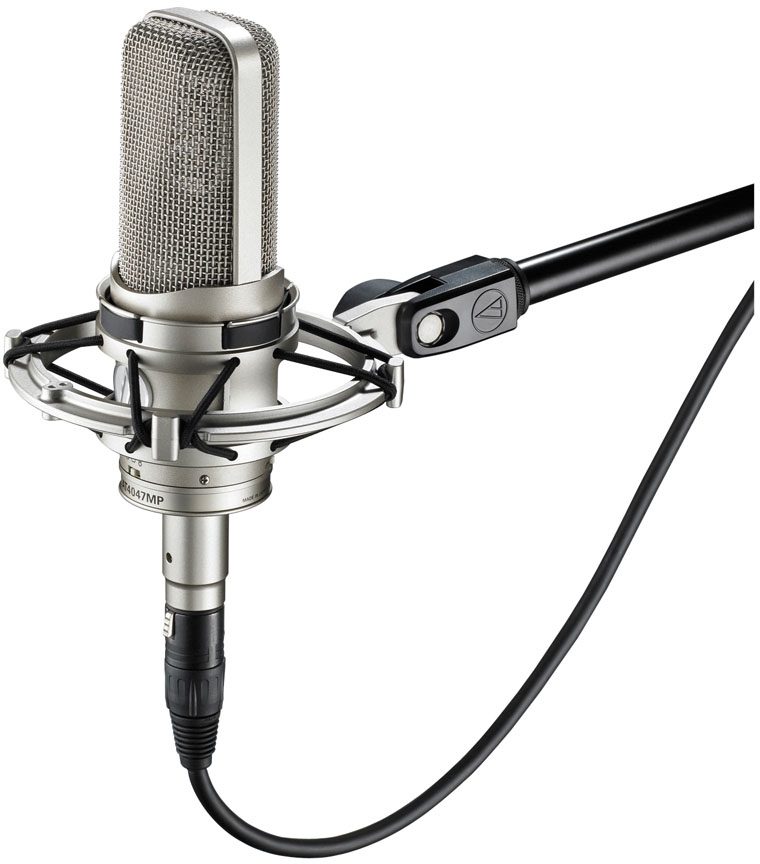

- Custom shock mount provides superior isolation
- Integral 80 Hz high-pass filter switch and 10 dB pad switch
- Certified by the METAlliance… read more (Music Engineering and Technology Alliance)
read less
Features
- Three switchable polar patterns: cardioid, omnidirectional, figure-8- Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
- Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
- Exceptionally low self-noise, wide dynamic range and high SPL capability
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- Vintage silver-matte finish on microphone and shock mount
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- Custom shock mount provides superior isolation
- Integral 80 Hz high-pass filter switch and 10 dB pad switch
- Certified by the METAlliance… read more (Music Engineering and Technology Alliance)
Specs
Specifications
- Element: Externally-Polarized (Dc Bias) Condenser
- Polar Patterns: Cardioid, Omni-directional, Figure-Of-Eight
- Frequency Response: 20-18,000 Hz
- Low Frequency Roll-Off: 80 Hz, 12 Db/Octave
- Open Circuit Sensitivity: -42 Db (7.9 Mv), Re 1v At 1 Pa
- Impedance: 100 Ohms
- Maximum Input Sound Level: 155 dB SPL, 1 Khz At 1% T.H.D.; 165 dB SPL, with 10 dB Pad (Nominal)
- Noise: 14 dB
- Dynamic Range (Typical): 141 Db, 1 Khz At Max SPL
- Signal-To-Noise Ratio: 80 Db, 1 kHz At 1 pa
- Phantom Power Requirements: 48v DC, 3.4 ma Typical
- Switches: Polar Selection; Flat, Roll-Off; 10 dB Pad (Nominal)
- Weight: 524 G (18.5 Oz)
- Dimensions: 188.0 Mm (7.40") Long, 53.4 Mm (2.10") Maximum Body Diameter
- Output Connectors: Integral 3-Pin XLRM-Type
- Accessories Furnished: At8449/Sv Shock Mount For 5/8"-27 Threaded Stands; Microphone Dust Cover; Protective Carrying Case
- Audio-Technica Case Style: R1
- Element: Externally-Polarized (Dc Bias) Condenser
- Polar Patterns: Cardioid, Omni-directional, Figure-Of-Eight
- Frequency Response: 20-18,000 Hz
- Low Frequency Roll-Off: 80 Hz, 12 Db/Octave
- Open Circuit Sensitivity: -42 Db (7.9 Mv), Re 1v At 1 Pa
- Impedance: 100 Ohms
- Maximum Input Sound Level: 155 dB SPL, 1 Khz At 1% T.H.D.; 165 dB SPL, with 10 dB Pad (Nominal)
- Noise: 14 dB
- Dynamic Range (Typical): 141 Db, 1 Khz At Max SPL
- Signal-To-Noise Ratio: 80 Db, 1 kHz At 1 pa
- Phantom Power Requirements: 48v DC, 3.4 ma Typical
- Switches: Polar Selection; Flat, Roll-Off; 10 dB Pad (Nominal)
- Weight: 524 G (18.5 Oz)
- Dimensions: 188.0 Mm (7.40") Long, 53.4 Mm (2.10") Maximum Body Diameter
- Output Connectors: Integral 3-Pin XLRM-Type
- Accessories Furnished: At8449/Sv Shock Mount For 5/8"-27 Threaded Stands; Microphone Dust Cover; Protective Carrying Case
- Audio-Technica Case Style: R1
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 3.25 lbs
- Shipping Dimensions: 11 x 10 x 4 in
- Manufacturer Part Number (MPN): AT4047MP
