Audio-Technica ATW-3212/C710 Fourth-Generation 3000 Series Wireless Vocal Microphone System

With a wide 60MHz UHF tuning bandwidth and an integral 80 Hz hi-pass filter, the Audio-Technica ATW-312/C710 is a versatile handheld wireless mic system.

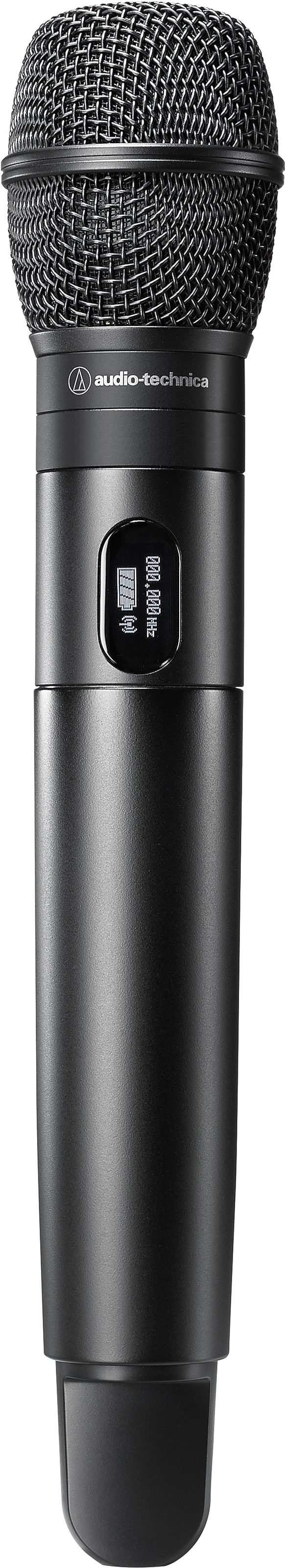

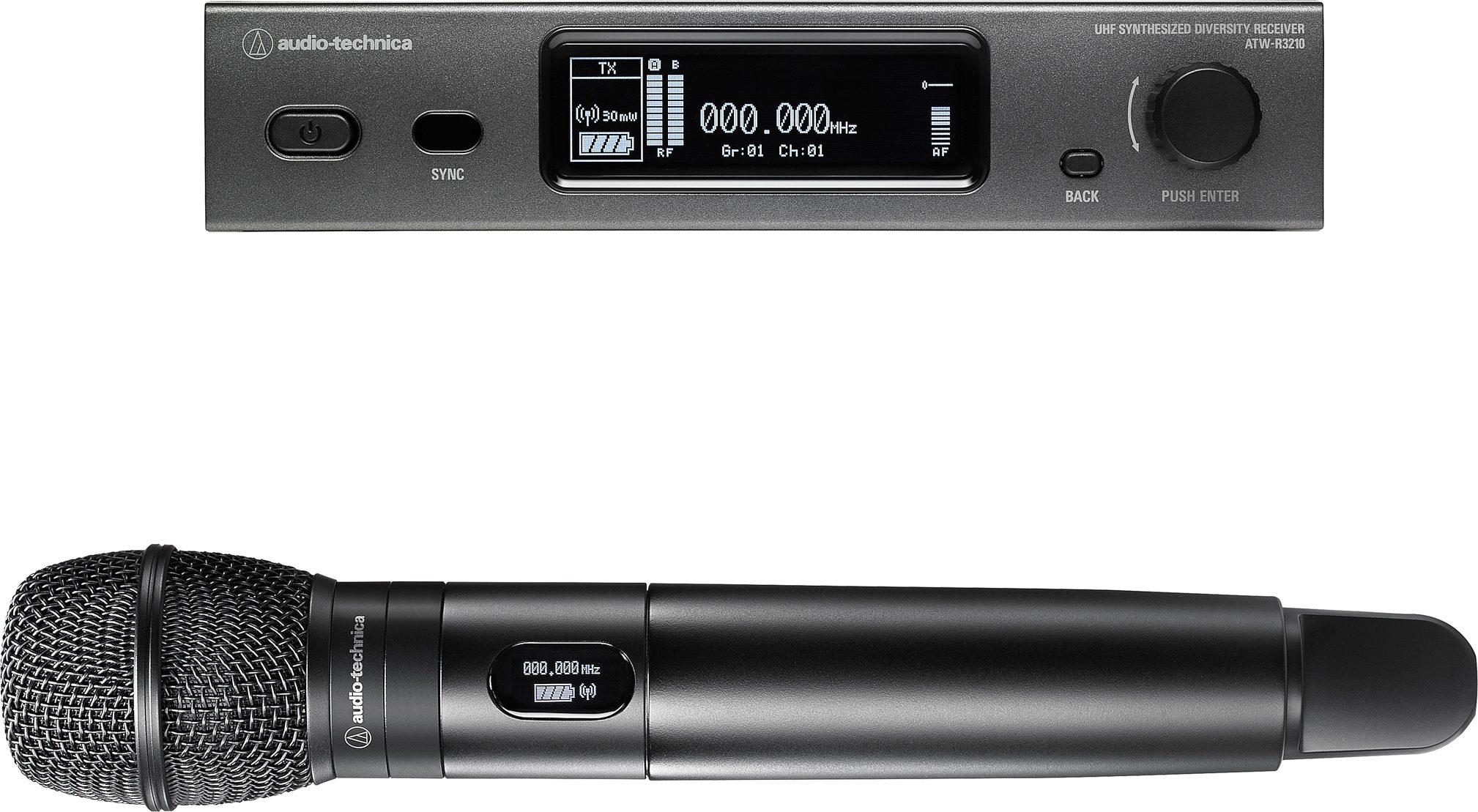

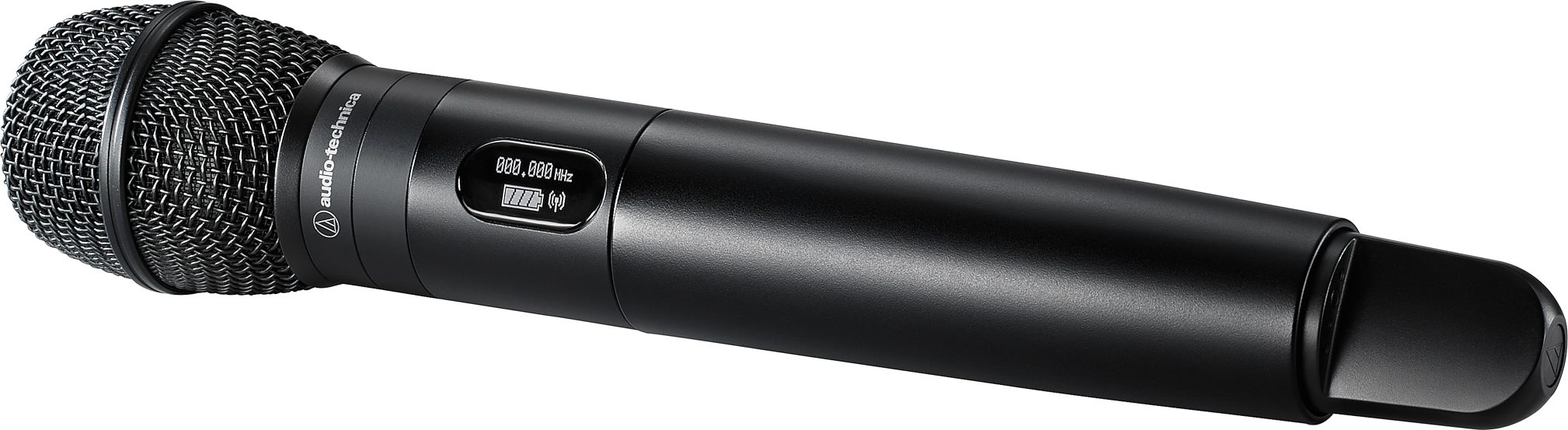

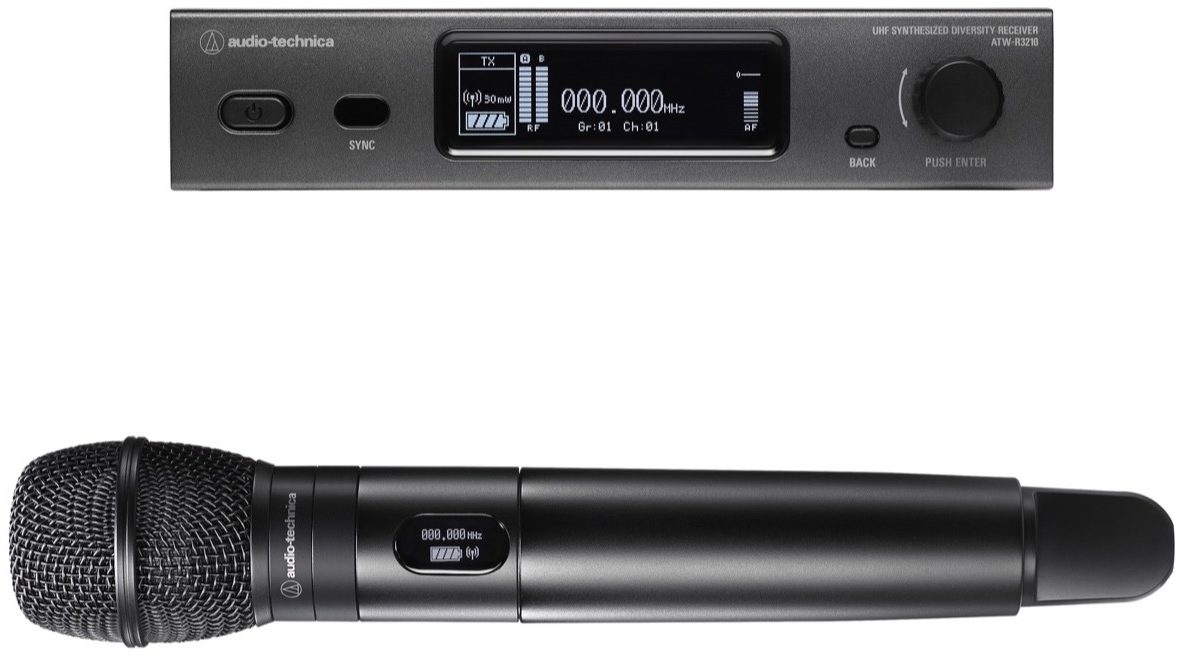

The Audio-Technica ATW-3212/C710 Fourth-Generation 3000 Series Wireless Vocal Microphone System includes a ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C710 cardioid condenser microphone capsule.

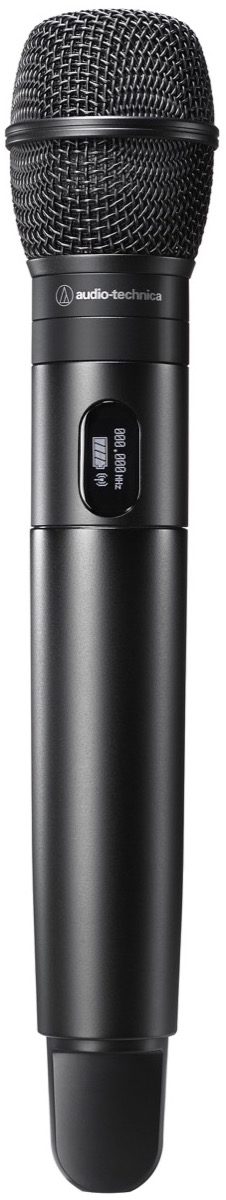

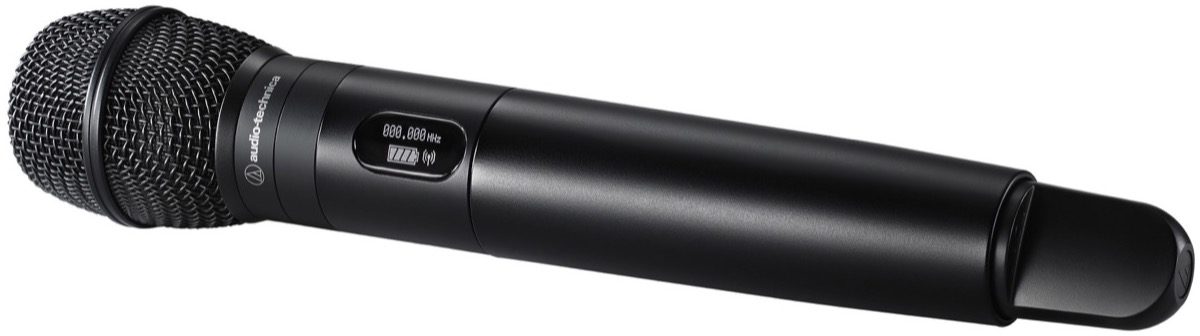

The C710 vocal condenser microphone is tailored for exacting detail and high-fidelity vocal reproduction. With a condenser design for studio-quality performance, the C710 delivers remarkable clarity. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off position that reduces the microphone's sensitivity to popping in close vocal use. The C710 is also equipped with a switchable 10 dB pad that lowers the microphone's sensitivity, providing higher SPL capability. The microphone's cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.

Audio-Technica 3000 Series (Fourth Generation) Series

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands -- DE2 (470-530 MHz) and EE1 (530-590 MHz) -- that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and read more then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

Features:

- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
- Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries (sold separately)
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

Overall System Specs
- Operating Frequencies
-- Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
-- Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
- Minimum Frequency Step: 25 kHz
- Modulation Mode: FM
- Maximum Deviation: ATW-T3201: +/-38 kHz (THD:10%), TW-T3202: +/-36 kHz (THD:10%)"
- Dynamic Range:
-- ATW-T3201 Mic input: > 115 dB (A-weighted), typical
-- ATW-T3201 Inst input: > 112dB (A-weighted), typical
-- ATW-T3202: > 115 dB (A-weighted), typical"
- Total Harmonic Distortion: <1.0% (at 1 kHz, +/-17.5 kHz deviation)
- Operating Range: 100 m (328') Open range environment with no interfering signals.
- Operating Temperature Range: -5 degrees C to +45 degrees C (23 degrees F to 113 degrees F)
- Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz
-- Frequency response depends on attached microphone element
- Maximum Simultaneous Use (Recommended): 40 Channels per band

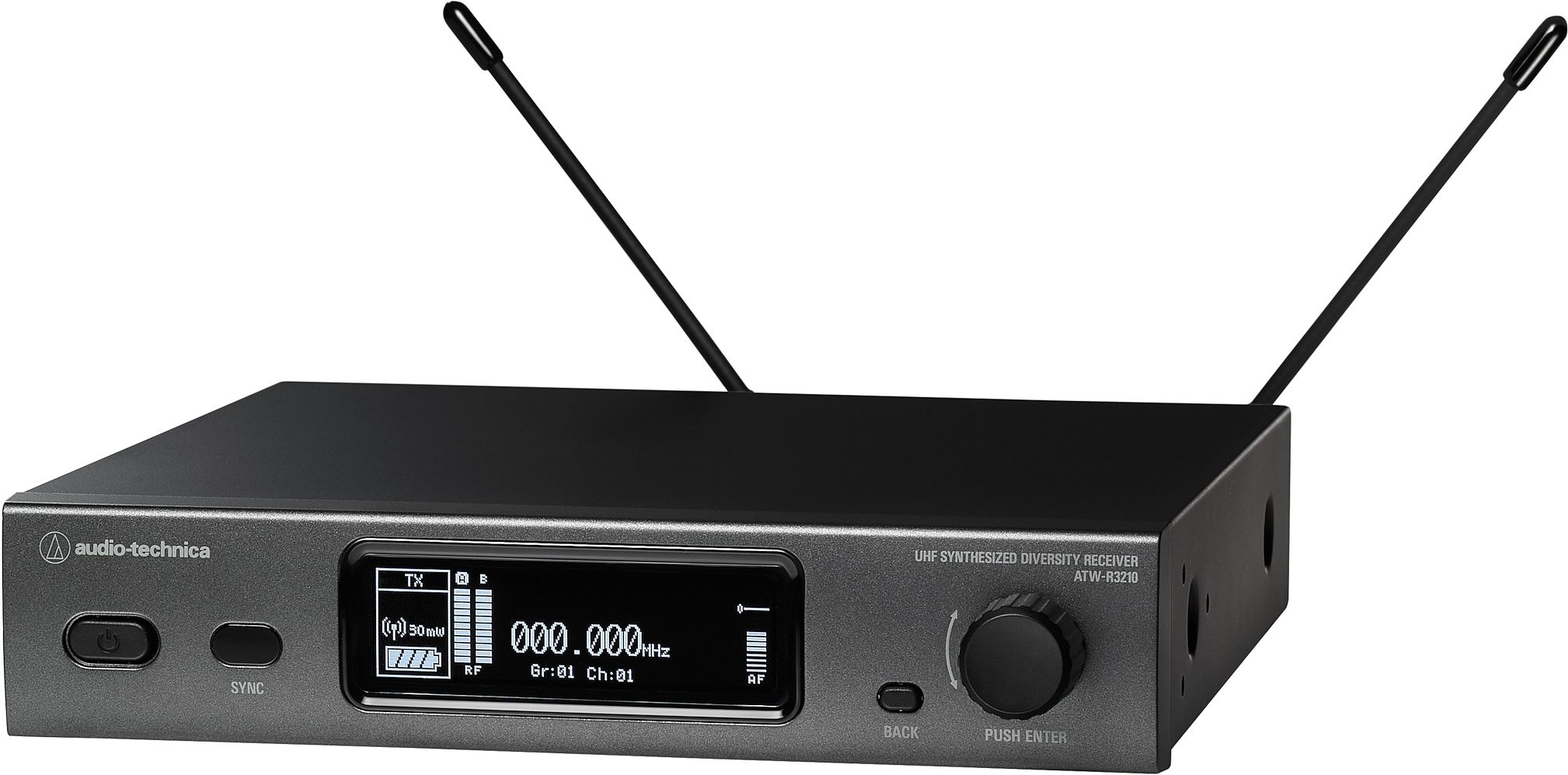

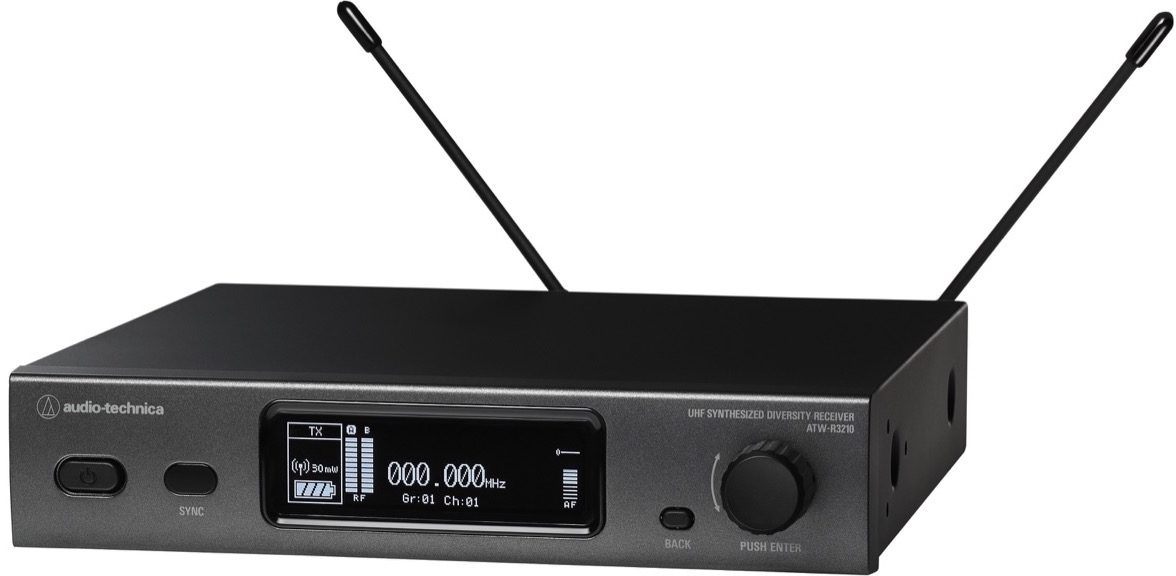

Receiver Specs
- Receiving System: True Diversity
- Image Rejection: 60 dB nominal
- RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
- Antenna Power: 12 V DC, 160 mA (combined)
- Maximum Output Level: XLR, balanced: +14 dBV, 6.3 mm (1/4"), unbalanced: +8 dBV
- Antenna Input: BNC-type, 50 ohms
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
- Dimensions: (W x D x H) -- 8.27" x 7.52" x 1.71" (W x D x H)
- Net Weight: 1100 g (38.8 oz), without accessories
- Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters

Handheld Pack Specs
- RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
- Spurious Emissions: Following Federal and National Regulations
- Microphone Capsule: Interchangable industry standard thread
- Batteries: Two 1.5V AA, not included
- Battery Life: High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline), High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh), Depending on battery type, usage, and environmental conditions.
- Dimensions
-- ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter
-- ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
- Net Weight
-- ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries
-- ATW-T3202/C710: 314 g (11.1 oz), without batteries
Dimensions and Weight in Packaging
Band DE2 (470.125 - 529.975 MHz)
Shipping Weight: 5.75 lbs
Shipping Dimensions: 15 x 13 x 3 in
Manufacturer Part Number (MPN): ATW-3212/C710DE2
Band EE1 (530 - 589.975 MHz)
Shipping Weight: 5.75 lbs
Shipping Dimensions: 15 x 13 x 3 in
Manufacturer Part Number (MPN): ATW-3212/C710EE1

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
