Audio-Technica ATW-3211/831 Fourth-Generation 3000 Series Wireless Lavalier System

When every syllable needs to be heard, turn to this Audio-Technica wireless lavalier system. The unobtrusive mic reproduces clear audio in any situation.

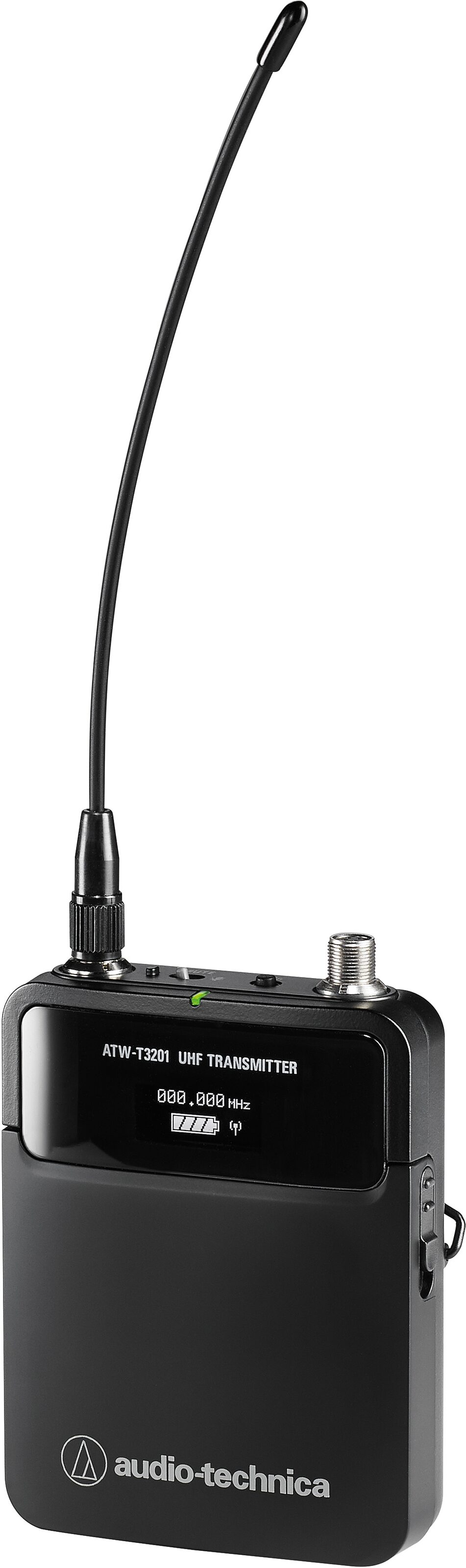

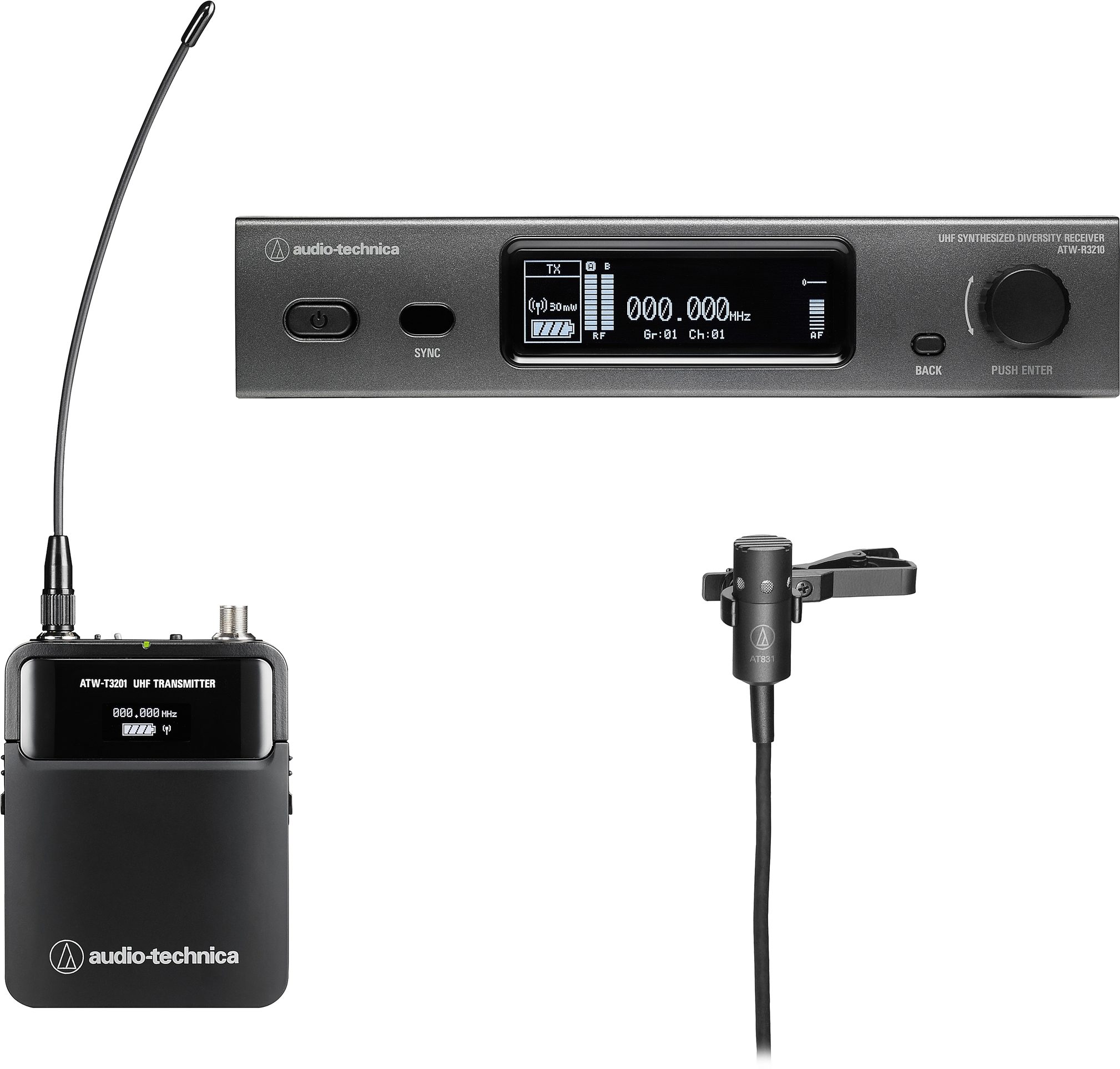

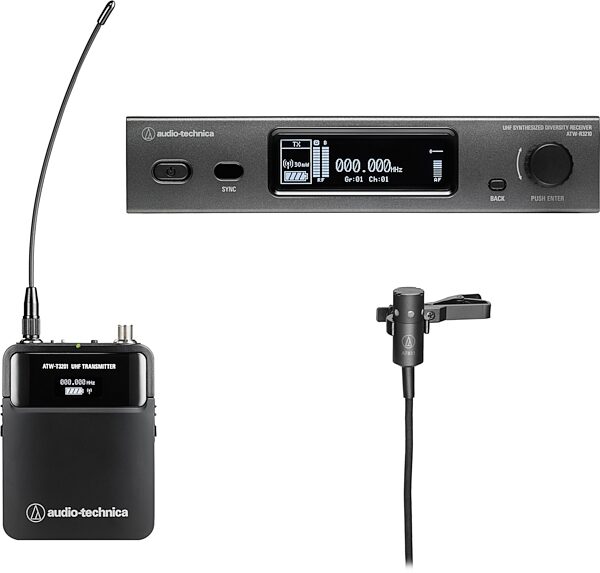

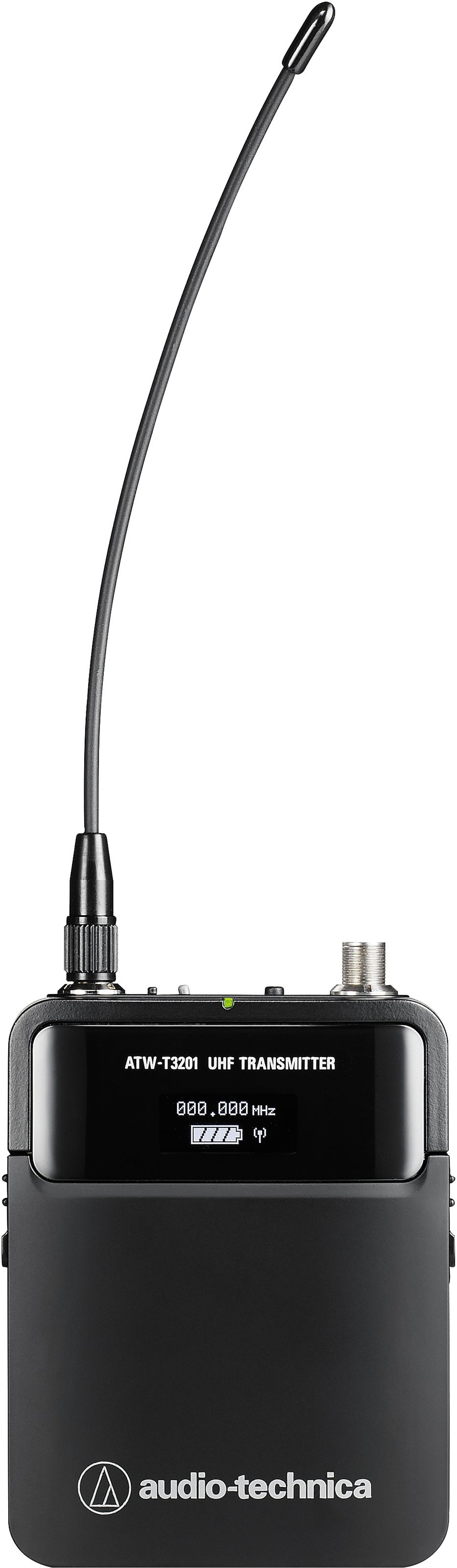

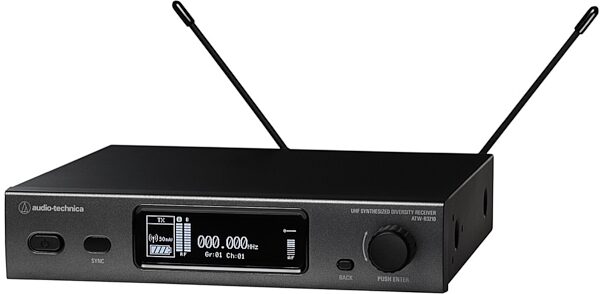

The Audio-Technica ATW-3211/831 Fourth-Generation 3000 Series wireless lavalier system includes the ATW-R3210 receiver and ATW-T3201 body-pack transmitter with AT831cH cardioid condenser lavalier microphone.

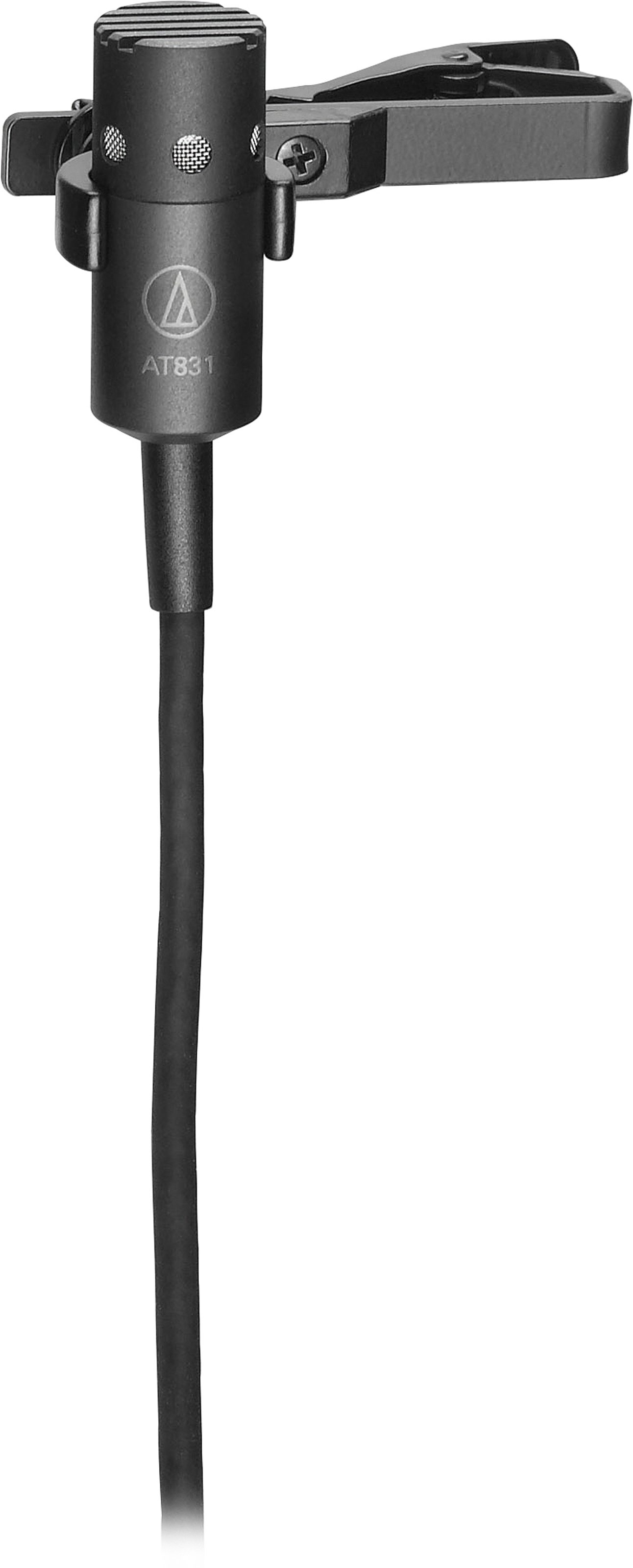

The AT831cH Cardioid Condenser Lavalier Microphone features a 55" (1.4 m) permanently attached miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack transmitters. Includes windscreen and clothing clip.

Audio-Technica 3000 Series (Fourth Generation) Series

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands, DE2 (470-530 MHz) and EE1 (530-590 MHz), that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

Features:

- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment
- Unique multifunction button on the body-pack transmitter can be used to switch read more to a backup frequency (on both transmitter and receiver) should interference be encountered
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries (sold separately)
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

Overall System Specs
- Operating Frequencies
-- Band DE2: 470125 to 529975 MHz (2395 frequencies)
-- Band EE1: 530000 to 589975 MHz (2400 frequencies)
- Minimum Frequency Step: 25 kHz
- Modulation Mode: FM
- Maximum Deviation: ATW-T3201: ±38 kHz (THD:10%), TW-T3202: ±36 kHz (THD:10%)"
- Dynamic Range:
-- ATW-T3201 Mic input: > 115 dB (A-weighted), typical
-- ATW-T3201 Inst input: > 112dB (A-weighted), typical
-- ATW-T3202: > 115 dB (A-weighted), typical"
- Total Harmonic Distortion: <10% (at 1 kHz, ±175 kHz deviation)
- Operating Range: 100 m (328') Open range environment with no interfering signals
- Operating Temperature Range: -5º C to +45º C (23º F to 113º F)
- Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz
-- Frequency response depends on attached microphone element
- Maximum Simultaneous Use (Recommended): 40 Channels per band

Receiver Specs
- Receiving System: True Diversity
- Image Rejection: 60 dB nominal
- RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50Ω termination)
- Antenna Power: 12 V DC, 160 mA (combined)
- Maximum Output Level: XLR, balanced: +14 dBV, 63 mm (1/4"), unbalanced: +8 dBV
- Antenna Input: BNC-type, 50 Ω
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
- Dimensions: (W x D x H) -- 827" x 752" x 171" (W x D x H)
- Net Weight: 1100 g (388 oz), without accessories
- Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters

Body Pack Specs
- RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
- Input Connections: Four Pin Locking Connector
-- Pin 1: GND
-- Pin 2: INST INPUT
-- Pin 3: MIC INPUT
-- Pin 4: DC BIAS +5V
- High-pass (low-freq roll-off): 125Hz, 12dB/octave
- Batteries: Two 15V AA, not included
- Battery Life: High: 80 hours (alkaline), Low: 90 hours (alkaline), High: 90 hours (Ni-MH 1900mAh), Low: 95 hours (Ni-MH 1900mAh), Depending on battery type, usage, and environmental conditions
- Dimensions: 252" x 322" x 091" (W x D x H)
- Net Weight: 102 g (36 oz), without batteries

Dimensions and Weight in Packaging
Band DE2 (470.125 - 529.975 MHz)
Shipping Weight: 5.25 lbs
Shipping Dimensions: 15 x 13 x 3 in
Manufacturer Part Number (MPN): ATW-3211/831DE2
Band EE1 (530 - 589.975 MHz)
Shipping Weight: 5.25 lbs
Shipping Dimensions: 15 x 13 x 3 in
Manufacturer Part Number (MPN): AUD ATW3211831EE1

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com
