Audio-Technica ATW-2192xc Wireless Headset Microphone System

zZounds Gear Experts Say...

Reduce dropouts and feedback issues with the Audio-Technica ATW-2192xc, a wireless headset mic system with auto frequency scanning for easy setup.

Overview

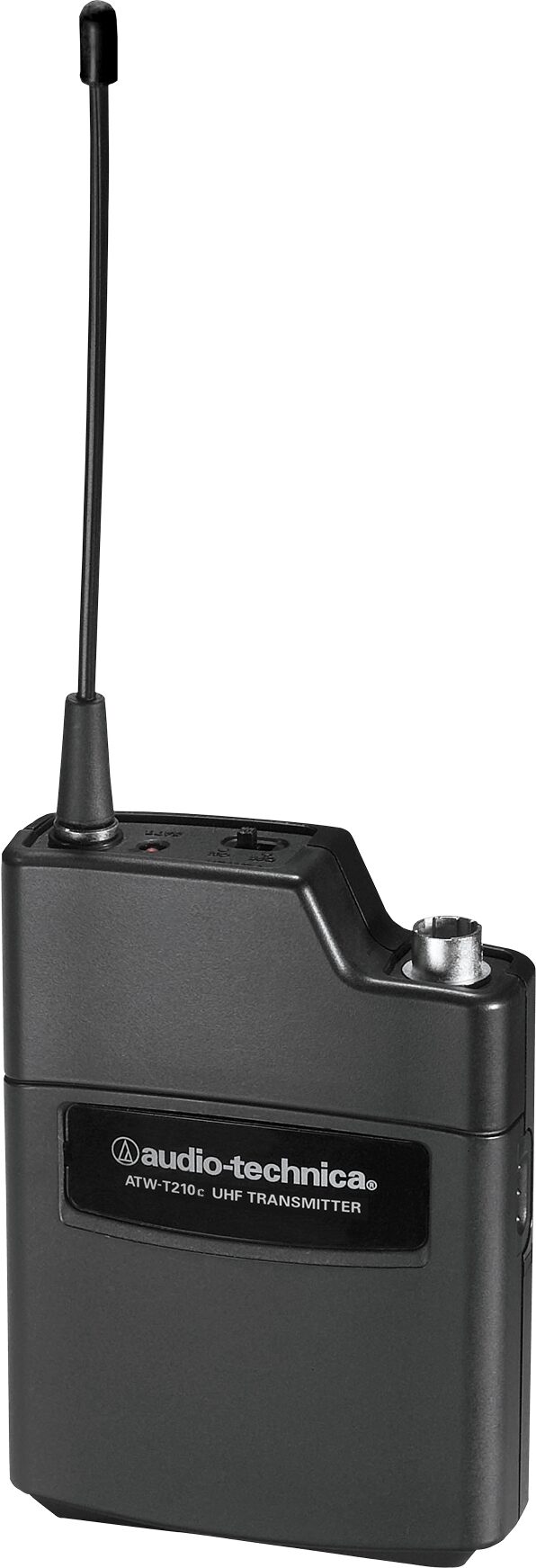

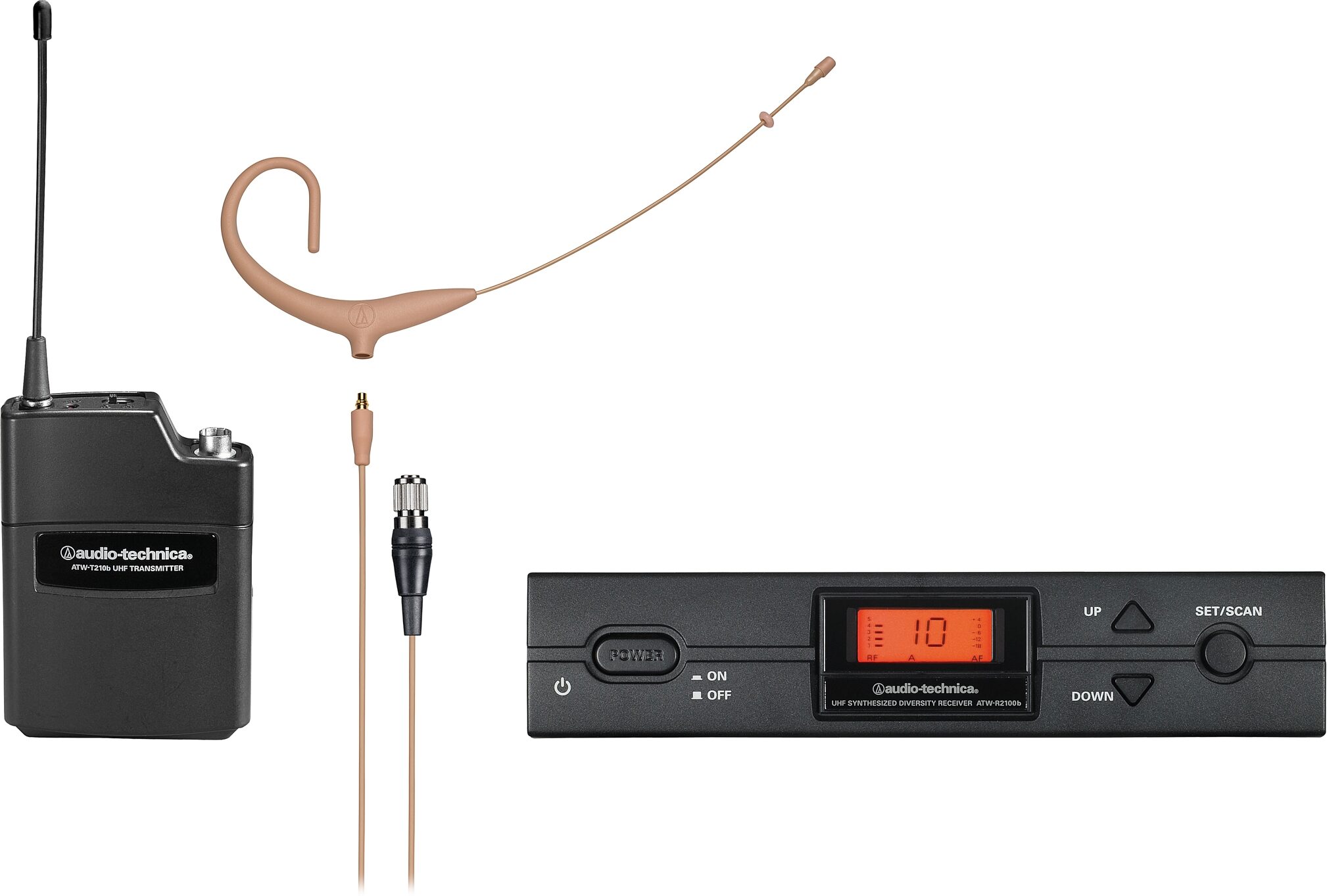

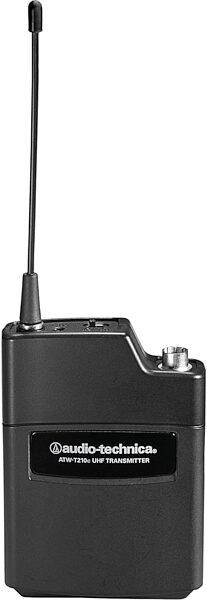

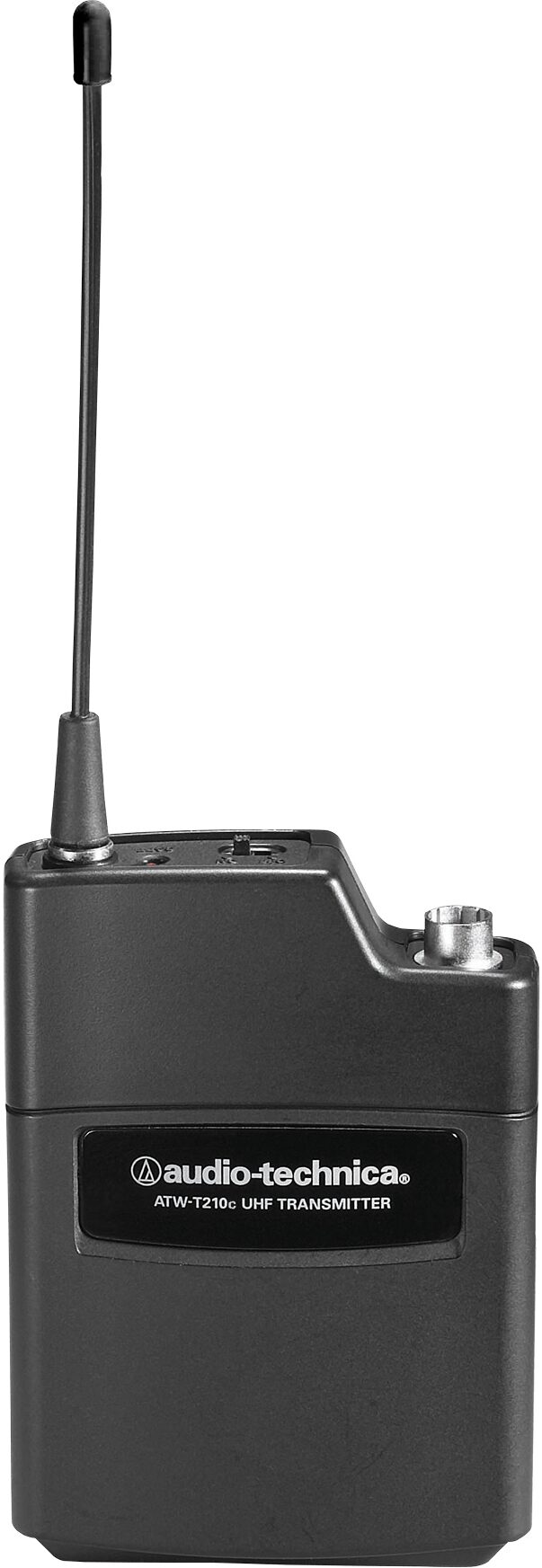

The Audio-Technica ATW-2192xc 2000 Series Wireless Headworn Microphone System includes the ATW-R2100c receiver and ATW-T210c body-pack transmitter with the BP892xcW MicroSet omnidirectional condenser headworn microphone.

Includes element covers, windscreens, clothing clip, and dual-ear adapter kit.
Audio-Technica's 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price.

Features switchable antenna power. Also, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220c handheld transmitters and/or ATW-T210c body-pack transmitters in any combination. Offering 10 selectable channels and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series' 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica's Tone Lock(TM) squelch plus an easy-to-read LCD information display.

Features:

- Serious advances in affordable professional wireless
- Clear sound quality and rock-solid, dependable performance
- Automatic frequency… read more scanning
- 10 compatible user-switchable channels
- Antenna power available for powered antennas & other in-line RF devices
- True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
- Tone Lock(TM) tone squelch system fights interference

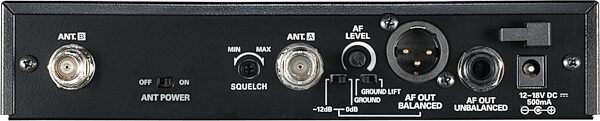

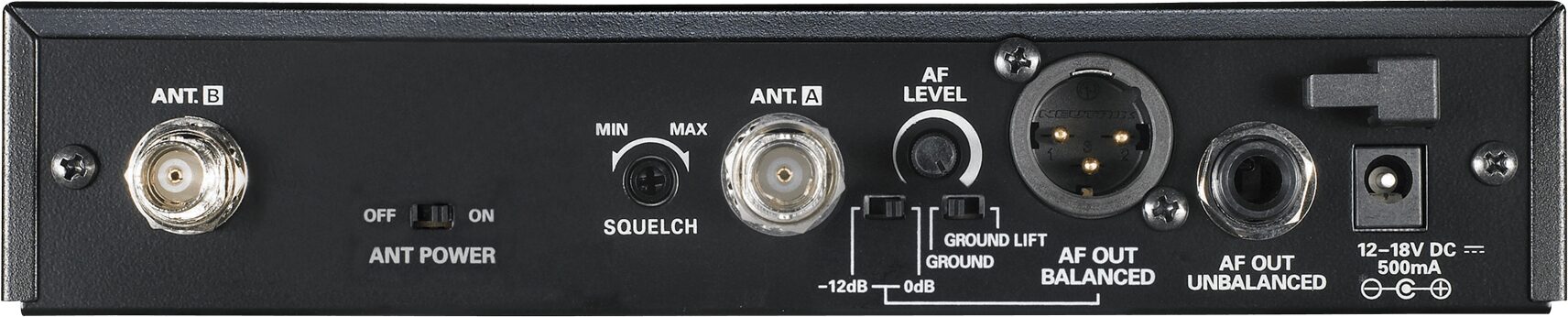

- Rugged metal half-rack receiver with soft-touch controls and LCD display
- Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
- Switchable transmitter power output with high and low settings offered
- Includes rack-mount kit and detachable UHF antennas
- Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
- ATW-CHG2 charger available for ATW-T220c & ATW-T210c transmitters

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Operating Frequencies: Band I: 487.125 to 506.500 MHz; Band S: 508.125-526.825 MHz
- Modulation Mode: FM
- Maximum Deviation: +/-40 kHz
- Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)
- Operating Range: 100 m (300'), typical (Open range environment with no interfering signals.)
- Total Harmonic Distortion: < 1% (at 1 kHz, +/-20 kHz deviation)
- Operating Temperature Range: 5o C to 45o C (41o F to 113o F)
- Number Of Channels: 10 total
- Notes: Fourth-generation 2000 Series ("c" version) components:
- Receiver: ATW-R2100c
- Body-Pack Transmitter: ATW-T210c

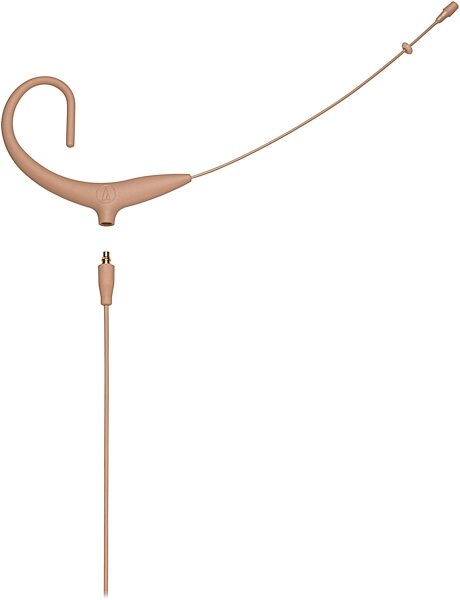

- Microphone: BP892xcW MicroSet omnidirectional condenser headworn microphone
- RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
- Battery Life:
- High: 7 hours (alkaline)
- Low: 9 hours (alkaline)
- Depending on battery type and use pattern.
- Battery Type: Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
- Recharging power for NiMH batteries (with ATW-CHG2):
- U.S./Canada/Latin America: 3.2 V DC, 230 mA x2
- Other world areas: 3.2 V DC, 320 mA x2
- Dimensions: 66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
- Input Connections: Four-pin Locking Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +9V
- Net Weight: 81 g (2.9 oz), without batteries
- Spurious Emissions: Following federal and national regulations
Receiver:
- Receiving System: True diversity
- Image Rejection: 60 dB nominal, 55 dB minimum
- RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- Maximum Output Level:
- XLR, balanced: +9 dBV,
- 1/4" (6.3 mm), unbalanced: +4 dBV
- Antenna Input: BNC-type, 50 ohms
- Bias voltage: 12V DC, 60 mA, each
- Power Requirements: 12-18V DC, 500 mA
- Dimensions: 210.0 mm (8.27") W x162.2 mm (6.39") D x44.0 mm (1.73") H (Not including BNC connectors or feet.)
- Weight: 1.0 kg (35.3 oz), without accessories
- Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
- Audio Output Attenuator (ATTN): Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB

Dimensions and Weight in Packaging
Beige, S Band: Shipping Weight: 5.2 lbs; Shipping Dimensions: 16 x 14 x 4 in; Manufacturer Part Number (MPN): ATW-2192XCSTH
Black, Band I (487.125 - 506.500 MHz): Shipping Weight: 5.1 lbs; Shipping Dimensions: 15 x 14 x 4 in; Manufacturer Part Number (MPN): ATW-2192XCI
Black, S Band: Shipping Weight: 5.2 lbs; Shipping Dimensions: 15 x 14 x 4 in; Manufacturer Part Number (MPN): ATW-2192XCS

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
