Audio-Technica ATW-2192xc 2000 Series Wireless Headworn Microphone System

zZounds Gear Experts Say...

Your presenter deserves quality audio! Mic up your speaker with this omnidirectional condenser headset mic paired with a 10-channel UHF wireless system.

Overview

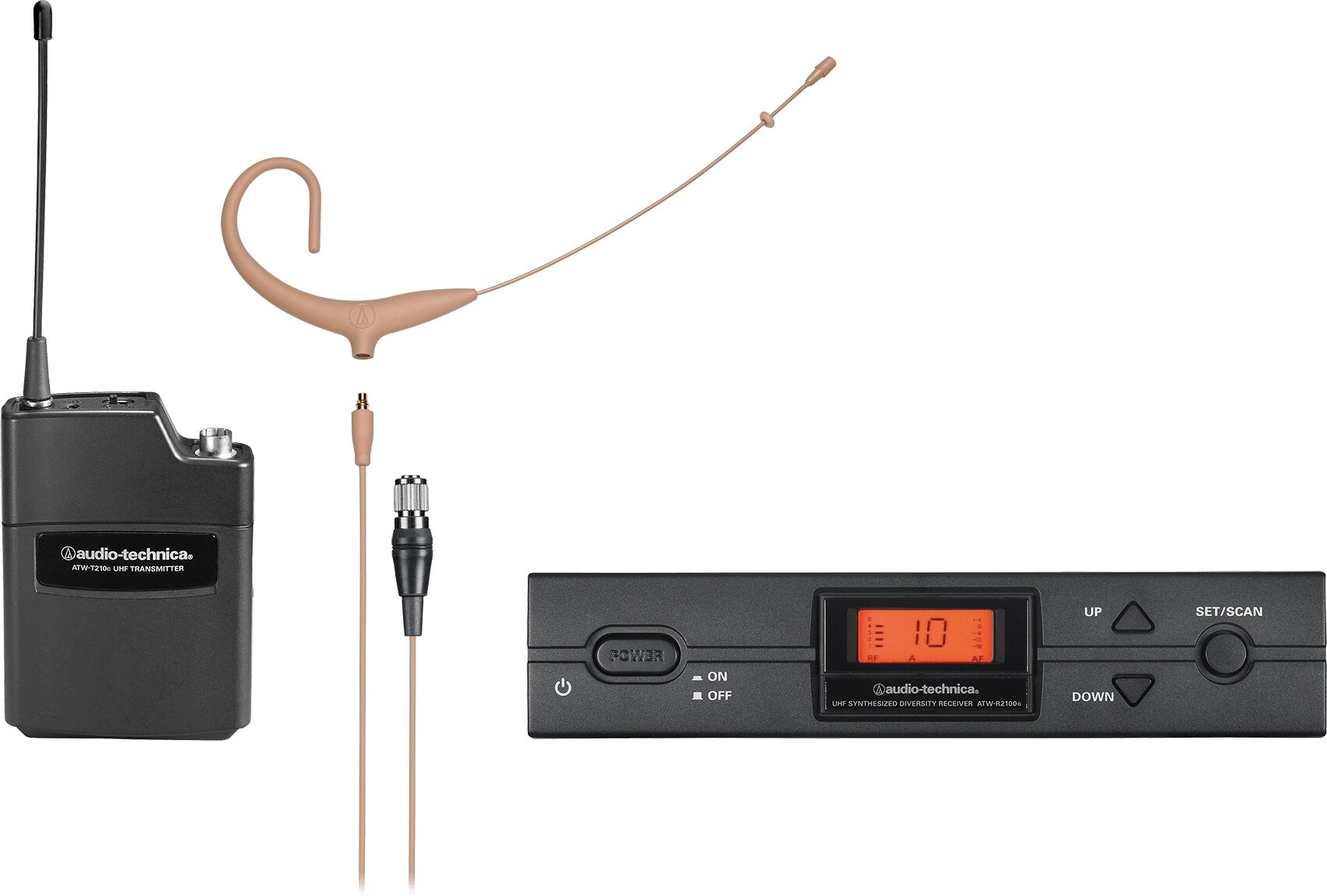

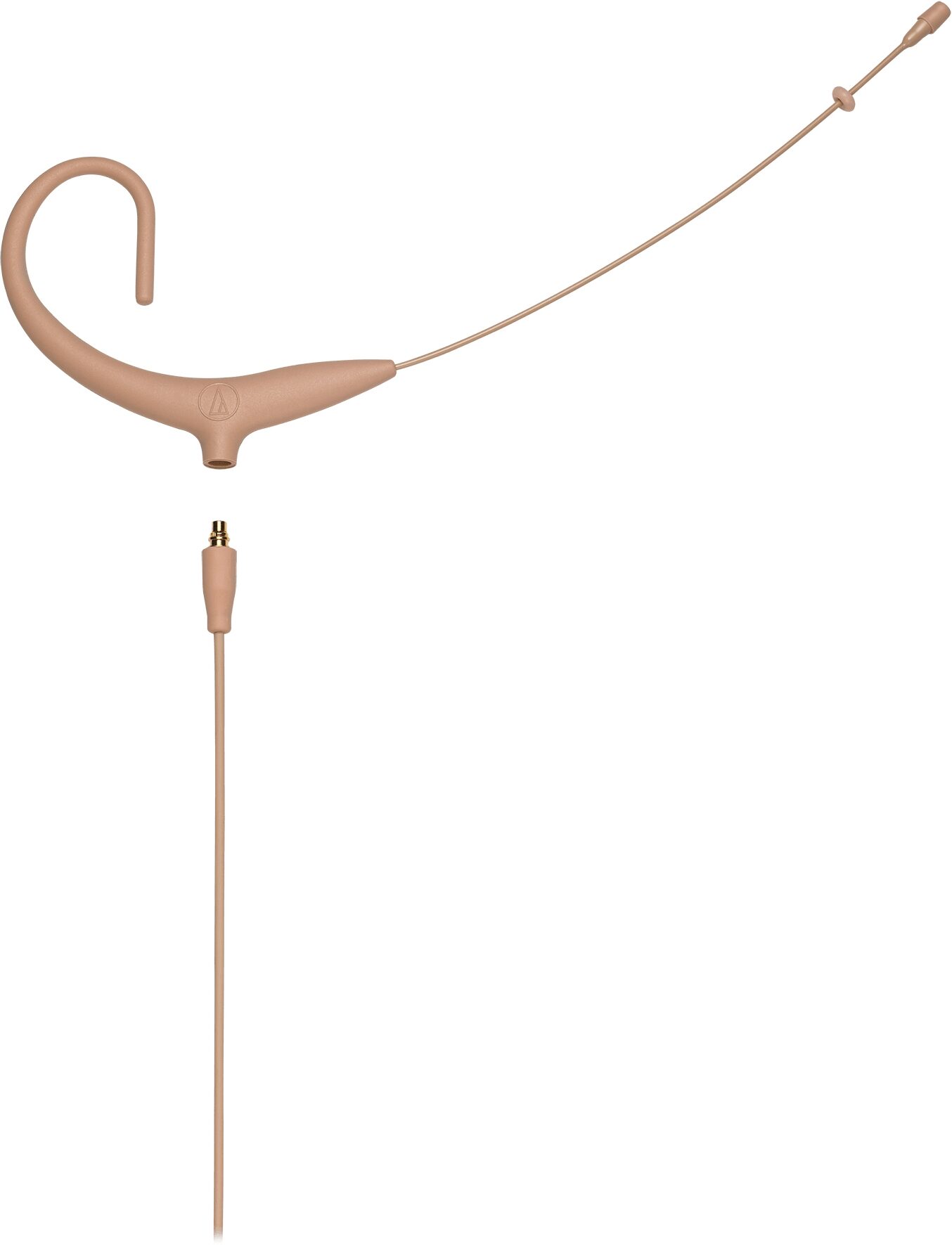

The ATW-2192xc system includes Audio-Technica's ATW-R2100c receiver and ATW-T210c body-pack transmitter with BP892xcW MicroSet omnidirectional condenser headworn microphone. Includes element covers, windscreens, clothing clip, and dual-ear adapter kit.

Audio-Technica's 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price.

Features switchable antenna power. Also, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220c handheld transmitters and/or ATW-T210c body-pack transmitters in any combination. Offering 10 selectable channels and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series' 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica's Tone Lock squelch plus an easy-to-read LCD information display.

Features:

- Rock-Solid, Dependable Performance
- 7 to 9 hours of battery life
- 10 selectable channels
- Switchable antenna power
- True Diversity UHF wireless technology
- Automatically… read more determines and sets the best available frequency
- Incorporates Audio-Technica's Tone Lock squelch

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

-Modulation Mode: FM
-Maximum Deviation: +/-40 kHz
-Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)
-Operating Range: 100 m (300'), typical (Open range environment with no interfering signals)
-Total Harmonic Distortion: < 1% (at 1 kHz, +/-20 kHz deviation)
-Operating Temperature Range: 5o C to 45o C (41o F to 113o F) (Battery and LCD performance may be reduced at very low temperatures)
-Number Of Channels: 10 total

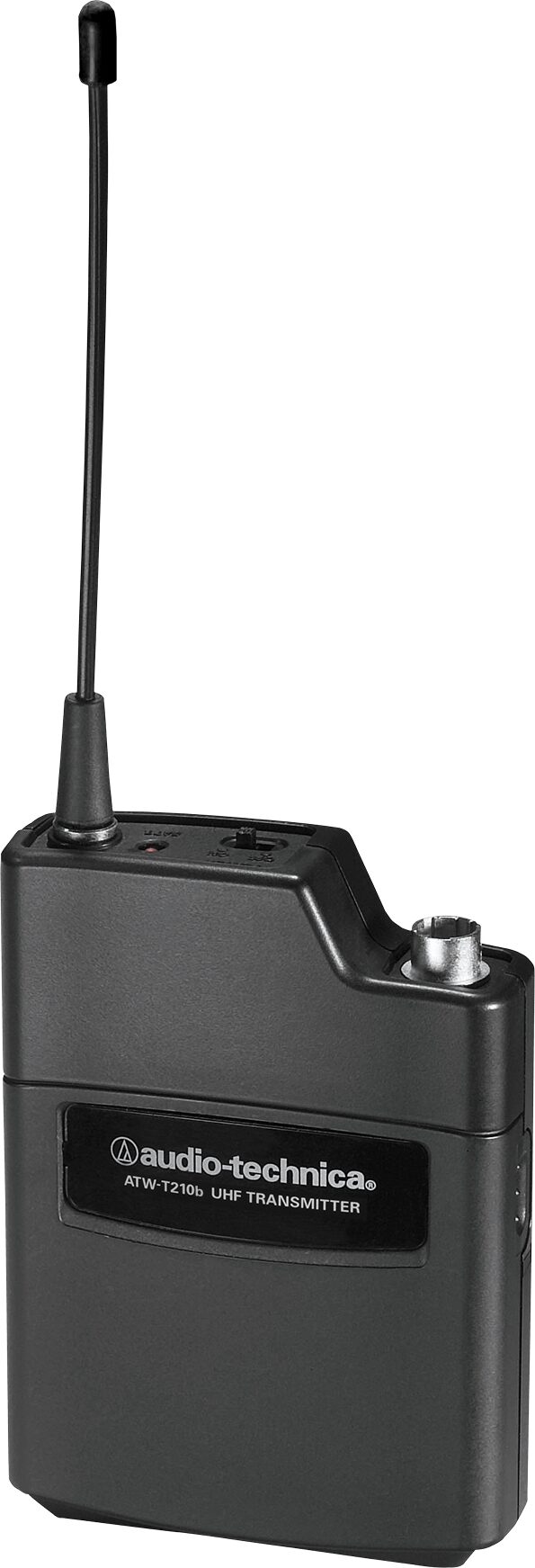

Body Pack Specifications

-RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
-Battery Life: High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern.
-Battery Type: Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2) U.S./Canada/Latin America: 3.2 V DC, 230 mA x2 Other world areas: 3.2 V DC, 320 mA x2
-Dimensions (WxDxH): 66.0 mm x 22.5 mm x 92.3 mm (2.60 x 0.89 x 3.63")
-Input Connections: Four-pin Locking Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +9V
-Net Weight: 81 g (2.9 oz), without batteries
-Spurious Emissions: Following federal and national regulations

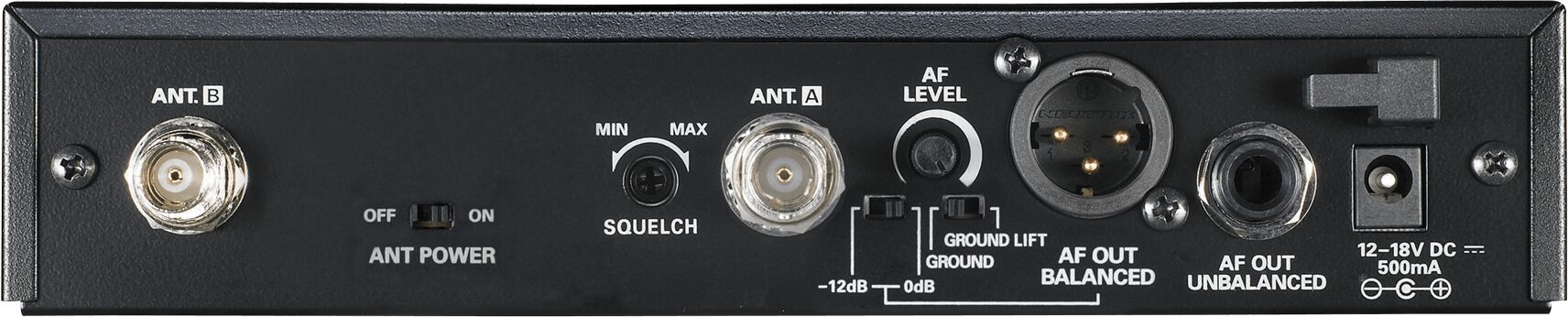

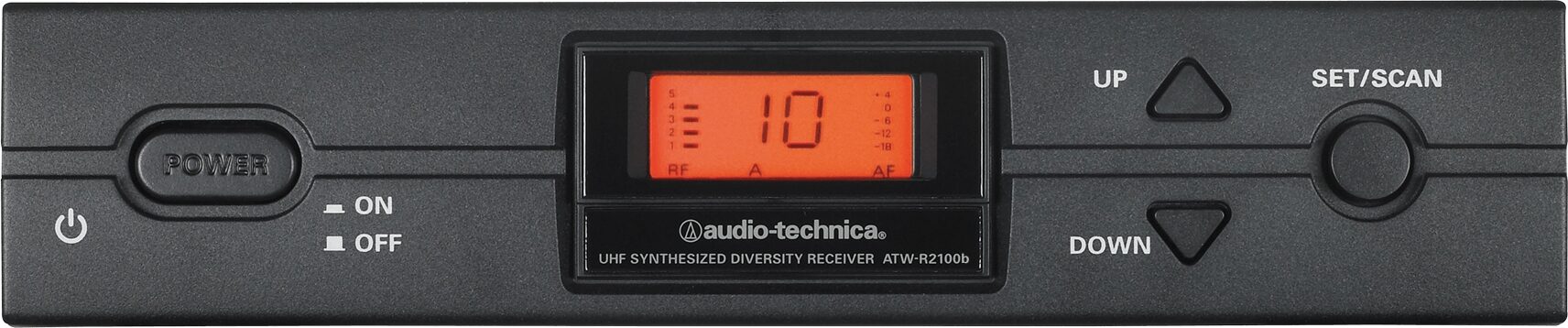

Receiver Specifications

-Receiving System: True diversity
-Image Rejection: 60 dB nominal, 55 dB minimum
-RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
-Antenna Input: BNC-type, 50 ohms
-Bias voltage: 12V DC, 60 mA, each
-Power Requirements: 12-18V DC, 500 mA
-Dimensions: 210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H Not including BNC connectors or feet.
-Weight: 1.0 kg (35.3 oz), without accessories

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 5.1 lbs; Shipping Dimensions: 15 x 13 x 4 in; Manufacturer Part Number (MPN): ATW-2192XCTH-I
Open Box (Like New), USED: Shipping Weight: 6 lbs; Shipping Dimensions: 15 x 13 x 4 in; Manufacturer Part Number (MPN): ATW-2192XCTH-I

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
