Audio-Technica ATW-1421/L System 20 PRO Dual Lavalier Microphone System

zZounds Gear Experts Say...

Add a highly reliable and easy-to-deploy dual wireless lavalier system to your live sound rig with the Audio-Technica System 20 PRO ATW-1421/L.

Overview

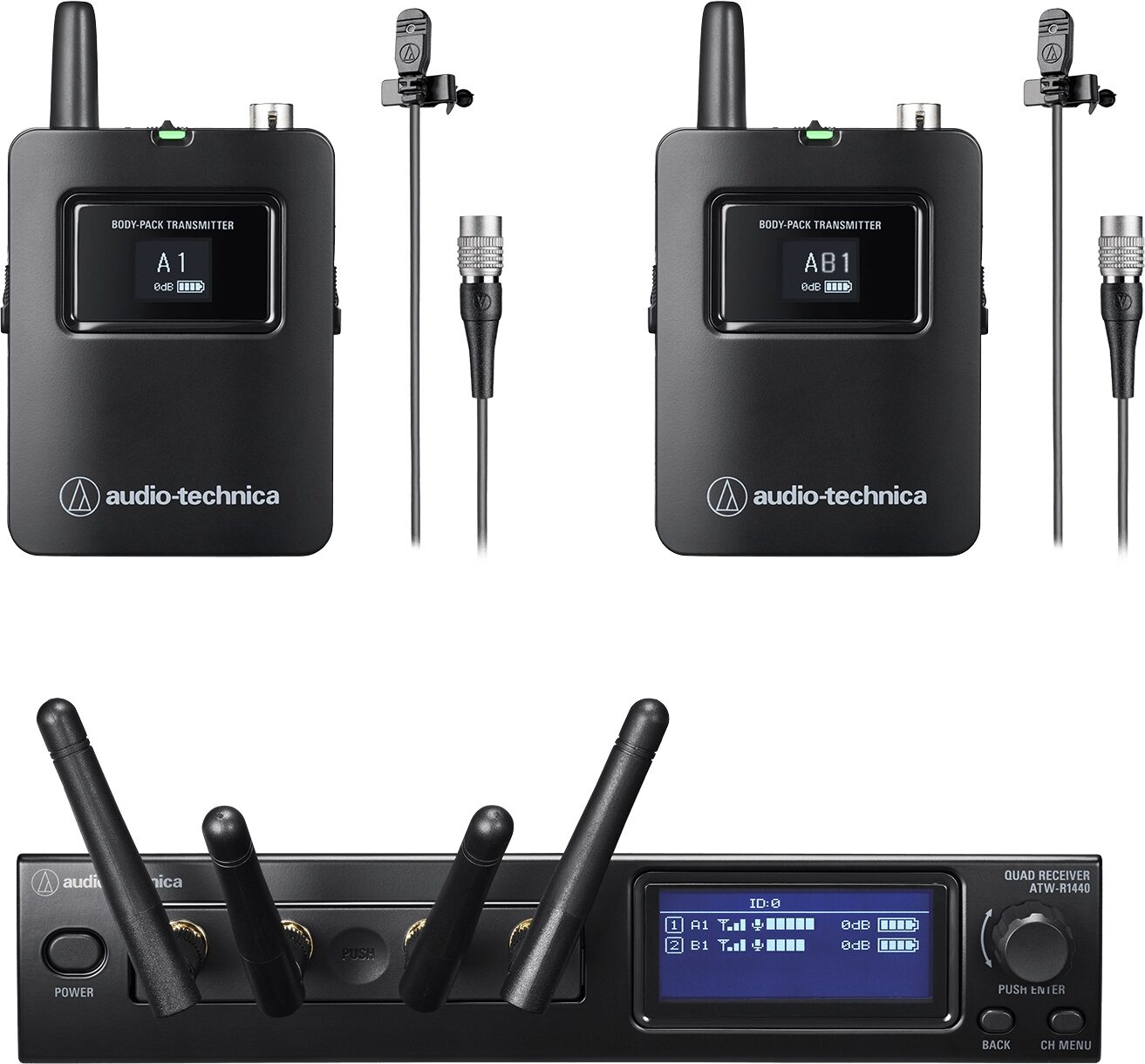

This Audio-Technica System 20 Digital Wireless System includes one ATW-R1440 4-channel receiver, two ATW-T1401 bodypack transmitters, and two MT830cW lavalier microphones.

When Audio Technica launched the System 10 PRO rack-mount receiver they took 2.4 GHz wireless microphone systems to a new level of functionality and convenience. Now, with the System 20 PRO they take it even further, offering a self-managing, plug-and-play 2.4 GHz system that's scalable to 20 channels and delivers the same dependable, high-quality audio - regardless of where you set it up. Designed for hassle-free deployment, the system overcomes many challenges of conventional wireless microphones, such as frequency coordination, complex intermodulation calculations, and remote antenna cabling.

Features:

- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Plug-and-play operation in the 2.4 GHz range - completely free from TV interference
- User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively

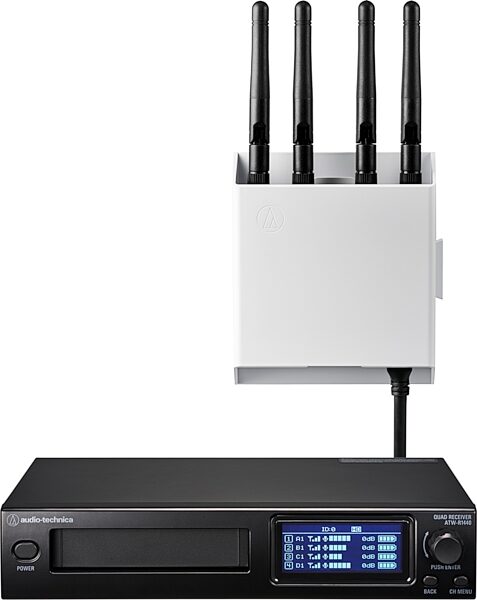

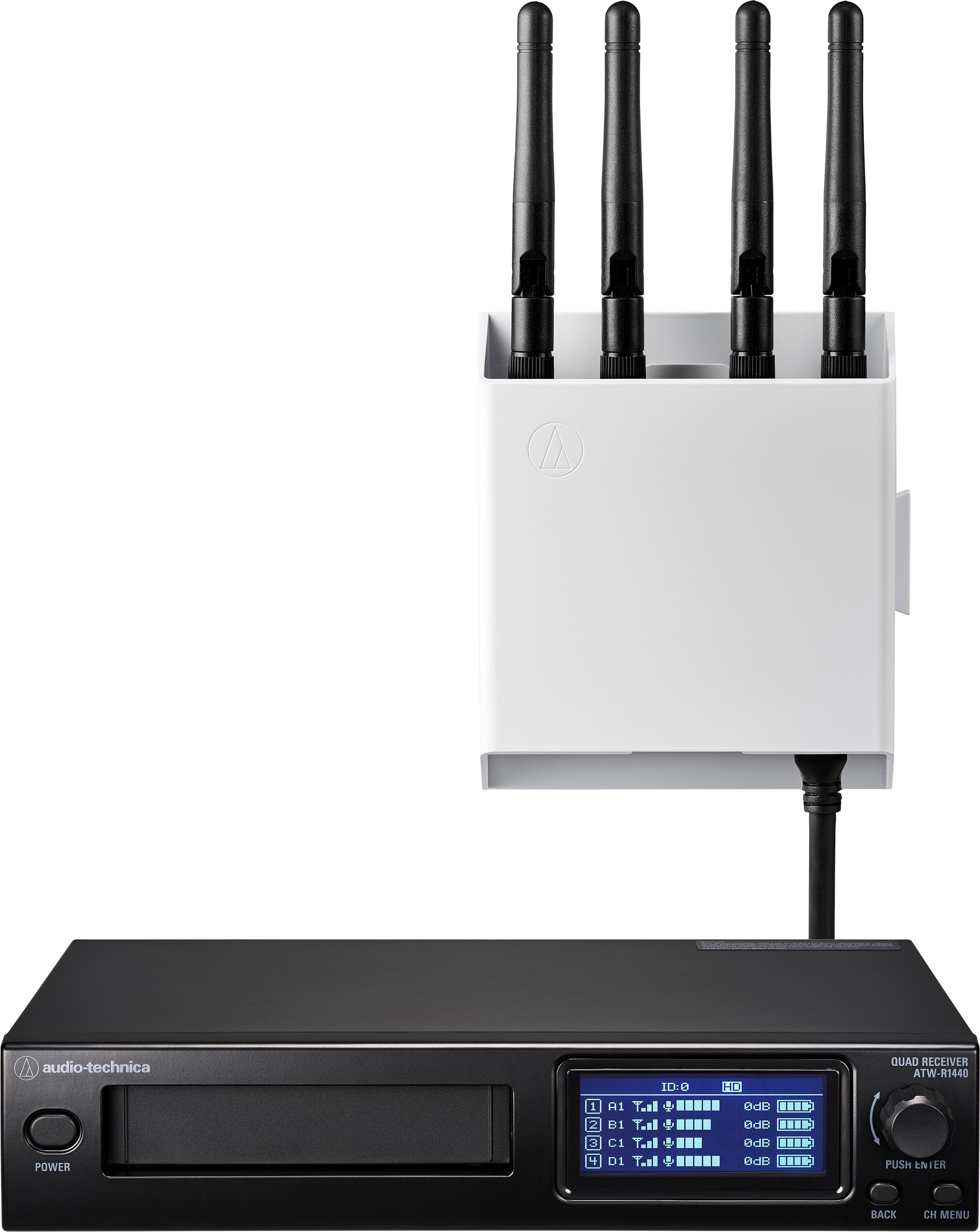

- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations

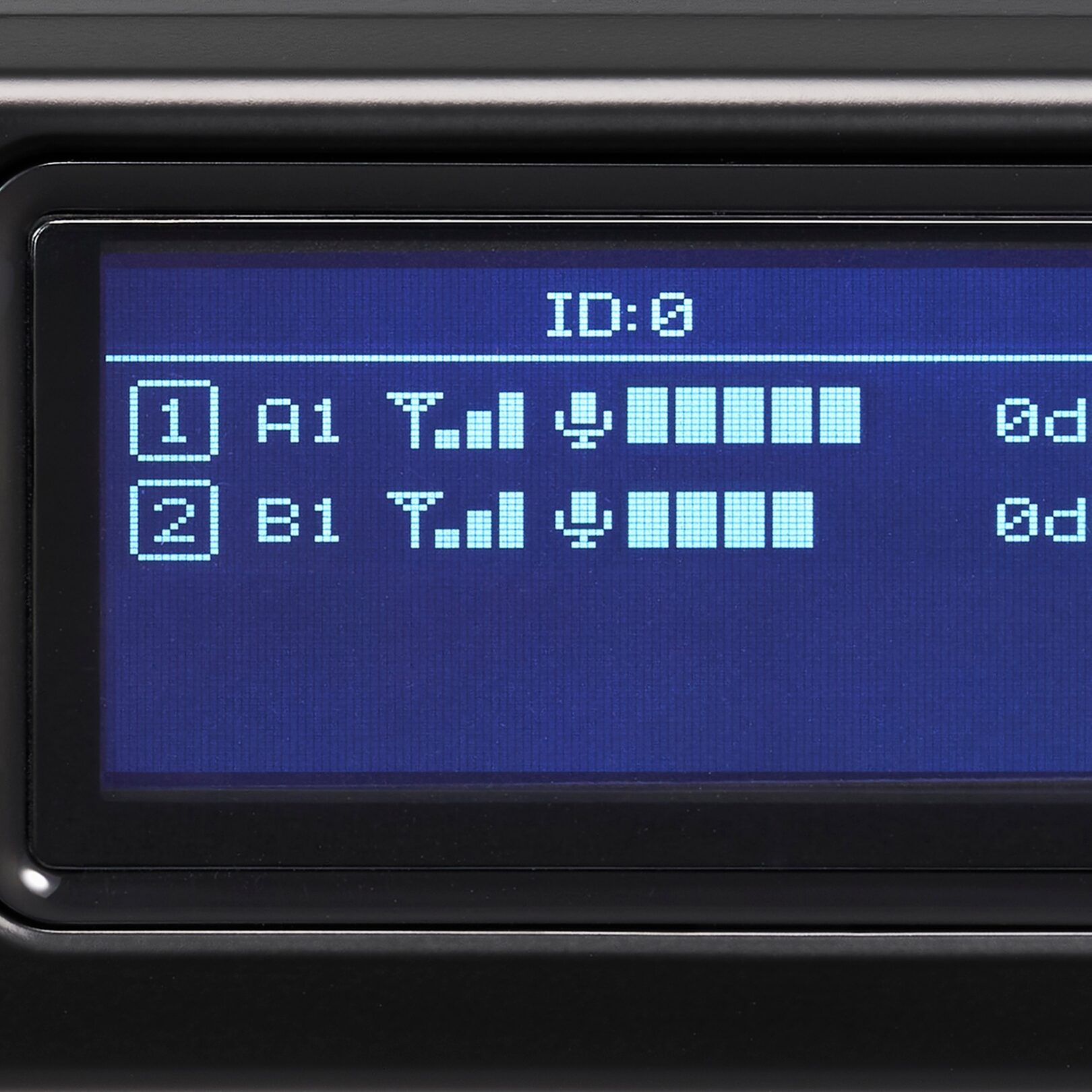

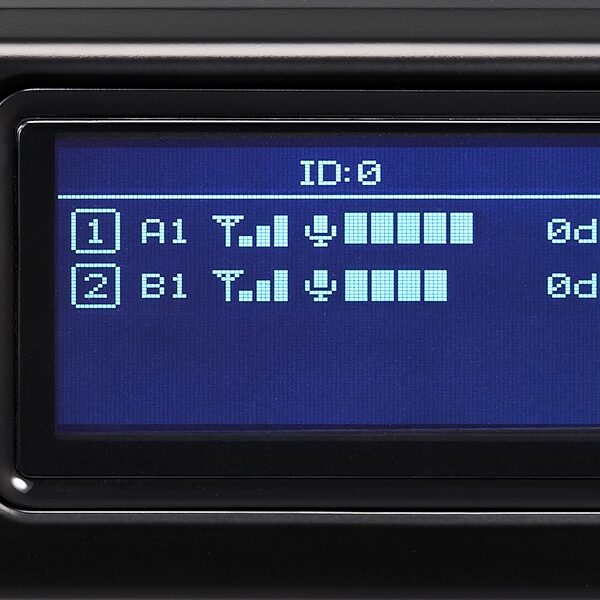

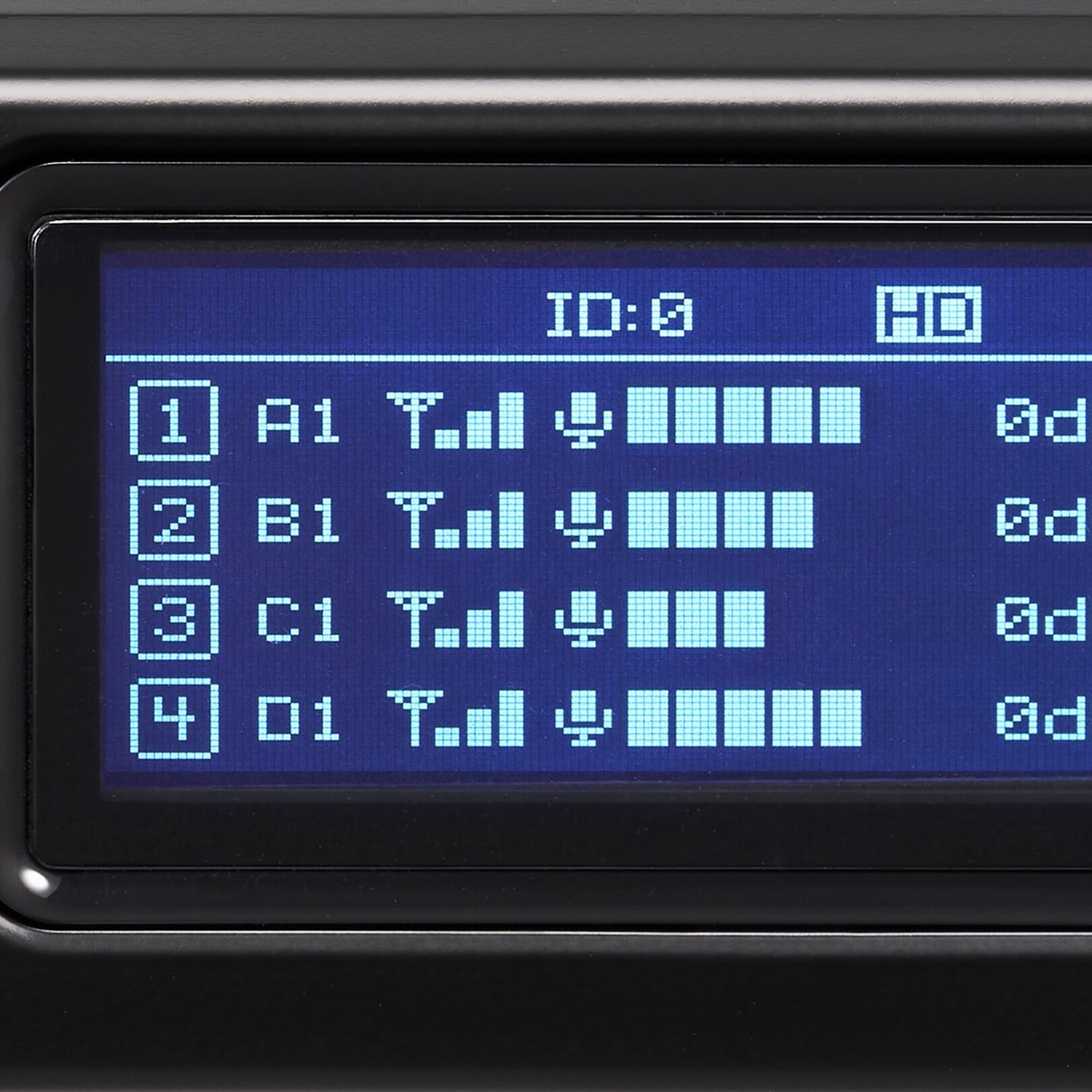

- Chassis' System ID Display shows RF signal… read more level, system ID, transmitter battery level, and system link status
- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
- Compatible with Audio-Technica's Wireless Manager software for centralized management of system settings and operations
- Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
- AES128 encryption for security
- Compatible with Syslog protocol
- Ability to configure, monitor, and save device settings as projects in Wireless Manager
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts

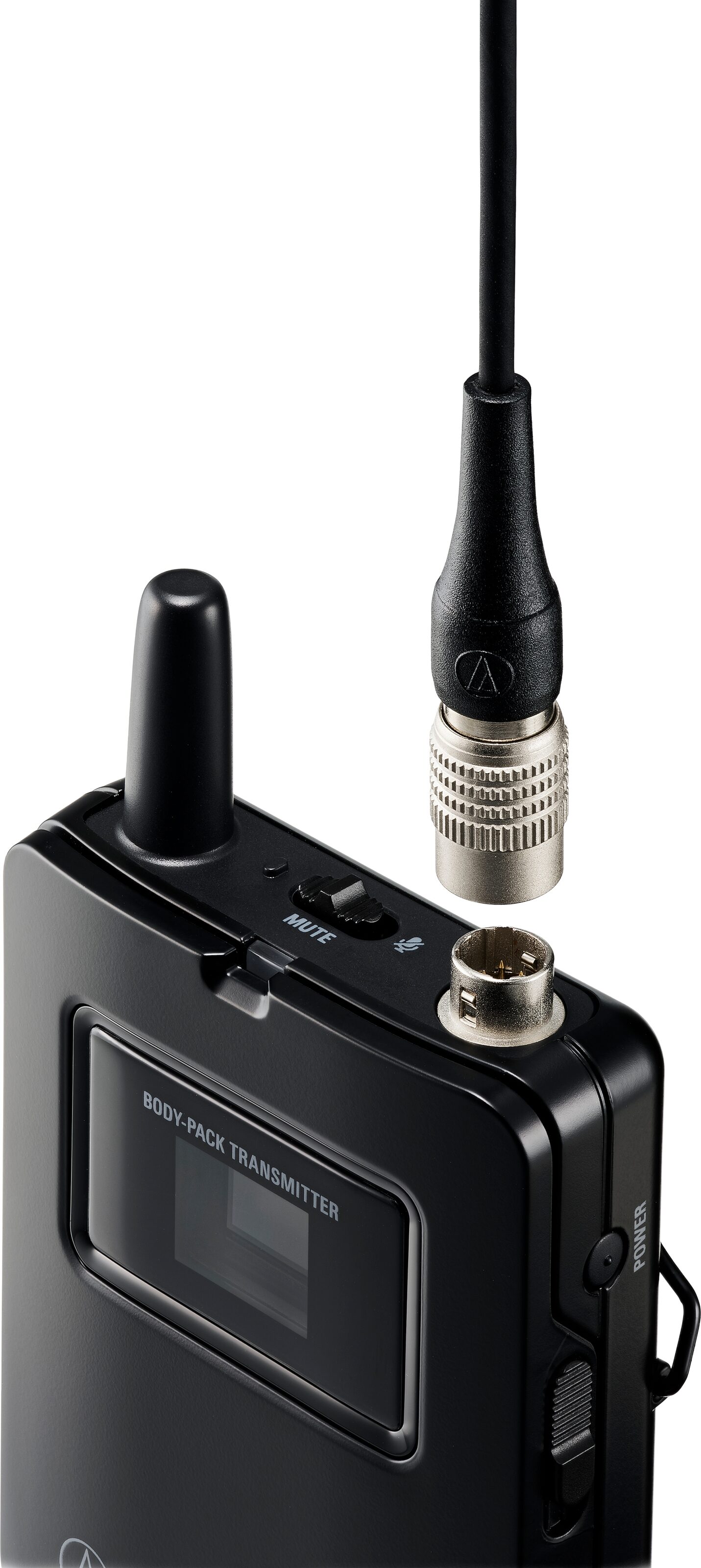

- Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector

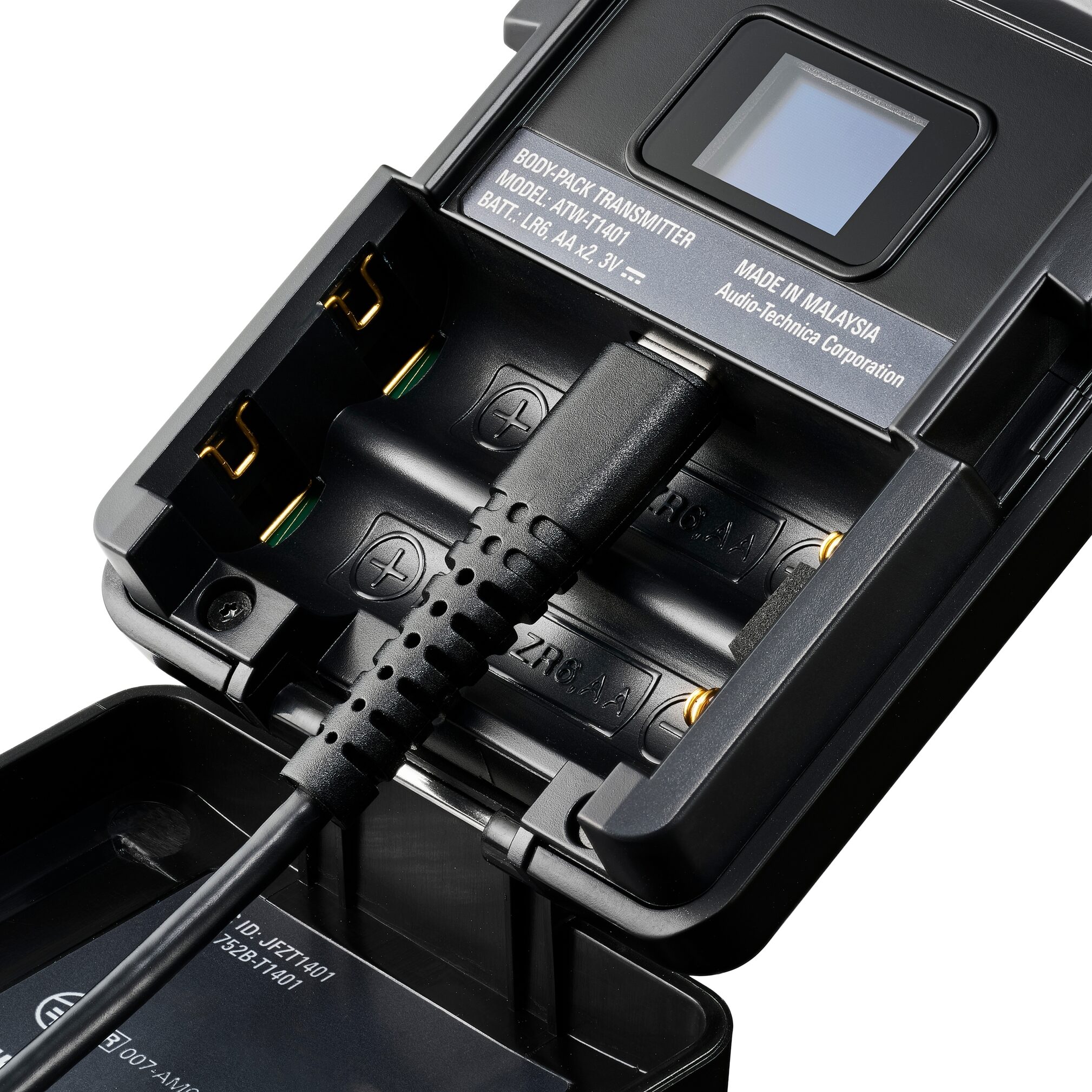

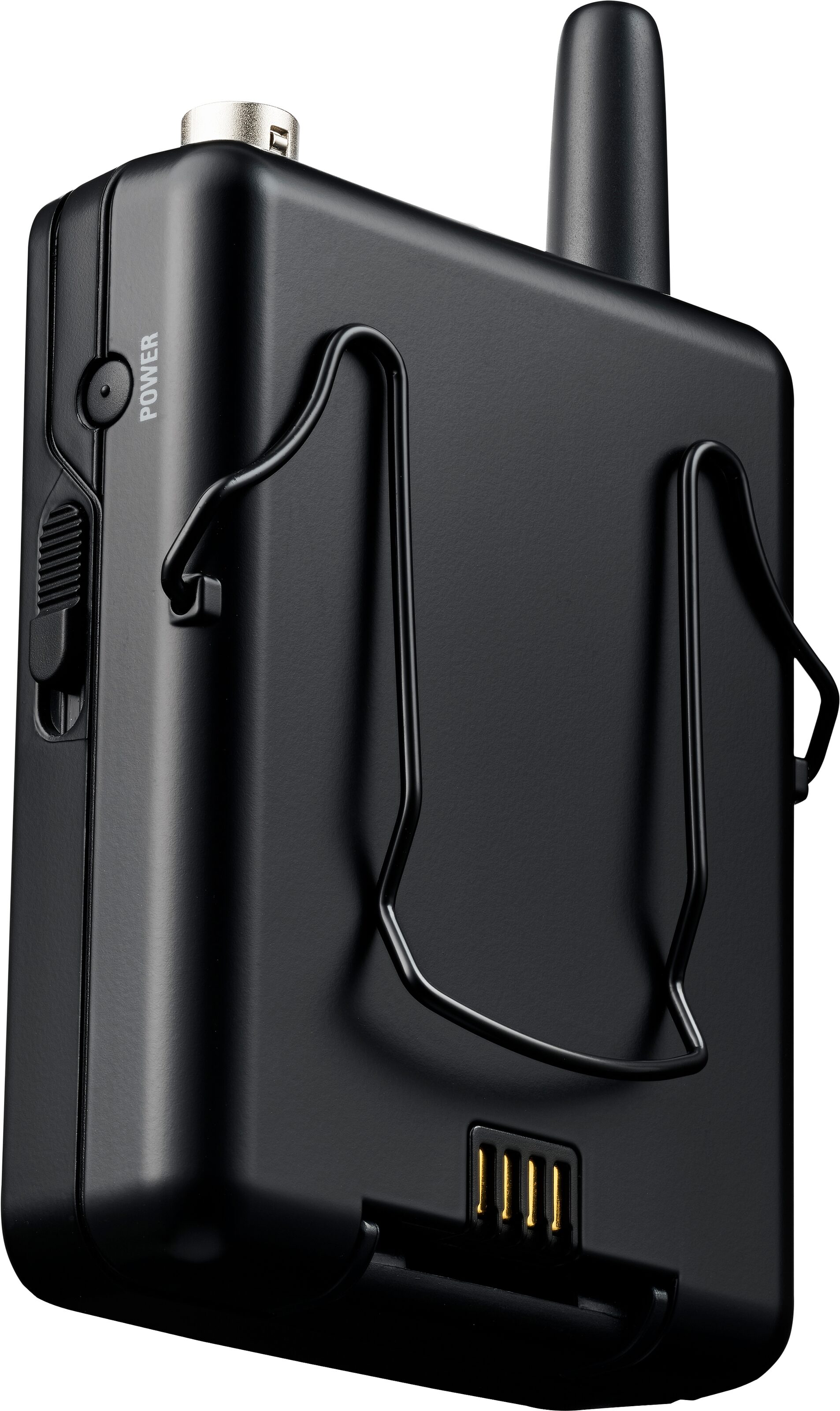

- Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
- Supports mixed output for situations with limited input channels

Capable of receiving up to four transmitters, the system's ATW-R1440 receiver makes installation a breeze. Receiver units can remain docked in the half-rack chassis or be mounted remotely (up to 328 feet away) via Ethernet cable for added versatility. Up to five chassis can be linked using the included RJ12 cable, creating a stable, multichannel system with the simultaneous use of up to 20 channels. But the user is always free to choose the most effective operation mode for a given situation: Standard mode (10 channels) to minimize latency or HD mode (20 channels) to maximize channel count.

Seamless setup and management are controlled via Audio-Technica's Wireless Manager software, which is capable of managing multiple UHF, 2.4 GHz and DECT wireless systems from a single screen. In addition, AES128 encryption comes standard, providing security and reliable operation. The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.

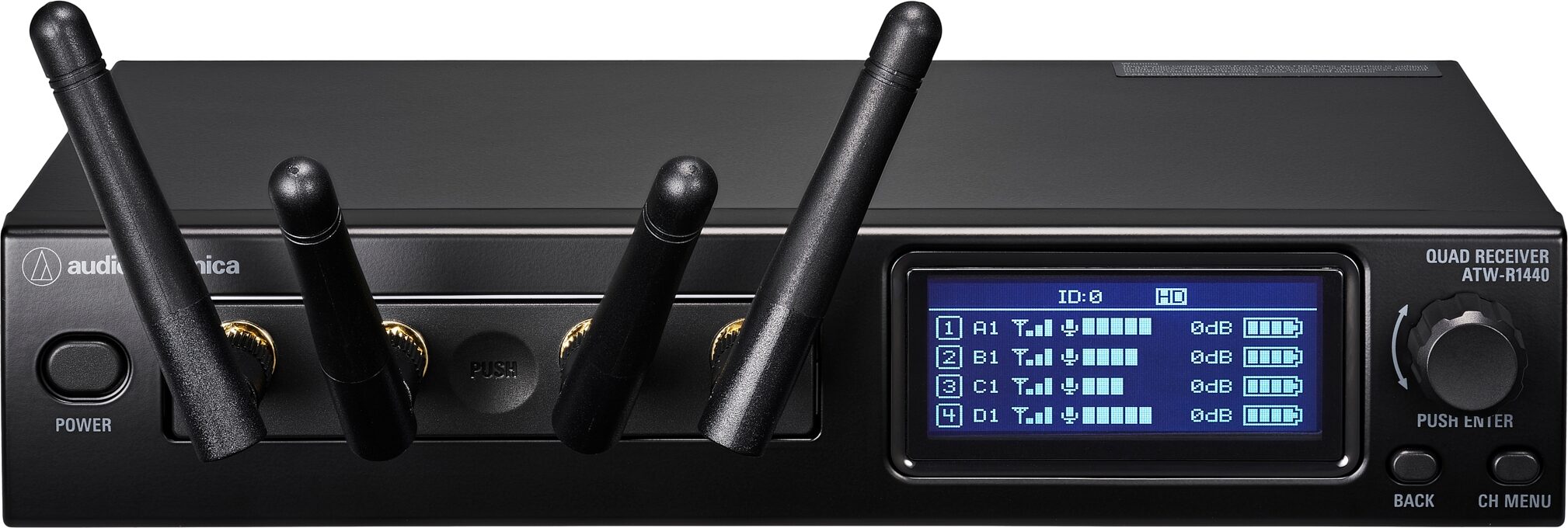

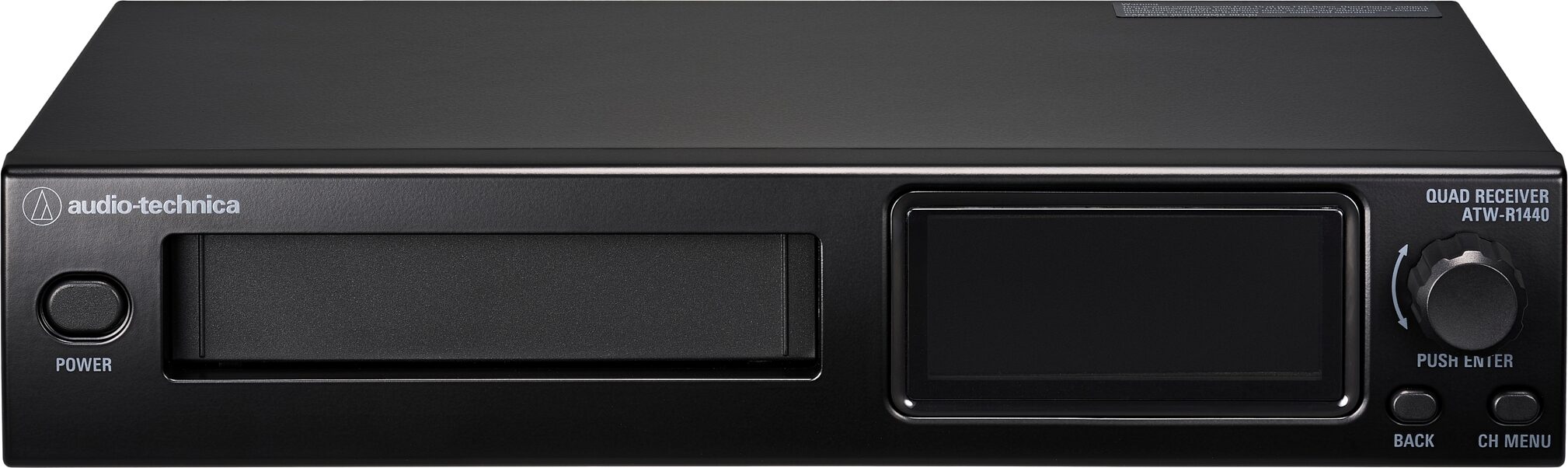

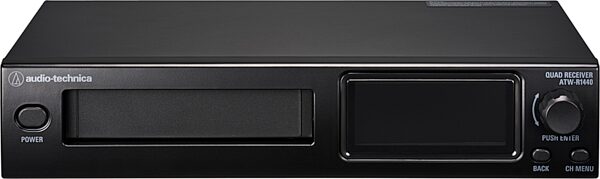

ATW-R1440 System 20 PRO 4-Channel Receiver:
- Half-rack chassis capable of receiving up to four transmitters
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Switch between Standard (10 channels) and HD (20 channels) modes

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Overall System
Operating Frequencies: 2,402~2,480MHz
Dynamic Range: 120dB (A-weighted), typical
Total Harmonic Distortion: < 0.05%, typical
Maximum Simultaneous Use (recommended):
- Standard: 10 channels
- HD mode: 20 channels, It depends on the region and environment.
System Frequency Response: 20 to 20,000Hz, Varies depending on the microphone to be installed.
Delay:
- Standard: 2.8ms
- HD mode: 6.7ms
Audio Sampling Rate:
- Standard: 24bit/48kHz
- HD mode: 24bit/48kHz
Encryption Method: AES128

ATW-R1440

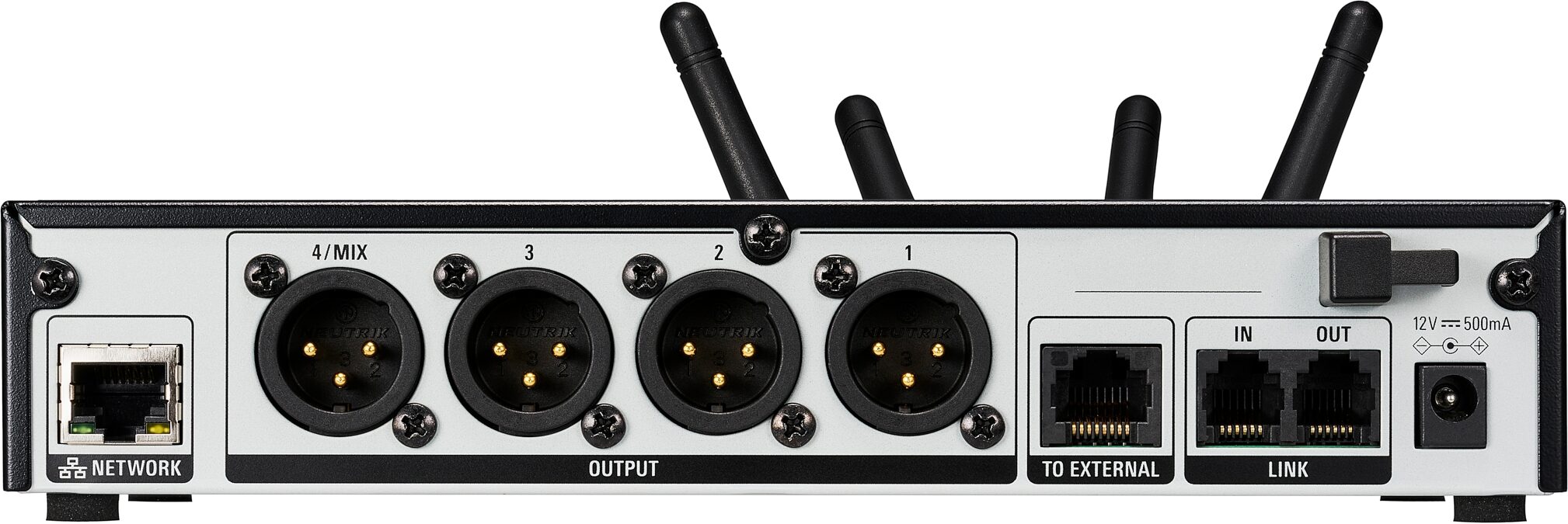

Receiver unit external connection port: RJ45
NETWORK Port: RJ45: RJ45: RJ45 Fast Ethernet
LINK IN/OUT port: RJ12
Output Level:
- LINE max: +22dBu (+20dBV)
- LINE Unity: -20dBu (-22dBV)
- MIC max: -12dBu (-10dBV)
- MIC Unity: -50dBu (-52dBV)
Power Consumption: 3.7W
Power Supply: DC12V 0.5A (AC adapter)
Operating temperature: 0oC to +40oC
Dimensions (WxDxH): 209.8mm x 165.6mm x 42.5mm
Weight: 740g
Included Accessory: Blade tip for AC adapter and AC adapter, Rack mount adapter (short), rack mount adapter (long), Fixing screws x 5, connecting cable (30cm), rubber feet x 4

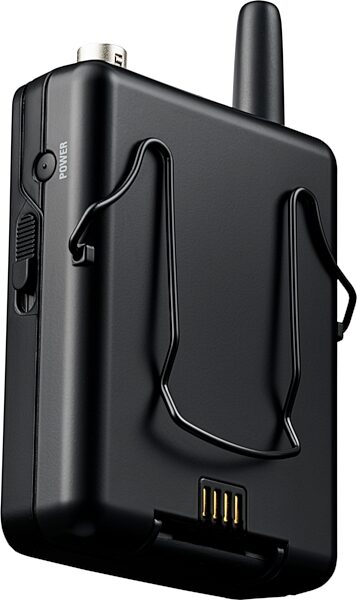

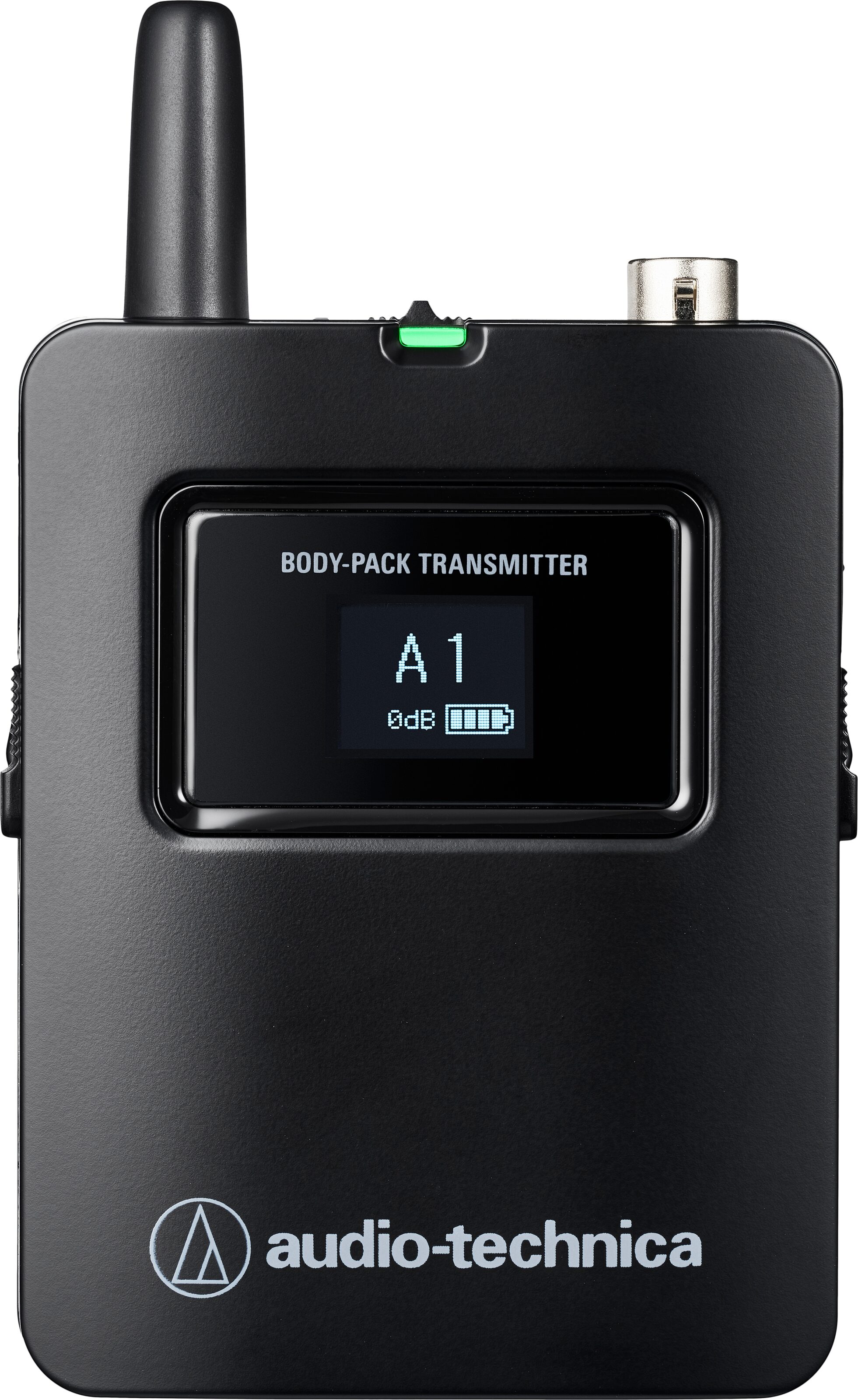

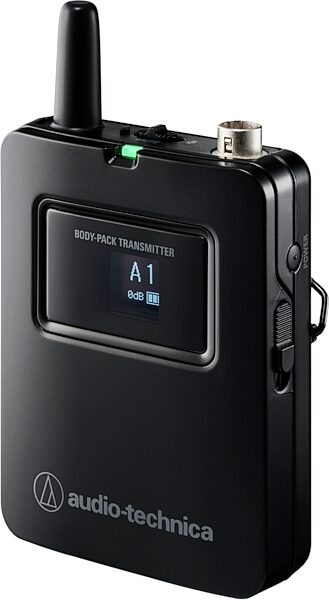

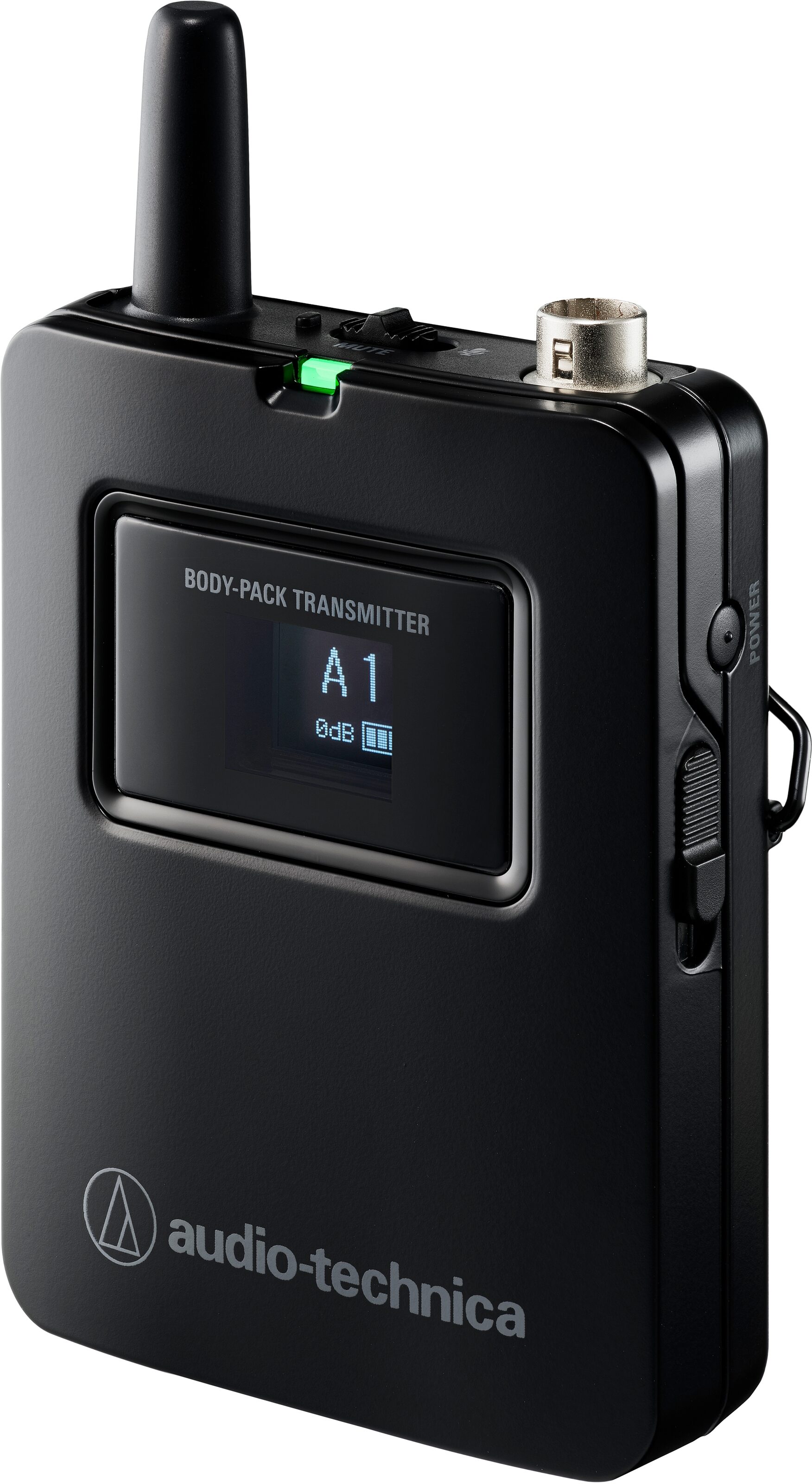

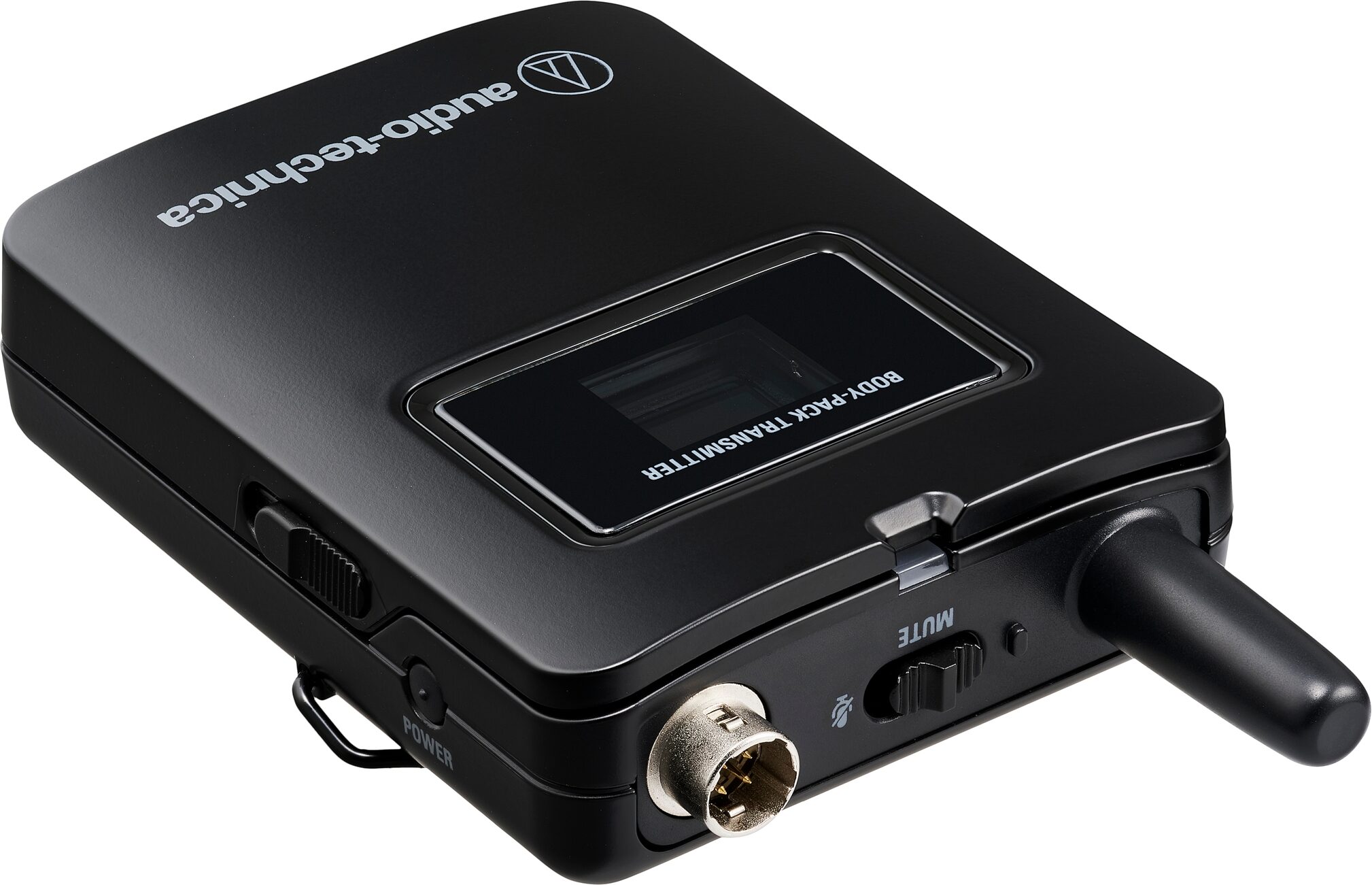

ATW-T1401 BODY-PACK TRANSMITTER
Modulation mode: GFSK
RF Output: 10mW EIRP
RF sensitivity: -90dBm, typical
Whip antenna: True diversity
Input Connection: Four pin locking connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +10V
Battery: DC3V (2 AA batteries)
Battery Life: AA alkaline batteries: Approx. 15 hours, AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes, AA lithium batteries: Approx. 29 hours, This varies depending on usage conditions.
Operating Temperature: 5oC to +40oC
Dimensions (WxDxH): 63.7mm x 22.7mm x 107.4mm
Weight: 80g (without batteries)

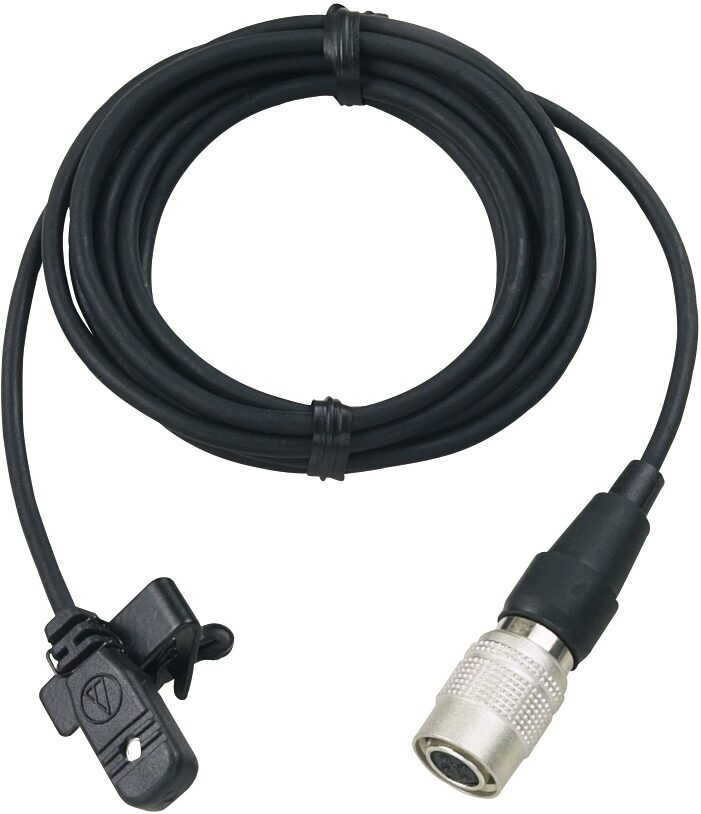

MT830cW Microphone
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Omnidirectional
Frequency Response: 30 - 20,000 Hz
Open Circuit Sensitivity: -37 dB (14.1 mV) re 1V at 1 Pa
Maximum Input Sound Level: 135 dB SPL, 1 kHz at 1% T.H.D.
Signal-to-Noise Ratio: 67 dB, 1 kHz at 1 Pa
Weight: 1.3 g (0.05 oz) -
Dimensions (LxWxD): 15.8 mm (0.62""), 8.3 mm (0.33""), 5.0 mm (0.19"")

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 5.09 lbs; Shipping Dimensions: 17 x 12 x 4 in; Manufacturer Part Number (MPN): ATW-1421/L

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
