Antelope Audio Galaxy 64 Synergy Core Thunderbolt Audio Interface

zZounds Gear Experts Say...
With 64x64 analog I/O and Thunderbolt, 2x Dante, and 4x HDX ports, Antelope's Galaxy 64 Synergy Core serves as the hub for any high-end production facility.

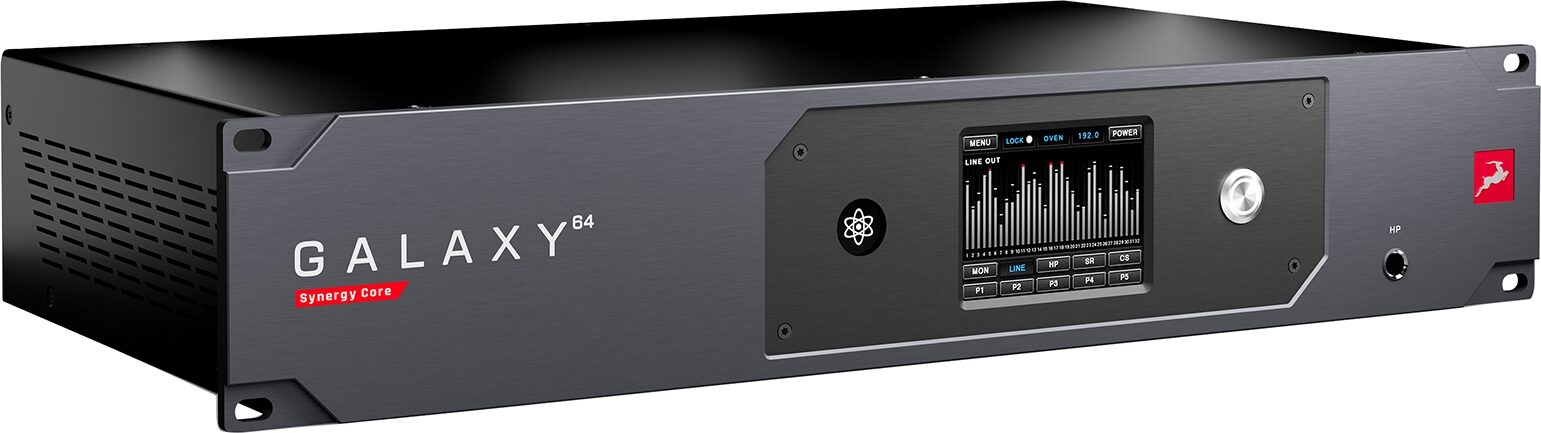

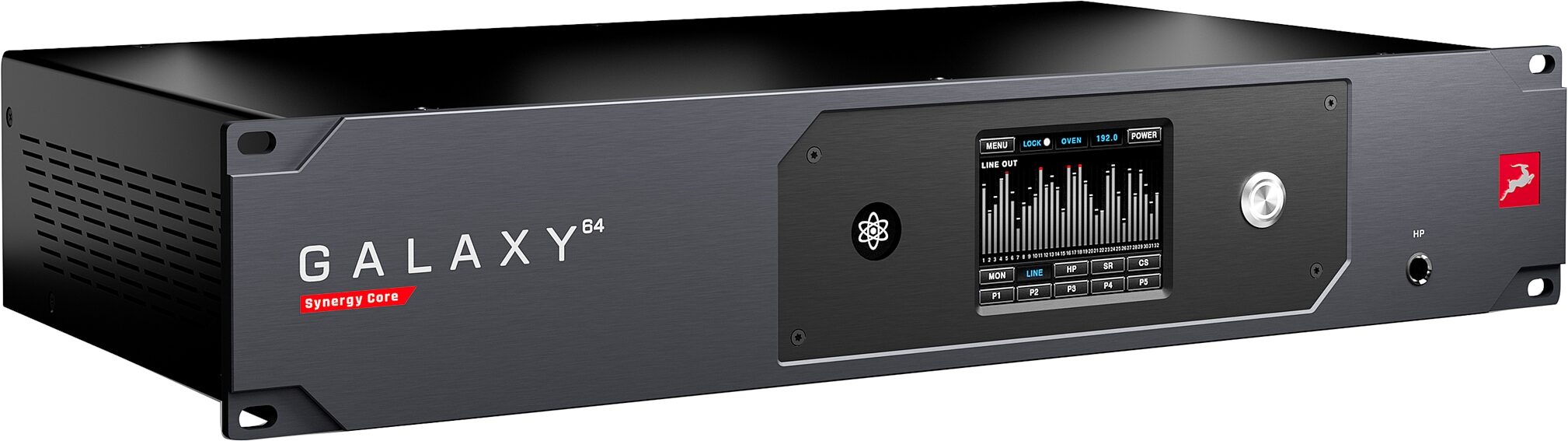

Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard plugin processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world's first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications. The interface is designed to be the hub of your entire recording environment that eliminates the need for any external modules & expansion cards, thus centralizing your entire setup.

Galaxy 64 Synergy Core is the only interface to offer two Dante ports for audio networking, four HDX ports for a full array of 128 channels at 192kHz sample rate in Pro Tools as well as Thunderbolt connectivity. These options can be used simultaneously with multiple systems for easy adaptation to different workflows with preferred DAW applications. This is all made possible by utilizing Antelope's exclusive FPGA configuration and advanced digital routing.

The interface comes with 36 real-time plugins in a collection largely composed of software emulations of vintage analog gear found in the world's most renowned facilities. The onboard Synergy Core offloads all processing to the interface while allowing direct monitoring with plugins in real-time with no perceived latency - a feature widely used in live performances.

Features:

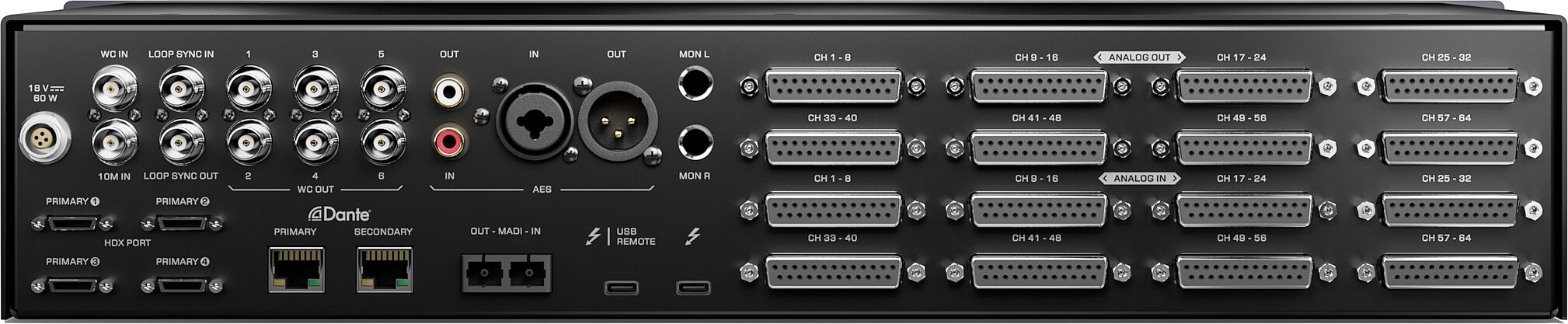

- 64 analog input read more channels over 8 D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard)
- 64 analog output channels over 8 DC-coupled D-Sub 25 connectors (TASCAM standard)
- Dante audio over IP with primary/secondary port for audio transfer over long distances
- Four HDX ports (24-bit, 192kHz): up to 128 channels I/O for Pro Tools HD / HDX integration
- Two Thunderbolt 3 ports with custom macOS & Windows drivers for native DAW application
- Digital I/O: AES/EBU, S/PDIF and 64 channels of optical MADI
- AD converter: 121dB headroom, DA converter: 128dB headroom for artifact-free recording sessions
- Mastering-grade monitor converter with 130dB headroom for critical listening without coloration or signal degradation
- Proprietary 64-bit Acoustically Focused Clocking technology & Jitter Management algorithm delivering increased width, separation, and detail in musical performances
- Real-Time Plugin Processing
- Custom collection of 36 Synergy Core analog-modeled plugins
- 12xDSP, 2xFPGA Synergy Core proprietary onboard real-time plugin processing platform;
- Up to 256 plugin instances per session loaded simultaneously on 64 individual virtual racks
- Workflow-Enhancing Features
- Advanced digital routing matrix that allows execution of complicated input/output routing with a simple drag and drop functionality
- 8 low latency hardware-accelerated 32-channel mixers that can be split into individual cue mixes and sub-mixes while applying pan, reverb, other plugins and stereo link
- Customizable presets complete with signal routing, level adjustments, mixer settings and sub-mixes
- Direct monitoring with plugins, processed in real-time with imperceptible latency

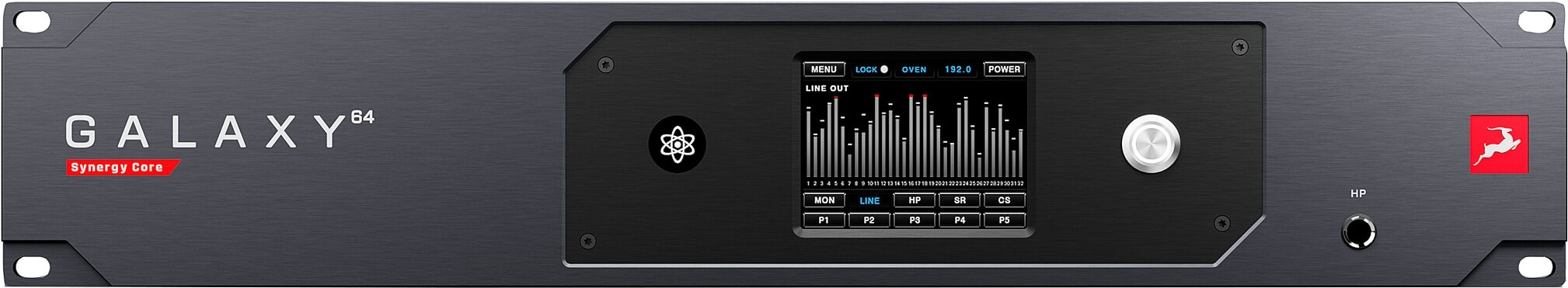

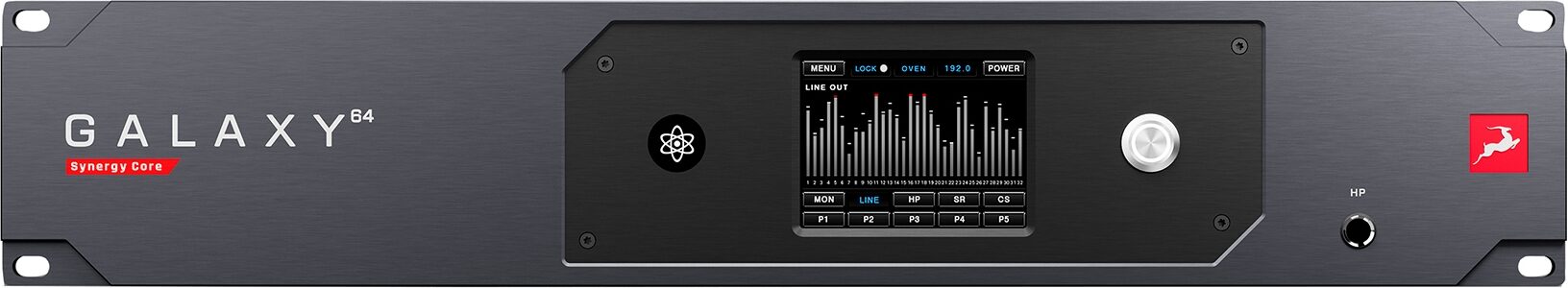

- Intuitive touchscreen interface with recallable hardware-based presets
- Daisy chain over Thunderbolt 3 & remote control over USB Type-C
- Option to work without being connected to a computer (standalone operation)
- Wireless control of software features from a separate computer connected to the same network
read less

- A/D LINE INPUT
- Input Connection: 8 x DC-Coupled D-Sub 25-pin with AC/DC Coupling Switch (TASCAM Standard)
- I/O Channel Count: 64 Channels
- Input level trim: 14 dBu to 24 dBu in steps of 1 dB
- Dynamic Range: 121 dB
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM
- THD+N (A): -112 dB
- Impedance Load: 11.2 kOhms

- D/A LINE OUTPUT
- Output Connection: 8 x DC-Coupled D-sub 25-pin (TASCAM Standard)
- I/O Channel Count: 64 Channels
- Output level: -inf to 24dBu // 1 dB step
- Dynamic Range: 128 dB
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM
- THD+N (A): -115 dB
- Impedance Load: 56 Ohms

- D/A MONITOR OUTPUT
- Output Connection: 2 x 1/4" 6.35 mm Jack (3 pin)
- Chanel Count: 2 Channels
- Output level: -inf to 24dBu // 1 dB step
- Dynamic Range: 130 dB
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM
- THD+N (A): -115 dB
- Impedance Load: 56 Ohms

- HEADPHONE OUTPUT
- Output Connection: 1 x 1/4" 6.35 mm Jack (3 pin)
- Output level: 20dBu
- Dynamic Range: 122 dB
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM
- THD+N (A): -115 dB
- Impedance Load: 120 Ohms

DIGITAL INTERFACE - THUNDERBOLT
- Interface Connection: 2 x Thunderbolt 3 Ports
- I/O Channel Count: 64 Channels
- Daisy-chain: Supported
- Remote Control: Supported, (Over USB Type-C)
- Supported Sample Rates: 44.1 kHz--192 kHz, 24-bit PCM
- Control Panel Support: Supported

DIGITAL INTERFACE - DANTE
- Interface Connection: 2 x RJ-45 Ports, I/O
- I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
- Redundancy: Supported
- Connectivity: Dual Ethernet, switched or redundant
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM

DIGITAL INTERFACE - HDX
- Interface Connection: 4 x HDX Ports,
- I/O Channel Count: 128 Channels (32 Per Port)
- Primary/Secondary ports: 4 Primary
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM
- Delay Compensation: Supported
- Manual Delay Compensation: Supported, (up to 128 samples)
- Session I/O Support: Yes (16 x 16)

DIGITAL INTERFACE - MADI
- Interface Connection: 2 x Optical SC Connectors
- MADI Mode: Dual Wire, Optical
- SMUX: Supported
- MADI Protocol: AES10-2003
- I/O Channel Count: 64 Channels @44.1/48.0 kHz
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM

DIGITAL INTERFACE - S/PDIF
- Interface Connection: 2 x 7 RCA Connectors
- S/PDIF SRC: Supported
- I/O Channel Count: 2 Channels
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM

DIGITAL INTERFACE - AES/EBU
- Interface Connection: 2 x XLR Connectors
- AES Mode: AES/EBU
- I/O Channel Count: 2 Channels
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM
- Clocking Technology: 4th Generation Acoustically Focused Clocking, 64-Bit Jitter Management DDS
- Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC
- Word Clock Output: 6 x Output @ 75 Ohms 3Vpp on BNC
- Loop-Sync Input: 1 x Input @ 75 Ohms 3Vpp on BNC
- Loop-Sync Output: 1 x Output @ 75 Ohms 3Vpp on
- 10M Atomic Reference Input: 1 \0xD7 Input @ 75 Ohms 1Vpp on BNC
- Supported sample rates: 44.1 kHz--192 kHz, 24-bit PCM
- Operating Temperature: - 0-50*C, 32-122*F
- Width: 482.6 mm / 19"
- Depth: 270 mm / 10.63"
- Height: 88.mm / 3.47"
- Weight (Approx): 6.4 kg / 14.1 lbs
- Power Consumption: 60 Watts
- Included Onboard Plugins:

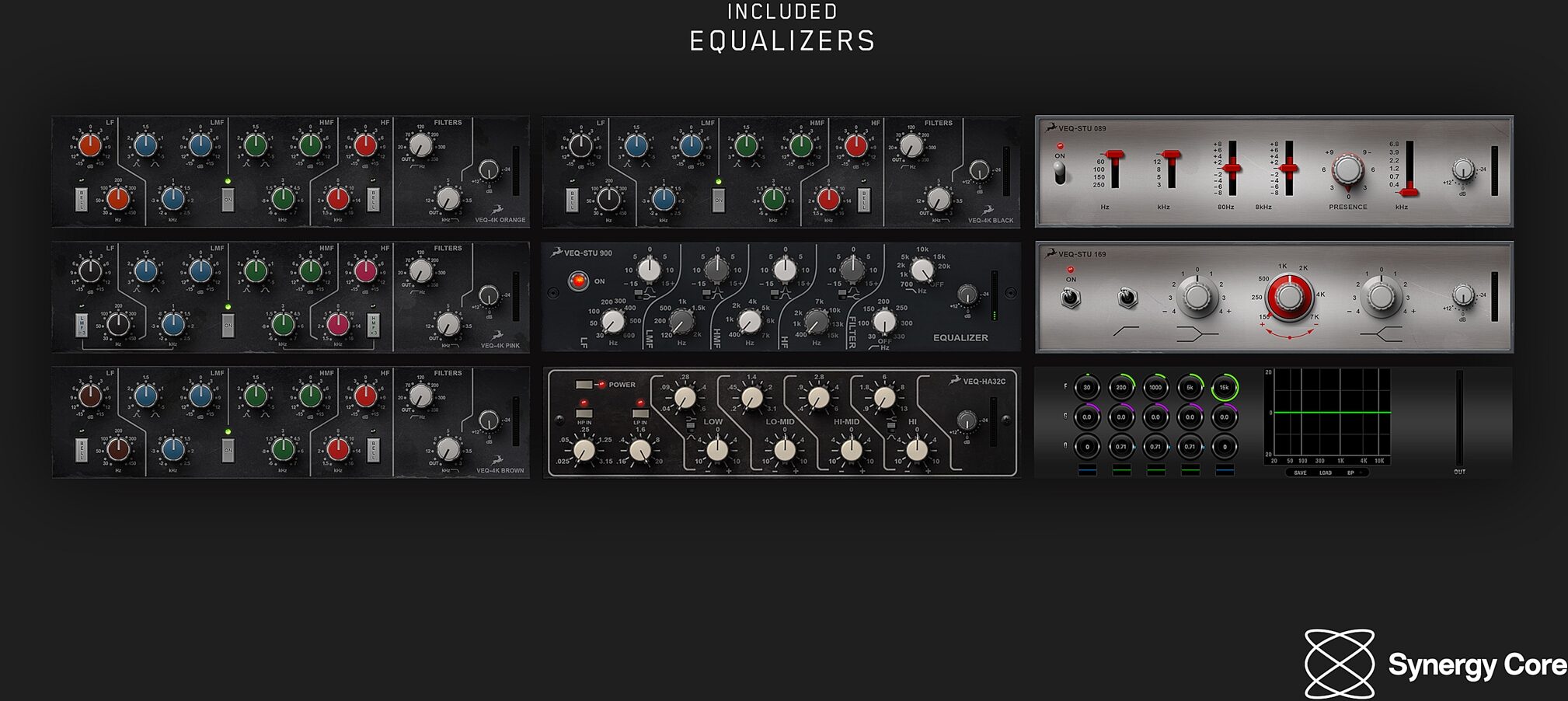

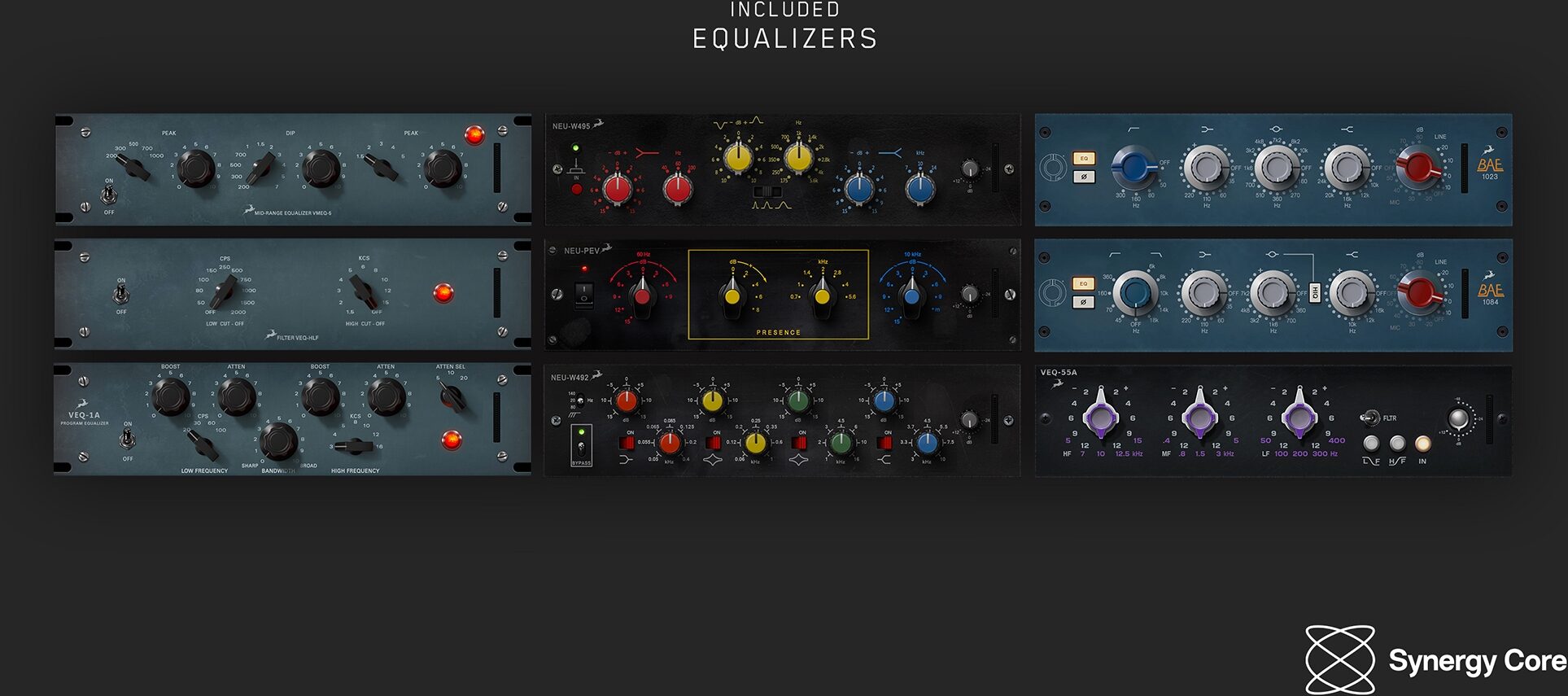

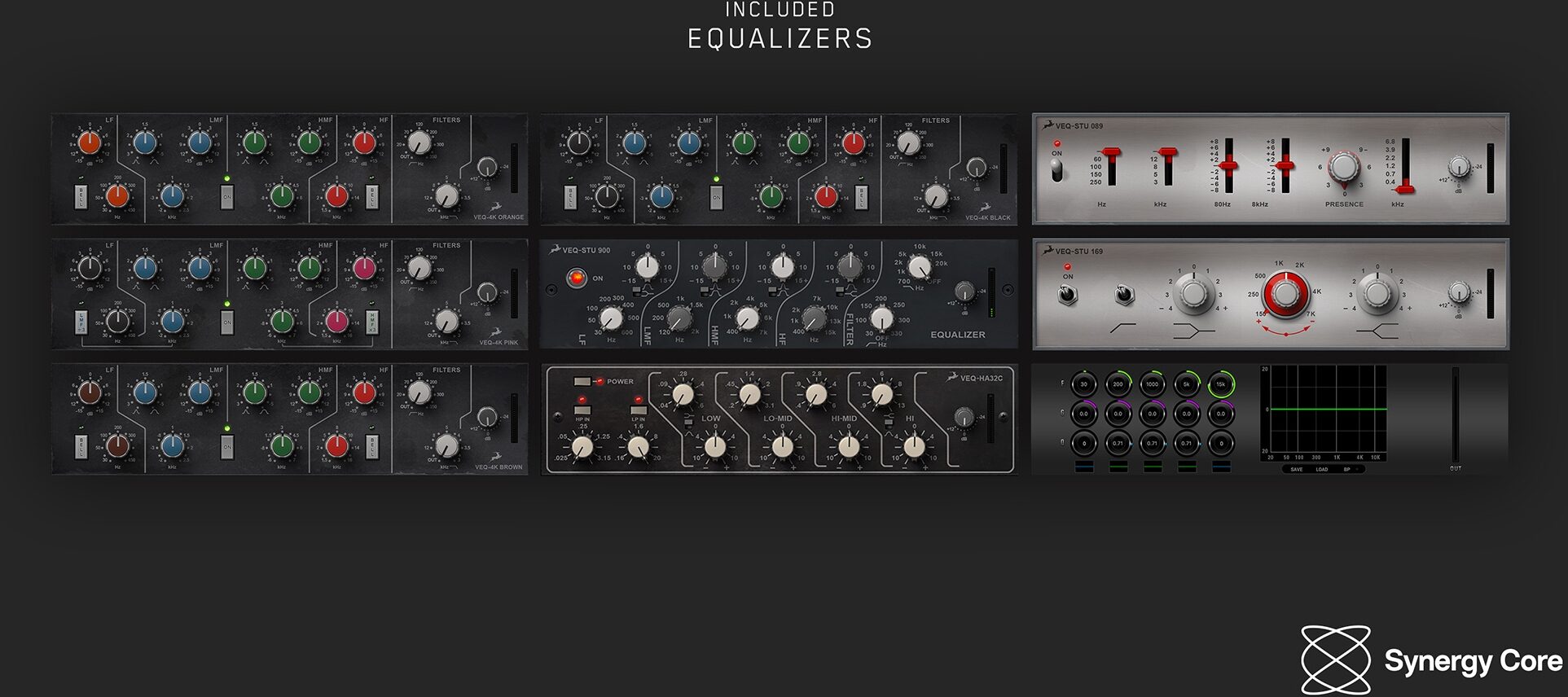

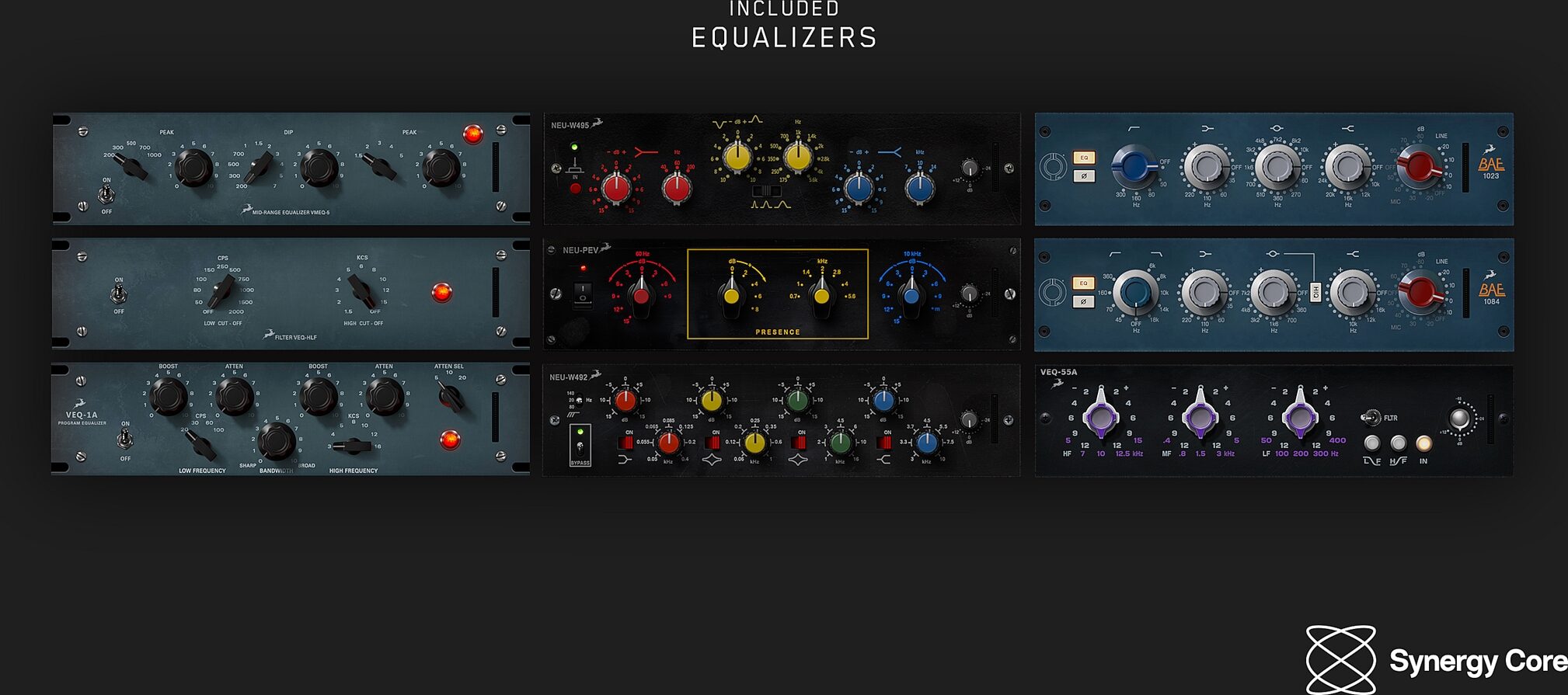

- 18 Equalizers (incl. BAE-1023, VEQ-STU 089, VEQ-4K BLACK & More)

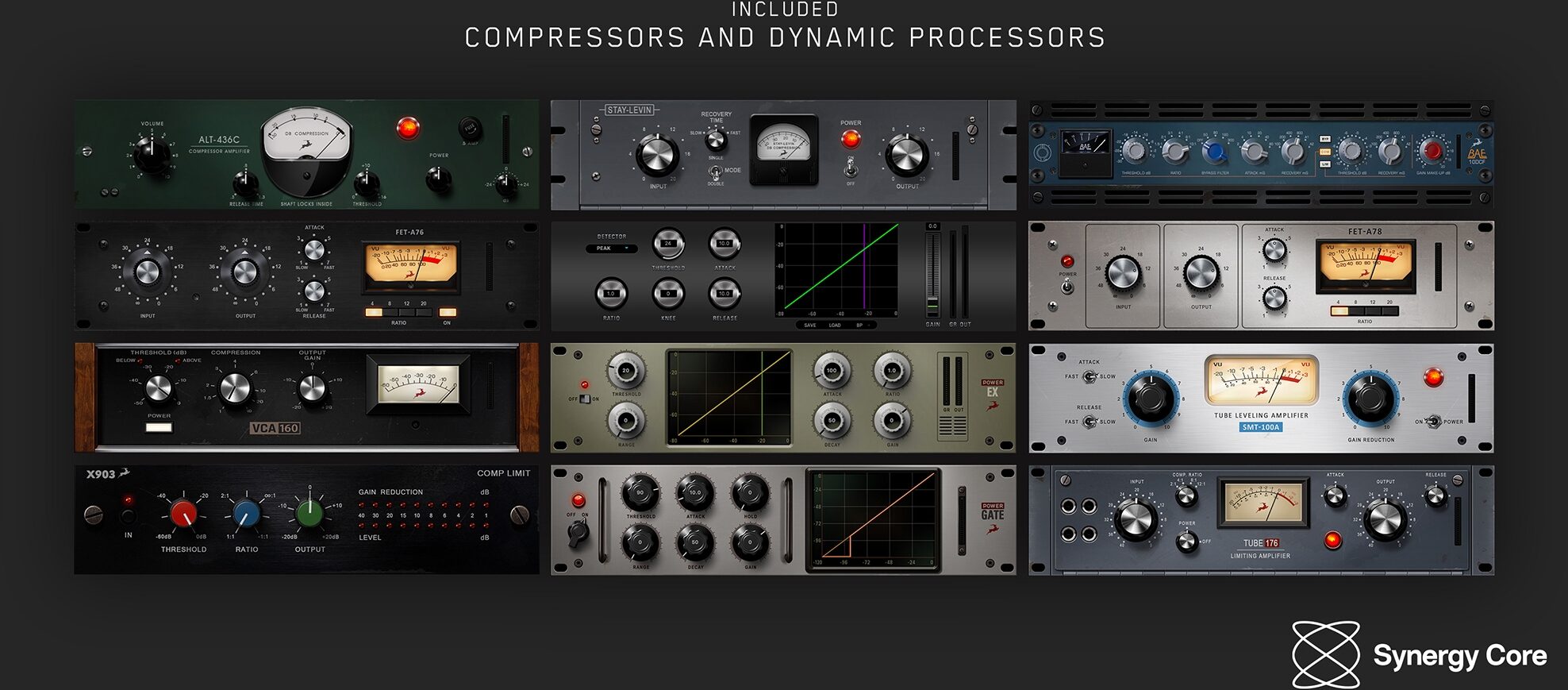

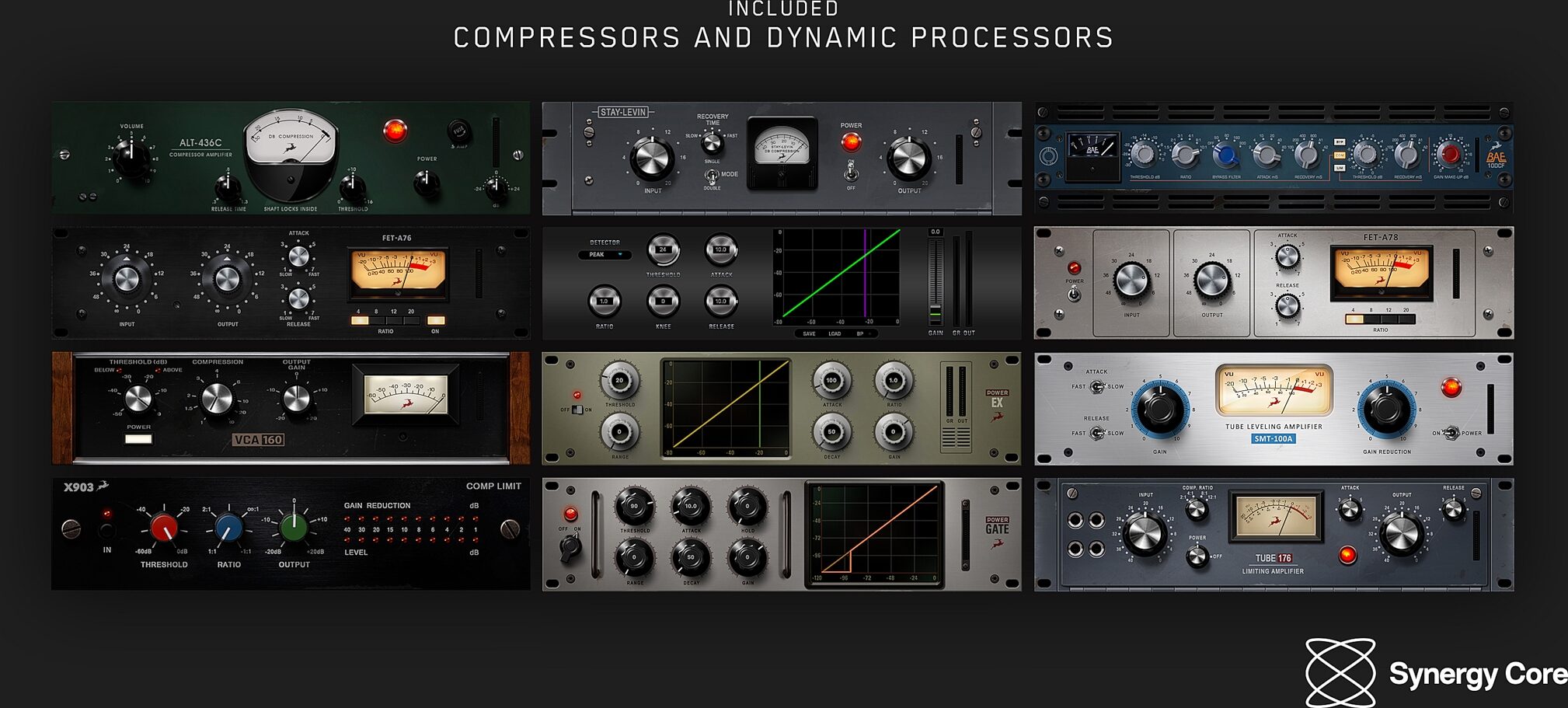

- 12 Compressors & Limiters (incl. Stay-Levin, FET-A76, BAE 10DCF & More)
- 2 Preamps & Channel Strips (incl. BA-31, Gyraf Gyratec IX)
- 5 Special Processing Plugins (incl. Marble White AutoWah, Vari-Speed Tremolo, Mast
System Requirements

- WINDOWS
- PC: Computer with USB ports and Thunderbolt 3 (backwards compatible with Thunderbolt 2)
- OS: Windows 10 x64 with the latest updates
- RAM: 4GB minimum (8GB or more recommended)
- CPU: Intel Core i3 or AMD FX and higher

- MAC
- Model: Apple Mac 2012 or newer with USB ports and Thunderbolt 3 (backwards compatible with Thunderbolt 2)
- OS X: macOS 10.12 (Sierra) and higher - Recommended macOS 10.14 (Mojave)
- RAM: 4GB minimum (8GB or more recommended)

-Additional Info:
- Internet connection is required for software download and product activation.
- The included USB-C cable may be used for device updates, authorization, and software Control Panel application.
- Thunderbolt 3 cable (not included) is required for audio recording and playback.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 19.3 lbs
Shipping Dimensions: 26 x 14 x 6 in
Manufacturer Part Number (MPN): 853744004861

For support or warranty questions, please contact the manufacturer:
Phone: 916-238-1643
Email: support@antelopeaudio.com
Web: https://support.antelopeaudio.com/
