Transmitter:Frequency Bandwidth: A & B
Audio Frequency Response: 40 to 20 kHz
Signal to Noise: 110 dBA
Total Harmonic Distortion (THD): 0.8% @ 1 kHz
Peak Deviation: 45 kHz
Nominal Deviation: 15 kHz
Radio Output Power: 10 mW
Transmitter Synchronization: Manual
Interchangeable Mic Heads: No
Number of Selectable Frequencies: 1 fixed frequency
Range: 66' / 20 m
Modulation: FM
Pilot Tone: No
Encryption: No
Battery: 1 x LR6 AA alkaline
Operating Time: 30 hours
Material of Construction: Plastic
Operating Temperature Range: 14 to 131°F / -10 to 55°C
Dimensions (H x W): 9.1 x 2.0" / 230 x 51 mm
Weight: 6.9 oz / 195 g
Receiver:Frequency Bandwidth: A & B
Audio Frequency Response: 40 to 20 kHz
Signal to Noise: 110 dBA
Total Harmonic Distortion: 0.8% @ 1 kHz
Radio Sensitivity: -100 dBm
Channels: 2
Number of Selectable Frequencies: 1 fixed frequency
Frequency Selection: Fixed
Range: 66' / 20 m
Modulation: FM
Encryption: No
Pilot Tone: No
Transmitter Synchronization: Not necessary
HiQnet Compatible: No
Rack Compatibility: 1/3 rack size (19")
Rack Height: 1 RU
Antenna: 2 x fixed external antennas

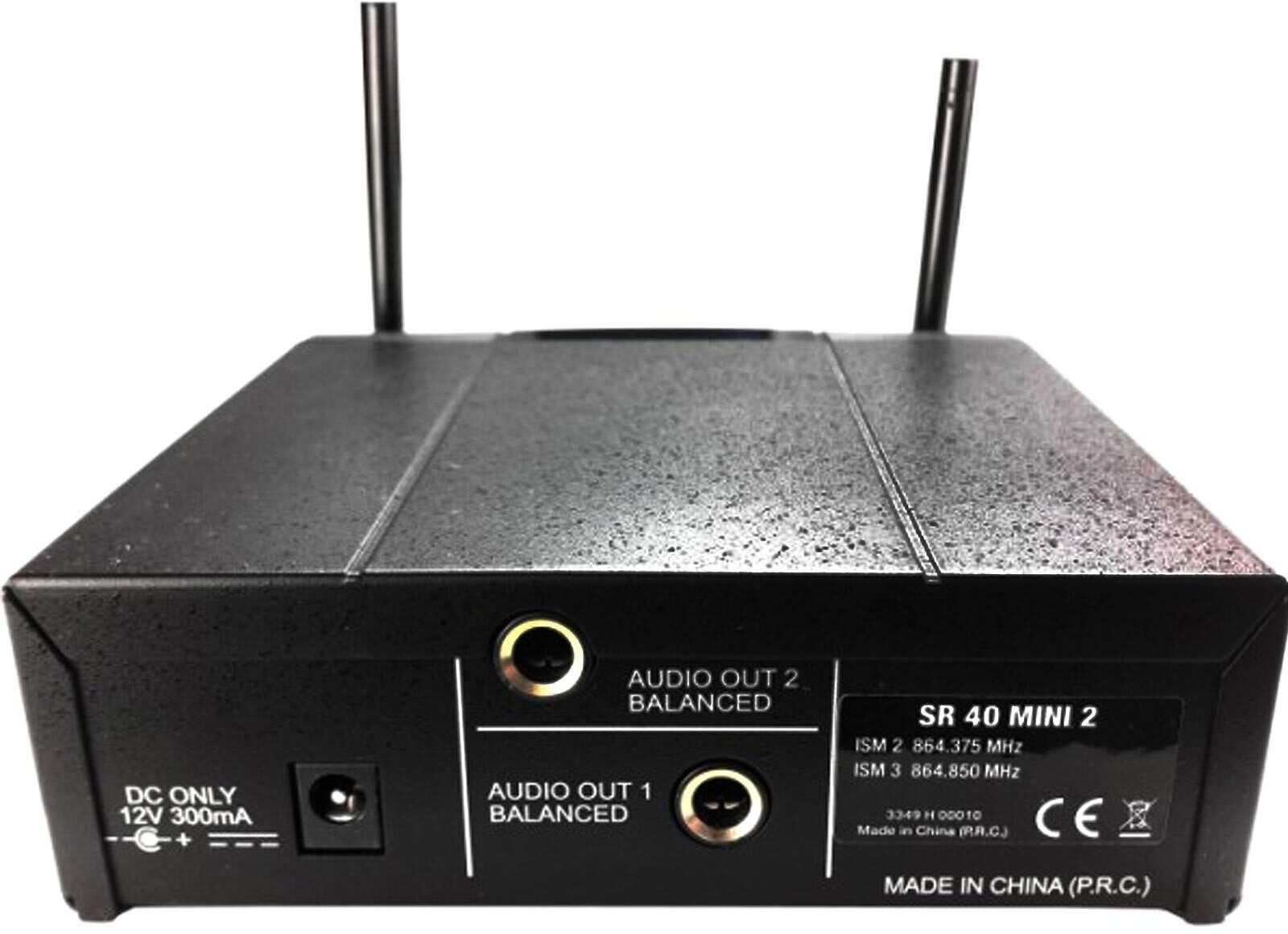

Audio Output: 2 x balanced TRS 1/4" (6.3 mm) female jack
Balanced audio output adjustable from mic to line level
Output Level at Rated Deviation: 500 mV rms
Power Supply: Type: DC socket
Voltage: 12 VDC
Material of Construction: Metal
Operating Temperature Range: 14 to 131°F / -10 to 55°C
Dimensions (L x H x W): 5.2 x 1.7 x 5.2" / 132 x 43 x 133 mm
Weight: 1.3 lb / 581 g
- Dimensions and Weight in Packaging
- Blemished, Band US25A 537.500, US25C 539.300 MHz
-
Shipping Weight: 3.25 lbs
-
Shipping Dimensions: 12 x 12 x 3 in
- Band US45B 537.900 MHz, US25D 540.400 MHz
-
Shipping Weight: 3.25 lbs
-
Shipping Dimensions: 12 x 12 x 3 in
-
Manufacturer Part Number (MPN): 3350X00060
- Band US25A 537.500, US25C 539.300 MHz
-
Shipping Weight: 3.25 lbs
-
Shipping Dimensions: 12 x 12 x 3 in
-
Manufacturer Part Number (MPN): WMSMINI2VUS25AC
