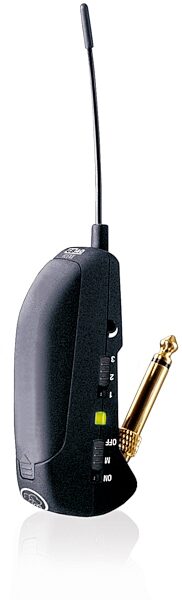

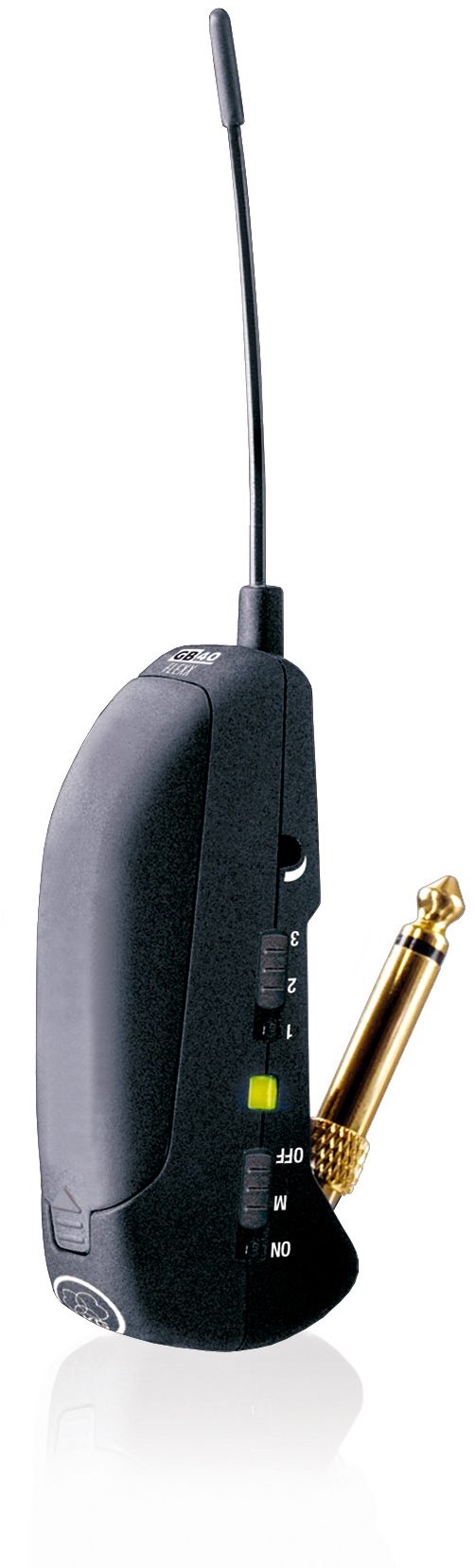

AKG GB40 Guitar Bug UHF Flexx Transmitter

No longer available at zZounds

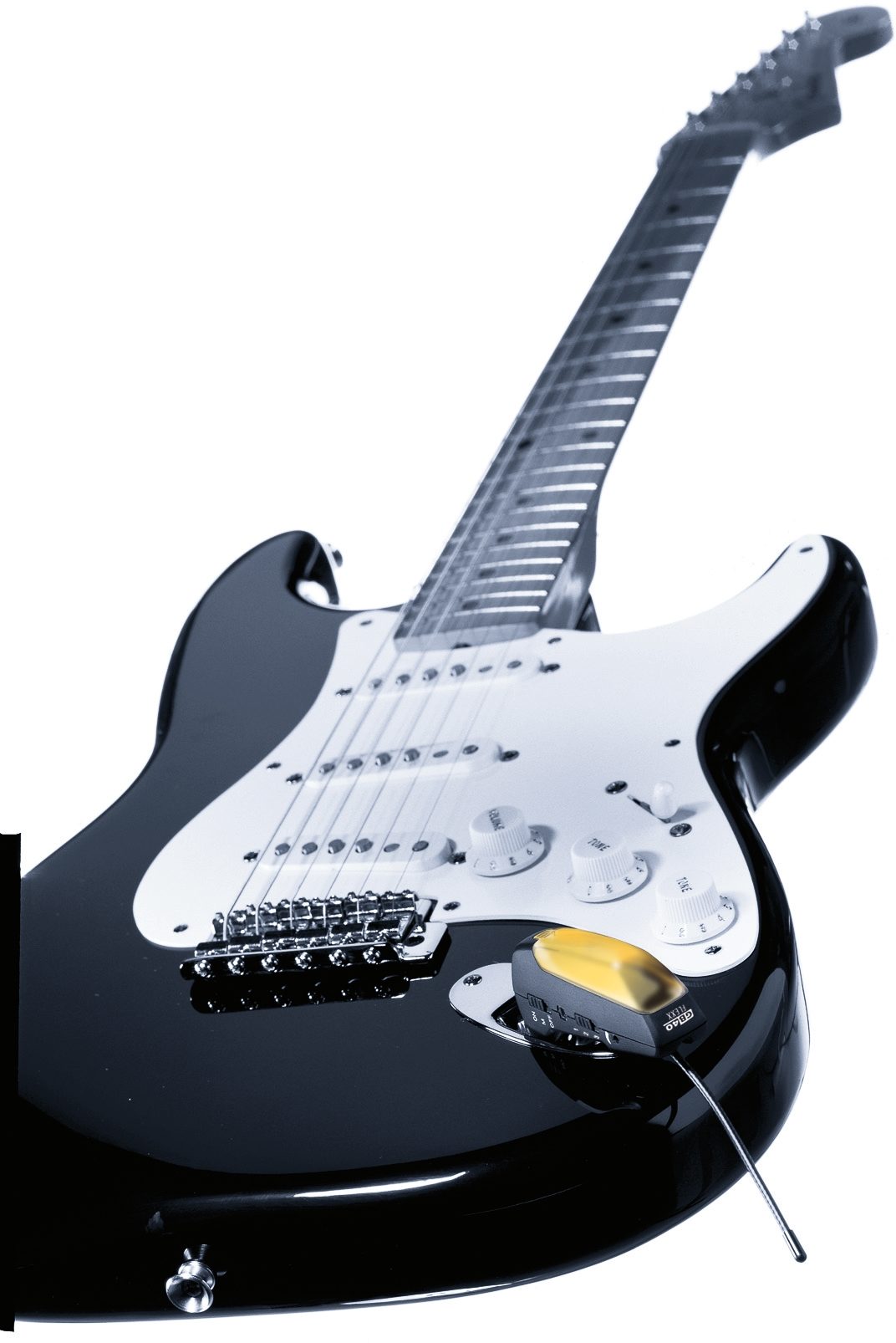

AKG GB40 Guitar Bug UHF Flexx Transmitter, In Use 1

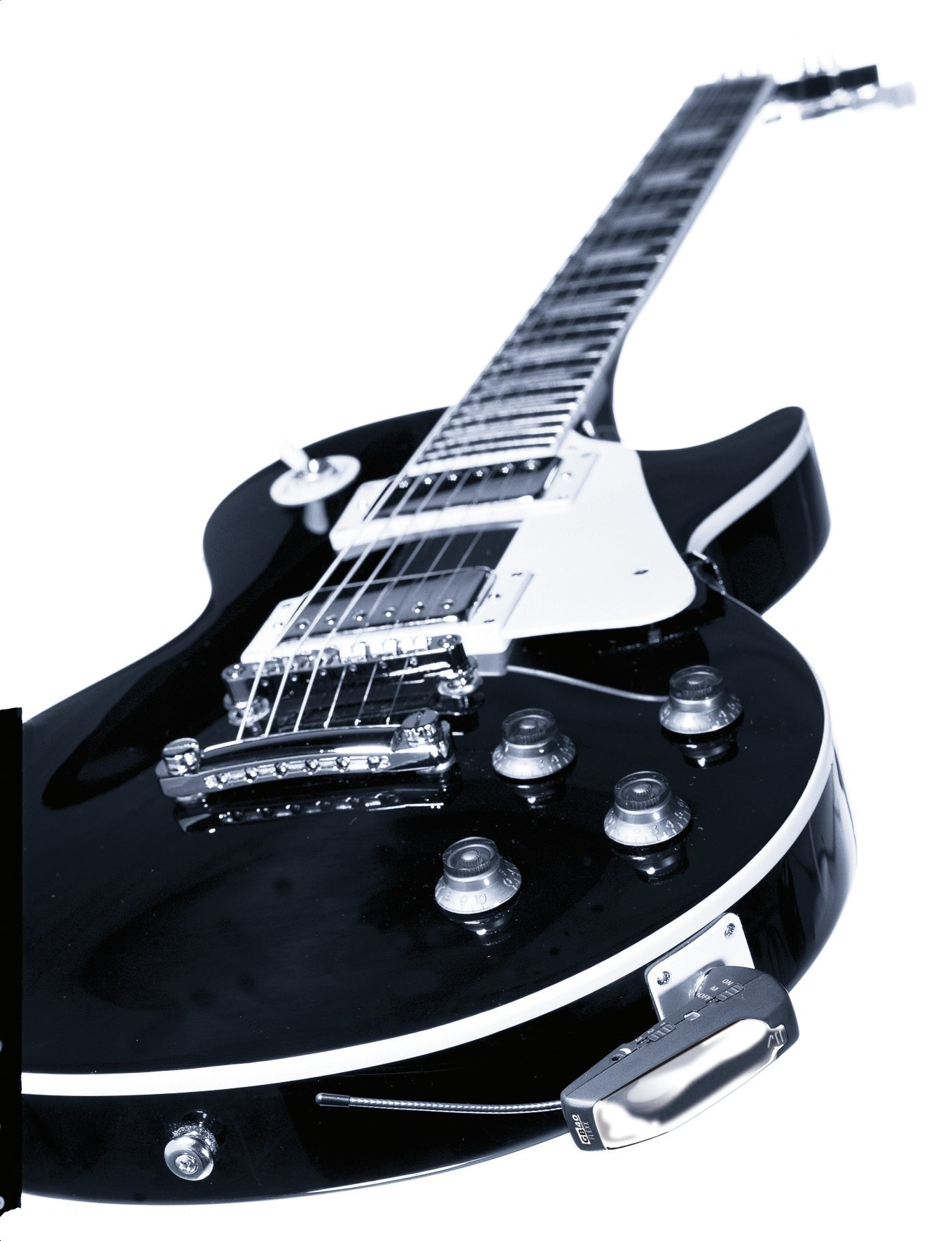

AKG GB40 Guitar Bug UHF Flexx Transmitter, In Use 2

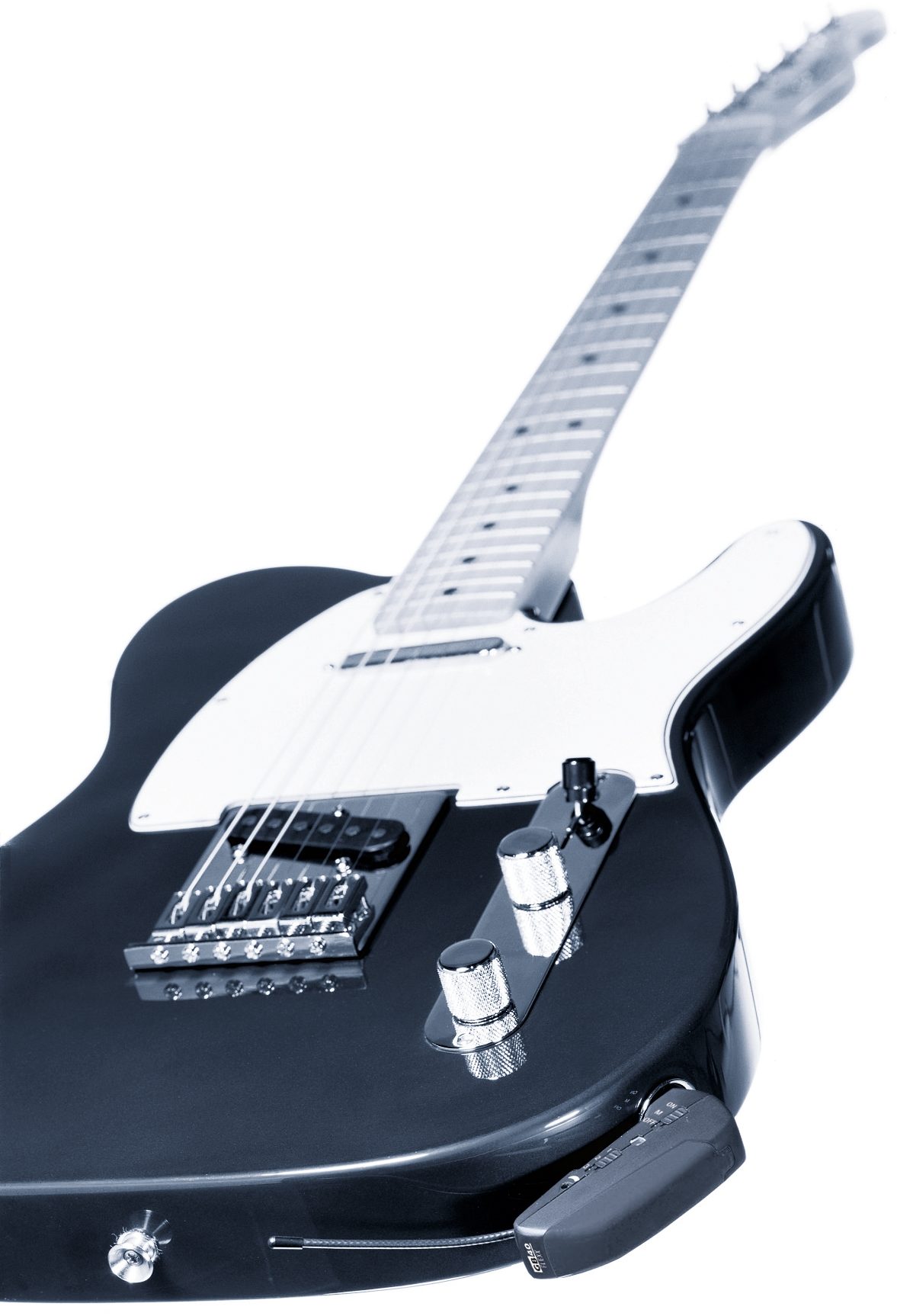

AKG GB40 Guitar Bug UHF Flexx Transmitter, In Use 3

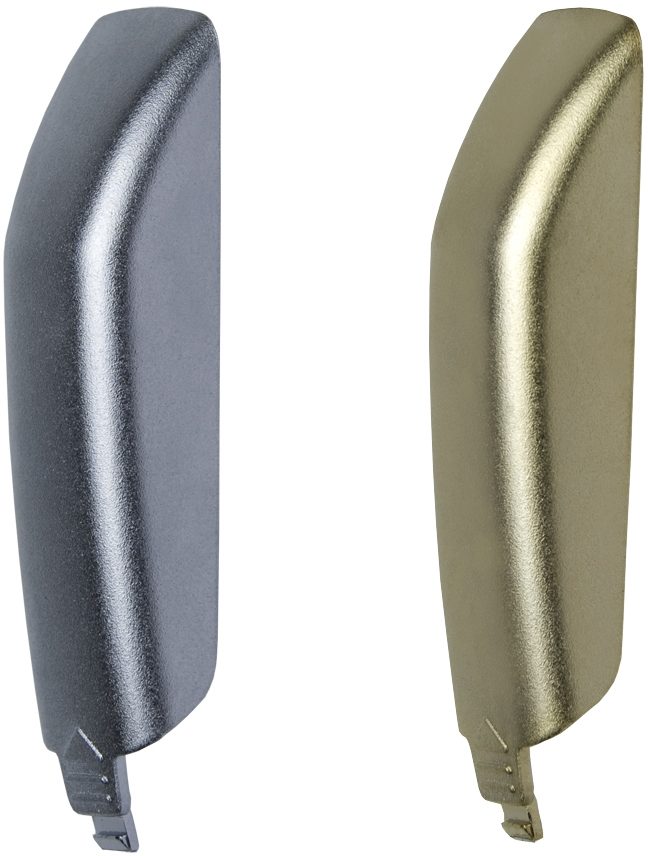

AKG GB40 Guitar Bug UHF Flexx Transmitter, Included Battery Covers

zZounds Gear Experts Say...

Smallest switchable miniature transmitter. 3 different battery covers included. Is NOT a wireless system.

Overview

The GB40 Flexx guitarbug is probably the easiest and least invasive way to integrate a guitar, bass, or portable keyboard into a wireless system in next to no time.

Features
# Smallest switchable miniature transmitter

# 3 different battery covers included

# Swiveling FlexJack connector matching every guitar

# Extended frequency response optimized for guitars and basses

# 11 hours battery life for AAA size dry/6 hours for

A "FlexJack" swiveling jack plug connects the transmitter to every type of output jack, and the GB40 Flexx guitarbug will automatically "hug" the instrument. Therefore, and because it is incredibly small, the GB 40 Flexx guitarbug will never get in the way while you play, and keep a low profile, too.

Since the transmitter sits right on the output jack, the noiseless on/mute/off switch and status LED are always easy to check and operate. Naturally, the GB 40 Flexx guitarbug also provides an input gain control.

Specs

Specifications
Carrier frequency range: 660 to 865 MHz, 3 fixed frequencies

Audio bandwidth: 40 to 20,000 Hz

THD: typ. 0.8%

Signal/noise ratio: typ. 103 dB (A)

Modulation: FM

RF output power: 5 mW (ERP)

Power supply: 1 AAA size batteries

Battery life: <11 hours (dry batteries), <6 hours (rechargeable batteries)

Dimensions: 76 x 20 x 28 mm (3 x 0.8 x 1.1 in.)

Net weight: 28 g (1 oz.) (exc. of batteries)

Patent(s): Plug (Patent no. AT 410.994, ZL 021302618, US 6,619,969)

Channel frequency

Channel 40A: US45
A1: 660.700 MHz
A2: 661.100 MHz
A3: 662.300 MHz
