AKG DMS70 Q Instrumental Digital Wireless System (4-Channel, Dual Transmitter)
No longer available at zZounds

zZounds Gear Experts Say...

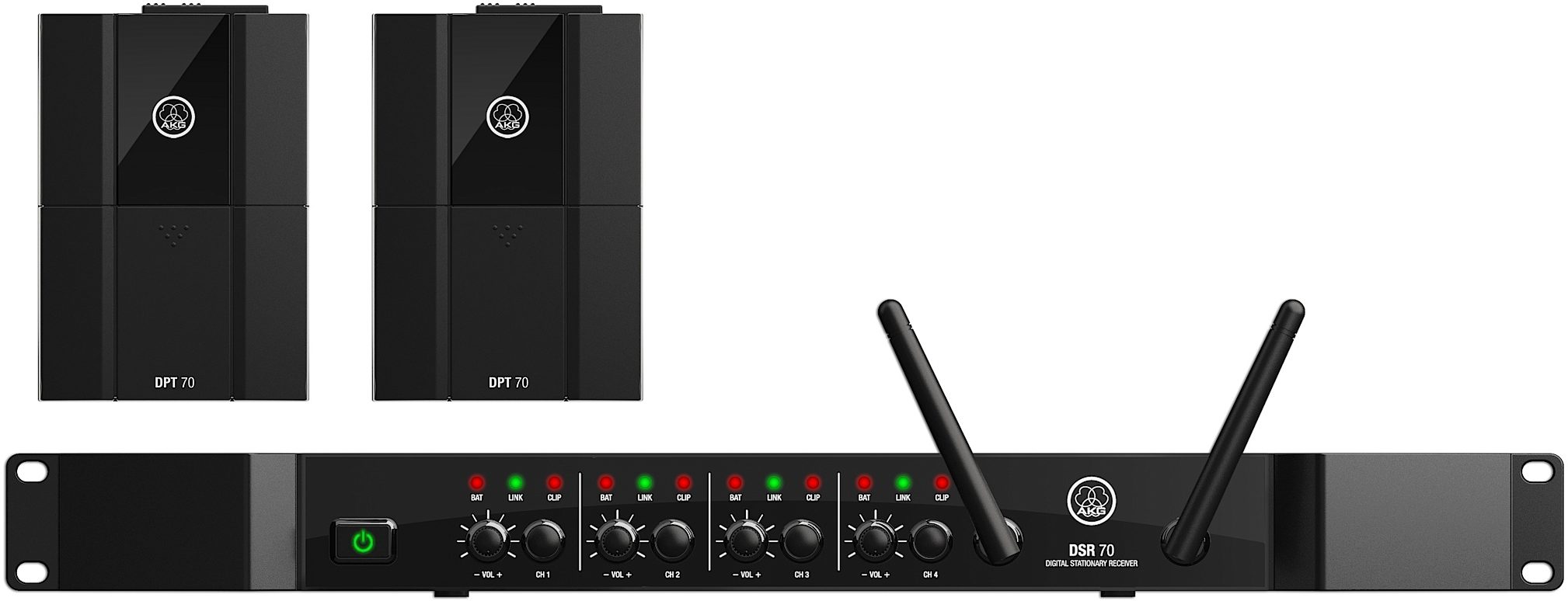

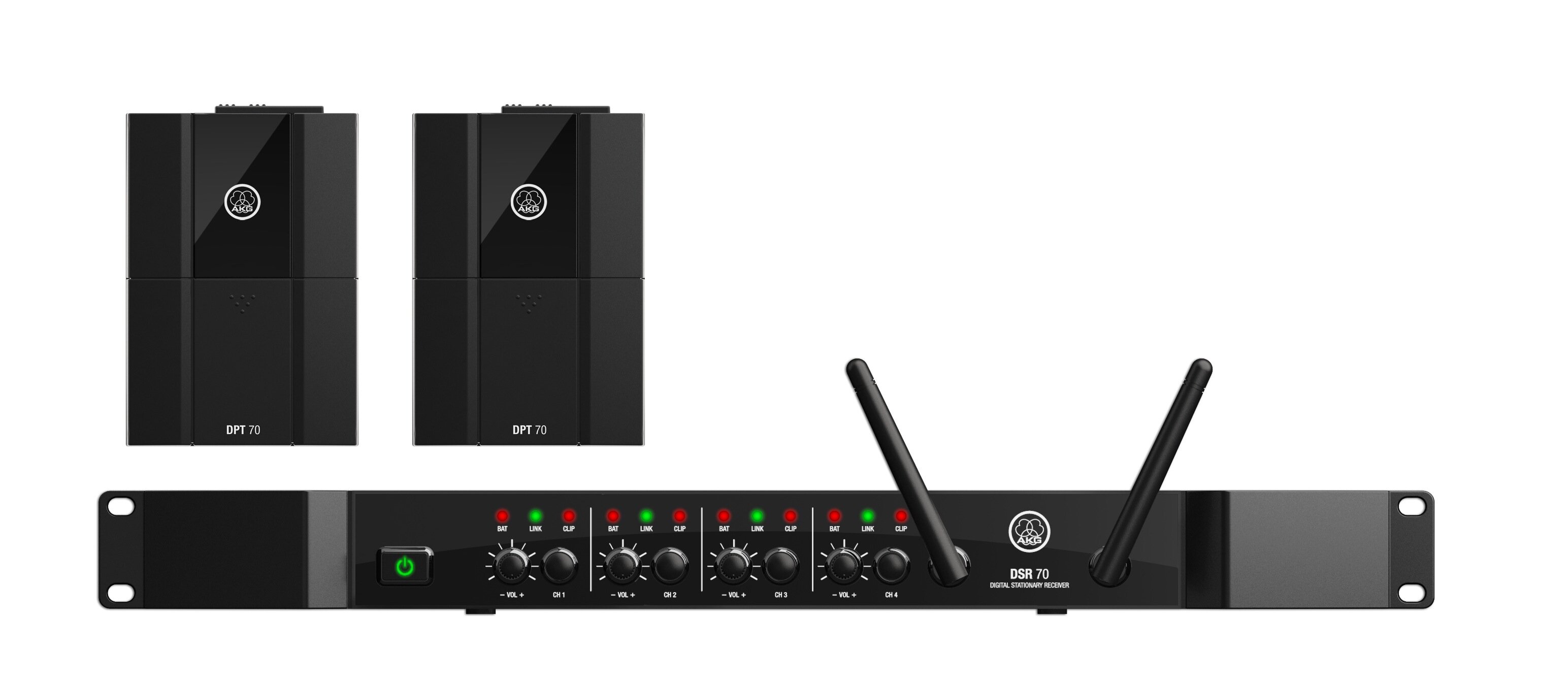

With this AKG DMS70 quad-channel digital system, the whole band can now rock wirelessly. Includes the DSR70 receiver with two bodypacks and guitar cables.
Overview
The AKG DMS70 Q Digital dual guitar wireless system is the first true uncompressed digital wireless system. It works in the 2.4 Ghz ISM band and is worldwide license free for every customer. The Bidirectional communication between the transmitters and receiver enables an intelligent system and leads to a dimension in ease of use. The DSR70 is an up to 4 channel receiver and has the functionality of 4 channels mix down directly to the balanced XLR sum output.
- Dynamic frequency selection
- Patented D5 acoustics
- 120 dB studio audio quality
- 4 channel mixer
- Bidirectional communication
- Auto power off
- OFDM Modulation
- True uncompressed audio transmission
Instrumental Set includes:
- 1 x DSR70 receiver
- 2 x DPT70 bodypack/pocket transmitter
- 2 x Instrument cable MK/GL
- 19-inch rack mount kit
- 4x AA battery
- EU/US/UK power supply
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or… read more visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. read less
Features:
- AES 128 bit Encryption- Dynamic frequency selection
- Patented D5 acoustics
- 120 dB studio audio quality
- 4 channel mixer
- Bidirectional communication
- Auto power off
- OFDM Modulation
- True uncompressed audio transmission
Instrumental Set includes:
- 1 x DSR70 receiver
- 2 x DPT70 bodypack/pocket transmitter
- 2 x Instrument cable MK/GL
- 19-inch rack mount kit
- 4x AA battery
- EU/US/UK power supply
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or… read more visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. read less
Specs
- - DSR 70 Receiver:
- - Frequency range: Dynamic frequency selection (DFS) in 2,4 GHz ISM band
- - Diversity System: Digital controlled antenna diversity
- - RF Output: Max. 100 mW
- - Operating range: Indoor 30m NLOS, Outdoor 50m
- - Modulation: Orthogonal Frequency-Division Multiplexing - OFDM
- - Encryption: 128 Bit AES
- - Audio bandwidth: 20 - 20 000 Hz (+/- 1 dB)
- - T.H.D. : = 0.05 %
- - Gain Potis: 0 - 1,4 Vrms
- - Overall dynamic range: typ. 120 dB(A)
- - Audio outputs:
- - 4 x XLR channel balanced
- - 1x XLR sum balanced
- - Power supply: 12 Vdc, 0,5 A, EU/US/UK/Aus adapters
- - Dimensions:
- - Standalone: 315 mm - 42 mm - 147 mm
- - Rack: 482 mm - 42 mm - 147 mm
- - Net / Shipping Weight: 1180 g
- - Standard Accessories:
- - Power supply
- - Rack mount kit
- - DPT 70 Digital Pocket Transmitter:
- - Frequency range: Dynamic frequency selection (DFS) in 2,4 GHz ISM band
- - Diversity System: Digital controlled antenna diversity
- - RF Output: Max. 100 mW
- - Operating range: Indoor 30m NLOS, Outdoor 50m
- - Modulation: Orthogonal Frequency-Division Multiplexing - OFDM
- - Encryption: 128 Bit AES
- - Audio bandwidth: 20 - 20 000 Hz (+/- 1 dB)
- - T.H.D. : = 0.05 %
- - Gain Poti:
- - 0 (2,2 Vrms)- 30 dB (70 mVrms)max input-level: > 3Vrms (gain = min)
- - Overall dynamic range: typ. 120 dB(A)
- - Powering: 2x AA Alkaline ~6h , 2x AA NiMH ~7h
- - Dimensions: 92 mm - 64 mm - 22 mm
- - Net / Shipping Weight: 70 g
- - Standard Accessories:
- - 2x AA Batterie
- - 1x MKGL
