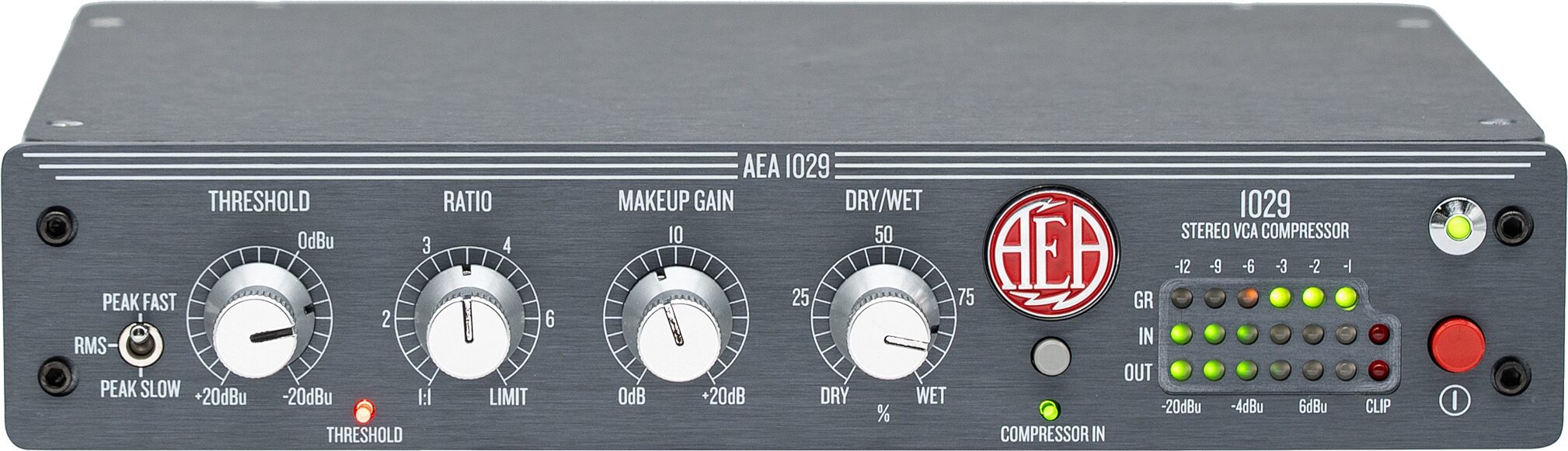

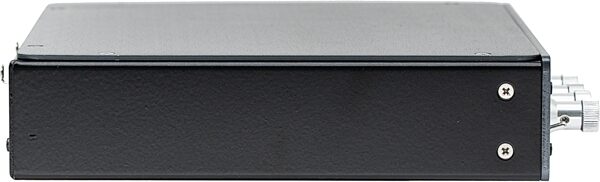

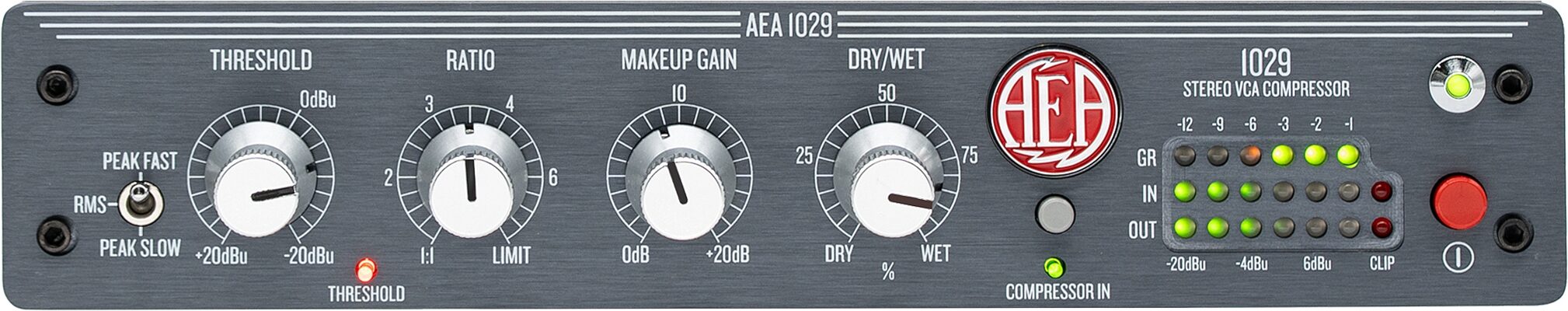

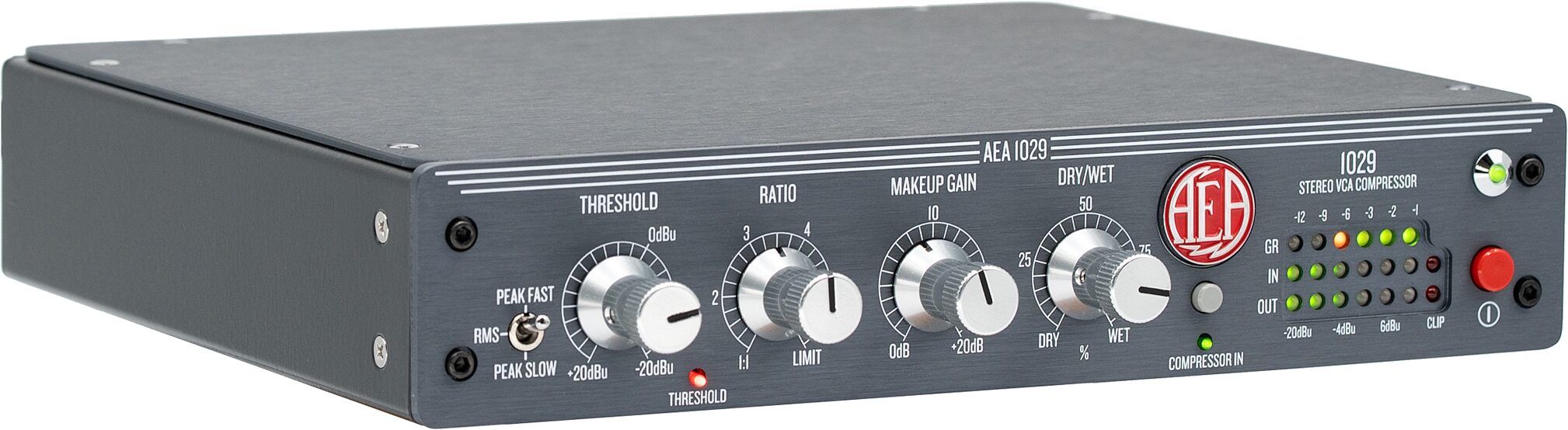

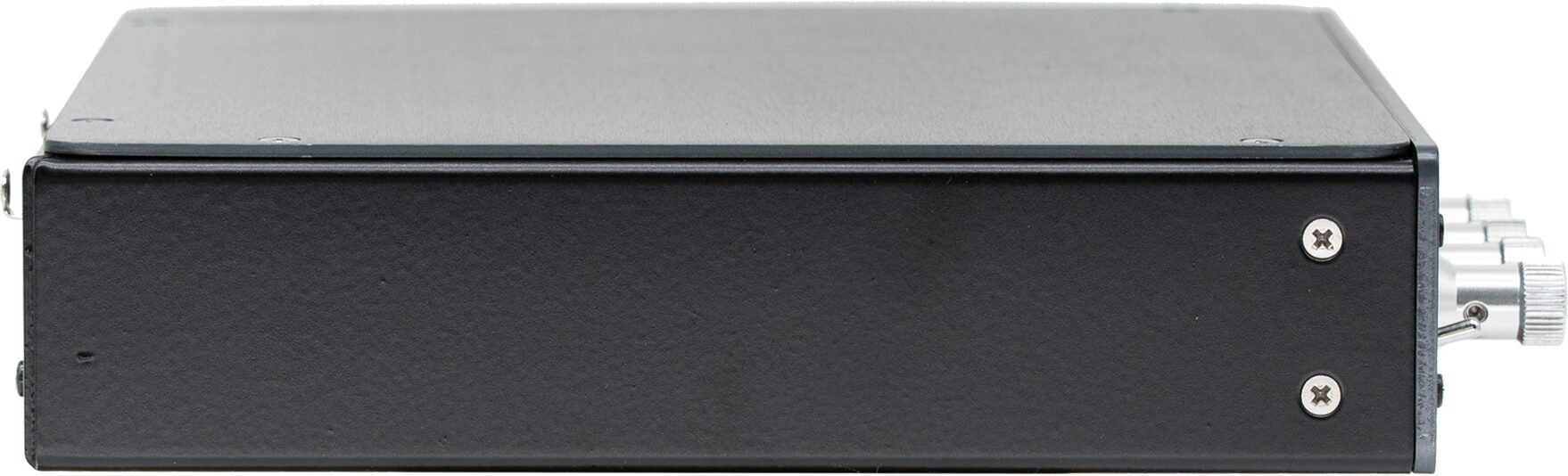

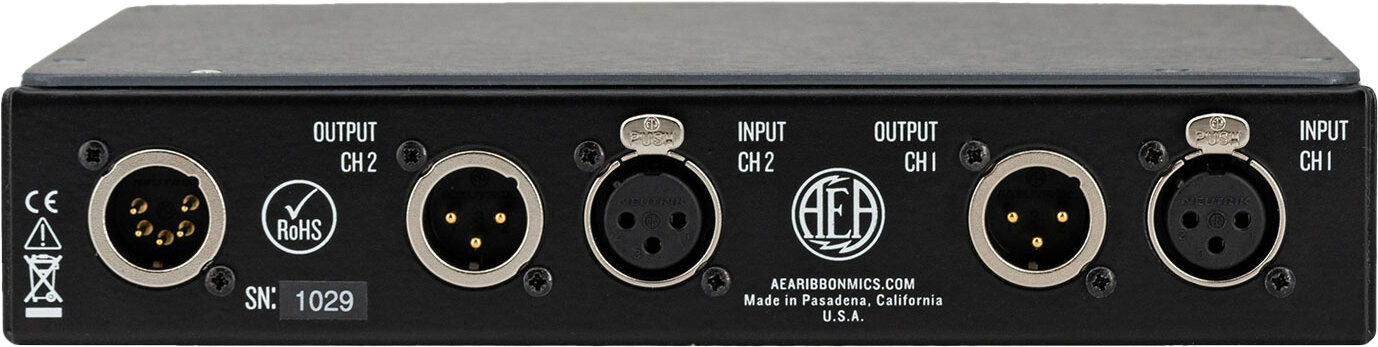

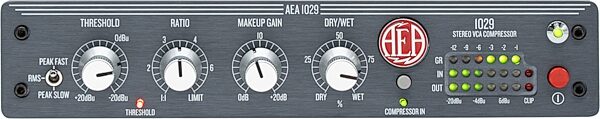

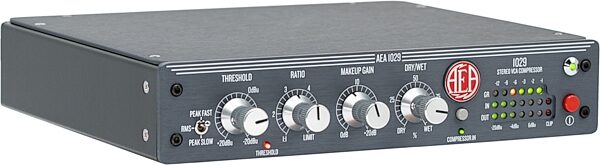

AEA Microphones 1029 Stereo VCA Compressor

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back
AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back
AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back
AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back
AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back
AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back AEA Microphones 1029 Stereo VCA Compressor, New, Action Position Back

With a proprietary discrete op-amp design by Fred Forssell the AEA 1029 utilizes two THAT 4305 VCA chips run off of a single RMS detector being fed by the summed input signals. This product was primarily designed for the recording and/or mixing of stereo microphones. Designed to pair well with our TRP and RPQ series preamps, the 1029 Stereo VCA compressor is the perfect addition to any studio.

Features:

- Half-rack form factor
- 2 channels of XLR in and out
- 3 position Peak Fast, RMS, and Peak Slow sensing times
- Variable threshold from -20dBu to 20dBu
- Variable ratio from 1:1 - Limit
- Up to 20dB of makeup gain
- Dry/Wet percentage control knob
- True bypass relay switching
- Gain reduction, summed input, and summed output 6 segment LED meters

The AEA 1029 utilizes a proprietary discrete op-amp design by Fred Forssell and two THAT 4305 VCA chips run off of a single RMS detector being fed by the summed input signals. This design results in a versatile compressor with a clear and balanced sound perfect for taming vocals or smashing drum overheads. Designed to pair well with our TRP and RPQ series preamps, the 1029 Stereo VCA compressor is perfect for recording and/or mixing stereo microphones.

Packed into a sleek, half-rack design - the AEA 1029 is perfect for desktop use or for those looking to save space in their rack. But don't let its size fool you, the 1029 is a full-featured compressor that packs a punch. With 3 position Sensing Time (Peak Fast, Slow, and RMS)… read more and a variable ratio from 1:1 - Limit, the 1029 can go from subtle to extreme as you see fit. Equally at home in a bedroom or professional studio, the AEA 1029 is the perfect addition to any engineer's toolkit.
read less

Noise Floor (22 Hz - 22 kHz, unweighted):
- Dry signal path: -90 dBu
- Wet signal path: -86 dBu
Frequency Response:
- Dry signal path: +/- 0.1 dB 10 Hz to 200 kHz
- Wet signal path: +/- 1 dB 10 Hz to 110 kHz
THD+N(%) Dry Signal Path:
- 1 kHz- 0.001% @ 0 dBu 600 Ohm load
- 1 kHz- 0.0008% @ +26 dBu 600 Ohm load
THD+N(%) Wet Signal Path:
- 1 kHz- 0.01% @ 0 dBu 600 Ohm load
- 1 kHz- 0.07% @ +20 dBu 600 Ohm load
Input Impedance: 52 Ohm balanced
Output Impedance: 20 kOhm balanced
CMRR: > 80 dB (22 to 22kHz)
Crossstalk: -100 dB 10 Hz, - 80 dB 20 kHz
IMD (SMPTE 4:1):
- 002% @ 0 dBu 600 Ohm load
- 0.001% @ +24 dBu 600 Ohm load
Maximum Input level: +26 dBu
Maximum Output Level: +26 dBu (600 Ohm minimum load Z)
Power Consumption:
- +15.6 VDC = 180 ma
- -15.6 VDC = 110 ma
Dimensions (WxHxD):
- Half-rack wide, 1 rack unit high, measured with knobs
- Imperial: 8.5 in x 1.8 in x 8 in
- Metric: 21.59 cm x 20.32 cm x 4.6 cm
Weight: 2lb (~893 g)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 7 lbs
Shipping Dimensions: 14 x 11 x 8 in

For support or warranty questions, please contact the manufacturer:
Web: https://aearibbonmics.com/support/
