ADJ Vizi Hybrid 16RX Light
No longer available at zZounds









zZounds Gear Experts Say...
"Hybrid" means this moving head can create a sharp beam, tight spot or wide wash. Create any effect with gobos, dual prism layering and motorized focus/zoom.
Overview

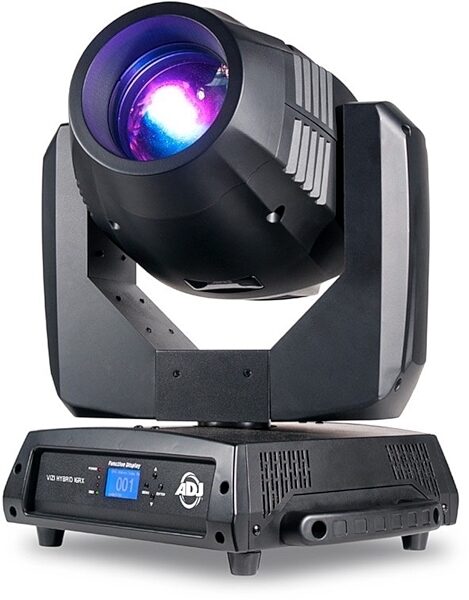

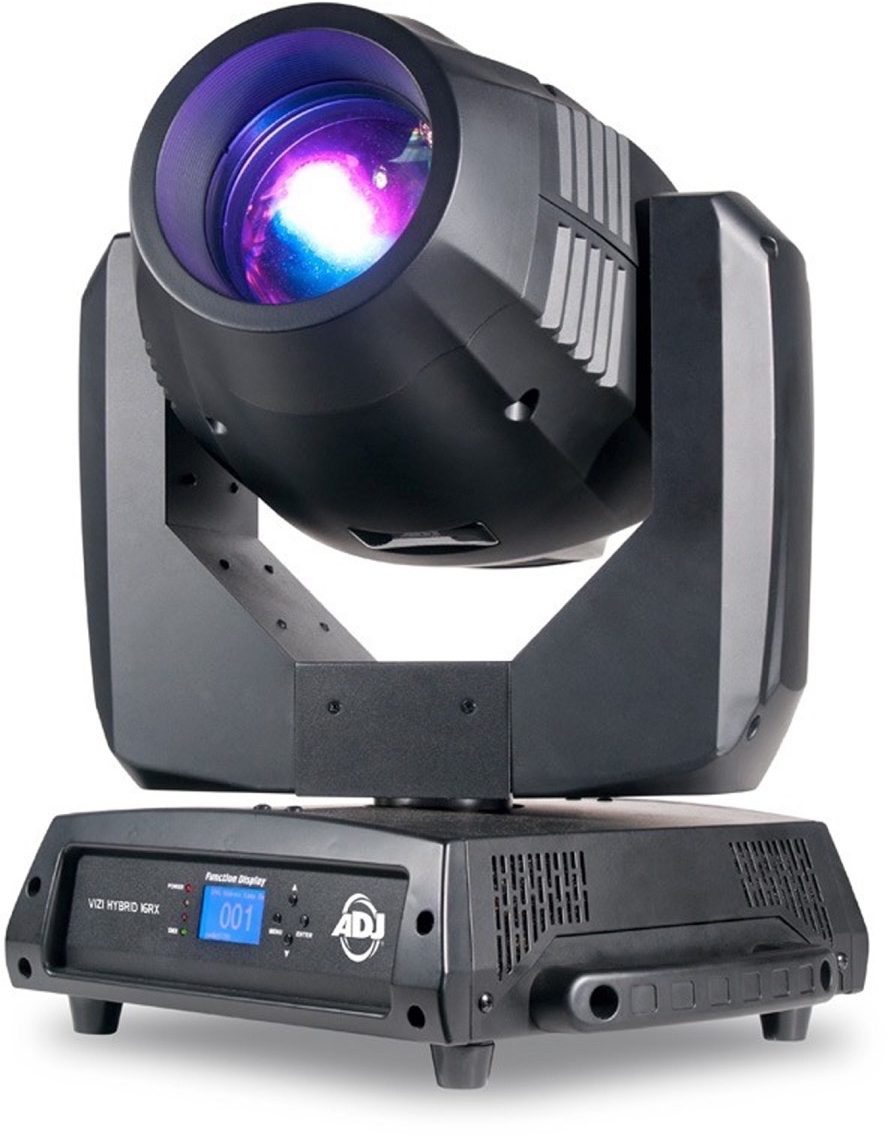

A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi Hybrid 16RX features dual Prism Layering, GOBO Morphing of dual gobo wheels, motorized zoom and motorized focus. Other professional features include: Frost filter to turn the hard edge beam to a wash, 6 & 8-facet rotating prisms, stepper motors for quick, precise movement.
The Vizi Hybrid 16RX Moving Head fixture is powered by the revolutionary Philips Platinum 16R discharge lamp technology (8000*K, 1,500 hr). The powerful Platinum 16R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Hybrid 16RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class.
- GOBO Morphing
- Gobo scroll mode
- LED DMX 4-Button menu system
- Auto X-Y repositioning
- Gobo Shake effect for both wheels
- Independent gobo and color wheels
- Pan/Tilt Invert
- 16-Bit Pan/Tilt positioning
- Pan/Tilt speed adjustment
- Prism rotation
- Motorized Focus
- Motorized Zoom
- Shutter: Pulse effect; random strobe slow to fast
- Electronic Dimming: 0% - 100%
- Strobe effect
- Frost Filter for wash effect
- Omega Quicklock Brackets included
- Stepper motors with micro stepping
- 14 colors + white
- 6 & 8-facet Prism with macros

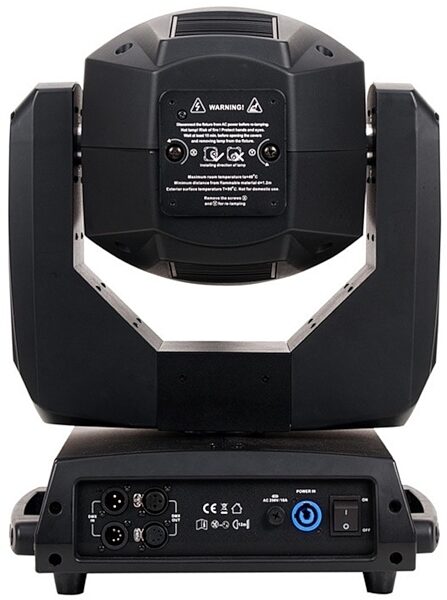

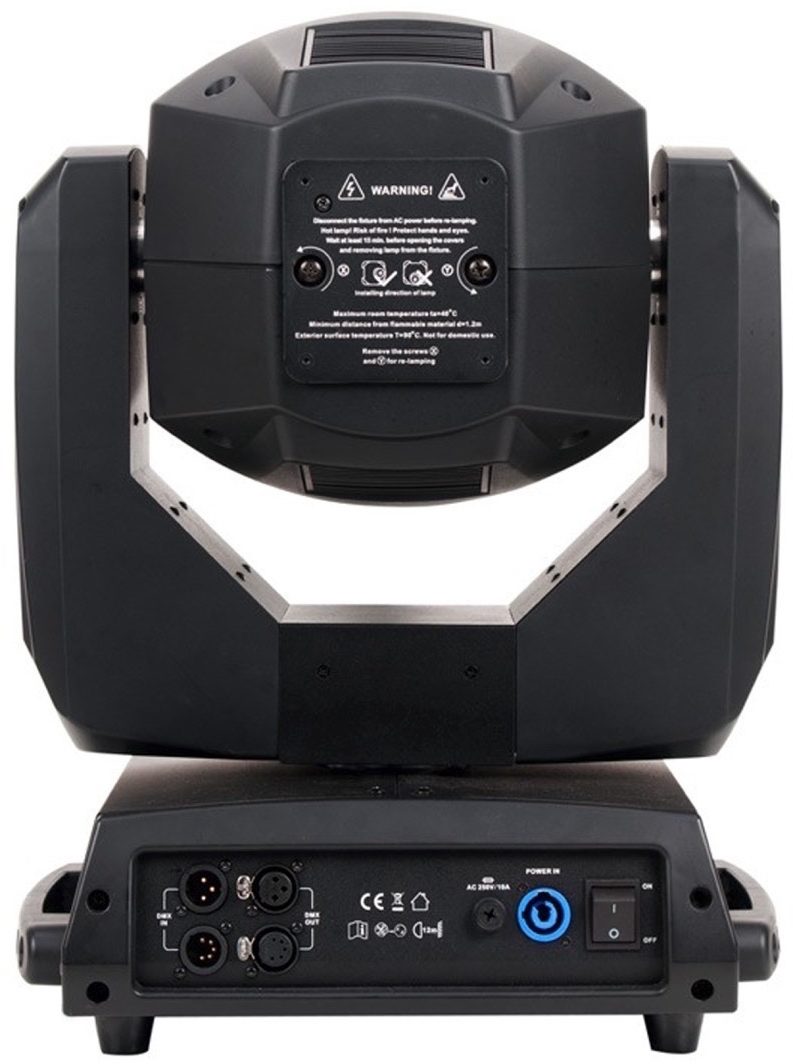

- 3/5-pin XLR In/Out
- PowerCon Input
The Vizi Hybrid 16RX Moving Head fixture is powered by the revolutionary Philips Platinum 16R discharge lamp technology (8000*K, 1,500 hr). The powerful Platinum 16R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Hybrid 16RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class.
Features:
- Prism Layering- GOBO Morphing
- Gobo scroll mode
- LED DMX 4-Button menu system
- Auto X-Y repositioning
- Gobo Shake effect for both wheels
- Independent gobo and color wheels
- Pan/Tilt Invert
- 16-Bit Pan/Tilt positioning
- Pan/Tilt speed adjustment
- Prism rotation
- Motorized Focus
- Motorized Zoom
- Shutter: Pulse effect; random strobe slow to fast
- Electronic Dimming: 0% - 100%
- Strobe effect
- Frost Filter for wash effect
- Omega Quicklock Brackets included
- Stepper motors with micro stepping
- 14 colors + white
- 6 & 8-facet Prism with macros
- 3/5-pin XLR In/Out
- PowerCon Input
Specs
- DMX channels: 19
- Pan: 360-degree standard (540-degree optional)
- Tilt: 270-degree
- Beam Angle: 3-32 degree beam angle
- 2 Separate Gobo Wheels: Wheel 1 - 17 static, fixed gobos + spot. Wheel 2 - 12 User Replaceable Colored Glass Gobos + spot.
- Light Output: 754000 LUX @5M (3-degree beam); 11950 LUX @5M (32-degree beam)
- Power Consumption: 537W
- Multi-voltage Operation: 100-240V, 50Hz/60Hz
- Power Cable Length: 1.5m (IEC)
- Lamp: Philips Platinum 16R MSD discharge, 8,000*K - 1,500 hr. long life
- Dimensions (LxWxH): 12.75 x 14.5 x 22.5"
- Weight: 23 kg. / 51 lbs.
- Pan: 360-degree standard (540-degree optional)
- Tilt: 270-degree
- Beam Angle: 3-32 degree beam angle
- 2 Separate Gobo Wheels: Wheel 1 - 17 static, fixed gobos + spot. Wheel 2 - 12 User Replaceable Colored Glass Gobos + spot.
- Light Output: 754000 LUX @5M (3-degree beam); 11950 LUX @5M (32-degree beam)
- Power Consumption: 537W
- Multi-voltage Operation: 100-240V, 50Hz/60Hz
- Power Cable Length: 1.5m (IEC)
- Lamp: Philips Platinum 16R MSD discharge, 8,000*K - 1,500 hr. long life
- Dimensions (LxWxH): 12.75 x 14.5 x 22.5"
- Weight: 23 kg. / 51 lbs.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 323-582-2650
Email: support@adj.com
Web: https://www.adj.com/support
Phone: 323-582-2650
Email: support@adj.com
Web: https://www.adj.com/support
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
