American DJ Inno Color Beam Z7 Stage Light
No longer available at zZounds





zZounds Gear Experts Say...
Boasting quick, smooth movements, motorized zoom, seven 10-watt RGBW LEDs and 4 built-in shows, the Inno Color Beam 27 is worthy of lighting any show.
Overview
The American DJ Inno Color Beam Z7 is a professional high output LED Moving Head Beam fixture with motorized zoom allowing for a variable beam angle from 10-60 degrees. The fixture is powered by 7 x 10W RGBW Quad Color (4-IN-1) Osram LEDs. With its quick speed and built-in light shows, the Inno Color Beam Q7 brings pure lighting excitement to any venue.
The Inno Color Beam Z7 is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED Beam effect. The Z7 features 14 DMX channels, 5 Dimmer Curve modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, IEC In/Out power connectors, and a 4-Button DMX LCD menu.
- 14 DMX channels
- 64 Built-In Color Macros
- 4 Built-In light shows
- Five Dimmer Curve Modes
- Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
- Fast Pan Tilt Movement
- 16-Bit Fine Pan/Tilt control
- 4-Button DMX LCD menu
- Stepper motors with micro stepping
- Includes Omega bracket for truss mounting
- 3-pin XLR In/Out
- Fan cooled
- Electronic Strobe/Pulse effect; random strobe slow to fast

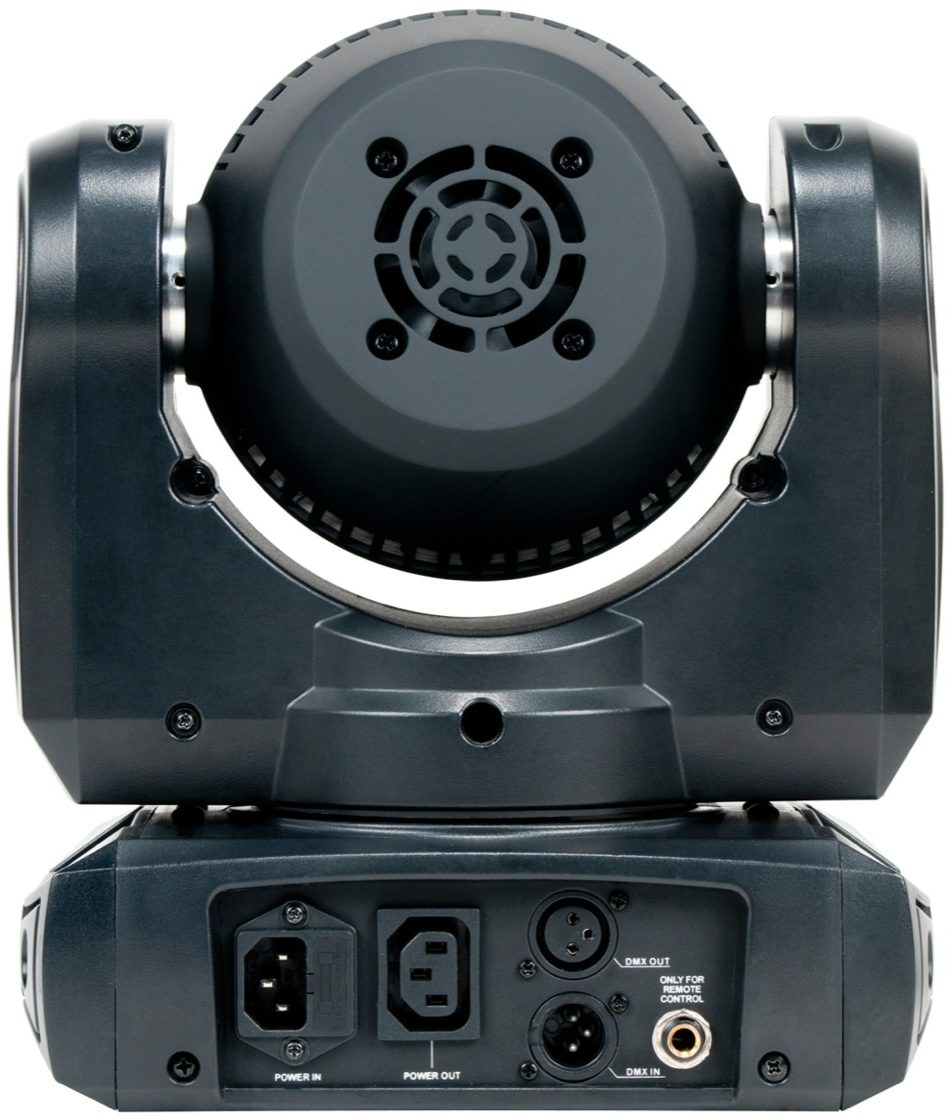

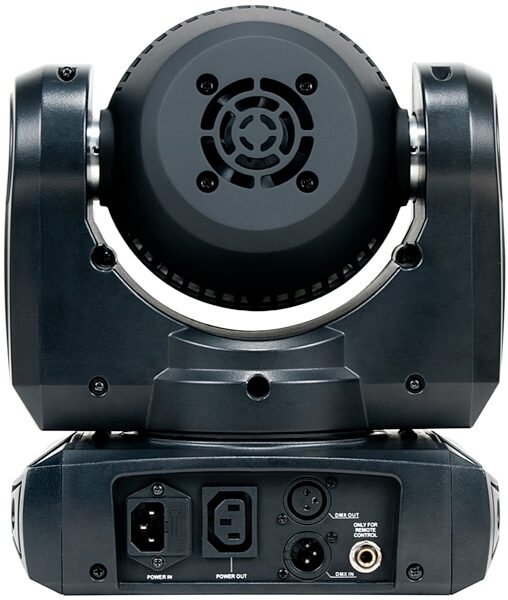

- IEC AC IN/OUT on rear to daisy chain power (up to 4 Inno Color Beam Z7's @ 120V and 8 Inno Color Beam Z7's @ 230V )
- Long Life LED (Rated at approximately 50,000 hrs)
The Inno Color Beam Z7 is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED Beam effect. The Z7 features 14 DMX channels, 5 Dimmer Curve modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, IEC In/Out power connectors, and a 4-Button DMX LCD menu.
Features:
- High Output LED Moving Head Wash with motorized zoom- 14 DMX channels
- 64 Built-In Color Macros
- 4 Built-In light shows
- Five Dimmer Curve Modes
- Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
- Fast Pan Tilt Movement
- 16-Bit Fine Pan/Tilt control
- 4-Button DMX LCD menu
- Stepper motors with micro stepping
- Includes Omega bracket for truss mounting
- 3-pin XLR In/Out
- Fan cooled
- Electronic Strobe/Pulse effect; random strobe slow to fast
- IEC AC IN/OUT on rear to daisy chain power (up to 4 Inno Color Beam Z7's @ 120V and 8 Inno Color Beam Z7's @ 230V )
- Long Life LED (Rated at approximately 50,000 hrs)
Specs
- Motorized Zoom: 10 - 60-degree beam angle
- 3 Operational Modes: Sound Active, DMX Controlled or Show Mode
- Electronic Dimming: 0% - 100%
- Pan: 540-degree; Tilt: 220-degree
- Light Source: 7x 10W RGBW Quad Color (4-IN-1) Osram LEDs
- Multi-voltage Operation: 100-230V, 50Hz/60Hz
- Power Consumption: 104W
- Dimensions (L x W x H): 10.5 x 6.75 x 13.5" (262 x 167 x 340mm)
- Weight: 17 lbs (7.5 kg)
- 3 Operational Modes: Sound Active, DMX Controlled or Show Mode
- Electronic Dimming: 0% - 100%
- Pan: 540-degree; Tilt: 220-degree
- Light Source: 7x 10W RGBW Quad Color (4-IN-1) Osram LEDs
- Multi-voltage Operation: 100-230V, 50Hz/60Hz
- Power Consumption: 104W
- Dimensions (L x W x H): 10.5 x 6.75 x 13.5" (262 x 167 x 340mm)
- Weight: 17 lbs (7.5 kg)
