ADJ Dotz PAR RGBL Light

zZounds Gear Experts Say...

With tunable white color temperature controls, high-CRI output, and state-of-the-art RGBL C.O.B. LEDs, this PAR is teeming with technology!

Overview

Drawing on the popularity of Chip On Board (C.O.B.) LED from the Dotz Par fixture, the ADJ Lighting Dotz Par RGBL uses the latest advancements in lighting technology with a RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field, high CRI output, advanced color mixing and tunable white color temperature control from 2700K to 6500K.

Features:

- Utilizes the latest advancements in lighting technology
- RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field
- High CRI output, advanced color mixing
- Tunable white color temperature control
- 16-Bit Fine Color Control
- 4-button, DMX digital display on rear panel
- Selectable Dimming Modes
- LED pulse and strobe effect

INCLUDED ACCESSORIES:
- Power Cord
- Lens Kit

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

SOURCE:
- Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)
- 20,000 Hours Rated Life
PHOTOMETRIC DATA:
- 18* Beam Angle (With Included Lens)
- 29.7* Field Angle (With Included Lens)
- CRI: 85.3
- CRI R9: 79.1
- Lux: 957 (@ 3m, Full On)
- Footcandles: 89 (@ 3m, Full On)
- Lumens: 1102
EFFECTS:

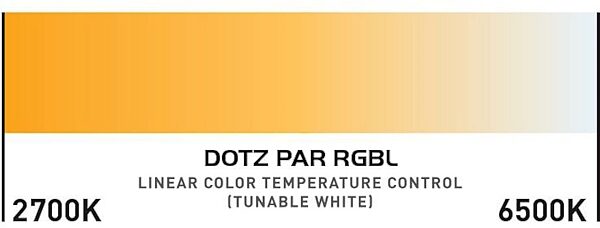

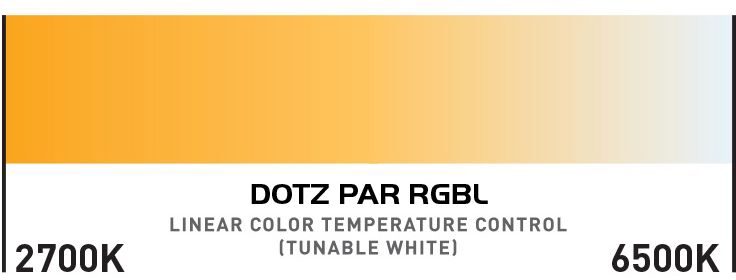

- Linear Color Temperature Control (2700K to 6500K)
- Preset Color Temperatures
- 16-Bit Fine Color Control (Red, Green, Blue & Lime)
- 64 built-in Color Macros
CONTROL:

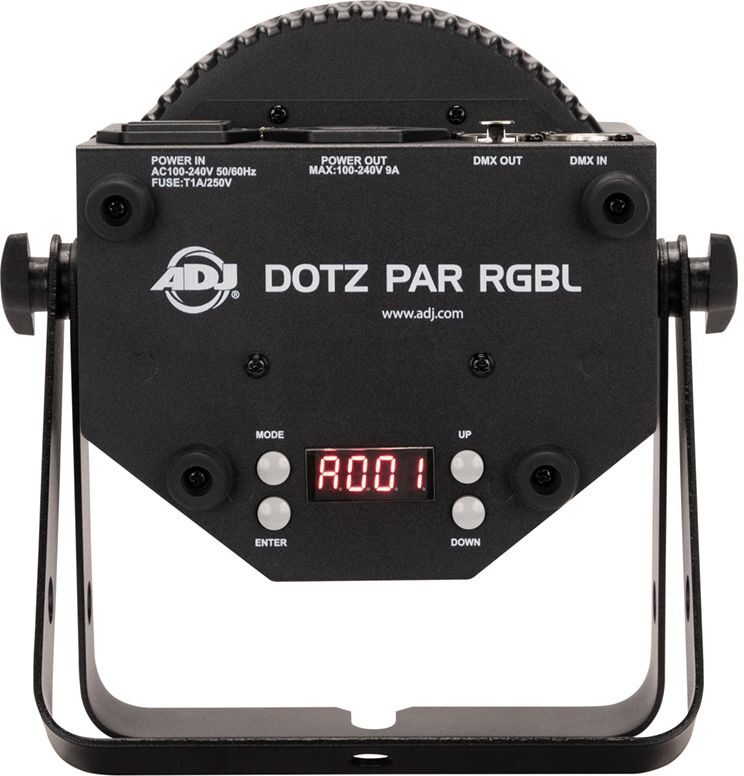

- 4-button, DMX digital display on rear panel
- 6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
- Supports RDM (Remote Device Management)
- With Wired Digital Communication Network
- 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
- 1200Hz LED Refresh Rate
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%

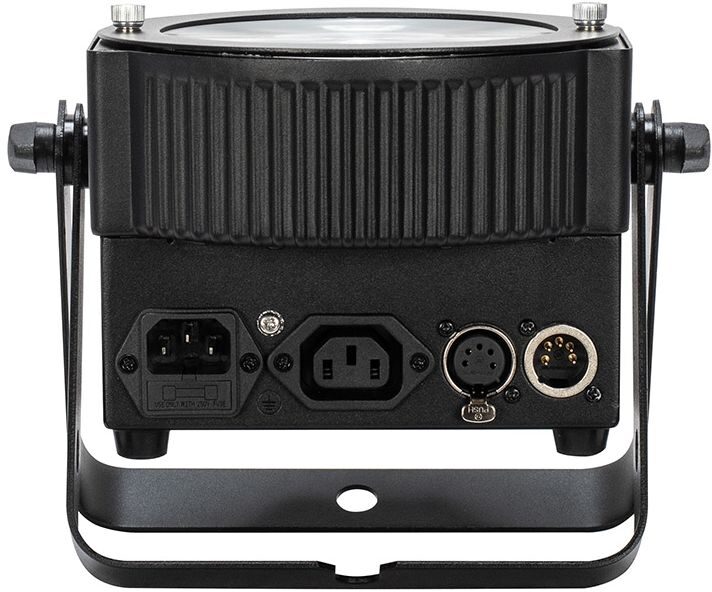

CONSTRUCTION / CONNECTIONS:
- Plastic construction
- IEC Locking, In/Out Power connectors
- Indoor 5-pin, XLR DMX, In/Out sockets
- Scissor Yoke
ELECTRICAL / THERMAL:
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Max Power Link: 30 @120V., 57 @230V.
- Max power consumption: 36W
- Fuse protected: T1A/250V (5*20mm)
Length: 5.19" (131.8mm)
Width: 8.23" (209mm)
Height: 8.72" (221.44mm)
Weight: 4.41lbs. / 2kg.
APPROVALS / RATINGS:
- CE
- cETLus (4010765)
- FCC
- IP20

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 6 lbs; Shipping Dimensions: 11 x 9 x 7 in; Manufacturer Part Number (MPN): DOT287
