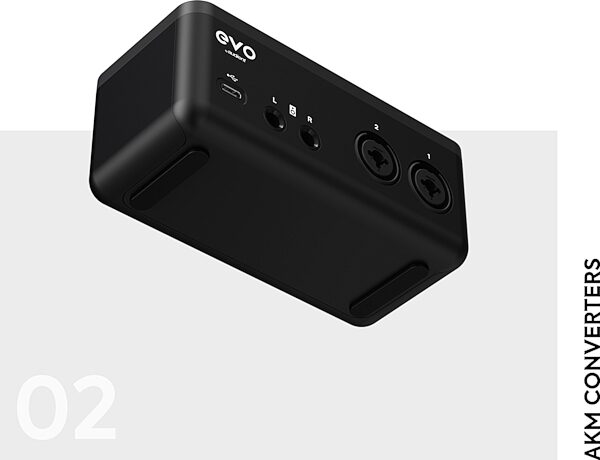

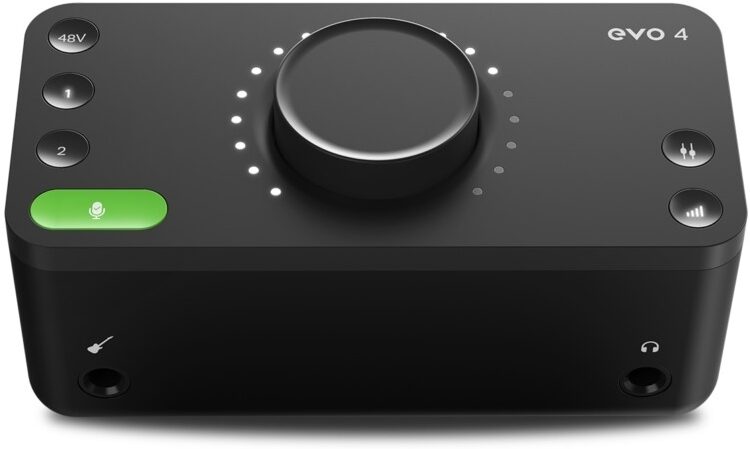

Audient EVO 4 USB Audio Interface

Microphone Preamplifier:
Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48v +/-4v @ 10mA/Channel
Mic EIN: <-128dBu
CMRR: >85dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3k ohms Balanced
Input Impedance (Line): >10k ohms Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I:
D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 1Mega ohm Unbalanced
Frequency Response: +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4" Jack: TIP (Hot) & SLEEVE (Shield)

ADC Inputs:
Digital Reference Level: 0dBFS = +8dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.001%
Dynamic Range: 113dB A-weighted

DAC Outputs:
Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output Impedance: <100 ohms Balanced
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output:
Output Impedance: <50 ohms
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4" Jack: TIP (Left), RING (Right) & SLEEVE (Shield)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.25 lbs
Shipping Dimensions: 7 x 4 x 4 in
Manufacturer Part Number (MPN): EVO 4
