Manufacturer's Description for zZounds Stage Standard Portable PA System
Save money and hassle with this expertly-configured, bargain-priced PA package. We've taken the guesswork out of live sound by pairing great-sounding speakers with wattage-matched powered mixers, then adding some great live sound mics and all the cables and stands you'll need. By purchasing a bundle instead buying of each item individually you'll save hundreds of dollars off the regular price.

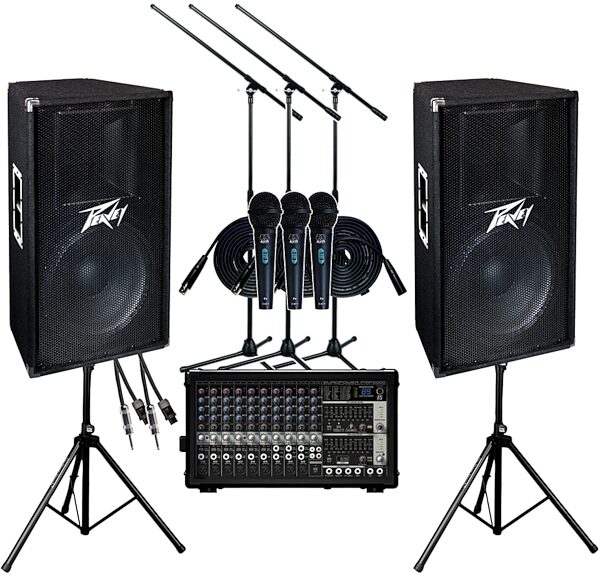

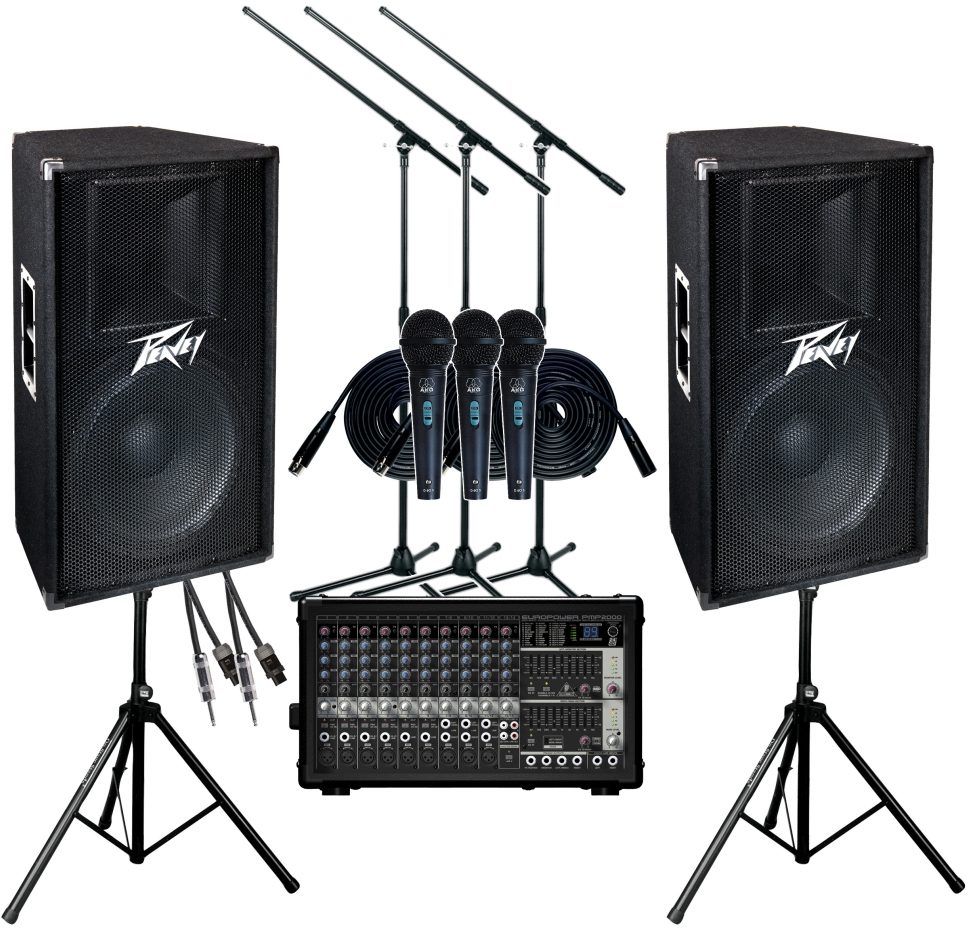

Includes:
- 1 x Behringer PMP2000 10-Channel Powered Mixer with FX (800 Watts)
- 2 x Peavey PV115 2-way PA speakers
- 2 x CBI 14-gauge speaker cables (25 ft.)
- 2 x On-Stage SS7761B tripod speaker stands
- 3 x Audio Technica ST90MKII microphones
- 3 x On-Stage microphone clips
- 3 x Whirlwind MC20 microphone cables
- 3 x On-Stage 7701B tripod/boom microphone stands
Behringer PMP2000 10-Channel Powered Mixer
The PMP2000 powered mixer delivers more power, better sound at less weight! The PMP2000 mixer delivers 800 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps and more round off this impressive package of power features.
Get massive power and great sound in a lightweight package!
Peavey PV115 PA Speakers
Peavey proudly introduces new additions to its long-running PV Series, including mixers, equalizers, crossovers, loudspeakers and cables. The PV Series has long been the benchmark of performance and value in audio, and the new PV products live up to this legacy.
Features:- 2-way trapezoidal sound reinforcement enclosures
- 15 in. premium, 2-3/8 in. voice coil woofer
- RX14 compression driver with a 1.4 in. titanium diaphragm 1 in. exit
- 90 degrees x 40 degrees constant directivity horn
- Tweeter protection
- Heavy-duty crossover
- Molded-in pole mounts
- Heavy-duty metal grille
Audio Technica ST90mkII microphones
The ST90mkII is first and foremost a performance vocal mic. It features an on-off switch, plus it's a dynamic mic so it needs no phantom power -- you can use it with just about any mixer or recorder.
On-Stage SS7761B Tripod Speaker Stands
An extremely versatile speaker stand, this reversible-shaft design may be used with either 1-3/8 in. or 1-1/2 in. speaker cabinet mounts. Includes the added safety of a locking shaft pin to prevent accidental speaker slippage.
On-Stage 7701B Tripod/Boom Microphone Stands
Height adjustable mic stand comes with a durable tripod base and foldable legs for easy storage.
Features:- Solid cast end with standard 5/8-27 threads
- Long 30 in. boom with molded plastic counterweight
- Euro-Style boom with separate clutches for length and angle of boom. Allows user to make one-handed adjustments of boom angle while performing
- Professional quality die-cast zinc clutch locks vertical shaft at any height from 36 - 63 in.
- Clip-on cable holder
- Steel-reinforced plastic leg housing offers less weight and exceptional strength
- Folding legs with plastic endcaps for durability and reduced floor vibration. Base spread: 23 in.
zZounds is an authorized dealer of
zZounds products.
Behringer PMP2000
Microphone Inputs
- Type: XLR, electronically balanced, discrete input circuit
- Frequency Response: <10 Hz-100 kHz (-1 dB), <10Hz- >200 kHz (-3 dB)
- Gain: +33 dB, +8 dB with pad
- Max Input Level: +12 dBu @ +12 dB gain
- Impedance: approx. 2.2 k ohms balanced/ 1.1 k ohms unbalanced
- Signal-to-Noise Ratio: 110 dB/ 114 dB A-weighted (-11 dBu IN @ +33 dB gain)
Distortion (THD+N): 0.001% / 0.008% A-weighted
Mono Line Inputs:
- Type: 1/4 inch TRS connectors, balanced
- Impedance: approx 80k ohms balanced, 40k ohms unbalanced
- Max Input Level: 30 dBu
Stereo Line Inputs
- Type: 1/4 inch TRS connectors, unbalanced
- Impedance: approx. 40k ohms unbalanced
- Max Input Level: +28 dBu
Equalizer:
- Low: 60 Hz / +/- 15 dB
- Mid: 700 Hz-8kHz/ +/- 15 dB
- High: 6 kHz / +/- 15 dB
Preamp Outputs left/mono & right:
- Type: 1/4 inch TRS connector, unbalanced
- Impedance: approx 1.5k ohms
- Max Output Level: +21 dBu
Monitor Output:
- Type: 1/4 inch TRS connectors, unbalanced
- Impedance: 1.5k ohms
- Max Output Level: +21 dBu
Power Amp Inputs:
- Type: 1/4 inch TRS connectors, unbalanced
- Impedance: approx 47k ohms
- Max Input Level: +21 dBu
Loudspeaker Outputs
- Type: Professional speaker connectors (compatible to Neutrik Speakon)
Load Impedance:
- Left/monitor: 4/8/16 ohms
- Right/mono main: 4/8/16 ohms
- Bridge: 8-16 ohms
DSP:
- Converter: 24-bit Texas Instruments, 24-bit Sigma-Delta, 64/128-times oversampling
- Sampling Rate: 40 kHz
Amplifier (Power Amp Output):
- Power @ 4 ohms: 250 w
- Power @ 8 ohms: 165 w
- Power @ 8 ohms (Bridge): 500 w
Power Supply:
- Mains Voltage: 120 V~, 60 Hz
- Power Consumption: max 1 kW
- Fuse: T 10 A H 250V
- Mains Connector: Standard IEC receptacle
Physical/Weight:
- Dimensions: approx. 11 x 18 1/8 x 10 5/8 inches
- Weight: 30.9 lbs
Peavey PV115
- Power: 400 watts program, 800 watts peak
- Weight: 53 lbs.
On-Stage SS7761B
- 200 lb. capacity
- Adjustable height (44 - 80 in.)
- Black finish
On-Stage 7701B
- 5/8-27 threads
- 30 in. boom
- Molded plastic counterweight
- Adjustable height from 36 - 63 in.
- Steel-reinforced plactic leg housing
- Folding legs
- Plastic endcaps
-Base spread: 23 in.
