This product is no longer available at zZounds.
We recommend this product instead:
Zoom A2 Acoustic Guitar Multi-Effects Pedal
-
- New from $89.00
- List: $149.99
- SAVE: 40%
- Blowouts save up to $9.05!
- In Stock
Explore a new world of natural acoustic sound -- nothing lost, everything gained! Learn More...
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

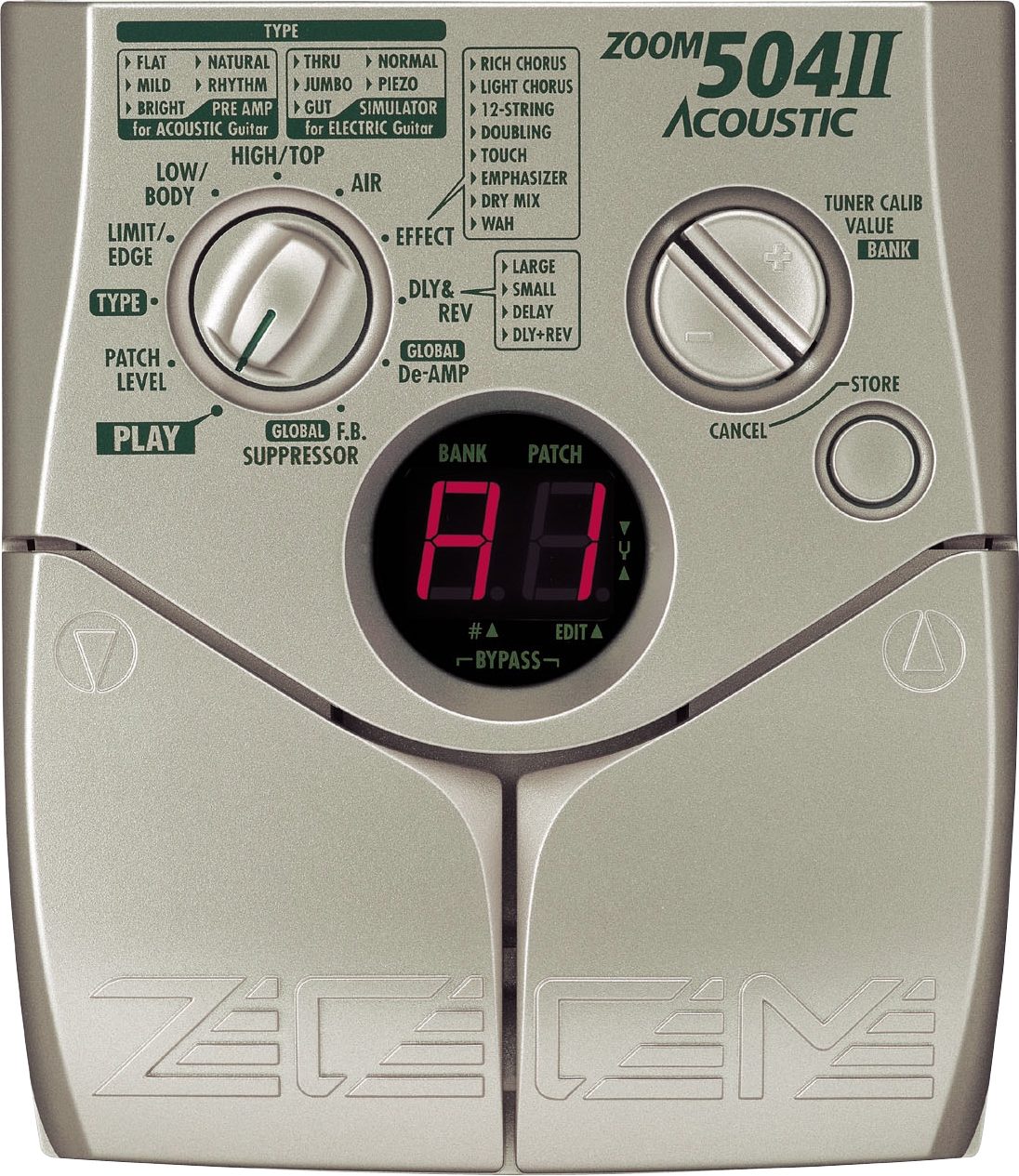

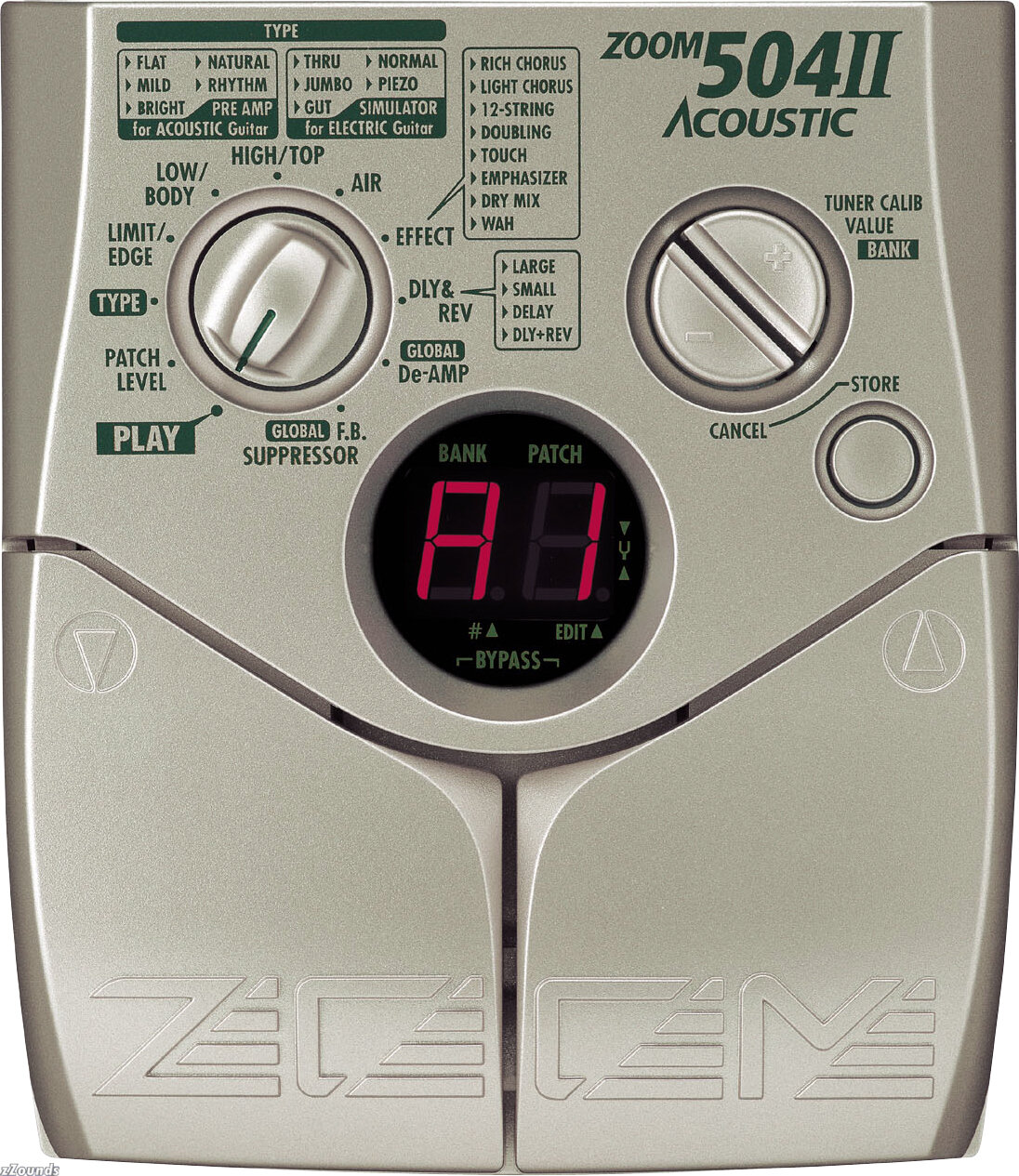

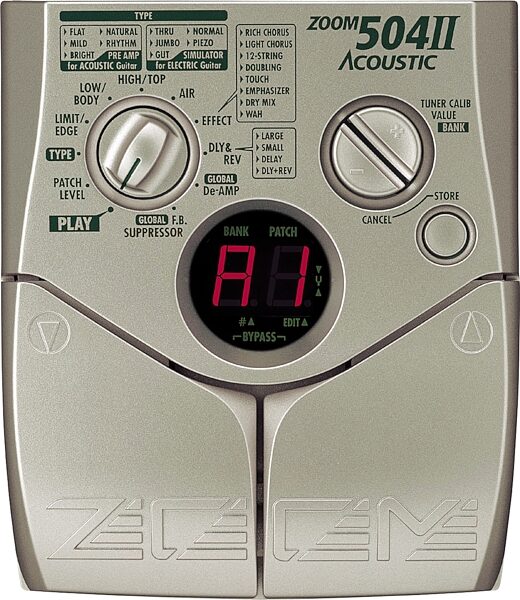

Zoom 504II Acoustic Pedal
De-Amp, Air & Touch. Switchable feedback supressor.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
This new classic is more compact and easier to program than the original 504 Acoustic and also offers a sleek new design and easy analog operation.
Features
A fully programmable compact multi-effects pedal for acoustic guitars
Built-in simulator transforms electric guitar tone to that of an acoustic instrument
Specially designed Acoustic effects (De-Amp, Air & Touch)
Switchable Feedback Supressor automatically detects and attenuates feedback problems
Unique "Air" effect recreates ambient sound of a miked acoustic guitar
"De-Amp" effect restores guitar's natural sound when used with amplifier
4 Acoustic Simulators (Normal, Jumbo, Piezo, Classical)
4 reverbs; 4 delays; 6 modulation effects
"Limiter;" "Edge;" "Body & Top," and more
Emphasizer effect simulates resonator instrument tones
Built-in auto-chromatic tuner
Optional FP01 Expression Pedal lets you change volume effects dynamically
Stereo line out/headphone out with master level control
Banks and Patches: 6 banks x 4 patches = 24 patches (edit and store possible)
A/D Conversion: 18-bit, 128x oversampling
D/A Conversion: 16-bit, linear
Sampling Frequency: 31.25 kHz
Inputs: High and Low (both standard monaural phone jacks) 470 kohms impedance
Output: Combined line/headphone (standard stereo phone jack) 10 kohms or more impedance
Maximum Output Level: +6 dBm
Control Input: For optional FP01 or FS01
Display: 2-digit, 7-segment LED, tuning indicator, parameter cursor indicator
Power: 9 volt battery (alkaline) x 1 or optional AC adapter 9VDC, 300mA
Dimensions (W x D x H): 147 x 157 x 49 mm
Weight (without battery): 480 g
Features
A fully programmable compact multi-effects pedal for acoustic guitars
Built-in simulator transforms electric guitar tone to that of an acoustic instrument
Specially designed Acoustic effects (De-Amp, Air & Touch)
Switchable Feedback Supressor automatically detects and attenuates feedback problems
Unique "Air" effect recreates ambient sound of a miked acoustic guitar
"De-Amp" effect restores guitar's natural sound when used with amplifier
4 Acoustic Simulators (Normal, Jumbo, Piezo, Classical)
4 reverbs; 4 delays; 6 modulation effects
"Limiter;" "Edge;" "Body & Top," and more
Emphasizer effect simulates resonator instrument tones
Built-in auto-chromatic tuner
Optional FP01 Expression Pedal lets you change volume effects dynamically
Stereo line out/headphone out with master level control
Technical Info
Effects: 26Banks and Patches: 6 banks x 4 patches = 24 patches (edit and store possible)
A/D Conversion: 18-bit, 128x oversampling
D/A Conversion: 16-bit, linear
Sampling Frequency: 31.25 kHz
Inputs: High and Low (both standard monaural phone jacks) 470 kohms impedance
Output: Combined line/headphone (standard stereo phone jack) 10 kohms or more impedance
Maximum Output Level: +6 dBm
Control Input: For optional FP01 or FS01
Display: 2-digit, 7-segment LED, tuning indicator, parameter cursor indicator
Power: 9 volt battery (alkaline) x 1 or optional AC adapter 9VDC, 300mA
Dimensions (W x D x H): 147 x 157 x 49 mm
Weight (without battery): 480 g
What Our Customers Say About zZounds
"It's great that you offer free shipping. I looked at [major competitor] and you have the biggest selection and best prices." - customer on November 10, 2009
Zoom 504II Acoustic Pedal Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
"A great tool for the acoustic/electric guitar."
Very easy to program and use. Effects are perfect for acoustic use. The effects are not as wild and varied as models designed for electric only instruments (Digitech RP 100 or other Zoom effects), but, this is not what the unit is designed for. I don't think the features for making electrics sound acoustic really work that well, but I didn't get it for that purpose.
The tuner feature works better and is more accurate than former Zoom products I have had.
And the battery power actually lasts as long as advertised.
The tuner feature works better and is more accurate than former Zoom products I have had.
And the battery power actually lasts as long as advertised.
Submitted: 10/05/2001
Style of Music: Fingerstyle acoustic (pop, jazz, blues)
10 out of 10
zZounds has verified that this customer bought this product from us.
"Great Effects"
Overall:
This is the first time I have ever endorsed a product, but here goes. I purchased a Charvette some years back from a swap shop. This guitar looks similar to a Fender Telecoustic with a Jackson headstock. To me the guitar looks really cool, but as far as tone, it just doesn
This is the first time I have ever endorsed a product, but here goes. I purchased a Charvette some years back from a swap shop. This guitar looks similar to a Fender Telecoustic with a Jackson headstock. To me the guitar looks really cool, but as far as tone, it just doesn
Submitted: 07/03/2005
Style of Music: Country, Blues, Motown,
