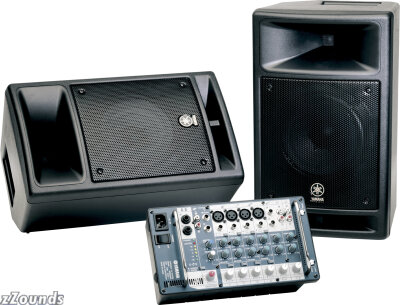

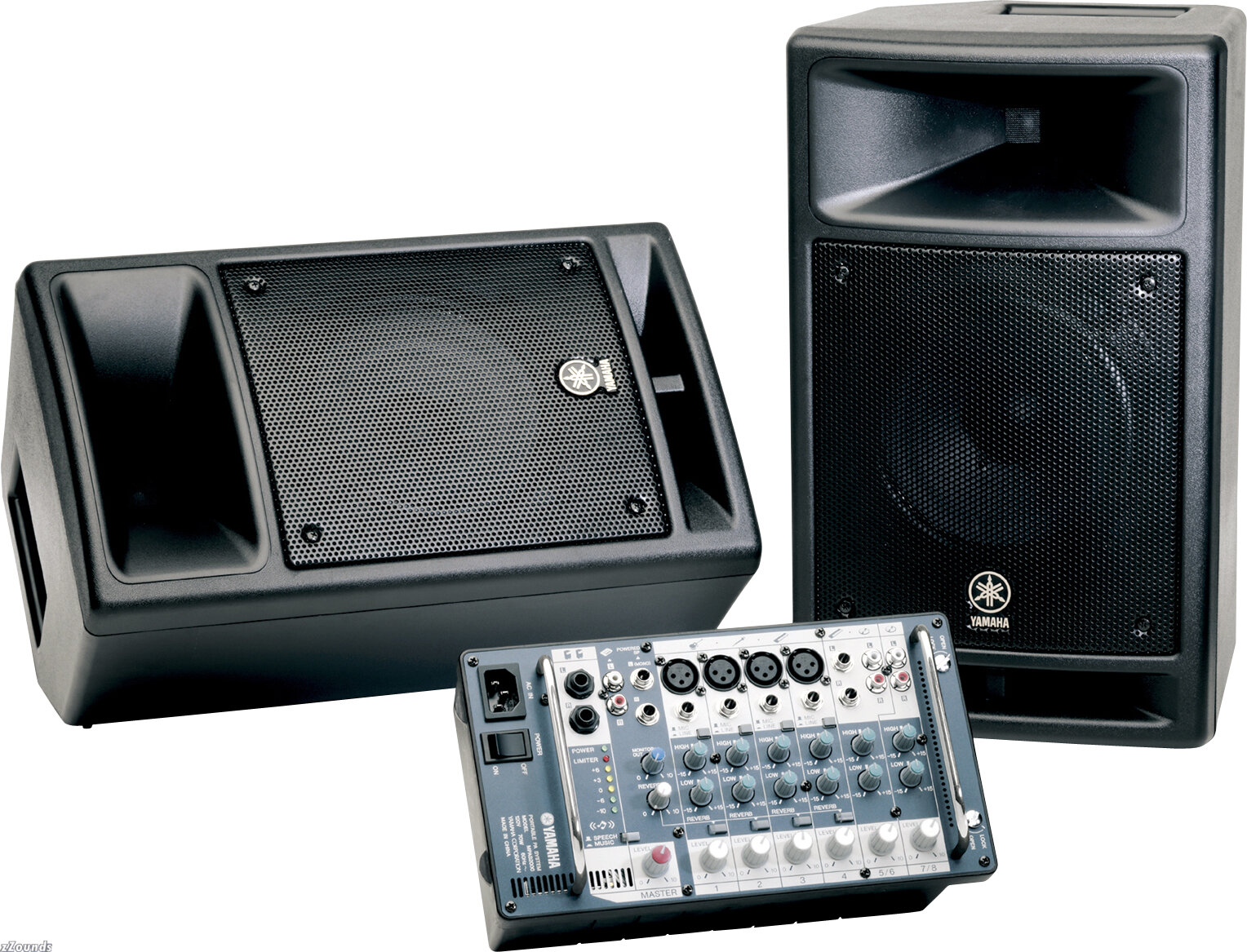

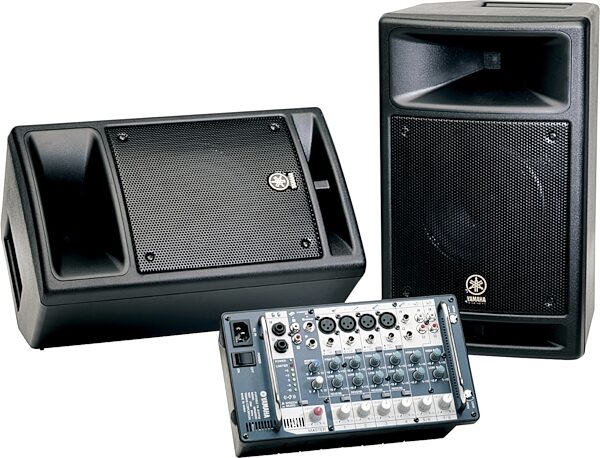

Yamaha Stage PAS 300 Portable PA System

Power to go!

There's no telling where your music will take you. And no matter where your music leads, Yamaha's new STAGEPAS 300 Portable PA system has the power to go with you.

The new STAGEPAS 300 has all the power and high-quality sound you need to fill a small performance space, yet it's small and light enough to bring wherever you need it. Combining a built-in powered mixer and PA speakers, it's also incredibly easy to use -- letting you set up and be playing in a matter of minutes!

Exceptionally compact and portable, it's the perfect road companion, providing powerful, reliable, convenient sound reinforcement for a wide variety of applications. Great sound has never been so portable -- and so easy to use. High quality, convenience, and power to go!

Features
Portable PA system: two passive speakers with built-in powered mixer speaker cables (5 m x 2)

2-way bass reflex speakers: suitable as mains or monitors

8 channel powered mixer: 4 mic + 2 stereo line inputs class D power amplifier (150w + 150W) 1-bit modulation digital reverb mic stand mountable (with BMS10A)

Accessory compartment: the STAGEPAS 300 features a convenient storage compartment in the speaker box for packing the included power cable, speaker cable, owner's manual and your choice of microphone. Remove the rear panel of the speaker and put in the things you need.

Crisp highs, punchy mids. Big, fat bass. The STAGEPAS 300 delivers a remarkably clear, powerful sound. Its exceptional high-quality and power makes it ideal for almost any PA application. Its rugged, durable construction makes it perfect for the road. And its compact, all-in-one convenience makes it an essential gig companion you'll never want to be without.

Versatile application features -- flexible placement options let you stand the speakers up or lay them on their sides. For speaker stand mounting you must use the optional Yamaha ADP138 adapter or Ultimate BMB200K bracket. With the convenient monitor out jack and the angled sides of the cabinet, you can even use one of the speakers as a floor monitor.

The optional BMS10A mic stand adapter makes it easy to mount the mixer on a microphone stand.

Built-in storage -- for minimum stage clutter, the built-in powered mixer can be left inside the storage compartment of one speaker during operation. Speaker cables are included, too. There's even a convenient storage compartment in the other speaker box for packing the included power cable, speaker cables, owner's manual and microphone. Carry the STAGEPAS 300 with you, and you've got all you need to set up and perform -- anywhere, anytime.

Variety of performance options -- the easy-to-use mixer of the STAGEPAS 300 provides controls and connections, for maximum flexibility in your stage setup -- including two sets of stereo inputs for keyboards or CD/MP3 players, and a high-quality 1-bit modulation digital reverb for adding a rich ambience to your vocals.

High power, high quality -- the built-in amplifier puts out a full 150 watts of power into each channel, and utilizes class D amplification for maximum efficiency, low heat, and remarkably high fidelity. It has all the sonic muscle you need to fill small- and medium-sized venues. Ready to perform -- wherever you go!

Performers: The compact STAGEPAS 300 delivers a remarkably clear, powerful sound.

Its exceptional high-quality and power makes it ideal for almost any PA application. Its rugged, durable construction makes it perfect for the road.

Vocalists: Now, Yamaha has done virtually all the work for you -- just plug yourself in and play!

Guitarists: The STAGEPAS 300 is the perfect gig companion for solo performers, especially guitarists/singers.

Public Speakers: The STAGEPAS 300 is ideal for a wide range of applications, including outdoor events, school functions, church gatherings, conferences.

Technical Info

Maximum output power:
-- 150 W+150 W/6ohm @ 10% THD at 1kHz (speaker L/R)

-- 100 W+100 W/6ohm @ 1% THD at 1kHz (speaker L/R)

Frequency response:
-- -3 dB, 0 dB, +1 dB @20 Hz.20 kHz, 1 W output/6
(without music/speech, EQ and SP EQ circuit) (speaker L/R)

-- -3 dB, 0 dB, +1 dB @20 Hz.20 kHz, +4 dBu 10 k load
[music/speech] switch=music (monitor out, rec out)

Total harmonic distortion:
-- 1% @1 kHz, 50 W output power (speaker L/R)

-- 0.5% @20 Hz.20 kHz, +14 dBu 10 k? (monitor out, rec out)

Hum & noise:
-- -65 dBu Residual output noise (SPEAKER L/R)

-- -90 dBu Residual output noise (MONITOR OUT, REC OUT)

-- -67 dBu @ MONITOR OUT control & one CH LEVEL control at nominal level

Crosstalk: -70 dB between input channels

Weight: 18 kg (mixer and two speakers)

Power consumption: 70 W

Stereo input channel equalization:
-- Shelving turnover/rolloff frequency: 3 dB before maximum cut or boost

-- +/- 15 dB

-- High: 10 kHz shelving

-- Low: 100 Hz shelving

Speaker:

Enclosure: bass-reflex type

Speaker unit:
-- LF: 8 in. (20 cm) cone

-- HF: 1 in. (2.54 cm) compression driver

Crossover frequency: 4 kHz

Frequency range: 55 Hz - 20 kHz

Maximum output level: 112 dB (1 m)

300 watts into two 8" 2-way speakers.
