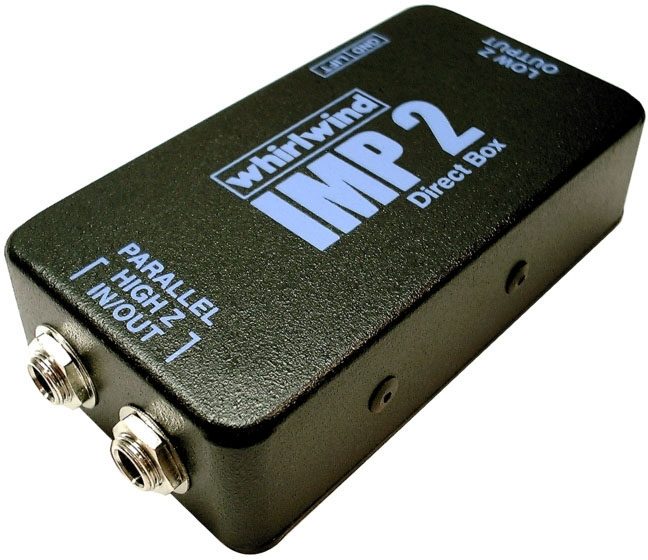

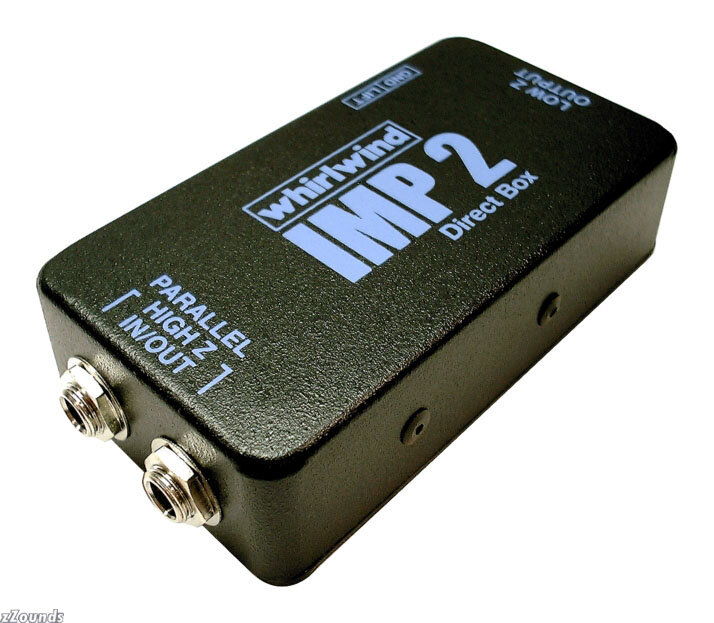

Whirlwind IMP2 Standard Direct Box
20K ohms input impedance. 150 ohms output impedance.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
From Our Catalog
News
The IMP 2 converts a line or instrument level unbalanced signal to a low impedance mic level balanced signal. It's the ideal direct box for anyone requiring professional quality and durability in an economical package.
Features
1/4 in. parallel wired in/out jacks
Ground Lift switch to help isolate hum and buzz
Uses Whirlwind's TRHL transformer that's riveted, not glued, to the chassis
Built rugged on the inside and outside, this is the world famous DI found in pro systems everywhere.
Output Impedance: 150 Ohms
Frequency Response: 50 -17KHz ±1dB
Signal Loss (input to output): -20dB
Features
1/4 in. parallel wired in/out jacks
Ground Lift switch to help isolate hum and buzz
Uses Whirlwind's TRHL transformer that's riveted, not glued, to the chassis
Built rugged on the inside and outside, this is the world famous DI found in pro systems everywhere.
Technical Info
Input Impedance: 20K OhmsOutput Impedance: 150 Ohms
Frequency Response: 50 -17KHz ±1dB
Signal Loss (input to output): -20dB
Simple, standard, yet bulletproof DI box! Passive operation eliminates concerns about powering up on a crowded stage. Includes ground lift switch.
09/04
New lower price, New, was $39.95, now only $33.95.
What Our Customers Say About zZounds
"I just couldn't ask for any better service. Will I buy from zZ again? You bet!" - customer on November 7, 2009
Call
800.ZZOUNDS (996.8637)
and mention priority code: 7WWWXFN
Item: WHRIMP2
related accessories
from $9.95
from $9.95
from $119.95
Whirlwind IMP2 Standard Direct Box Reviews
10 out of 10
"well built, high quality, just the right features"
really rugged. These are practically unbreakable. I like them better than the other varieties made with sheet metal exteriors. The elements inside are supposedly very high quality as well.
Submitted: 03/06/2003
Style of Music: theatrical (live pit band reinforcement)
10 out of 10
"Great item for reducing hum!!!"
Feature:
I like the connection options and ground lift switch.
Quality:
The one I use at our church has been hooked and unhooked many times and has held up well.
Value:
Very good for what it does. If you've got hum, this is what will elimate it. Works good for connecting hi-z equipment to your mixer or from your hi-z mixer output to a low-z amp input.
Desirability:
I plan to get three or four for my own p.a. set up which I use in my sound buisness.
Sound:
This product does not effect the sound, but eliminates the hum caused by mis matched impedence connections.
Ease of Use:
Simple to use. Do your connections and get going. I connected a keyboard (hi-Z) to the mixer lo-Z input and had some hum. I picked up one of these and the hum disappeared with clean sound.
Support:
never had to use any support.
Overall:
The one our church uses has held up for several years now.
I like the connection options and ground lift switch.
Quality:
The one I use at our church has been hooked and unhooked many times and has held up well.
Value:
Very good for what it does. If you've got hum, this is what will elimate it. Works good for connecting hi-z equipment to your mixer or from your hi-z mixer output to a low-z amp input.
Desirability:
I plan to get three or four for my own p.a. set up which I use in my sound buisness.
Sound:
This product does not effect the sound, but eliminates the hum caused by mis matched impedence connections.
Ease of Use:
Simple to use. Do your connections and get going. I connected a keyboard (hi-Z) to the mixer lo-Z input and had some hum. I picked up one of these and the hum disappeared with clean sound.
Support:
never had to use any support.
Overall:
The one our church uses has held up for several years now.
Submitted: 04/22/2008
