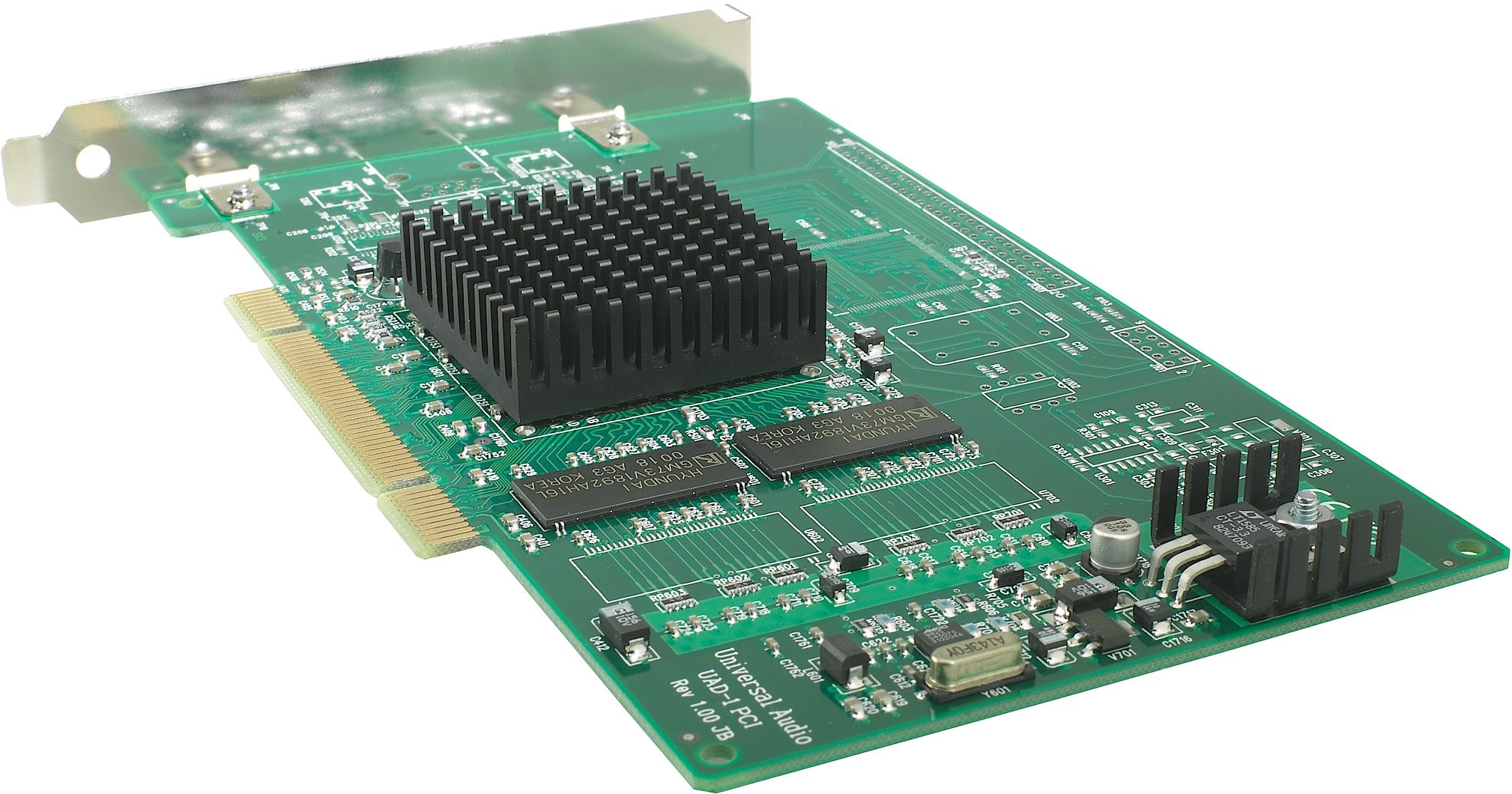

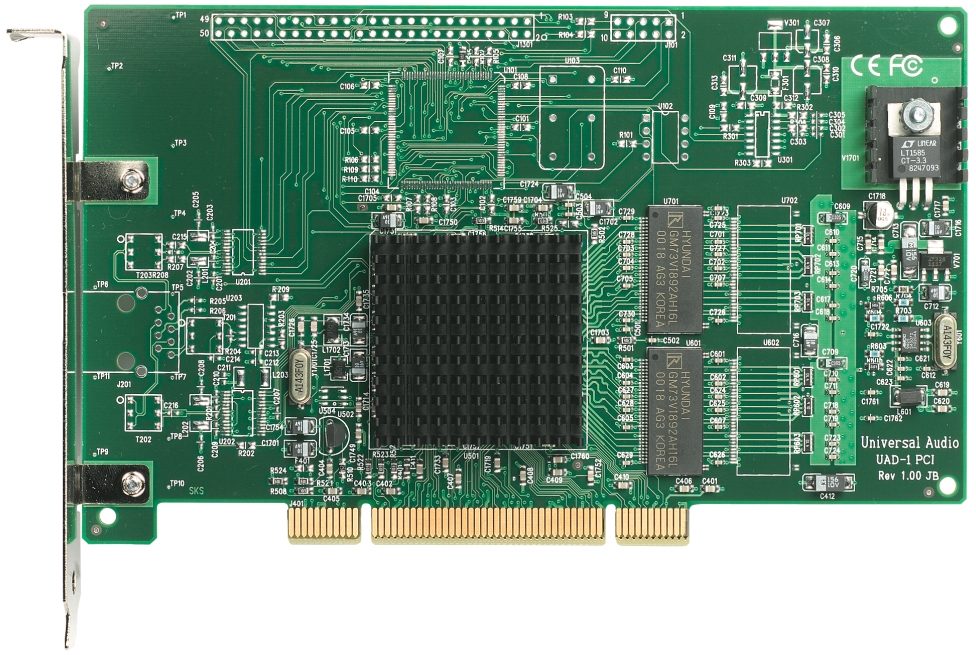

Universal Audio UAD1 Project Pak DSP Card (Macintosh and Windows)

The UAD-1 Project Pak brings UA's revolutionary combination of DSP hardware and highly-prized software plug-ins within the reach of small PC or Mac project studios with a limited budget. It is also how existing users can inexpensively take advantage of even greater power, by using multiple UAD-1 cards (up to four per system). The UAD-1 Project Pak supports 44.1 to 192 kHz sessions and is the easiest way to upgrade your mixes and get that professional polished sound using your existing DAW software/hardware without needing a computer upgrade.

At heart of the UAD-1 Studio Pak is the same single unpartitioned, floating-point super-computing processor which allows for larger and more sophisticated processing algorithms offering a new level of power and complexity not found with host-based plug-ins. By greatly reducing the burden on your computer's CPU, your host application can now deliver more tracks, automation and native effects.

Features

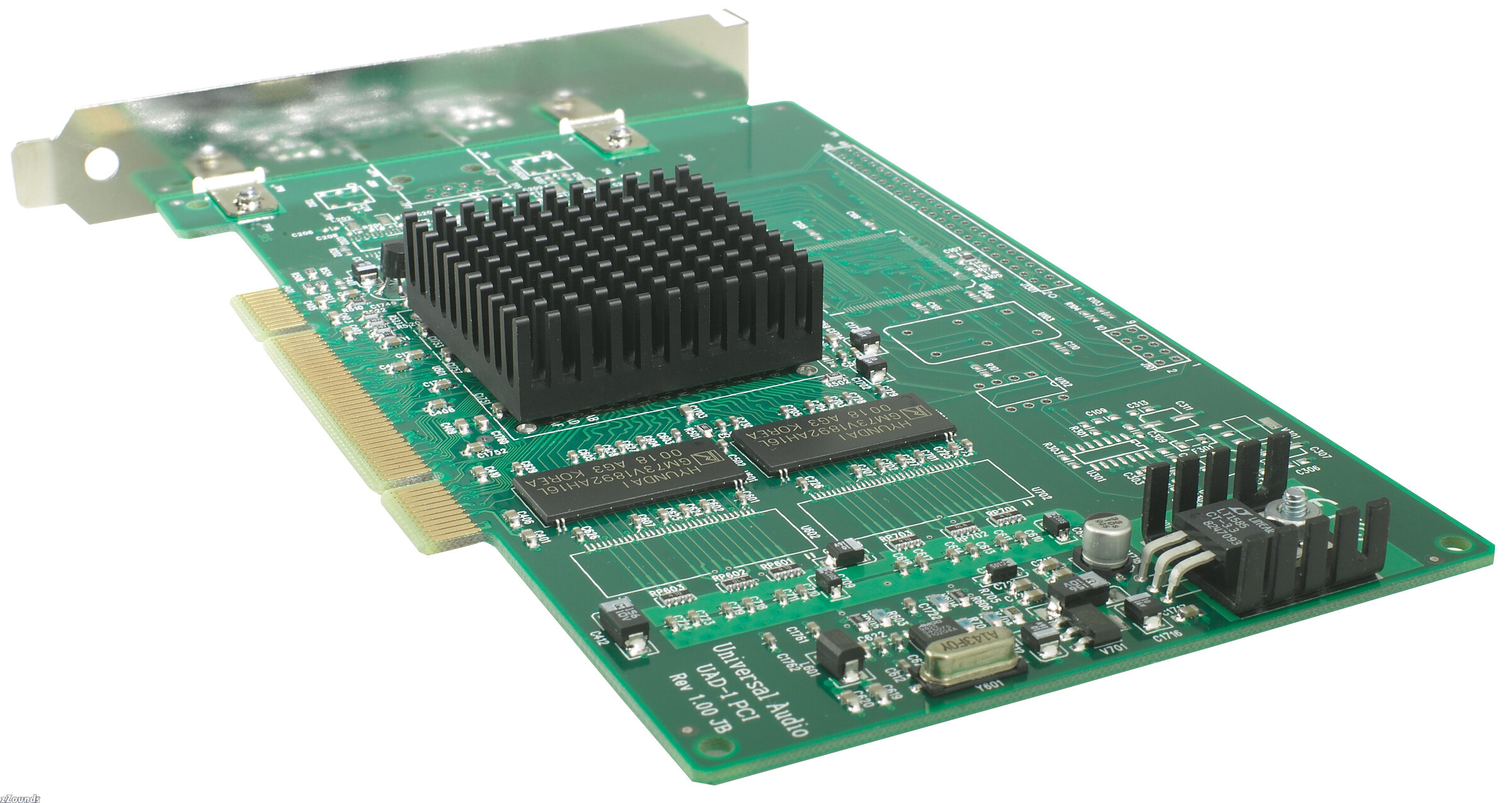

Single unpartitioned super-computer DSP chip

Bus mastering DMA for zero host load and maximum transfer rate

Fully PCI 2.1 compliant, supports 66MHz and faster bus timing

7 in. form factor (PCI short card)

Compatible with the Magma PCI Expansion Chassis

More DSP headroom per plug-in than other multi-chip DSP cards

Supported sampling Rates from 32 kHz -- 192 kHz

Best sounding plug-in collection

Included Plug-Ins

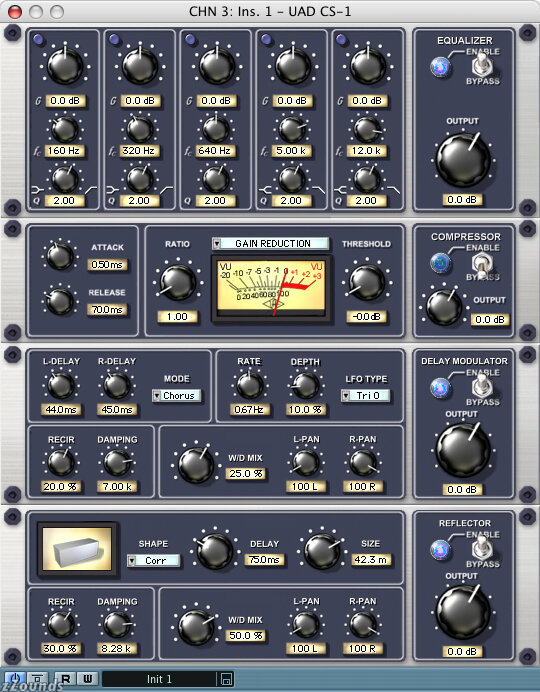

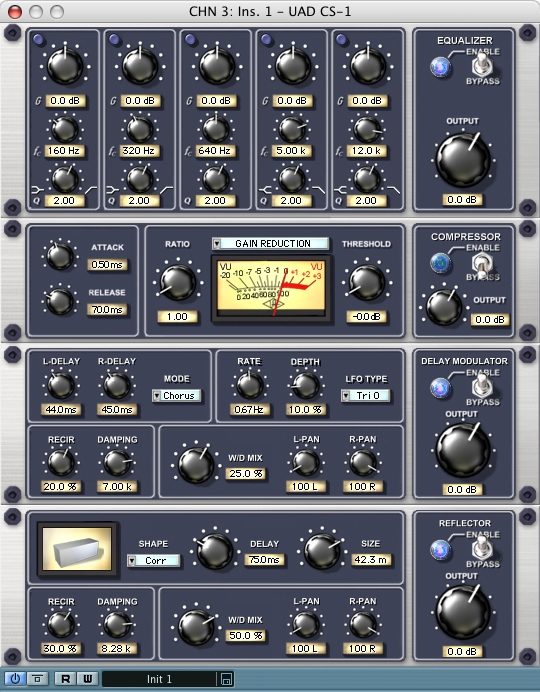

CS-1 Channel Strip

DM-1/L Delay Modulator

RS-1 Reflection Engine

EX-1 EQ & Compressor

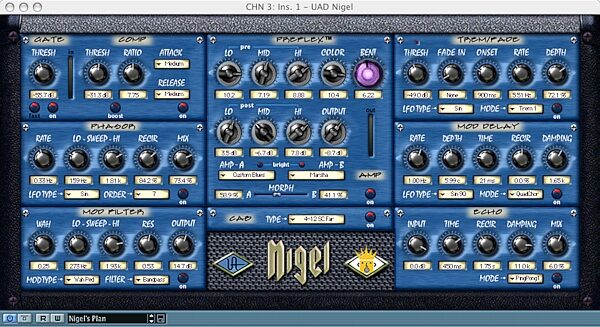

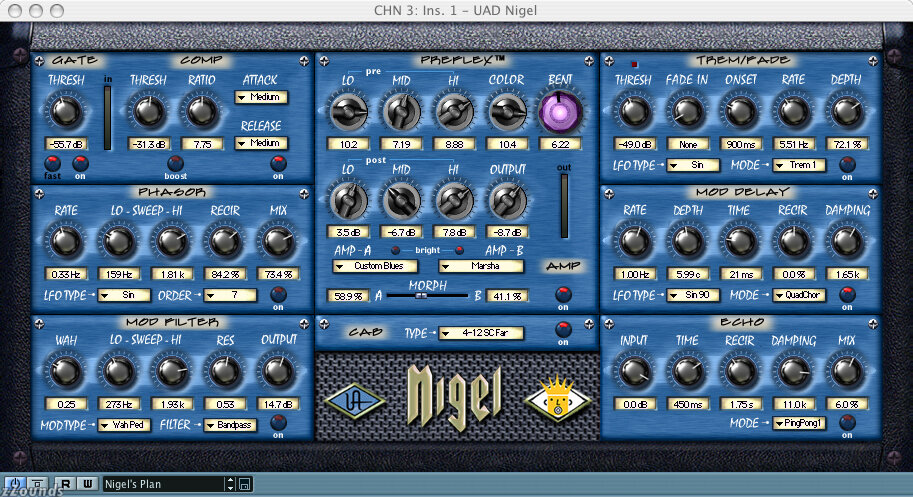

Nigel

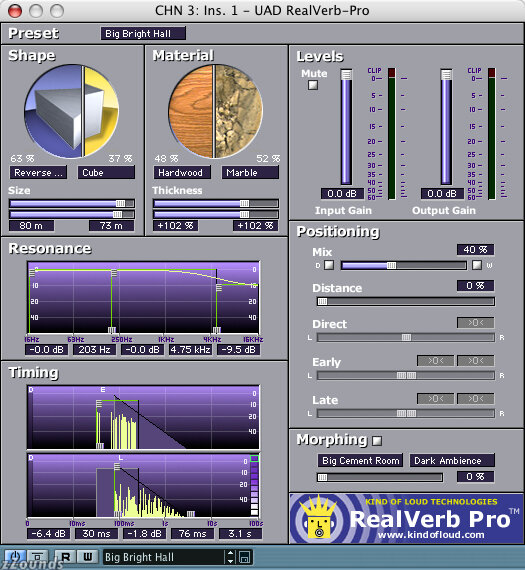

Realverb Pro

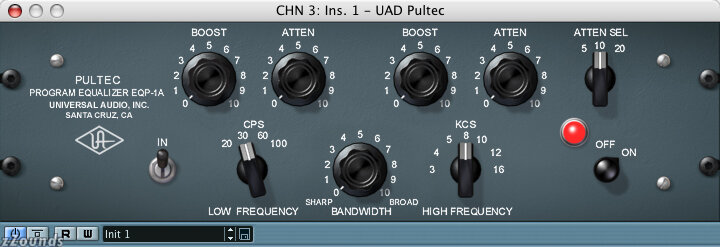

Pultec EQP-1A

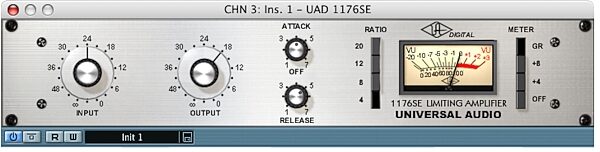

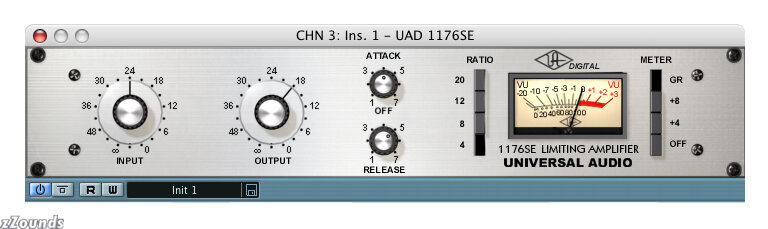

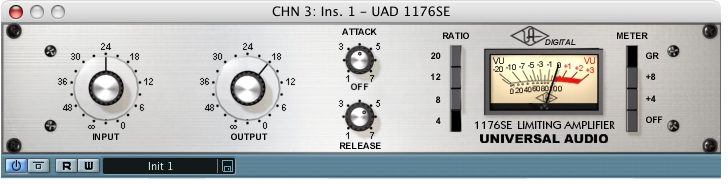

1176 SE Limiting Amplifier

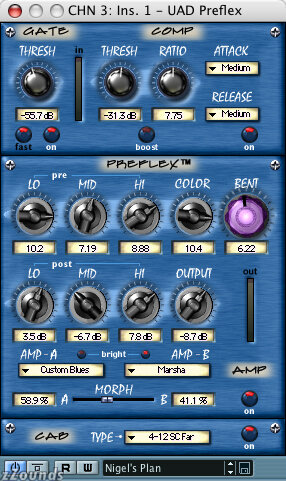

Preflex - Amp/Cab Simulator

Gate/Comp

Phasor

Mod Filter

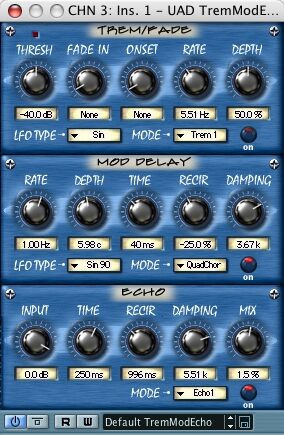

Trem/Fade

Mod Delay

Echo

Technical Info

UAD System Requirements

Version 4.6

All Platforms:
* 100 MB of available hard disk space
* 256 MB of RAM (512 MB is strongly recommended)
* Available PCI or PCI-X slot for each UAD-1 card
* 1024 x 768 or higher resolution monitor
* CD drive or internet connection for software installation
* An AGP or PCI Express graphics video adapter (PCI graphics is not supported)
* Internet connection required for registration and obtaining optional plugins
* Additional platform-specific requirements are listed below

Windows platform:
* Microsoft Windows XP (Home, Pro, or x64 Edition), Windows 2000, Windows Server 2003, or Windows Vista
* VST compatible host application software, such as Steinberg Cubase or Nuendo

Mac OS X platform:
* Mac OS X version 10.4.0 or higher
* VST version requires VST compatible host software, such as Steinberg Cubase or Nuendo
* Audio Units version requires AU compatible host software, such as Apple Logic Pro or MOTU Digital Performer
* Processor upgrade cards are not officially supported

Discontinued platforms:
* Mac OS 10.3.9 "Panther" runs with UAD version 4.5.1 and below
* Mac OS 10.3.0 - 10.3.8 "Panther" runs with UAD version 4.2.0 and below
* Mac OS 10.2.x "Jaquar" runs with UAD version 4.1.0 and below
* Windows DirectX runs with UAD version 4.0.0 and below
* WIndows 98SE/ME and Mac OS 9 (VST & MAS) run with UAD version 3.9.0 and below
