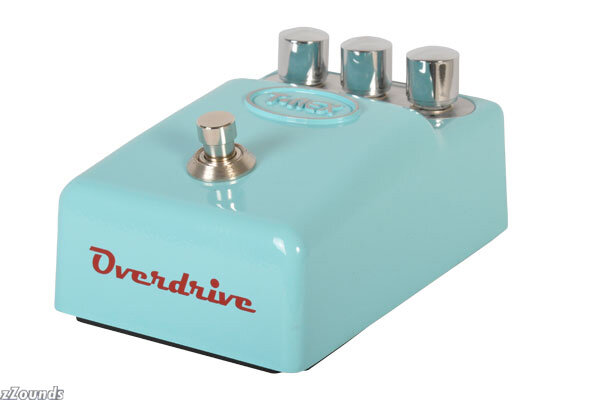

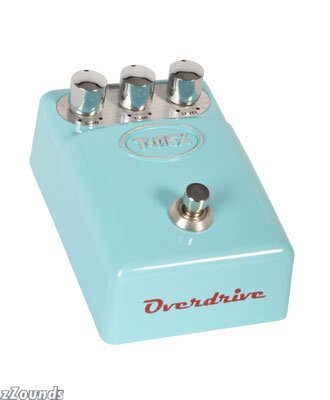

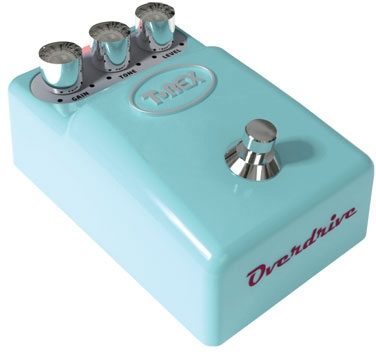

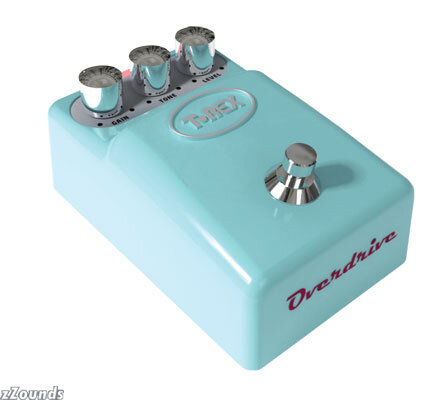

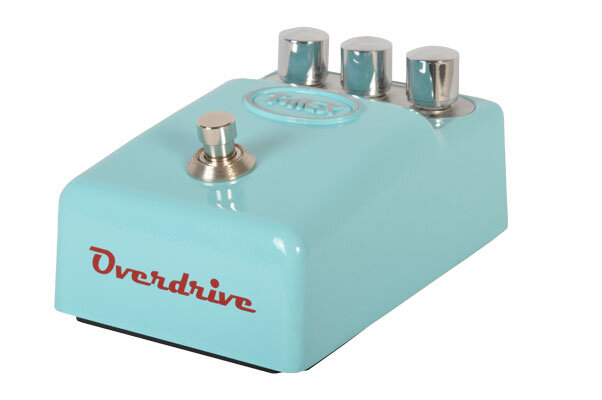

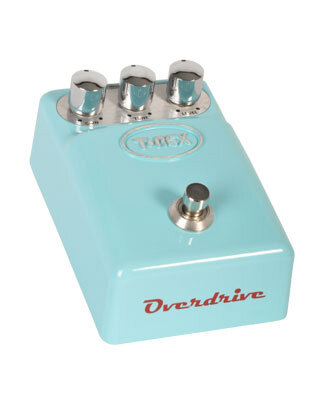

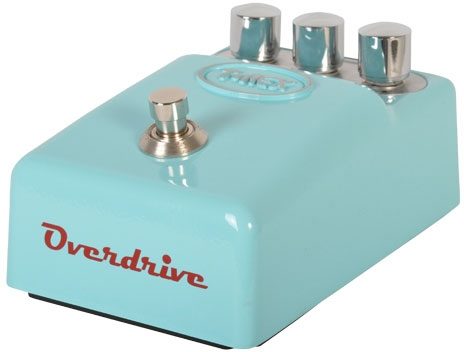

T-Rex Tonebug Overdrive Pedal

In the beginning, there was overdrive...
Not distortion. Certainly not fuzz. But overdrive - that almost miraculously warm, saturated sound of one vintage tube amp pushing the next one just a little too hard. It's what the blues are made of. And it's what created rock and roll. In fact, it's the First Foundation of just about every style of guitar playing out there. And now it's yours, with the ToneBug Overdrive.

Simply gorgeous

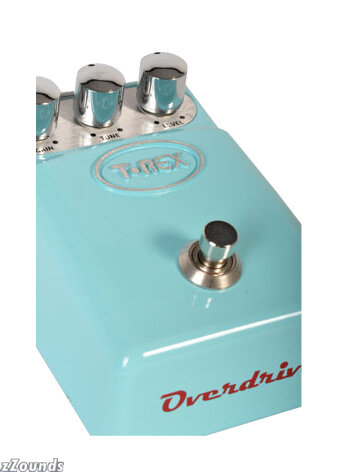

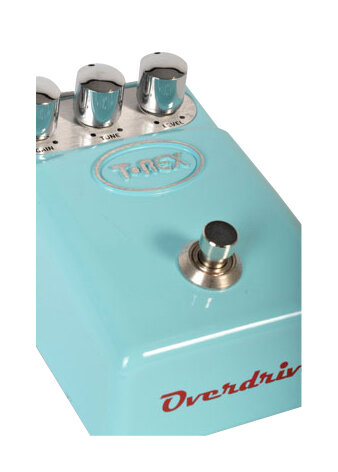

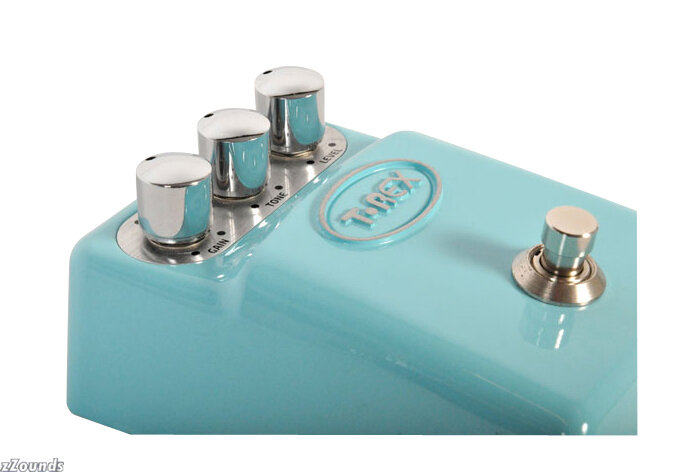

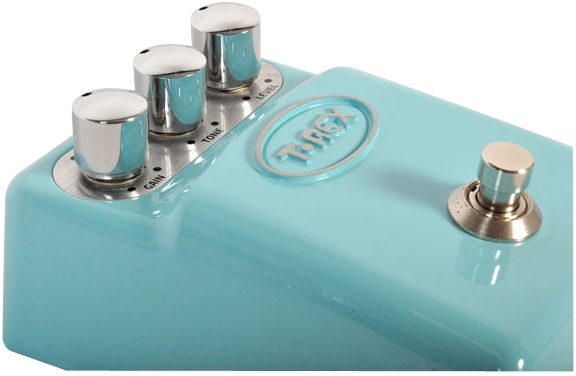

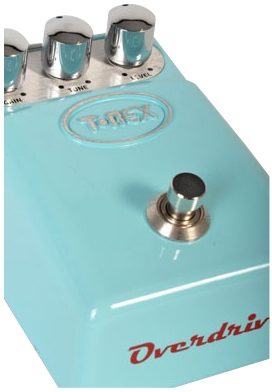

ToneBug Overdrive is a masterpiece of simplicity, offering just the controls you need to give your sound the unmistakable warm edge that's the hallmark of every guitarist that's ever meant anything to rock and roll. You get a Gain control for setting the amount of overdrive, a Tone control for tuning the timbre of your gain, and Level for making sure your overall volume is right. It's neither more nor less than everything you need.

T-Rex tone
What sets ToneBug Overdrive apart from other pedals out there is this: legendary T-Rex tone. It's the same tone that's made our top-end pedals such a huge success - and a fixture on the pedal boards of a long list of guitar greats (see our website for recent T-Rex sightings). Try ToneBug Overdrive today, and discover the sweetest vintage overdrive you'll ever hear.

Technical Info

Specifications
Input Impedance @ 1 KHz: Higher than 1 M Ohm

Output Impedance @ 1 kHz: Lower than 1 K Ohm

Power supply: 9V DC

Minimum Power supply Voltage: 8V DC

Maximum Power supply Voltage: 12.5V DC

Current Draw @ 9V DC: 7 mA

Maximum input signal Vp/p: 3.2 Vp/p

Battery Type: 9V battery 6F22 Alkaline

Battery Life: 12 to 16 Hours

External connectors: Input Jack. Output Jack, 9V DC Jack (center pin negativ)

Controls: On/Off, Level, Gain, Tone

Depth: 120 mm

Width: 78 mm

Height: 60 mm

Weight with Power supply: 0.403 kg
