Tascam DM4800 Digital Mixer

The Tascam DM-4800 is the ultimate digital console for professional users who demand a flexible, 64-channel mix platform that configures to fit their needs. A "fat channel" strip in the center of the board provides instant access to 4-band parametric EQ, dynamics and aux controls available for the first 48 channels. Twenty-four studio-grade mic preamps provide enough inputs for a live event, and more can be added using expansion cards with external preamps. The standard compliment of analog and digital I/O is more than you'll find on consoles costing three times as much, and a completely confi gurable 24-buss routing system allows you to re-patch the board at the flick of a switch.

Tascam's DM-4800 fits seamlessly into the modern recording environment based around a computer DAW. With a single button press, the Remote layer provides a 24-fader control surface for control of premiere workstations such as Pro Tools, Logic, SONAR, DP, Cubase and Nuendo. The optional IF-FW/DM mkII interface card provides 32 channels to and from a computer at up to 96kHz over a single FireWire cable. And the optional surround monitoring card provides downmixing, bass management and level control for mixing in up to 6.1 surround. No matter what your application, the TASCAM DM-4800 adapts to the needs of any professional audio installation.

Features:
48 channels and 16 returns for 64 total inputs

24 busses

12 Aux Sends

24 mic/line inputs with analog inserts plus phantom power for condenser mics

24 channels of TDIF and 8 channels of ADAT built in

4 expansion card slots support optional FireWire, ADAT, AES/EBU, Analog, TDIF and Surround Monitoring cards

Dedicated cascade port supports cascade of two DM-4800s

Channel Strip section for EQ, Dynamics and Aux control of selected channel

Per channel LED ring encoders for pan, aux sends and EQ

Built-in DAW control layer compatible with Pro Tools, Logic Pro, SONAR, Cubase, Nuendo, and Digital Performer

Transport buttons control DAW software, RS-422 devices or MMC devices

Powerful automation with touch-sensitive motorized faders

4-band EQ, compression and gating on each channel

Compression for each aux, buss and main output

Two built-in effects processors, each able to run TC Reverb programs

Flexible routing allows any input to be routed to any channel or output

Offload data to convenient Compact Flash media using built-in CF slot

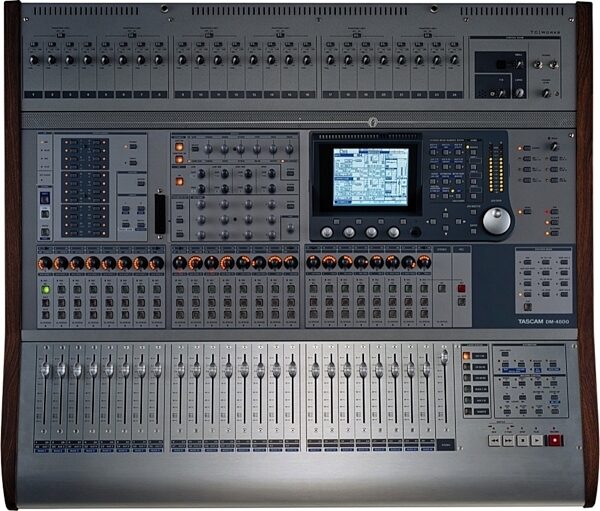

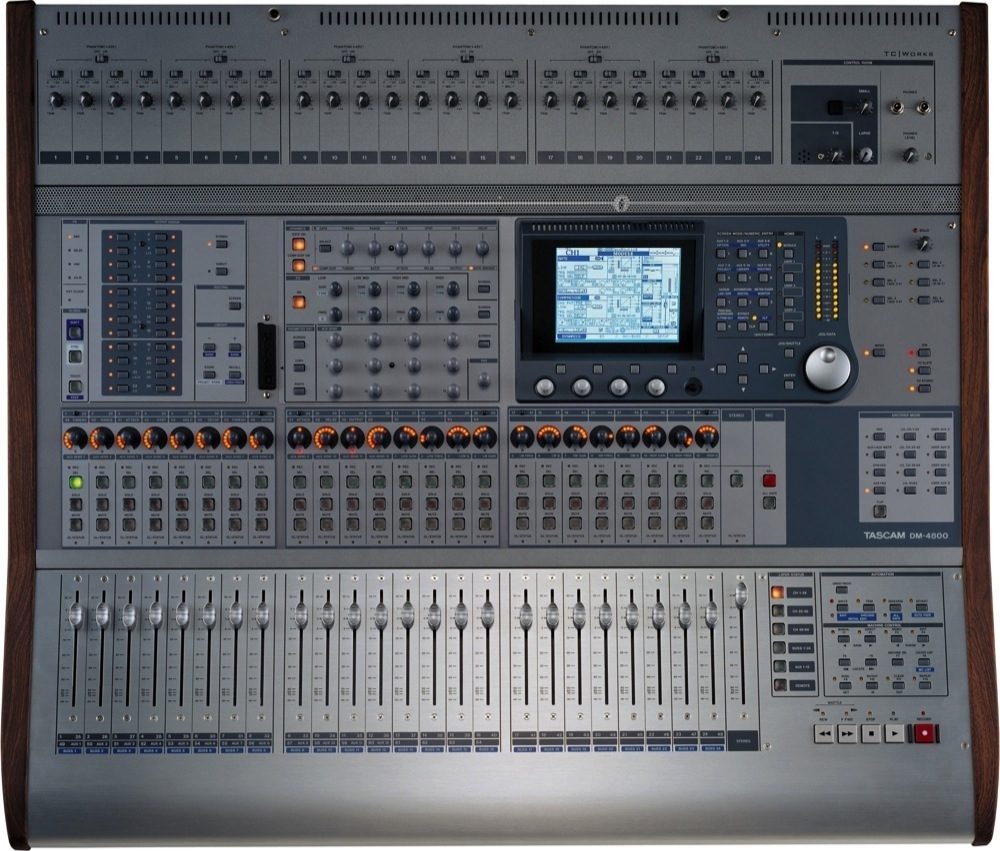

Optional MU-1000 meter bridge (as shown)

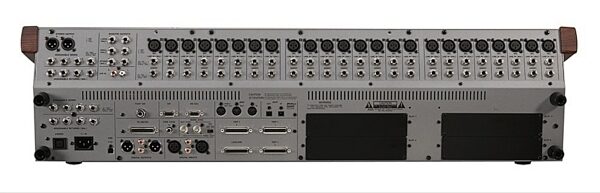

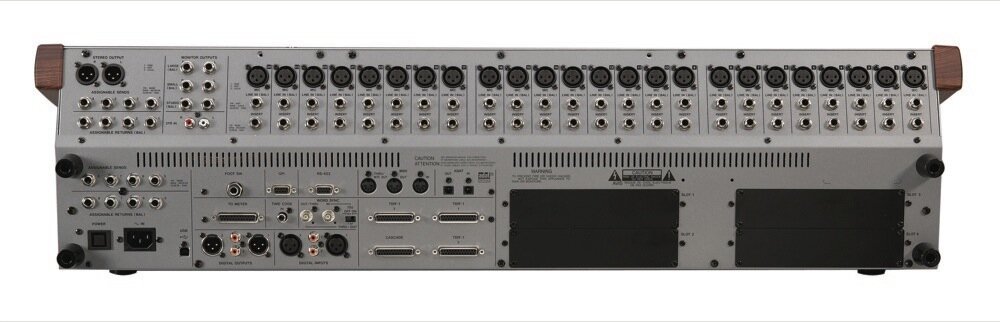

Technical Info

(24) XLR mic/line inputs with analog inserts plus phantom power for condenser mics
(24) 1/4 in. TRS Analog inserts
(24) Balanced 1/4 in. TRS line inputs
(3x) 8-channel TDIF digital inputs and outputs
8-channel ADAT optical digital input and output
(4) expansion card slots support optional FireWire, ADAT, AES/EBU, Analog & TDIF cards
(2) Stereo AES/EBU digital inputs on XLR connectors
(2) Stereo S/PDIF digital inputs on coaxial connectors
(2) Stereo AES/EBU digital outputs on XLR connectors
(2) Stereo S/PDIF digital outputs on coaxial connectors
Stereo XLR balanced line outputs
1/4 in. Stereo TRS balanced Large Monitor outputs
1/4 in. Stereo TRS balanced Small Monitor outputs

Maximum overall dimensions (w x d x h) including rest:
36.75 in. x 32.4 in. x 9.1 in. (933mm x 824mm x 230mm)

Weight: 71 lbs (35kg)

Sixty-four channel digital mixer for the ultimate in flexibility! Twenty-four mic preamps with inserts and phantom power, 48 total input channels, and 16 returns; 24 busses that can be reconfigured instantly. Built-in 4-band parametric EQ and dynamics on each channel; 2 multi-effects processors. Integrated control for major DAW software via USB. Meter bridge option sold separately.
