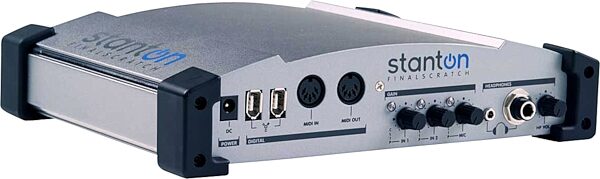

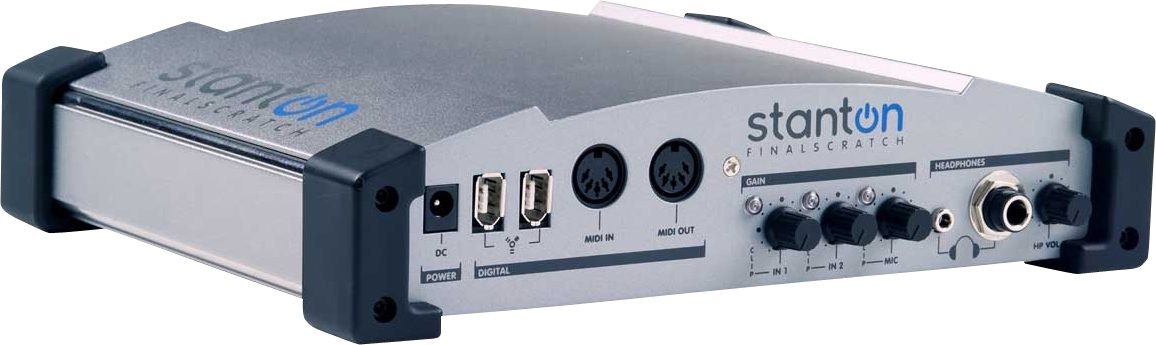

Stanton Final Scratch Open DJ Audio Interface

FinalScratch OPEN offers you the freedom of choice, allowing you to decide which dj software application fits your performance needs, utilizing the state of the art Stanton ScratchAmp. Still the strongest feature- for- value FireWire audio interface available today, the ScratchAmp delivers maximum audio throughput with minimal latency.

OPEN Options: The World Class Stanton ScratchAmp
ScratchAmp is a generic but powerful audio interface tailored towards the inputs and outputs that a performing DJ would require when using software.

Because the ScratchAmp is an ASIO / WDM device on Windows and is a class compliant CoreAudio device on the MacOS, it can work with virtually every audio application on the planet. Traditional non pro-audio applications will work with the WDM driver and CoreAudio compliance, allowing programs such as iTunes, Windows Media Player, WinAmp, PowerDVD and games to utilize the ScratchAmp. The ASIO and CoreAudio compatibility ensure that pro-audio applications such as Cubase, Project 5, Ableton Live, FL Studio, Reason and others will run flawlessly with the sound card.

The interface allows you to plug in your turntables, CD players, headphones and microphone to industry-standard 24-bit/96kHz converters for studio-quality sound, perfect for utilizing any software that does not ship with a soundcard, such as MixVibes, DeckaDance, Ableton Live, Virtual DJ, OtsDJ, PCDJ and more.

The Power of FireWire
The ScratchAmp is expertly engineered, using FireWire protocol to process multi-channel audio with minimal latency, allowing the software decks to respond as quickly as your hands. A FireWire Thru port lets you connect an iPod or external hard drive. The ScratchAmp's integrated switching power supply can be powered directly off of the FireWire bus of a Mac laptop or powered externally when permanently installed or used with a PC laptop.

Built-in MIDI technology
Thanks to its MIDI In and Out ports, the ScratchAmp is ready to connect with many of the vast MIDI controllers available for additional "hands-on" control. The small and rugged aluminum chassis is perfect for home use or on the road.

Your performance, Your choice
Why limit yourself? FinalScratch OPEN provides you with a rock-solid audio foundation and from there the choice is yours....

Technical Info

Audio Specifications
Frequency Response- Line/ Mic: 20 Hz to 20 kHz +/- 1.0 dB

Frequency Response- Phono: RIAA +/- 1.0 dB

THD+N : 0.005% at 1 kHz

S/N Ratio (ref: full scale):
ADC 48 kHz: 105 dB (A-weighted)
ADC 96 kHz: 100 dB (A-weighted)
DAC: 110 dB (A-weighted)

Crosstalk: < -90 dB at 1 kHz (Channel to Channel)

Sample Rates Supported: 44.1 kHz, 48 kHz, 96 kHz

Bit Resolution: 24 bit

Driver Specifications
Latency: < 2 ms

Driver Support: Windows XP & XP 64-bit (ASIO, WDM) / MacOSX (CoreAudio)

Power Specifications
Firewire Bus Power: 8 V to 30 V 10 watts

External Power Adapter: 9 VDC

FinalScratch OPEN lets you use FinalScratch technology with any DJ software you want! Windows ASIO/WDM and Mac CoreAudio compliant. FireWire connection for minimum latency and best possible scratching response. Dual phono/line RCA inputs with thru; dual RCA outputs; aux RCA phono/line input. XLR-1/4" mic/line input with thru. MIDI I/O. Headphone output with volume control. Runs on included adapter or FireWire bus power.
