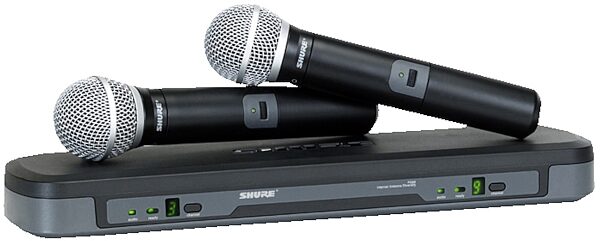

Shure PG288/PG58 Dual Vocal Wireless Microphone System

Whether you run a music venue, a lecture hall, or a karaoke club, wireless microphones can make your job easier -- or harder! While wireless mics give presenters and performers the freedom to move around without tripping over cabling, wireless systems come with their own set of headaches: transmission interference. Adding additional mics to your system can make this problem even bigger, but the Shure PG288/PG58 Dual Vocal Wireless System combats transmission interference in several ways to make sure you never miss those mic cables. And the Shure PG288/PG58 system boasts the audio quality that has made Shure a live performance industry standard.

Two Mics + Two Frequencies = Zero Interference

When you get two or more wireless microphones in the same space set to the same frequency, those mics will start to compete for bandwidth -- and if you've ever heard two radio stations fight for dominance on your car stereo, you know it's not a pretty sound. The PG288/PG58 System eliminates this problem, because PG-series wireless mics are pre-calibrated to stay out of one another's way.

Switchable Channels For Expandability

You might notice the "Channel H7, Channel K7, and Channel M7" options to the upper right. These codes represent different frequency bands -- sort of like AM and FM. By getting systems with different bands, you can add additional Shure PG288/PG58 units to your setup without having to worry about crosstalk interference. In addition to these different band range options, each PG288 receiver has up to 10 switchable channels. Channel switching makes it easy to find a clean frequency if you're in a radio-busy area. In fact, you can use up to eight PG288/PG58 Dual Vocal Wireless Systems together. That's up to 16 wireless microphones in one venue!

Receiver Diversity

Even with adjustable channel selection, there's no telling when an errant radio signal will suddenly beam into your space and collide with one of your active wireless units. Even momentary interference can cause audible signal dropouts or noise spikes, but the Shure Dual Vocal Wireless System combats these problems with a method called "frequency diversity." The PG288 receiver's internal diversity actively and predictively switches between one of several transmitted frequencies, so if the system senses that another signal is competing on a specific frequency, it automatically switches to a clear one. Diversity gives the Shure wireless systems a more robust signal that you can rely on for demanding professional applications.

Classic Shure PG58 Mic Capsule

A transmission signal this stable deserves a stellar microphone, and the Dual Vocal Wireless system delivers with its Shure PG58 handheld transmitter. Based on the design that's become the industry standard for live performance the world over, the PG58 mic is perfectly tailored for vocal reproduction. Notes a full-bodied and musical for singers, while spoken word is clear and articulate. Plus, the mesh metal grille protects the mic element itself from drops and the inevitable singer-spittle. "PG" stands for "Performance Gear," and as soon as you start gigging with your new PG288/PG58 system, you'll know why.

You've always wanted a wireless mic, and you know you're not the only one in your band that does. Go on and treat yourself and a bandmate to the Shure PG288/PG58 Dual Vocal Wireless System. It's the affordable wireless solution that's worry-free, and sounds the way only a Shure wireless microphone can. zZounds is an authorized dealer of Shure products.

System
- Working Range: 75m (250 ft.) Note: actual range depends on RF signal absorption, reflection, and interference.
- Audio Channel Response: Minimum: 45 Hz. Maximum: 15 kHz (overall system channel depends on microphone element).
- Total Harmonic Distortion: 0.5%, typical Ref. +/- 33 kHz deviation, 1 kHz tone
- Dynamic Range: >100 dB A-weighted, typical
- Operating Temperature Range: -18 degrees C (0 degrees F) to +57 degrees C (+135 degrees F) Note: battery characteristics may limit this range
- Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
- Independent outputs (one XLR and one 1/4" per side)

PG2 Handheld Transmitter
- Audio Input Level: +2 dBV maximum at -10dB position -8 dBV maximum at 0dB position
- Gain Adjustment Range: 10dB
- RF Transmitter Output: 10 mW typical (dependent on applicable country regulations)
- Dimensions: 223.52 L x 53.34 Dia. (8.8 in. x 2.10 in.)
- Weight: 218 grams (7.7 oz.) without battery
- Housing: Molded ABS handle and battery cup
- Power Requirements: One 9V alkaline or rechargeable battery
- Battery Life: >8 hours (alkaline)

Dimensions and Weight in Packaging

Channel H7 (536-548 MHz)

Shipping Weight: 6 lbs

Shipping Dimensions: 19 x 16 x 3 in

Channel K7 (590 - 602 MHz)

Shipping Weight: 6 lbs

Shipping Dimensions: 18 x 16 x 3 in

Channel M7 (662 - 674 MHz)

Shipping Weight: 6 lbs

Shipping Dimensions: 19 x 16 x 3 in

Product Description

A comprehensive first step into professional wireless, Performance Gear Wireless Systems are engineered to the same uncompromising quality standards as PGX, SLX, ULX and UHF-R wireless. Marrying superior sound quality and stage-proven endurance with advanced features like Internal Antenna Diversity and frequency selectability, Performance Gear Wireless fulfils the promise of independent, confident performance in freedom from the wire.

Features:

- Reliable wireless performance
- Up to 8 compatible systems (across multiple bands)
- Shure's patented Predictive Diversity ensures continuous reception
- Confident, portable setup
- Internal Antenna
- First in the industry
- Internal 1/4 wave antennas minimize poor positioning and breakage
- Durable construction
- Superior sound quality
- Variable companding ratio for clear sound
- 80 years of microphone expertise

PG4 Receiver

- Internal antenna diversity
- Up to 10 selectable channels
- 8 compatible systems (multiple bands vary per country)
- 1/4 in. and XLR output

PG2 Handheld Transmitter

- Power, mute and battery status LED
- Power and mute switch
- 9V battery (included) provides 8 hours of battery life
- 75m (250 ft.) operating range

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
