Shure P4TRE3/PSM400 Wireless Personal Monitor System

PSM 400 Wireless and Wired systems make professional quality personal monitoring available to more performers than ever before. Each system includes everything a working musician or band needs to receive consistent personal monitor mixes.

Designed for performers who are tired of the limits of floor wedges, the PSM 400 offers hands-on control and freedom to musicians who have a limited budget for gear. With a wide range of available options - from complete Wireless and Wired systems to individual components - there is a PSM 400 that is right, rehearsal through performance, for almost everyone who performs live music.

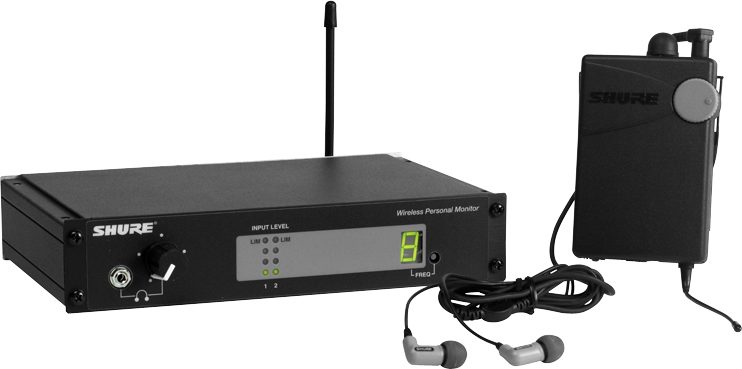

The P4TRE3 Wireless Personal Monitor System consists of the P4T Wireless Transmitter, the P4R Wireless Bodypack Receiver, and the E3 Single-Driver Earphones.

P4T Wireless Transmitter
Built-in audio limiter

External power supply

Remotable/combinable antennas

1/2 rack space

P4R Wireless Bodypack Receiver
High-impact plastic chassis

Frequency locator

E3 Single Driver Earphones
Single Low Mass/High Energy drivers for high fidelity full-range sound and isolation from outside noise.

Technical Info

P4T Wireless Transmitter
Operating Controls:
Earphone volume knob
Frequency select

LED Indicators:
4-segment input level
Transmission Frequency

Inputs: 2 - 1/4 in. TRS line level

Outputs:
2 - 1/4 in. TRS loop outs
Local earphone monitor

RF Frequency Range: 722 to 865 MHz (country dependent)

Operating Range: 300 feet (environment dependent)

RF Output Power: 50 mW (+17 dBm) typical conducted (country dependent)

Modulation Limiter: Internal peak limiter (>10:1 compression)

Antenna: External whip, 50 BNC connector

Power Requirements: Operating voltage 14-18 Vdc

Supplied power supplies: Model PS40: 120 Vac, 60 Hz input.

Current: 250 mA maximum

Dimensions: 8.63 x 1.718 x 5.375 in. (219.2 x 43.6 x 136.5 mm)

Net Weight: 2 lbs. (907.2 g)

P4R Wireless Bodypack Receiver
Operating Controls:
Operating mode (Stereo, Mono, MixMode)
Volume knob
Balance
Defeatable limiter
High-frequency boost
Frequency select

Backlit LCD Indicators:
RF reception
Battery life
Operating mode
Frequency

RF Frequency Range: 722 to 865 MHz (country dependent)

Operating Range: 300 feet (environment dependent)

Audio Frequency Response: 50 Hz to 12 kHz (+/- 3 dB)

RF Sensitivity: 1 mV typical

Image Rejection: 55 dB typical

Spurious Rejection: 60 dB typical

Squelch Threshold: 4.5 mV typical

Antenna: attached whip

Power Requirements: 9 V alkaline battery

Battery Life: up to 8 hours, volume dependent

Audio Output Connector: 3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)

Minimum Load Impedance: 16 ohms

Net Weight: .28 lbs.(125 g )

Overall Dimensions: 3-1/4 x 2-1/2 x 1-1/32 in.(82.6 mm X 63.5 mm X 26.2 mm)

E3 Single Driver Earphones
Transducer Type: single low mass/high energy

Sensitivity (at 1 kHz): 115 dB SPL/mW

Impedance (at 1 kHz) 26 ohms

Output Connector: Gold-plated stereo, 3.5 mm (1/8 in.) phone plug

Cable Length: 1.57 m (62 in.)

Important NOTE:
Due to the FCC reallocation and auction of frequencies in the 700 MHz band, Shure has chosen to move the PSM 400 products from the HF band (722 to 746 MHz) to the new X1 band (944 to 952 MHz). There are no changes to pricing.

The X1 band extends from 944 to 952 MHz (8 MHz total). This portion of the RF spectrum is called the “STL band” because it is used for Studio-Transmitter Links between a radio station studio and a transmitter in a different location. It is outside of the TV band, new wireless services, and public safety bands.

NOTE: PSM 400 systems operating in the X1 band are not compatible with the PA770 antenna combiner.

16-channel, frequency agile monitor system with 300' range. Two 1/4" TRS inputs, TRS and local earphone outs on receiver. Includes single-driver isolation earphones.
