The TD-6V: More Than Just a New Look

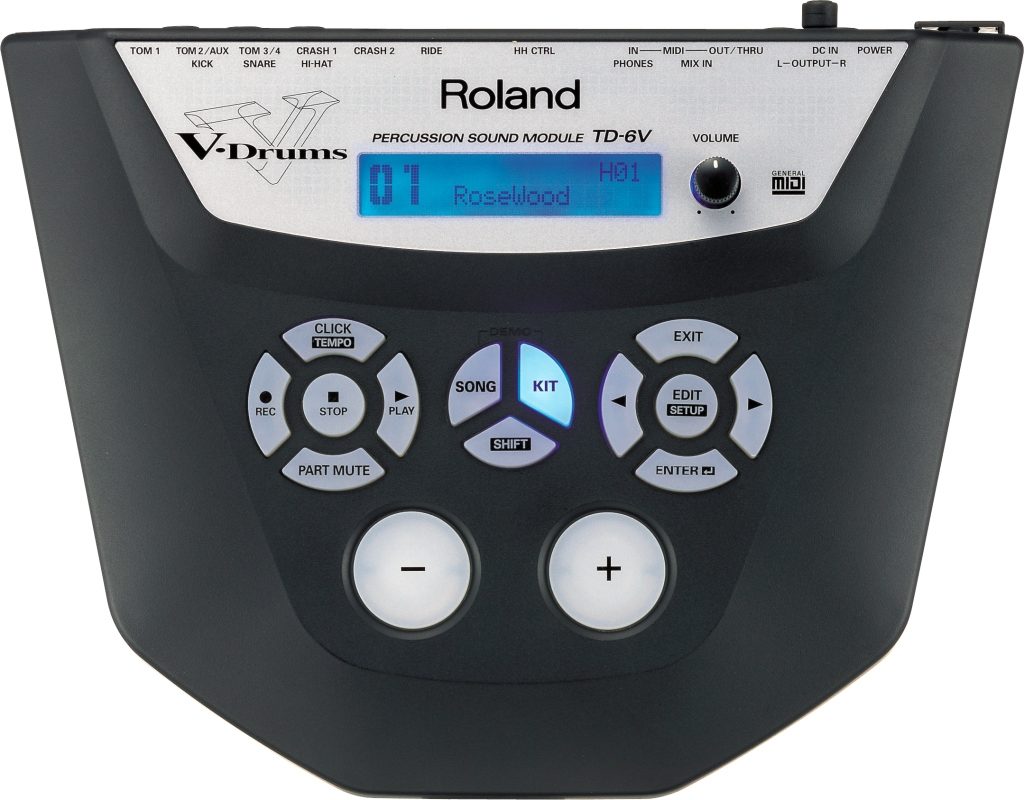

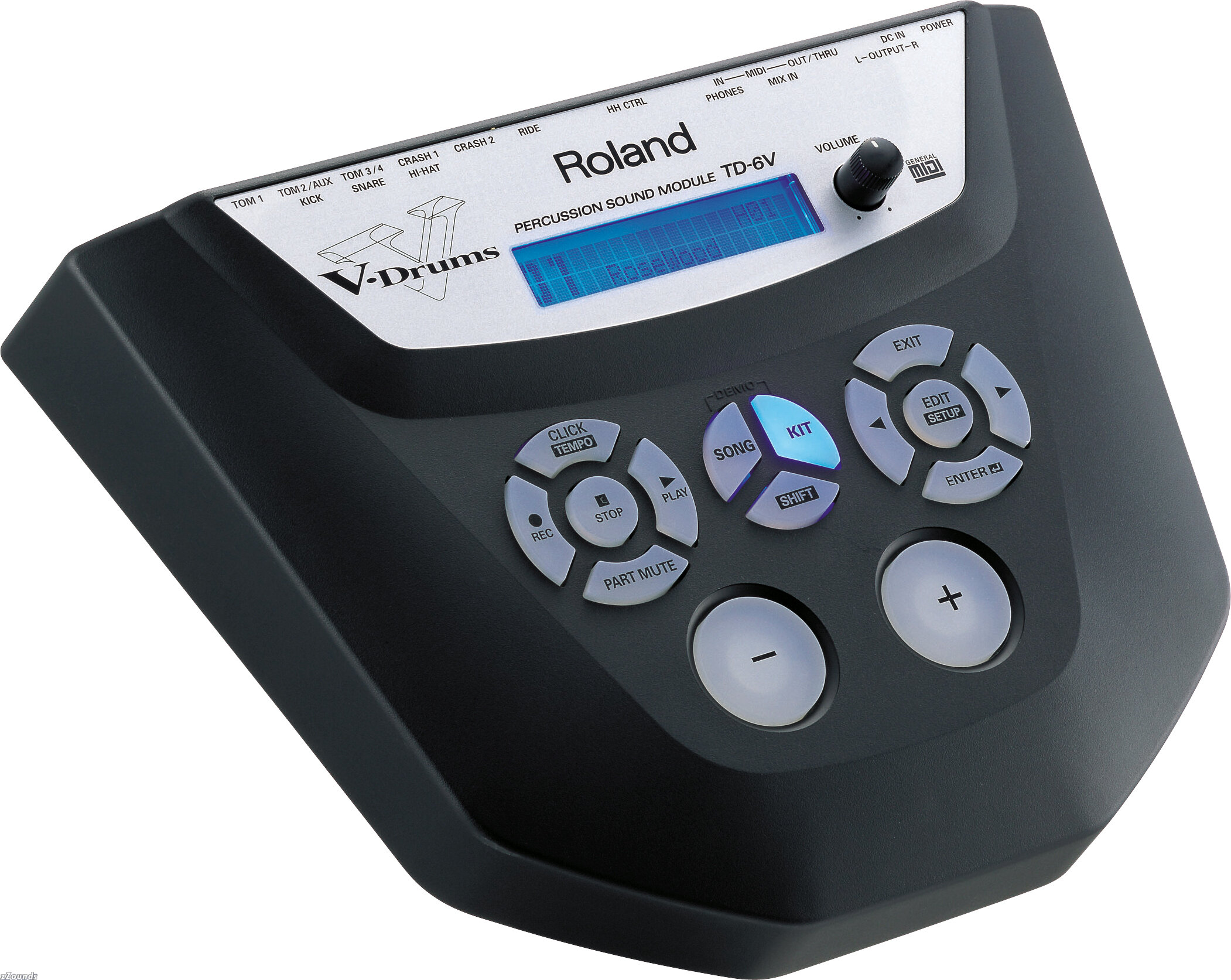

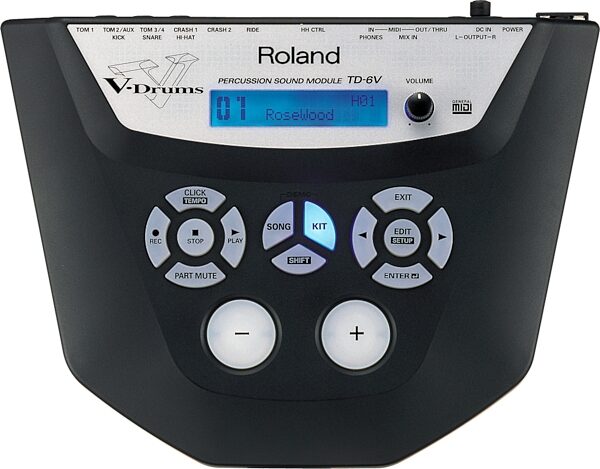

The first thing you'll notice about the TD-6V Percussion Sound Module is the new black look and cool blue LCD screen. Like the original, this 64-voice module serves up 1,024 of Roland's best drum and percussion sounds and 262 backing instruments - but with newly created drum kits and patterns in the latest music styles. Dual-trigger tom inputs allow for rim shots on toms and expanded musical expression, while large, luminous buttons make the TD-6V very easy to use.
Technical Info
TD-6V Module Specifications
Maximum Polyphony: 64 Voices
Instruments:
- Drum Instruments: 1,024
- Backing Instruments: 262
Drum Kits: 99
Effect Types: Ambience, 2-Band Master Equalizer
Sequencer:
- Preset Songs: 170
- User Songs: 100
- Parts: 6
- Play Functions: One shot, Loop, Tap
- Tempo: 20-260
- Resolution: 192 ticks per quarter note
- Recording Method: Realtime Recording
- Maximum Note Storage: approx. 12,000 Notes
Display: 20 characters, 2 lines (backlit LCD)

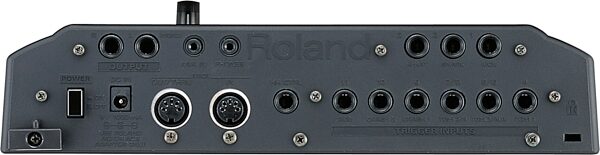

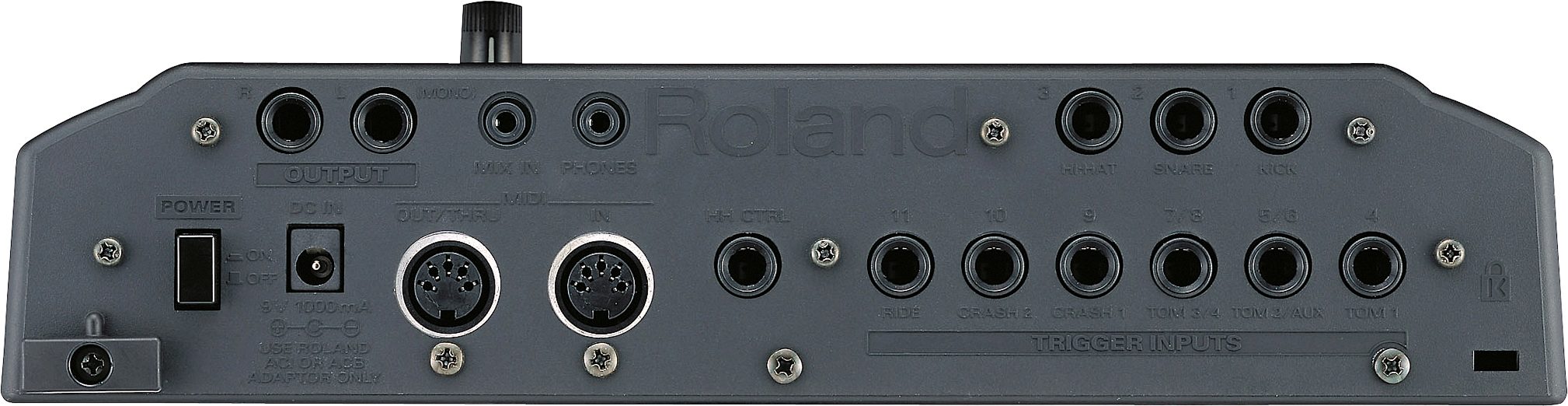

Connectors:
- Trigger Input Jacks: 9 (11 Inputs)
- Hi-Hat Control Jack
- Output Jacks (L/MONO, R)
- Phones Jack (stereo miniature phone type)
- Mix in Jack (stereo miniature phone type)
- MIDI Connectors (IN, OUT/THRU)
Output Impedance: 1 kOhms
Power Supply: AC Adaptor (DC 9 V)
Current Draw: 1,000 mA
Dimensions: 10-1/2 x 7-7/8 x 3 in. (266 x 199 x 75 mm)
Weight: 1.1 kg / 2 lbs 7 oz (excluding AC Adaptor)
Accessories: Owner's Manual, AC Adaptor (ACI/ACB Series), Screws (M5 x 8) x 4
Sixty-four voice drum module with 1,024 excellent drum and percussion sounds, plus 262 backing instruments! Sequencer with 100 user song slots. Nine trigger input jacks; dual-trigger tom inputs; hi-hat control jack. Mix input. Stereo line and headphone outs. MIDI in/out/thru.
