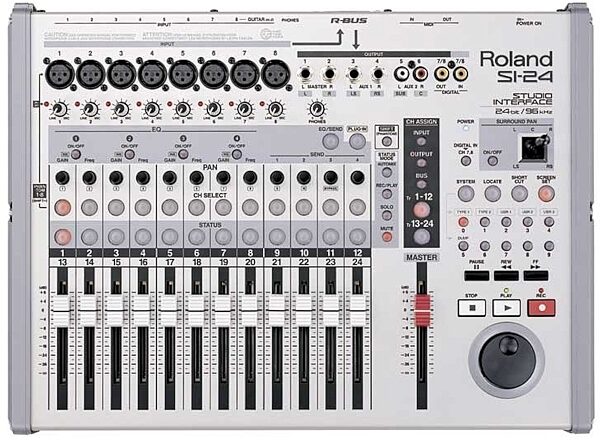

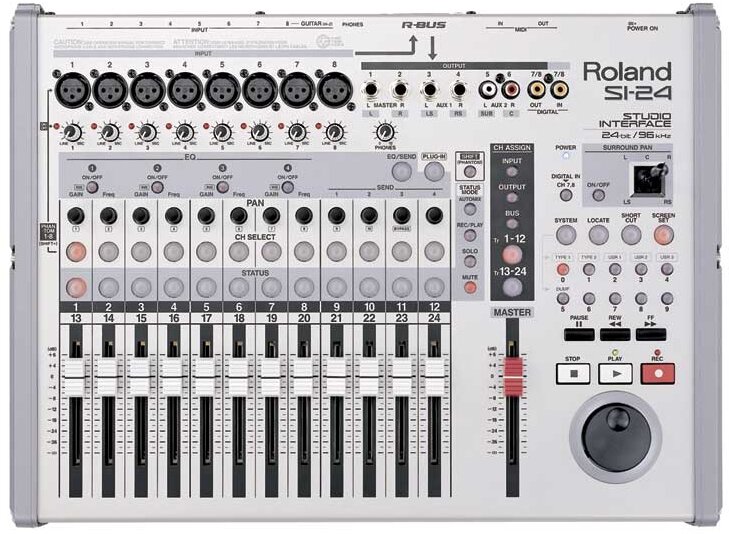

Roland SI24 Studio Interface Control Surface

The SI-24 Studio Interface is the perfect way to expand the analog inputs and mixing capabilities of a VS-2480/2400. This compact mixer and hardware control surface sports 8 XLR inputs with phantom power, which can be routed digitally to the V-Studio using the 8-channel R-BUS port. The SI-24's 13 motorized faders provide additional realtime control when mixing, making the SI-24 a valuable upgrade.

Features:
Compact digital mixer and control surface for use with VS-2480/2400

8 XLR inputs with phantom power and 24-bit/96kHz sound quality

6 analog outputs, plus S/PDIF digital I/O in coaxial and optical formats

13 motorized faders and 12 knobs for additional realtime control when mixing

Route signal to VS-2480/2400 digitally using an 8-channel R-BUS port

Technical Info

Sample Rates: 22.05 kHz, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Frequency Response: 96 kHz: 0 Hz40 kHz (+0/-3 dB), 48 kHz: 20 Hz22 kHz (+0/-3 dB), 44.1 kHz: 20 Hz20 kHz (+0/-3 dB)

Nominal Input Level (variable):
INPUT 1-8 (XLR, TRS): +4 dBu -50 dBu
GUITAR (Hi-Z): +4 dBu -50 dBu

Input Impedance:
INPUT 1-8 (XLR, TRS): 24 k Ohms
GUITAR (Hi-Z): 1 M Ohms

Nominal Output Level:
MASTER: 0 dBu
AUX 1 (L, R): 0 dBu
AUX 2 (L, R): 0 dBu

Output Impedance:
MASTER: 1 k Ohms
AUX 1 (L, R): 1 k Ohms
AUX 2 (L, R): 1 k Ohms
PHONES: 22 Ohms

Recommended Load Impedance:
MASTER: 10 k Ohms or more
AUX 1 (L, R): 10 k Ohms or more
AUX 2 (L, R): 10 k Ohms or more
PHONES: 8?600 Ohms

Residual Noise Level (SENS: LINE, IHF-A, Sampling Rate: 96kHz typ.):
MASTER: -86 dBu or less
AUX 1 (L, R): -86 dBu or less
AUX 2 (L, R): -86 dBu or less

Interface Connectors: Digital I/O: Coaxial (conforms to S/P DIF)

Connectors:
R-BUS Connector
Input Jack 1?8 (1/4 in. TRS phone type)
Input Jack 1-8 (XLR type, balanced, phantom power)
Guitar (Hi-Z) Jack (1/4 in. phone type)
Digital In Connectors (Coaxial type)
Digital Out Connectors (Coaxial type)
Headphones Jack (Stereo 1/4 in. phone type)
Master Out Jack L/R (1/4 in. phone type)
AUX 1 Send Jack L/R (1/4 in. phone type)
AUX 2 Send Jack
L/R (RCA phono type)

Power Supply: AC 117 V, AC 230 V or AC 240 V

Power Consumption: 20W

Dimensions: 446.0 (W) x 326.0 (D) x 103.0 (H) mm, 17-9/16 (W) x 12-7/8 (D) x 4-1/16 (H) in.

Weight: 4.8 kg, 10 lbs. 10 oz.

Accessories: Power supply cable, Owner's manual, Pro Tools mode labels
