Product Description

The Roland Micro Cube RX battery powered modeling guitar amp is small in size and huge on sound! This battery-operated stereo amp delivers a powerful punch at an affordable price.

This compact and road-rugged amp comes equipped with legendary JC-Chorus sound, eight built-in COSM amps, six digital effects, stereo Delay and Chorus, 3-band EQ and a chromatic tuner for perfect intonation. An onboard Rhythm Guide allows players to choose from an assortment of groovin' beats for practice purposes, but more importantly-play-along fun and creative jam sessions.

Thanks to the custom speakers and current amp technology featuring Roland's proprietary drivers, these cutting-edge amps are extremely efficient making them the perfect amp to use when practicing at home. Since the Micro Cube RX can run on battery or AC power, you can take it virtually anywhere.

The dual-purpose Phones/Recording output allows you to plug-in a set of headphones for private practice sessions, or connect directly into a stereo mixer or recording device for accurate and simple signal transfer directly from the Micro Cube RX.

The Micro Cube RX's input lets players plug in a guitar or microphone while the stereo AUX input accepts input from iPods(R), CD players, or musical instruments for signal blending.

AC adaptor is included.

Meet the Micro Cube RX - small, loud, proud, and in true stereo! These little amps overachieve with serious bombast in a small body. You won't believe how much these little amps can deliver through their stereo power amps and recently developed custom speakers, four per RX.

Features

Stereo power amplifiers and four recently developed 4-inch (10cm) speakers

Eight COSM amps, six digital effects

Rhythm Guide function for practical rhythm training

Stereo AUX input for CD/MP3 player, Phones/Recording out

Battery driven (6 x AA, up to 13-hour continuous use)

Compact body with carrying strap

A Prescription for Guitar Tone, Power and Portability

Speaker Tech
Consider them the ultimate compact amps with high-quality, powerful sound. The cutting-edge speakers used in the Micro Cube RX are custom designed and built specially for these amps.

Stereo Power Amps
With two specially made power amps and four speakers, the RX amp produces an immersive, stereo sound that must be heard to be believed. The true stereo engine also allows bass tones that defy the size of the cabinet.

Battery Drive
The Micro Cube RX can run on battery or AC power (AC adapter included).

COSM Amps & Digital Effects
Guitarists and bassists have come to rely on Roland and BOSS for the best effects in the world. The Micro Cube RX benefits from this world-leading technology, offering eight built-in COSM amps, six digital effects, three band EQ, and a chromatic tuner.

Immersive Stereo FX
The Micro Cube RX's onboard stereo effects benefit from Roland's decades of industry-leading R&D. Experience the amazing spatial depth and lush sound of the stereo Chorus and Reverb.

Rhythm Guide
The metronome is a music-student's best friend, but that numbing clank, clank, clank can get irksome. That's where the Micro Cube RX's Rhythm Guide comes in handy. It's like having a drummer inside your amp. Choose from an assortment of groovin' patterns to practice with. Improve your timing while having a more enjoyable musical experience, or just have fun jamming along to the beats.

Outputs
The Phones/Recording output serves two purposes: Plug in a set of headphones and enjoy private practice with lush, stereo sound, or plug directly into a stereo mixer or recording device for accurate signal transfer directly from the Micro Cube RX.

Inputs
The Micro Cube RX's line input lets you plug in a guitar, bass, or microphone. In addition, the stereo AUX input accepts input from an iPod, a CD player, or musical instrument so you can blend its signal with your own. zZounds is an authorized dealer of Roland products.

Amplifier Section
Rated Power Output: 2.5 W + 2.5 W

Nominal Input Level (1 kHz):
- INPUT: -10 dBu
- STEREO AUX IN: -10 dBu
- MONO AUX IN: -10 dBu

Speakers: 10 cm (4 inches) x 4

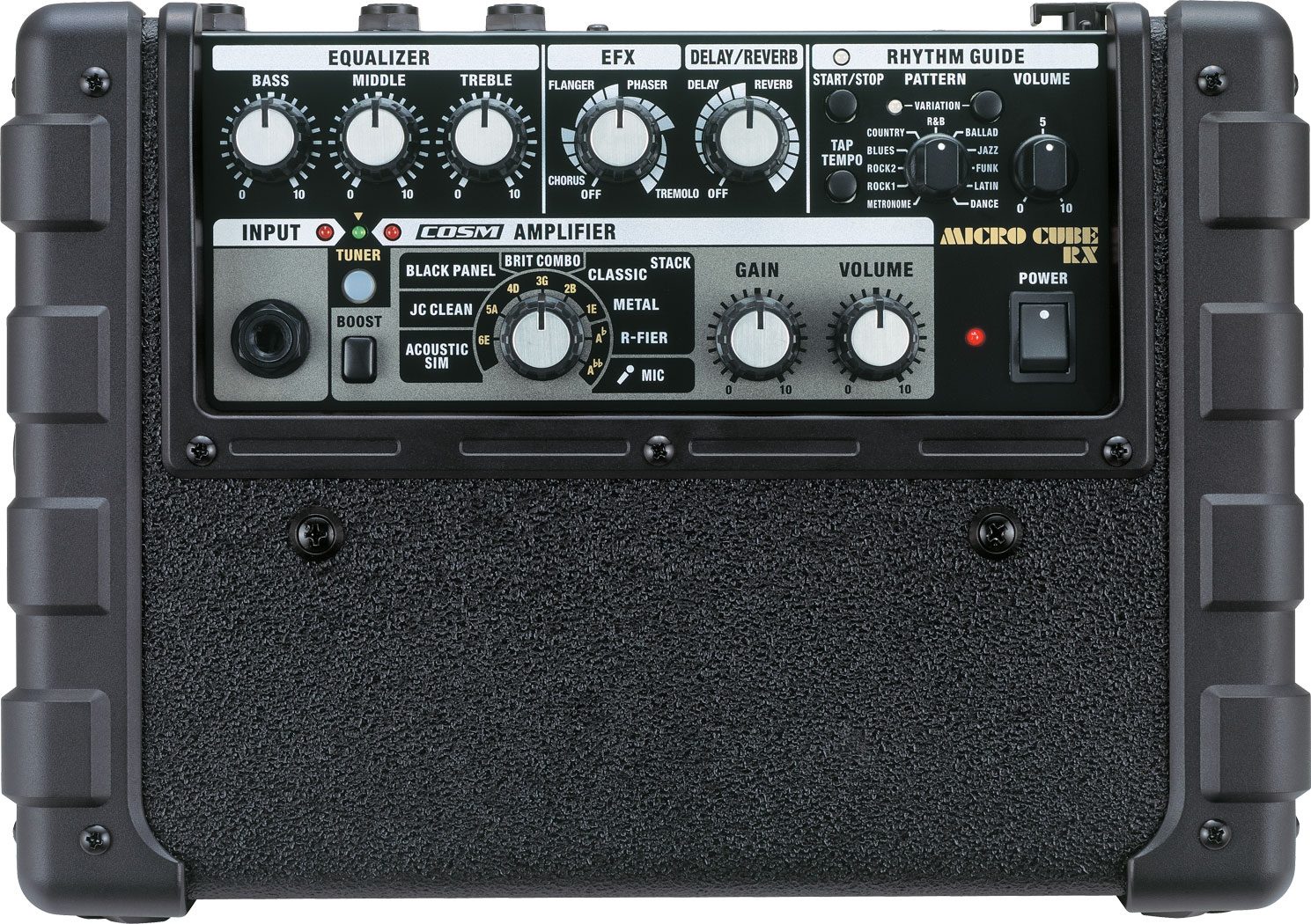

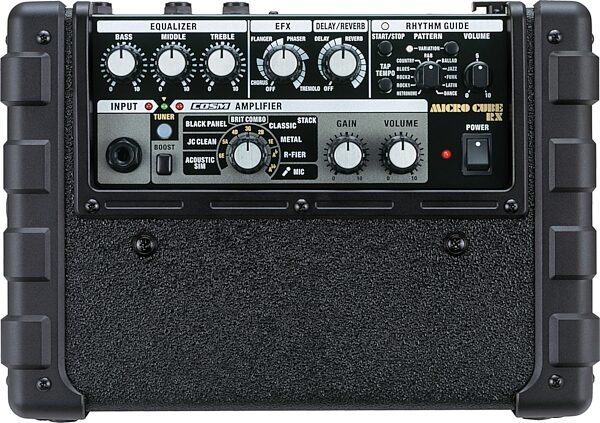

Controls
POWER Switch, TUNER Switch

COSM AMPLIFIER:
- BOOST Switch, TYPE Switch (ACOUSTIC SIM / JC CLEAN / BLACK PANEL / BRIT COMBO / CLASSIC / METAL / R-FIER / MIC), GAIN Knob, VOLUME Knob

EQUALIZER:
- BASS Knob, MIDDLE Knob, TREBLE Knob
- EFX Knob (CHORUS / FLANGER / PHASER / TREMOLO), DELAY/REVERB Knob

RHYTHM GUIDE:
- START/STOP Switch, TAP TEMPO Switch, PATTERN Knob (METRONOME / ROCK1 / ROCK2 / BLUES / COUNTRY / R

Indicators
POWER

TUNER: TUNER, TUNER METER

RHYTHM GUIDE: RHYTHM GUIDE, VARIATION

Others

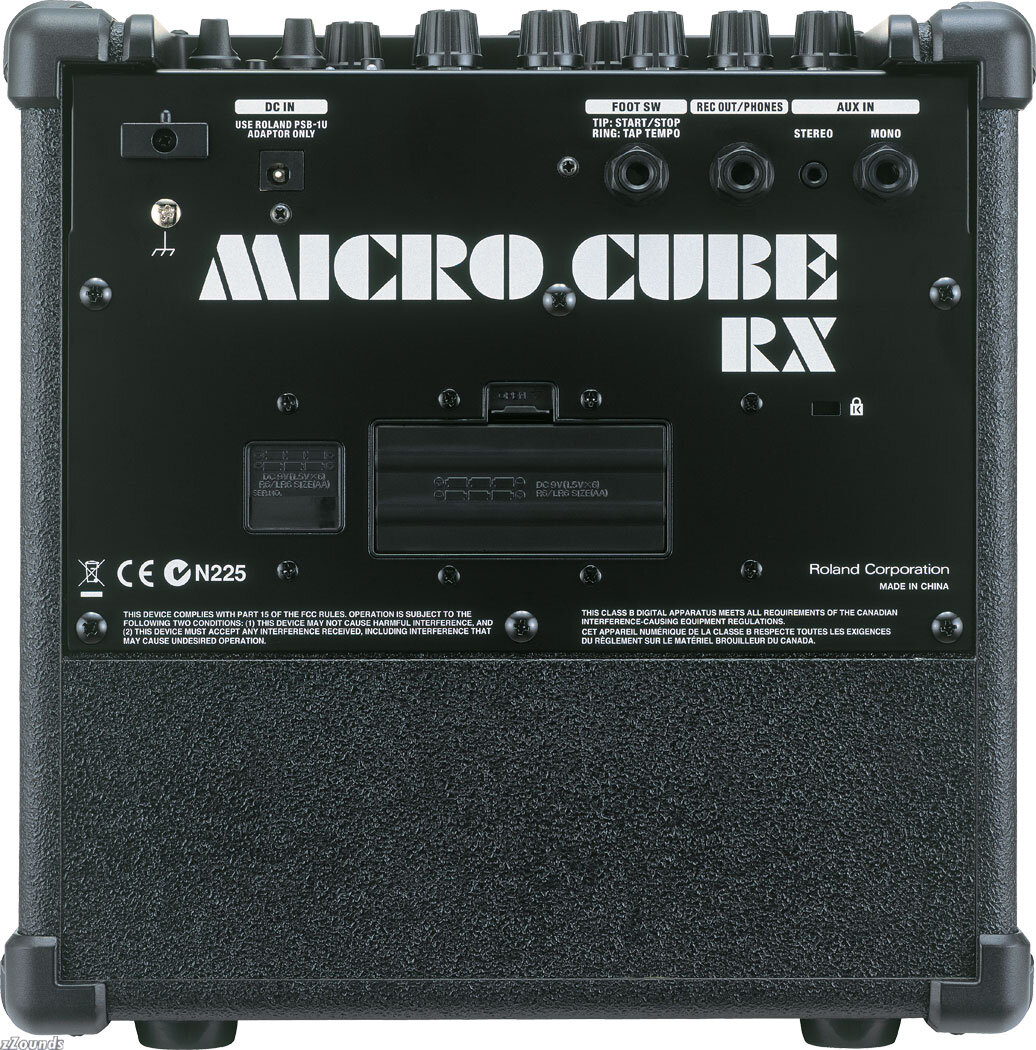

Connectors:
- Input Jack (1/4-inch phone type)
- Foot Switch Jack (1/4-inch TRS phone type)
- STEREO AUX IN Jack (Stereo miniature phone type)
- MONO AUX IN Jack (1/4-inch phone type)
- REC OUT/PHONES Jack (Stereo 1/4-inch phone type)
- AC Adaptor Jack
- Grounding Terminal

Power Supply: DC 9 V: AC Adaptor or Dry battery(*) LR6 (AA) type (alkaline) x 6 *sold separately

Current Draw: 186 mA

Included Accessories:
- Strap
- Power Cord
- AC Adaptor
- Owner's Manual

Options
- Foot Switch (BOSS FS-5U, FS-6)
- Connection Cable (PCS-31)

Size and Weight:
Width: 11-11/16 inches (296 mm)

Depth: 8-3/16 inches (207 mm)

Height: 11-5/8 inches (294 mm)

Weight: 14 lbs. 2 oz. (6.4 kg)

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.

Dimensions and Weight in Packaging

Shipping Weight: 18 lbs

Shipping Dimensions: 16 x 15 x 11 in
